Default Well it'* about time, eh?

Somewhat of a performance topic, but more cosmetic I suppose. This is more of a DIY know-how post anyway.

Finally decided to go after the SC cover on the SLE. I've wanted to mesh it like the SSEi'* for a long time.

I drilled with a 1/4" bit in each corner of each intended cutout, then roughed in with a 3" pneumatic cutoff tool. Finished the rough cuts with a dremel, then used a sanding drum on the dremel (1/4") to finish off each window.

Lightyly sanded and de-greased the entire thing, then used some of the cutout material to re-build my two broken clips and repair a crack:

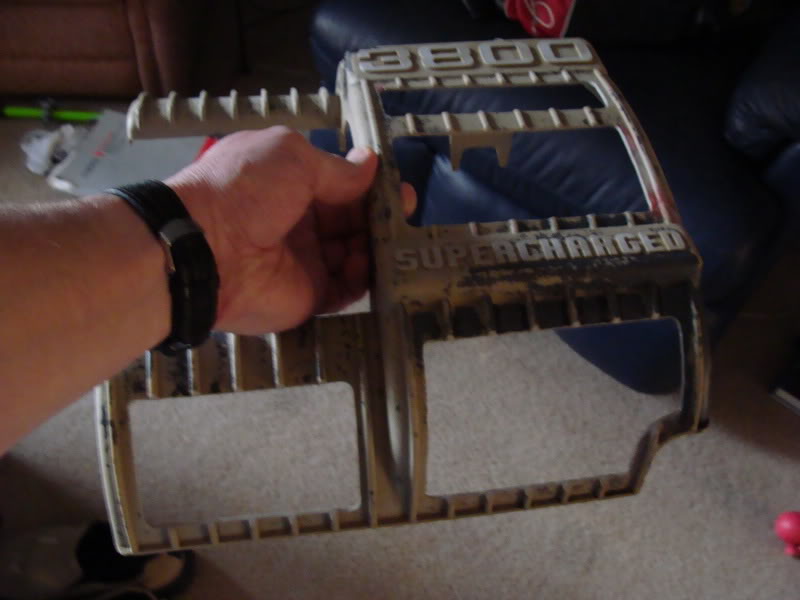

Name:  DSC00343.jpg
Views: 0
Size:  53.2 KB

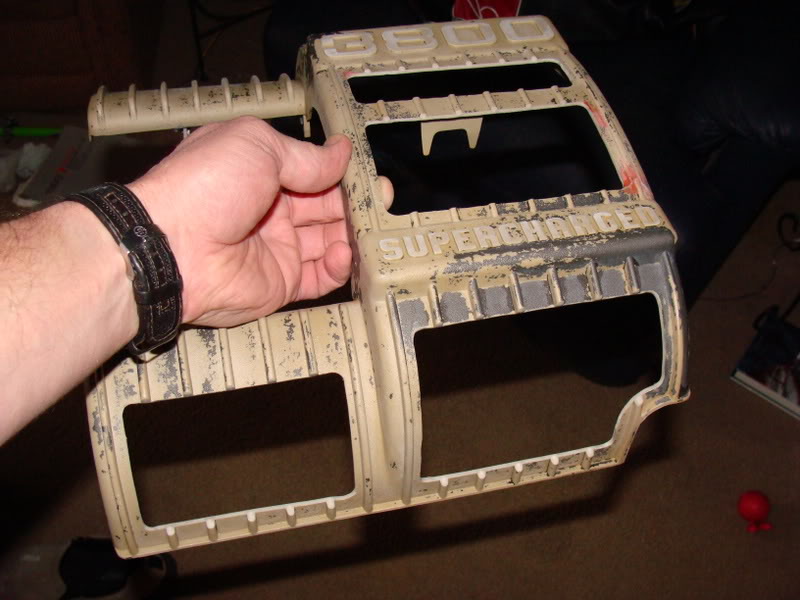

Name:  DSC00344.jpg
Views: 0
Size:  77.8 KB

Name:  DSC00345.jpg
Views: 0
Size:  46.0 KB

Name:  DSC00346.jpg
Views: 0
Size:  44.3 KB

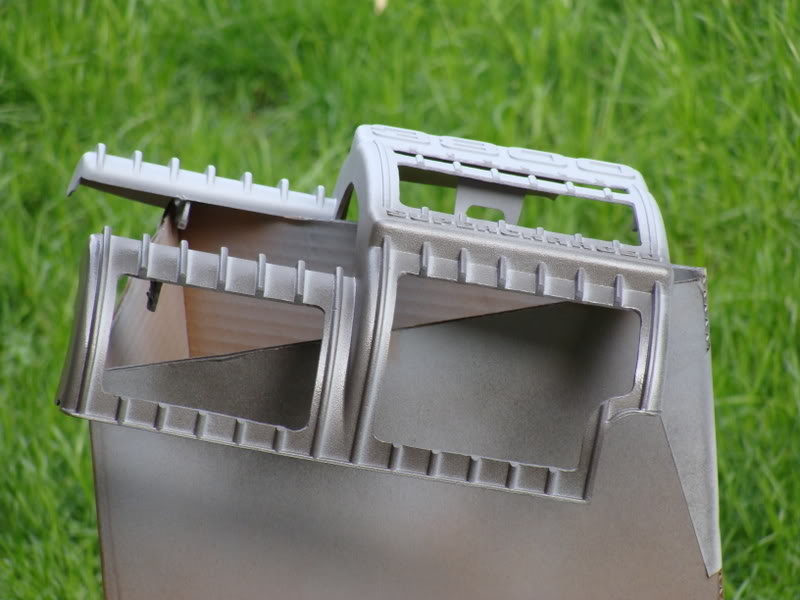

Name:  DSC00347.jpg
Views: 0
Size:  70.0 KB

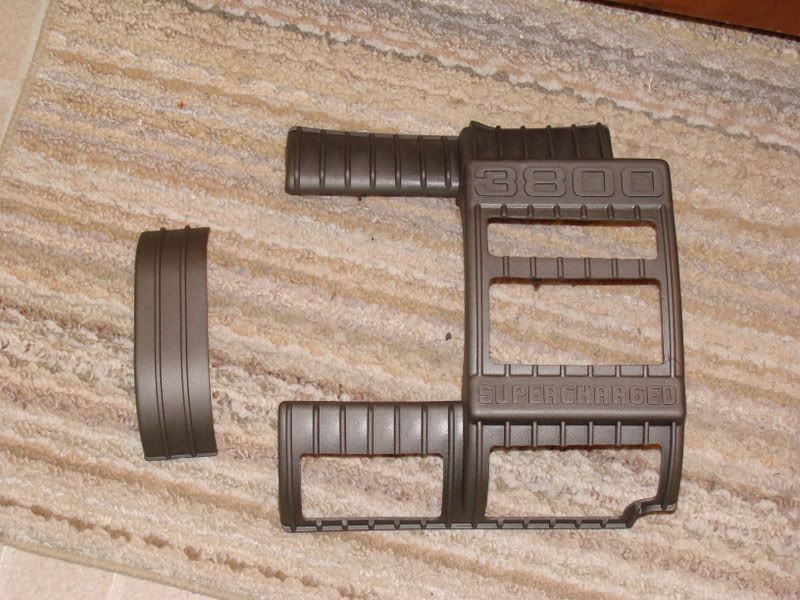

Name:  DSC00348.jpg
Views: 0
Size:  126.4 KB

Tonight I'll wet-sand down the letters and numbers to expose the plastic color, then sand off the overspray underneath where the adhesive has to hold the mesh to the plastic. Then I'll pre-cut and shape each piece of mesh and glue it in.
willwren is offline   Reply With Quote
Old 01-02-2008, 10:46 AM   #2
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

thats like an exact copy of that bill wren dude'* engine cover!

nice work
harofreak00 is offline   Reply With Quote
Old 01-02-2008, 11:33 AM   #3
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

Ya, it is about time, eh

Looks great.
2000SilverBullet is offline   Reply With Quote
Old 01-02-2008, 02:03 PM   #4
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

This mesh will remain bright (no paint), but the same style as the Zilla'* SC cover and hood vent screen.

The hood vent screens may have to go to black soon. I'm not sure they look right bright under dark green.

I'll have to get a pic of that up soon and let you guys decide.
willwren is offline   Reply With Quote
Old 01-02-2008, 02:17 PM   #5
Senior Member
Certified Car Nut

Join Date: Apr 2004
Location: Quincy, Ma
Posts: 15,341
Thanks: 0
Thanked 0 Times in 0 Posts
Gumball is on a distinguished road
Default

nice color Bill
Gumball is offline   Reply With Quote
Old 01-02-2008, 02:29 PM   #6
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

That'* the same 'cast iron' paint I used on the other cover and the Zilla'* current valve covers.
willwren is offline   Reply With Quote
Old 01-02-2008, 11:23 PM   #7
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Did a little more work tonight after work.

Got the lettering wet-sanded off, cut the mesh, and glued it in with 3M exterior trim adhesive/sealant.

Name:  DSC00349.jpg
Views: 0
Size:  64.3 KB

Name:  DSC00350.jpg
Views: 0
Size:  105.9 KB

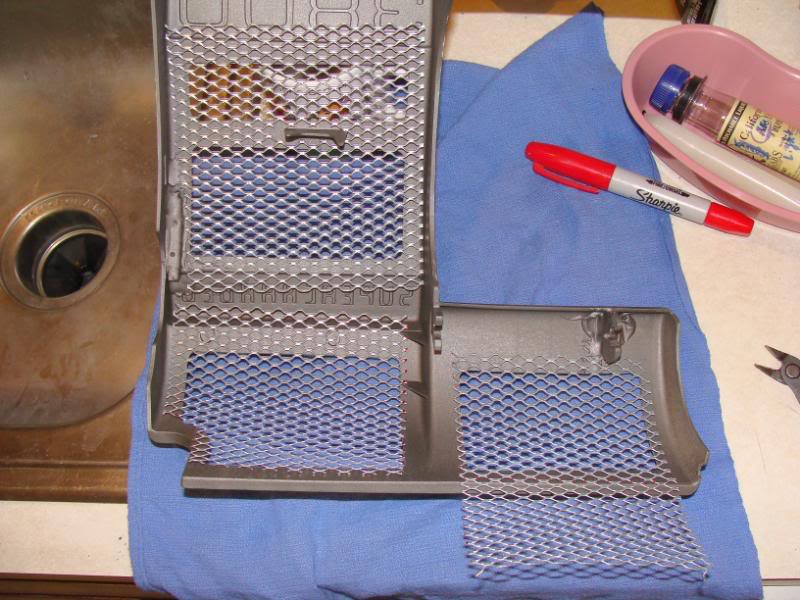

Name:  DSC00351.jpg
Views: 0
Size:  96.5 KB

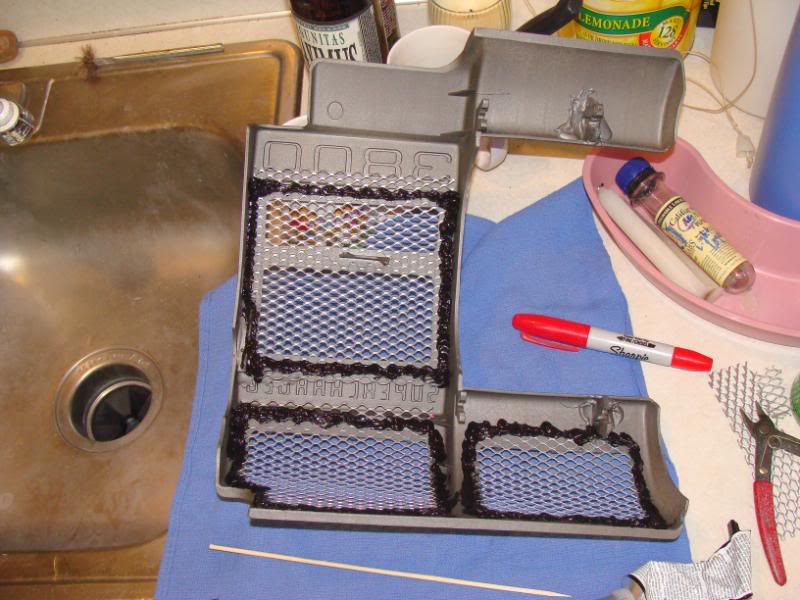

Name:  DSC00352.jpg
Views: 0
Size:  84.4 KB

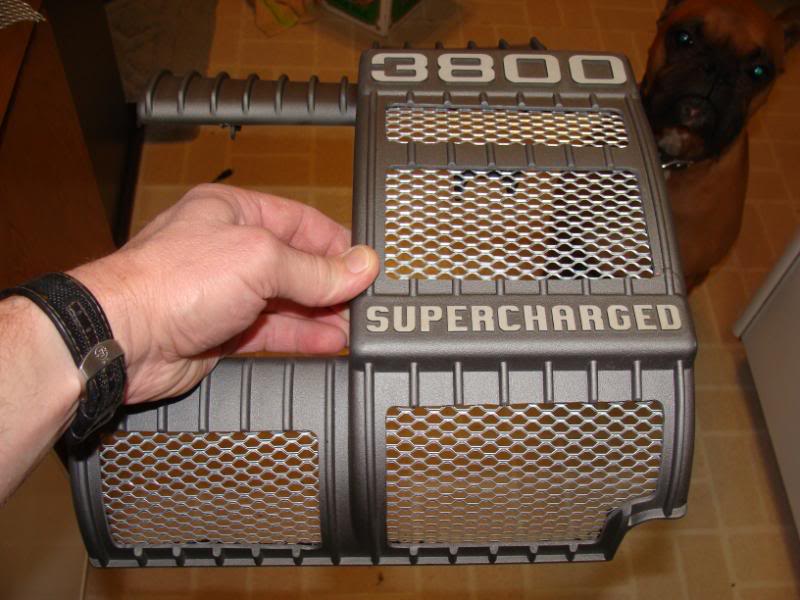

Name:  DSC00353.jpg
Views: 0
Size:  78.8 KB



Looks great, and the air flows through to cool the supercharger just as well as with no cover. This will go well with the black supercharger moving over to the SLE from the Zilla. I'll install this tomorrow morning to 'heat cure' the adhesive after it tacks up tonight.

Another little update coming soon......
willwren is offline   Reply With Quote
Old 01-02-2008, 11:27 PM   #8
Senior Member
Posts like a Camaro

Join Date: Nov 2004
Location: Portage, Michigan
Posts: 1,134
Thanks: 0
Thanked 0 Times in 0 Posts
leftd90 is on a distinguished road
Default

awesome work, wish i had skills like that.
leftd90 is offline   Reply With Quote
Old 01-02-2008, 11:29 PM   #9
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

It'* easy. Really. It'* thin plastic. Trace out what you want, cut and sand, then cut and glue.
willwren is offline   Reply With Quote
Old 01-02-2008, 11:56 PM   #10
Senior Member
True Car Nut

Join Date: Jul 2006
Location: Granville, Ohio ~NEBF '07 Survivor~
Posts: 5,001
Thanks: 0
Thanked 0 Times in 0 Posts
petraman is on a distinguished road
Default

Looks really good, I wish the L36 cover could look that nice...

You said you wet-sanded the lettering down to the original color, but it looks like it'* in a lot better condition. You didn't paint it afterwords, right?
petraman is offline   Reply With Quote
