I noticed a few people asking about retrofits so I thought I'd post my how to on this thread.

I bought an extra set of housings and took them apart as it you were clearing the corners.

The projectors are off a 05 Cadillac sts like so..
2005 OEM Cadillac STS HID Xenon Headlight :eBay Motors (item 270359091246 end time Mar-25-09 15:02:19 PDT)

I got 2 of these housings with one ballast and HID bulb (one was missing) for $80 after shipping.

There is a low beam and high beam projector in each, and yes they are different. The high has a long narrow beam, the lows have a very wide beam.
If you take the same route I have, make sure the high is in the high spot with the cutoff shield on top, and the low is in the low spot with the cutoff shield on bottom. (backwards because it is a reflector)

One projector was HID and one that is halogen but I couldn't tell a huge difference between the two.
It seemed the lense itself was clearer on the HID one, and the reflector was shaped a little different.

When I did research I heard that halogen projectors would look very bad with HID'* but I can hardly tell a difference. I was just going to get some halogen ones until I came across these. I did notice that the cutoff is slightly more blurry and slightly more glare (not nearly as much a stock bonneville housings), but overall either type of projector should work if you wan't to save some money and get halogen projectors.

There is ALOT of cutting required. The projector shrouds in the sts were connected in a metal bracket so if you wanted to aim one you could aim both. So each housing had to be cut to make it look presentable and then I painted them after.



Overall it was somewhat easy aiming them and such but the only thing that sucked was cutting the sts housing apart.
But worth it I love the look.



Started with this

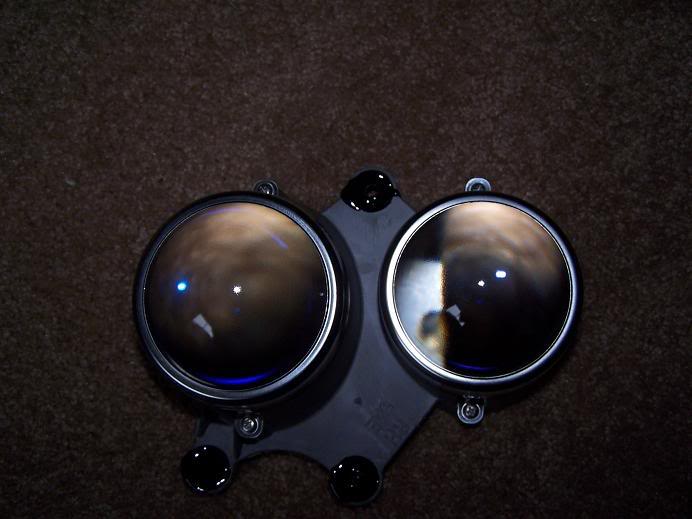

Inside you will find this

Name:  102_0980.jpg
Views: 8
Size:  42.5 KB

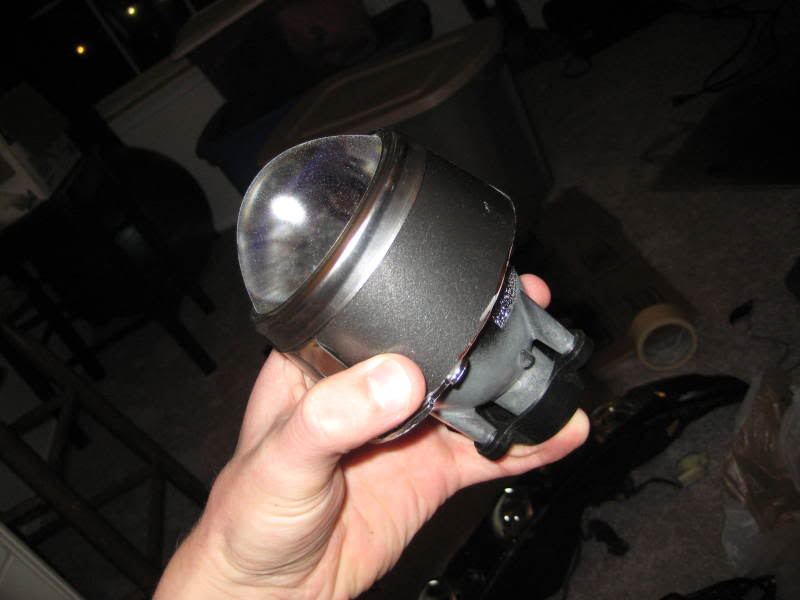

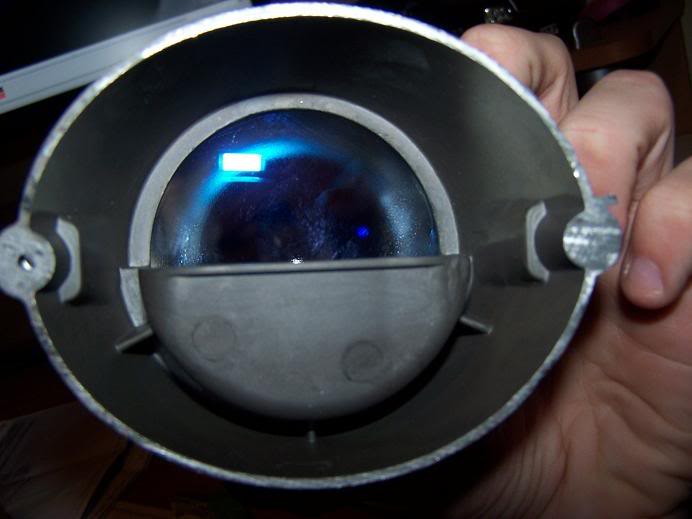

Most projectors come separately but if you choose to use these projectors, (I did because of cost and not wanting to buy shrouds), you will obviously need to cut the two housings apart, giving you this
Name:  102_0988.jpg
Views: 5
Size:  39.7 KB
Name:  102_0987.jpg
Views: 6
Size:  33.6 KB
Name:  IMG_0383.jpg
Views: 7
Size:  37.7 KB

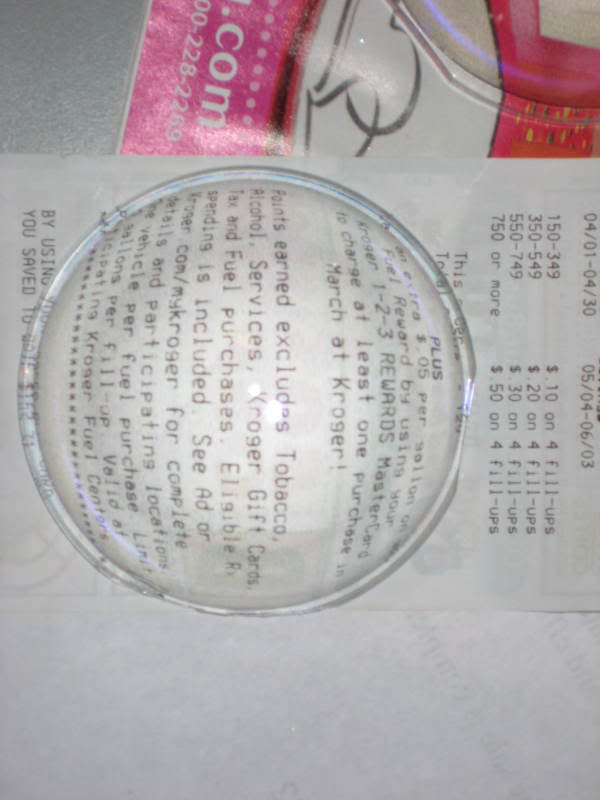

I noticed that the HID lenses (low beam) are perfectly clear and the halogen (high beam) are slightly blurry. Hard to notice in pics.
Did some research and apparently the clearer the lens the sharper the cutoff.
Name:  IMG_0406.jpg
Views: 6
Size:  44.7 KB

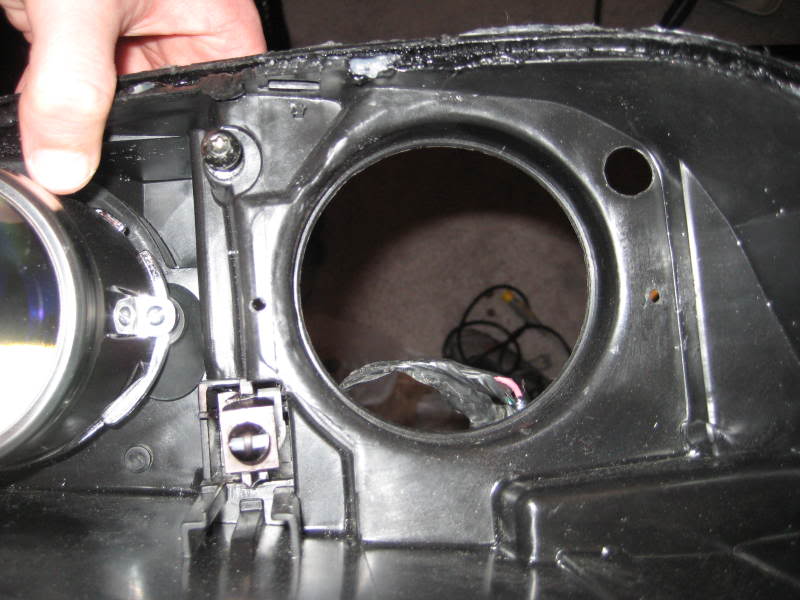

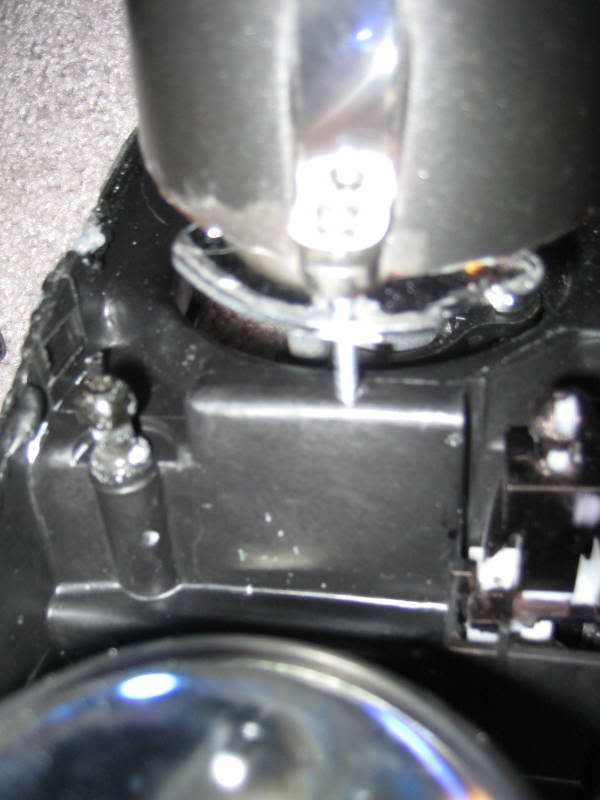

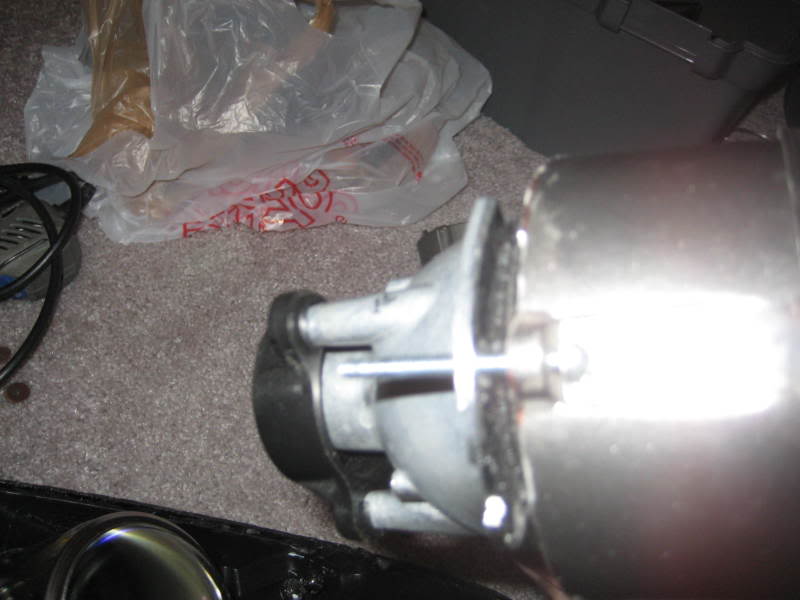

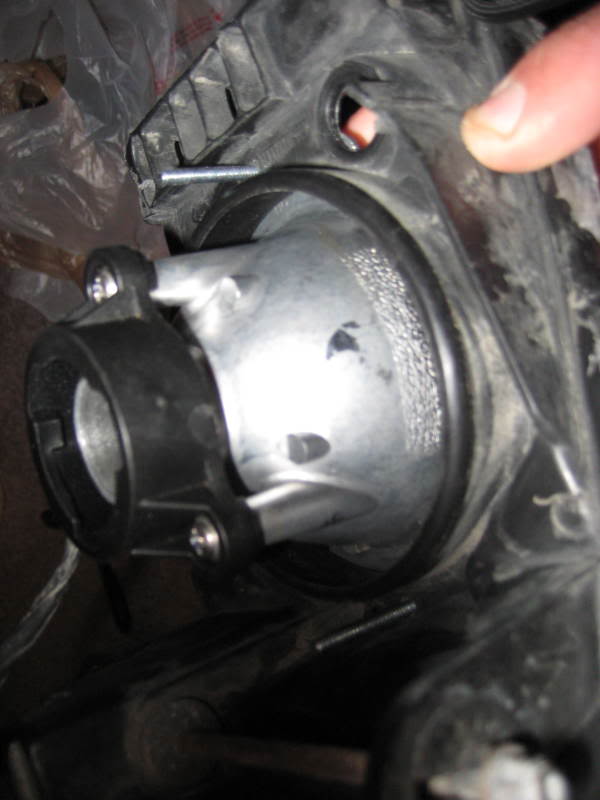

The stock reflector just pops out with a little force and I mounted the projector directly to the back of housing
Name:  IMG_0390.jpg
Views: 7
Size:  63.9 KB
Name:  IMG_0393.jpg
Views: 6
Size:  44.2 KB
Name:  IMG_0394.jpg
Views: 8
Size:  45.1 KB
Name:  IMG_0395.jpg
Views: 8
Size:  42.2 KB

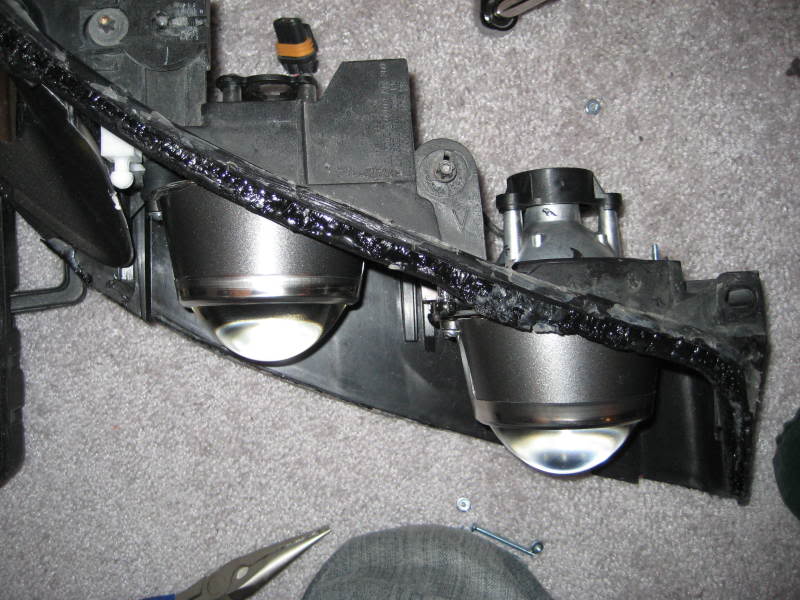

Here are both in, keep in mind all the space around the projector it hidden by the stock housing lens and black shroud inside it.
Name:  IMG_0397.jpg
Views: 7
Size:  80.5 KB

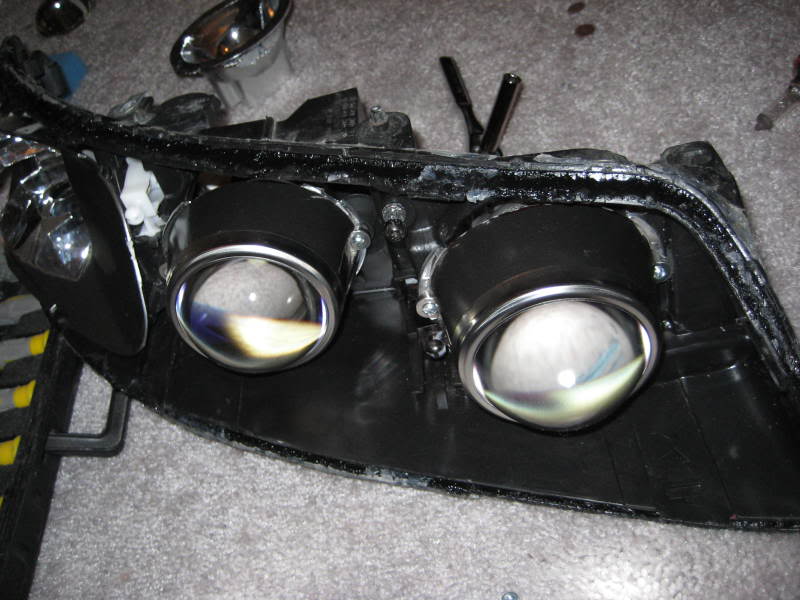

Name:  IMG_0398.jpg
Views: 8
Size:  68.3 KB

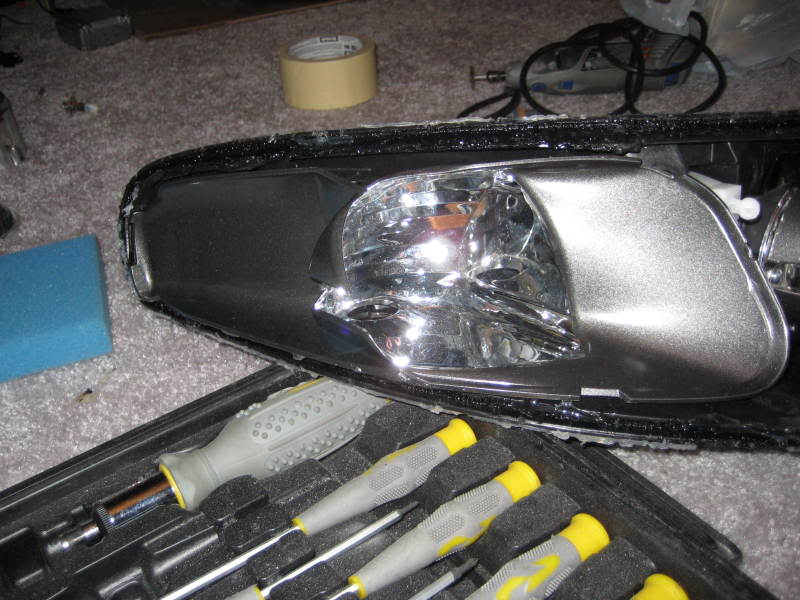

Painted part of turn signal reflector to match wheels and make it not so shiny.
Name:  IMG_0400.jpg
Views: 6
Size:  78.2 KB


My circuit, the Caddy lights came with HID bulb and Phillips HID ballast for lows and H11 halogen high beam bulb.
Name:  IMG_0410.jpg
Views: 7
Size:  66.4 KB

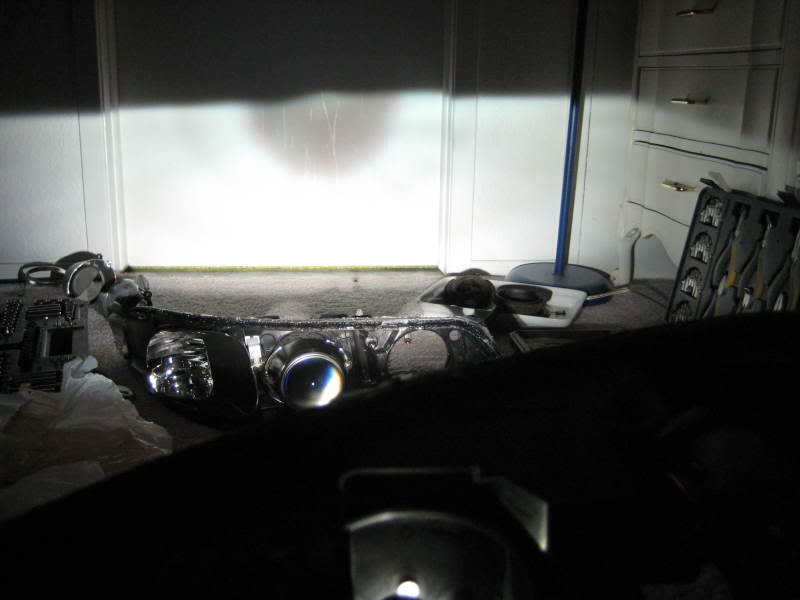

Low beam cutoff
Name:  IMG_0385.jpg
Views: 6
Size:  35.1 KB

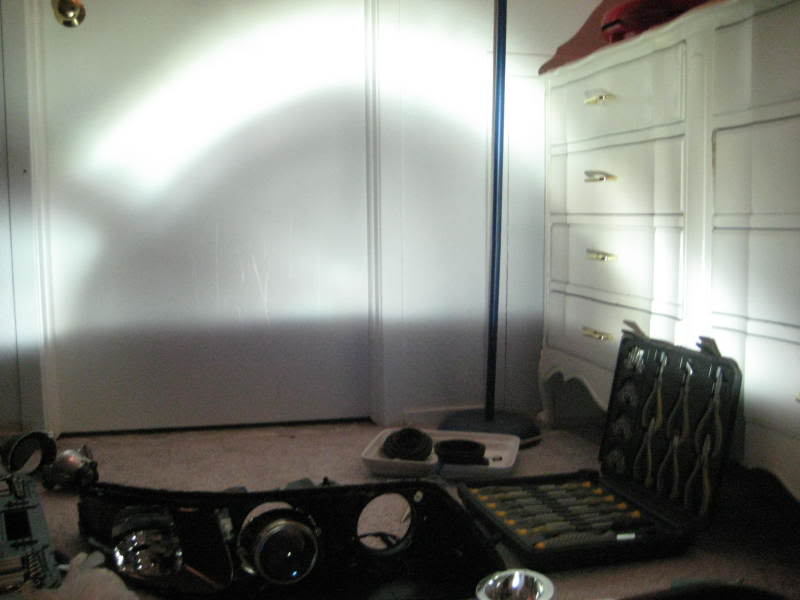

High beam cutoff
Name:  IMG_0388.jpg
Views: 8
Size:  38.2 KB

Finished


I also put some LED strips in there. I tried angle eyes but they ended up being too deep and the stock housing wouldn't fit back together.

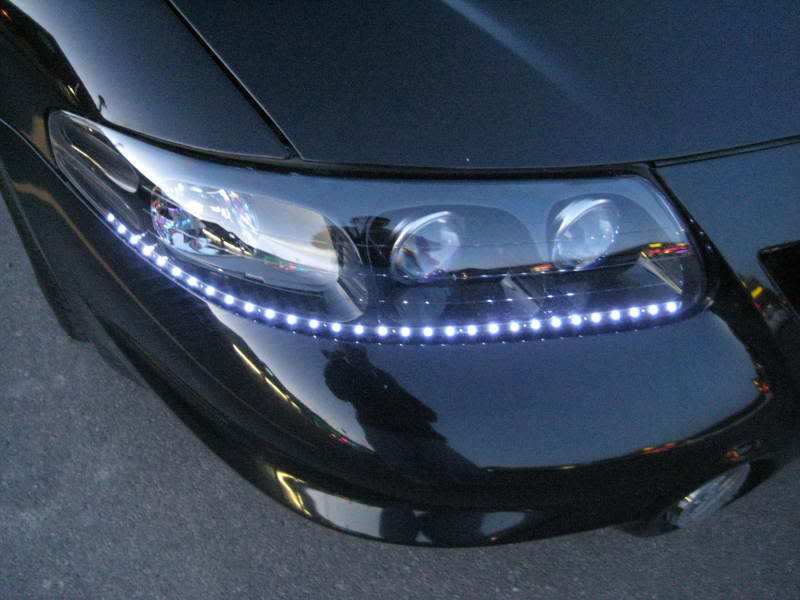

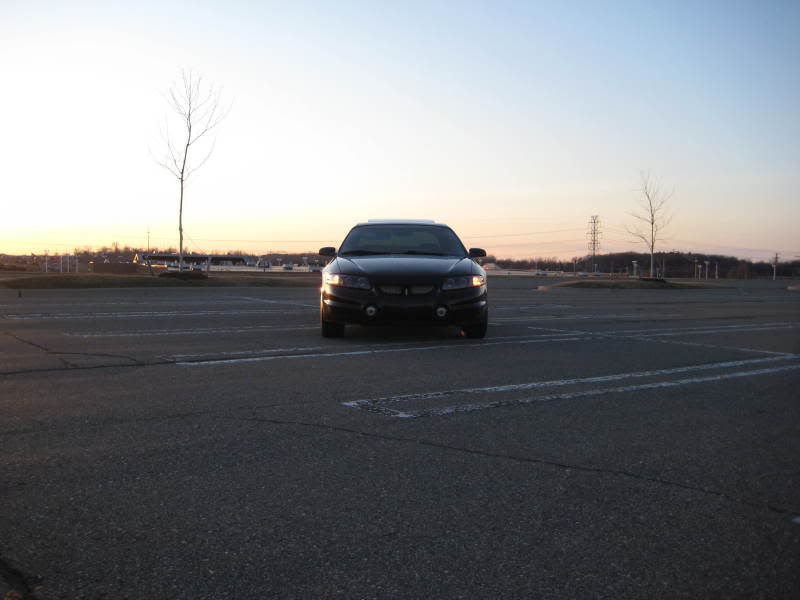

Pics on car.


Name:  IMG_0146.jpg
Views: 6
Size:  51.1 KB
Name:  IMG_0161-1.jpg
Views: 6
Size:  66.9 KB
Name:  IMG_0174-1.jpg
Views: 7
Size:  56.2 KB
Name:  IMG_0156-1.jpg
Views: 7
Size:  36.0 KB
looong4 is offline   Reply With Quote
Old 05-29-2009, 11:26 AM   #2
Senior Member
Posts like a Corvette

crunkfrunk's Avatar

Join Date: Jun 2008
Location: Cleveland, OH
Posts: 1,389
Thanks: 0
Thanked 0 Times in 0 Posts
crunkfrunk is on a distinguished road
Default

very nicely done, I did the same thing for a regal minus the high beam projector, but the LED strips add a nice effect, like an Audi
crunkfrunk is offline   Reply With Quote
Old 05-29-2009, 11:30 AM   #3
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Very nice. Mind if we put that in the tech info area for others to use?
Danthurs is offline   Reply With Quote
Old 05-29-2009, 11:58 AM   #4
Senior Member
Posts like a Camaro
Thread Starter

looong4's Avatar

Join Date: Dec 2002
Location: Holly, Michigan
Posts: 1,181
Thanks: 0
Thanked 0 Times in 0 Posts
looong4 is on a distinguished road
Default

Thanks, and yes please do, I put it here to help.
looong4 is offline   Reply With Quote
Old 05-29-2009, 12:48 PM   #5
Senior Member
Posts like a Northstar

Nobotada84's Avatar

Join Date: Apr 2009
Location: Indianapolis, Indiana
Posts: 699
Thanks: 0
Thanked 0 Times in 0 Posts
Nobotada84 is on a distinguished road
Default

what length/size LED strips did u use for this particular install?
Nobotada84 is offline   Reply With Quote
Old 05-29-2009, 01:09 PM   #6
Senior Member
Posts like a Turbo

judgemikdredd's Avatar

Join Date: Mar 2009
Location: Clawson, Michigan
Posts: 478
Thanks: 0
Thanked 0 Times in 0 Posts
judgemikdredd is on a distinguished road
Default

do you have the led'* on a seprate switch?
judgemikdredd is offline   Reply With Quote
Old 05-29-2009, 04:33 PM   #7
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I really like those LEDs, I'll have to see what I can do about adding that.
Danthurs is offline   Reply With Quote
Old 05-29-2009, 09:59 PM   #8
Senior Member
Posts like a Camaro
Thread Starter

looong4's Avatar

Join Date: Dec 2002
Location: Holly, Michigan
Posts: 1,181
Thanks: 0
Thanked 0 Times in 0 Posts
looong4 is on a distinguished road
Default

You should be able to hook the leds to parking lights or obviously to a seperate switch, you just need to run a wire.
The are 60mm and are off ebay.
On the 00+ housings they fit right in, they are very thin, but are also flimsy as well.
looong4 is offline   Reply With Quote
Old 06-01-2009, 05:25 AM   #9
Senior Member
Posts like a Northstar

Nobotada84's Avatar

Join Date: Apr 2009
Location: Indianapolis, Indiana
Posts: 699
Thanks: 0
Thanked 0 Times in 0 Posts
Nobotada84 is on a distinguished road
Default

Quote:
Originally Posted by looong4 View Post
You should be able to hook the leds to parking lights or obviously to a seperate switch, you just need to run a wire.
The are 60mm and are off ebay.
On the 00+ housings they fit right in, they are very thin, but are also flimsy as well.
when u say flimsy, im assuming u used the ribbon strips, and not the regular LED strip that comes in the clear plastic housing right?
Nobotada84 is offline   Reply With Quote
Old 06-01-2009, 12:20 PM   #10
Senior Member
Posts like a Camaro
Thread Starter

looong4's Avatar

Join Date: Dec 2002
Location: Holly, Michigan
Posts: 1,181
Thanks: 0
Thanked 0 Times in 0 Posts
looong4 is on a distinguished road
Default

yes the ribbon kind, I actually had one break because it was cold and snapped in half when I tried to bend it. They look good but 2 of the 4 I got were broke.
