Alright, so I've been slowly working on retro-fitting a set of HID Projector'* into an extra set of Bonneville headlamps (thanks Haro!). I have all the parts (well, I still gotta make myself a heavy duty headlamp harness, but that won't take me that long to do). But.... I'm kinda stuck right now as far as how I want the Projectors to sit in my stock housing. I can go two routes, you can see in the pictures below.

The first way is to mount the projector from behind and bring it through. To me, this looks better aesthetically, and will be MUCH easier to finish up. The bad part is, a lot more fab work will need to be done. I will have to cut out the back of the housing to accomodate the rear end of the projector, then seal it up somehow.
Name:  IMG_2323.jpg
Views: 1
Size:  92.8 KB
Name:  IMG_2324.jpg
Views: 1
Size:  97.4 KB

The next way is the mount the projector from the front side. Might be a bit tougher to look good though, but I won't have to modify the housing.

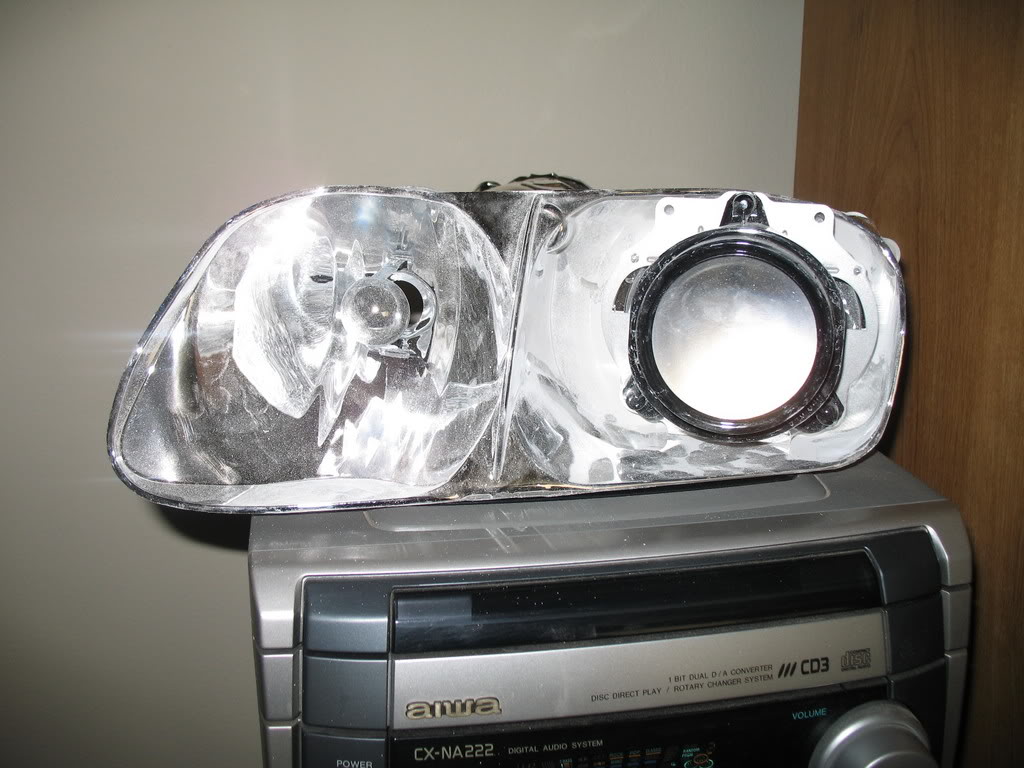

Name:  IMG_2325.jpg
Views: 1
Size:  116.0 KB


Any input is appreciated, as long as you know what your talking about!

Thanks!
slick94prix is offline   Reply With Quote
Old 04-23-2007, 02:57 PM   #2
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

mount it from the Back....
1993 SLE is offline   Reply With Quote
Old 04-23-2007, 03:05 PM   #3
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Mar 2007
Location: Maumee, OH
Posts: 529
Thanks: 0
Thanked 0 Times in 0 Posts
slick94prix is on a distinguished road
Default

Also, if I mount it from the front, I will have to modify it up a bit more to get it to fit in more. Otherwise, the lense would hit the projector.

I think I will mount it from the back no matter what.
slick94prix is offline   Reply With Quote
Old 04-23-2007, 04:19 PM   #4
Senior Member
True Car Nut

Join Date: Jun 2004
Location: Rochester, NY (college)
Posts: 6,182
Thanks: 0
Thanked 0 Times in 0 Posts
corvettecrazy is on a distinguished road
Default

mount in inbetween your 2 options. There are TONS of different ways to make good looking bezels to hide everything.

I would make it so it fits but you dont have to modify the stock housing.


What projector is that btw?

I would also suggest removing the bulb while you work on the light so you dont risk hurting it.
corvettecrazy is offline   Reply With Quote
Old 04-23-2007, 04:21 PM   #5
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Mar 2007
Location: Maumee, OH
Posts: 529
Thanks: 0
Thanked 0 Times in 0 Posts
slick94prix is on a distinguished road
Default

Got links to different bezels?
slick94prix is offline   Reply With Quote
Old 04-23-2007, 04:36 PM   #6
Senior Member
True Car Nut

Join Date: Jun 2004
Location: Rochester, NY (college)
Posts: 6,182
Thanks: 0
Thanked 0 Times in 0 Posts
corvettecrazy is on a distinguished road
Default

Quote:
Originally Posted by slick94prix
Got links to different bezels?
yes and no.

Bezels are as creative as your mind.

Common bezel creation items:
dog bowls
small mixing bowls
PVC connectors/reducers/etc
different plastic ware
bottles
etc
etc

The choices for bezels are endless, and really comes down to what you like. there are lots of different OEM bezels too. BMW makes all sorts of bezels due to their different HL designs.
corvettecrazy is offline   Reply With Quote
Old 04-23-2007, 06:58 PM   #7
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Mar 2007
Location: Maumee, OH
Posts: 529
Thanks: 0
Thanked 0 Times in 0 Posts
slick94prix is on a distinguished road
Default

Heh, wow, some people are creative!

I'll think of something good.

Here'* some updated picture of both views.

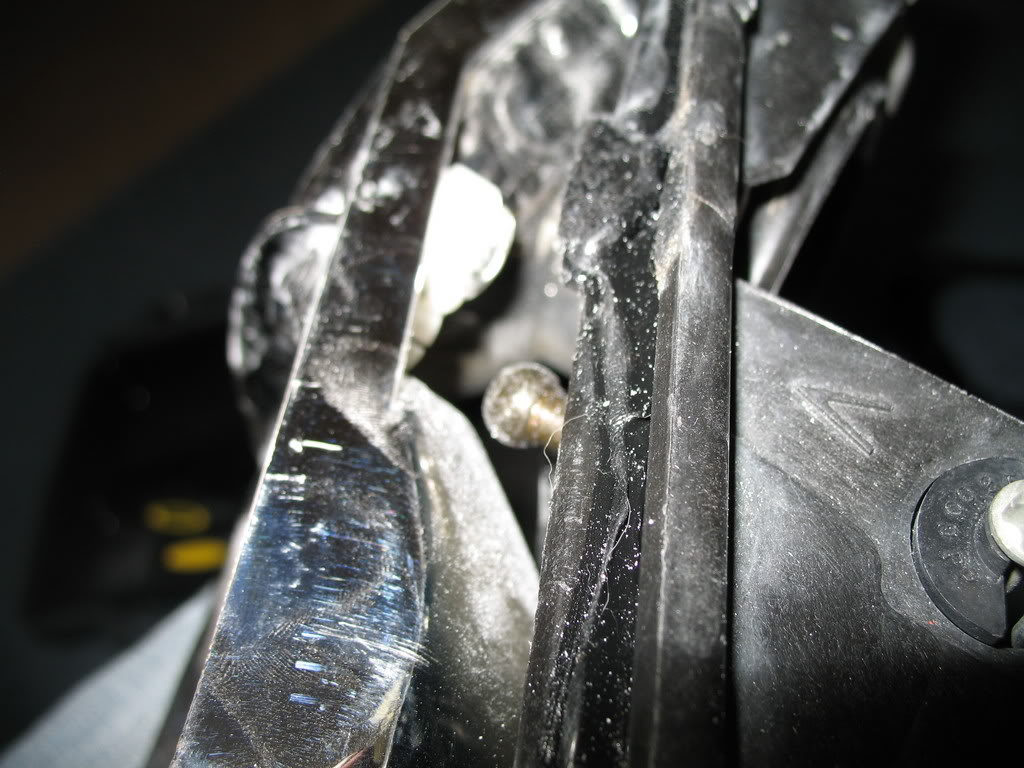

These first couple are the from behind method. The hole will have to be widened considerably, but otherwise not much else would have to be done to get it to fit good, and would be a bit easier to mount up! I would paint the entire area for the projector flat black.

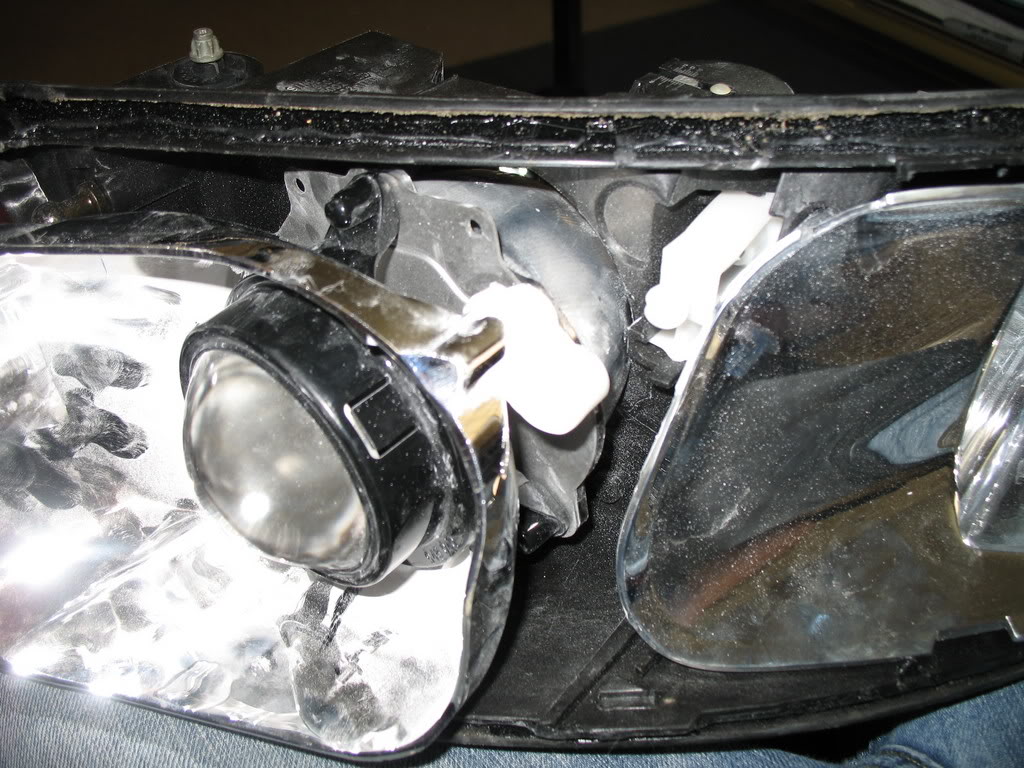

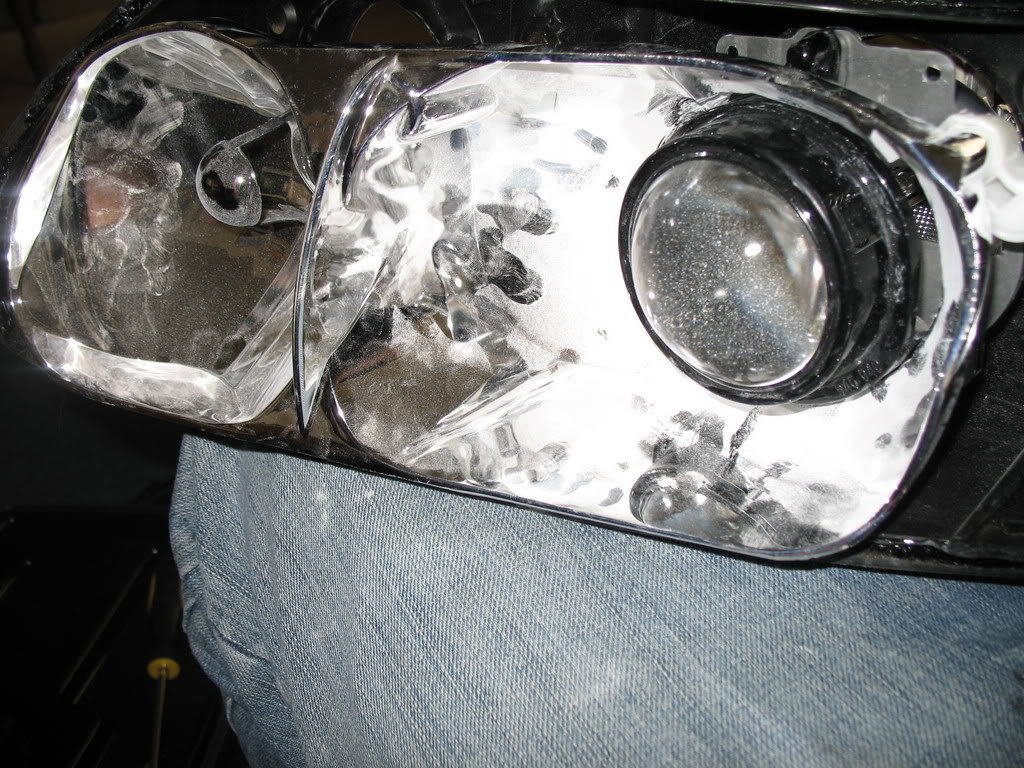

Name:  IMG_2331.jpg
Views: 1
Size:  164.5 KB
Name:  IMG_2332.jpg
Views: 1
Size:  199.8 KB
Name:  IMG_2333.jpg
Views: 1
Size:  126.2 KB

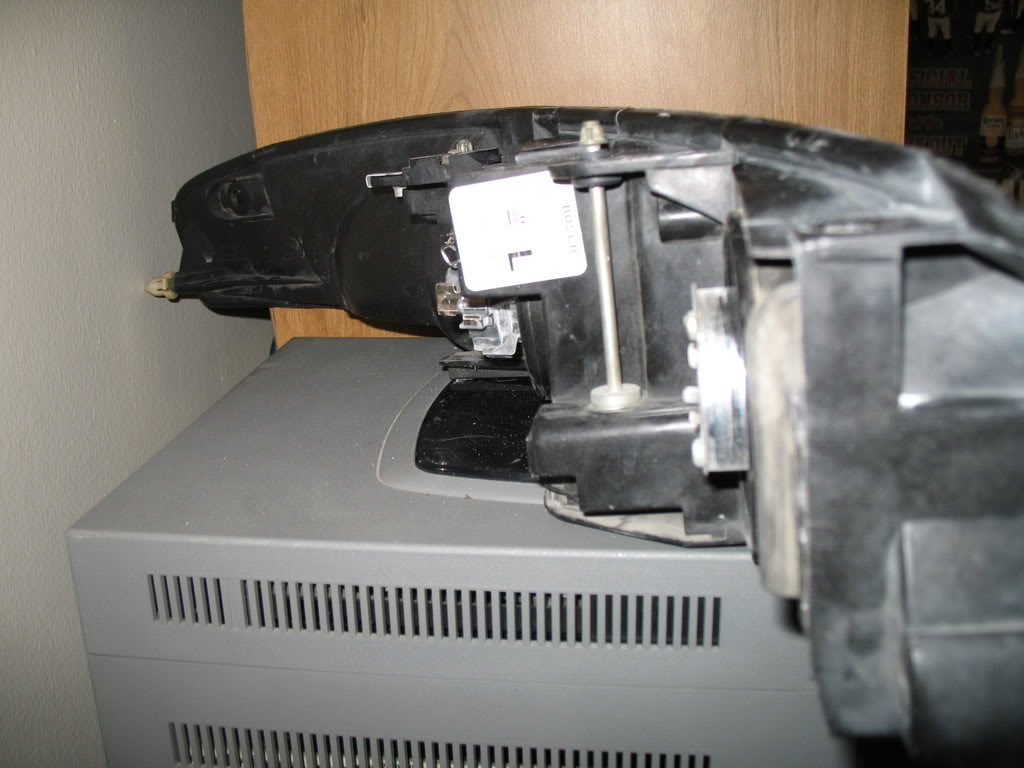

This is from the front method. Everything fits and can go back together right now! But... then I'd be stuck making some sort of bezel

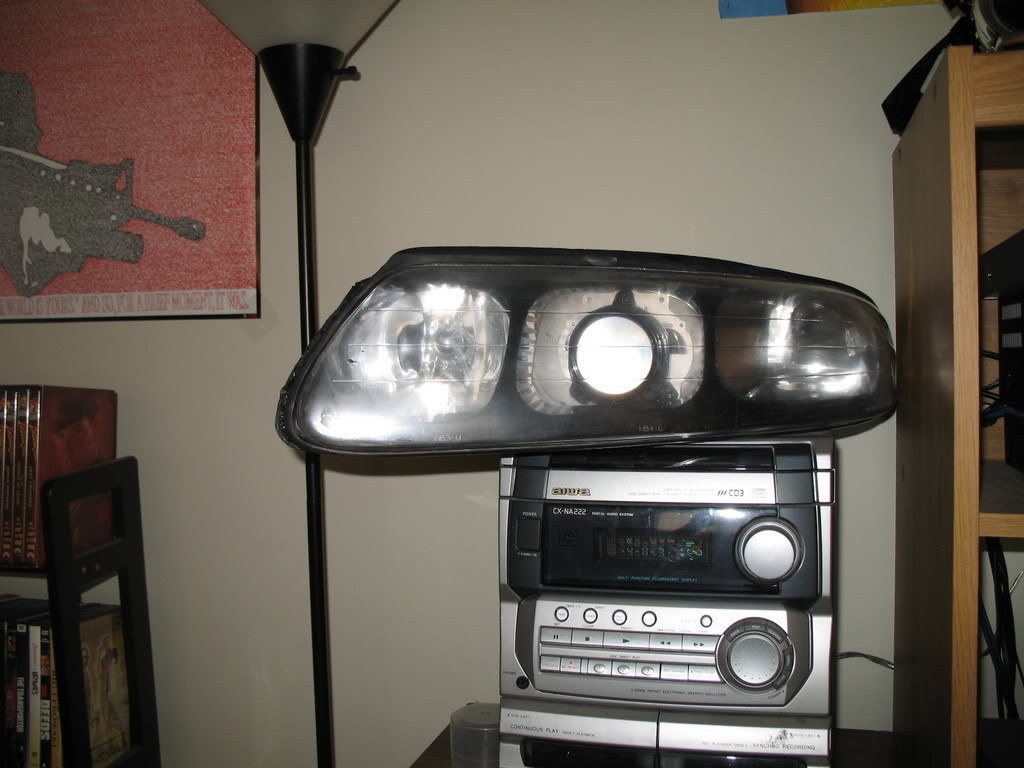

Name:  IMG_2330.jpg
Views: 1
Size:  95.8 KB
Name:  IMG_2329.jpg
Views: 1
Size:  88.9 KB
Name:  IMG_2328.jpg
Views: 1
Size:  121.9 KB

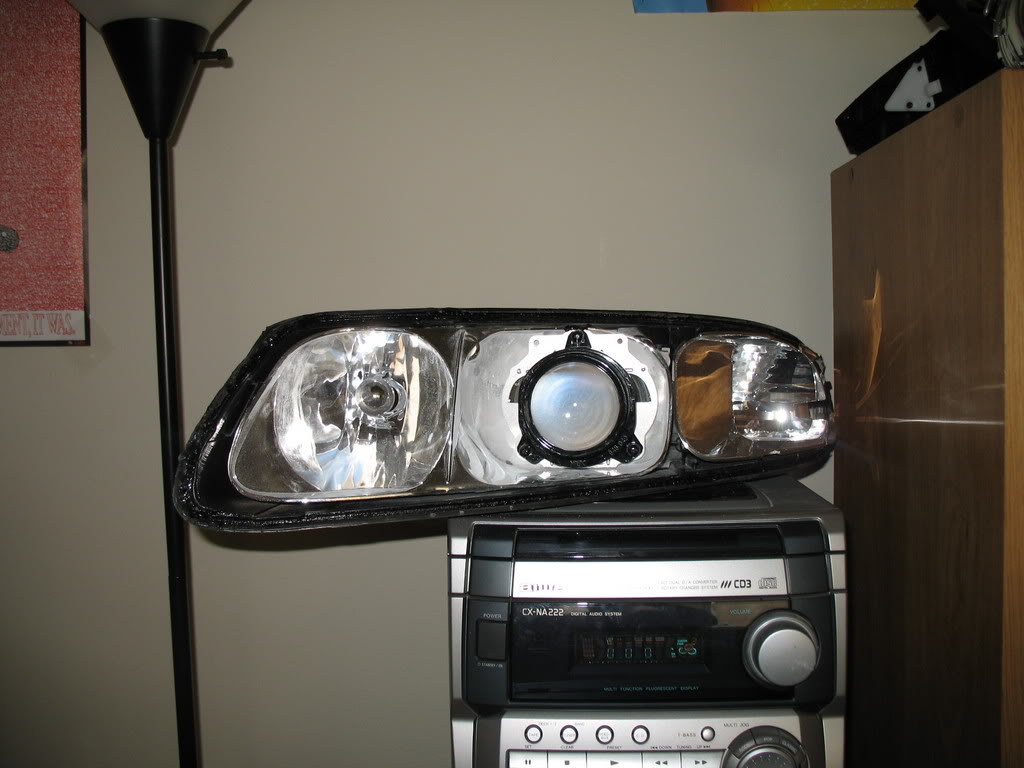

Name:  IMG_2327.jpg
Views: 1
Size:  90.9 KB




BTW, whats a good way to clean off this old RTV thats on here? Theres an insane amount of it on here. Not sure if it came from the factory like this, or if the headlamps were apart before. But, it needs cleaned off, bad.
slick94prix is offline   Reply With Quote
Old 04-23-2007, 07:08 PM   #8
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Mar 2007
Location: Maumee, OH
Posts: 529
Thanks: 0
Thanked 0 Times in 0 Posts
slick94prix is on a distinguished road
Default

I think I'm still gonna go from behind, just for the simple fact it looks 1000000x better.
slick94prix is offline   Reply With Quote
Old 04-25-2007, 12:43 AM   #9
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Mar 2007
Location: Maumee, OH
Posts: 529
Thanks: 0
Thanked 0 Times in 0 Posts
slick94prix is on a distinguished road
Default

Between last night and this morning, I made some good progress.

I finally got the projectors to fit from behind with the housing.

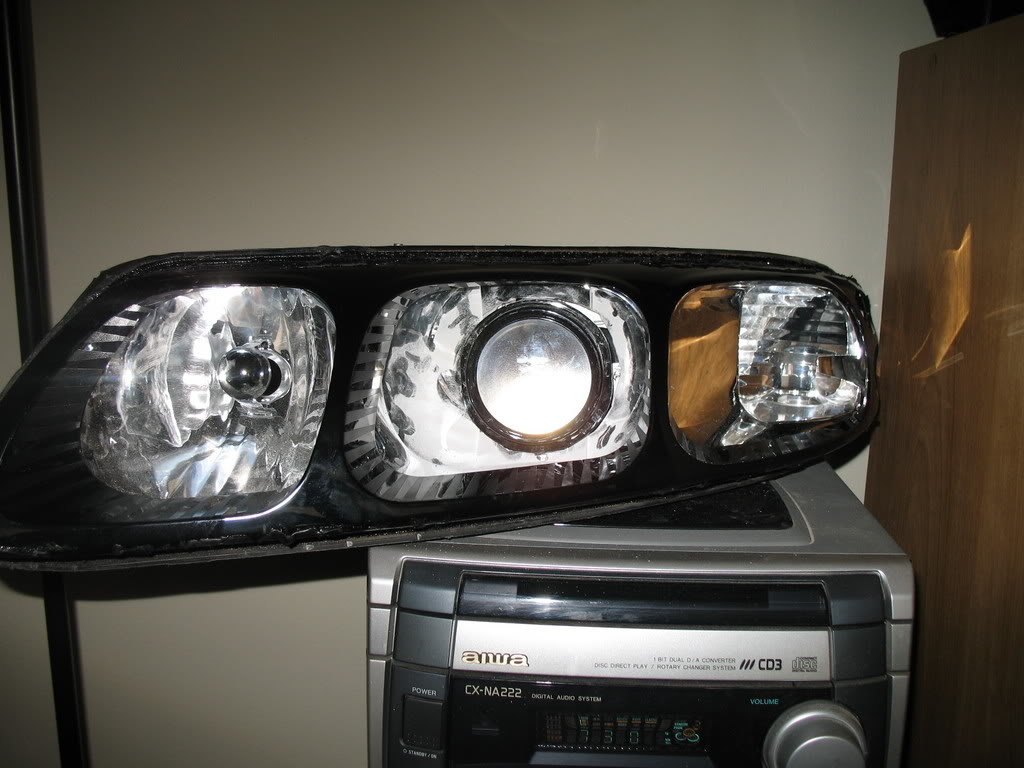

So..... these are pretty much done. I just gotta cover the rear of the projector somehow, make a chrome trim bezel to hide the cuts, and paint the rest of the low beam housing. Then... move onto the next one!

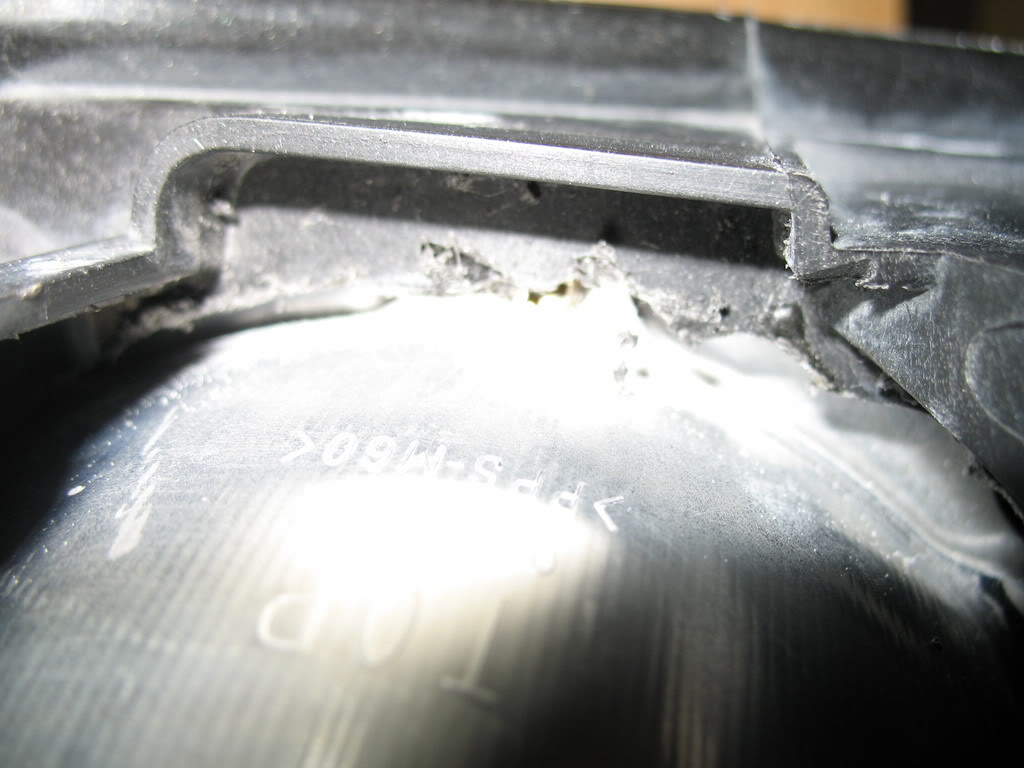

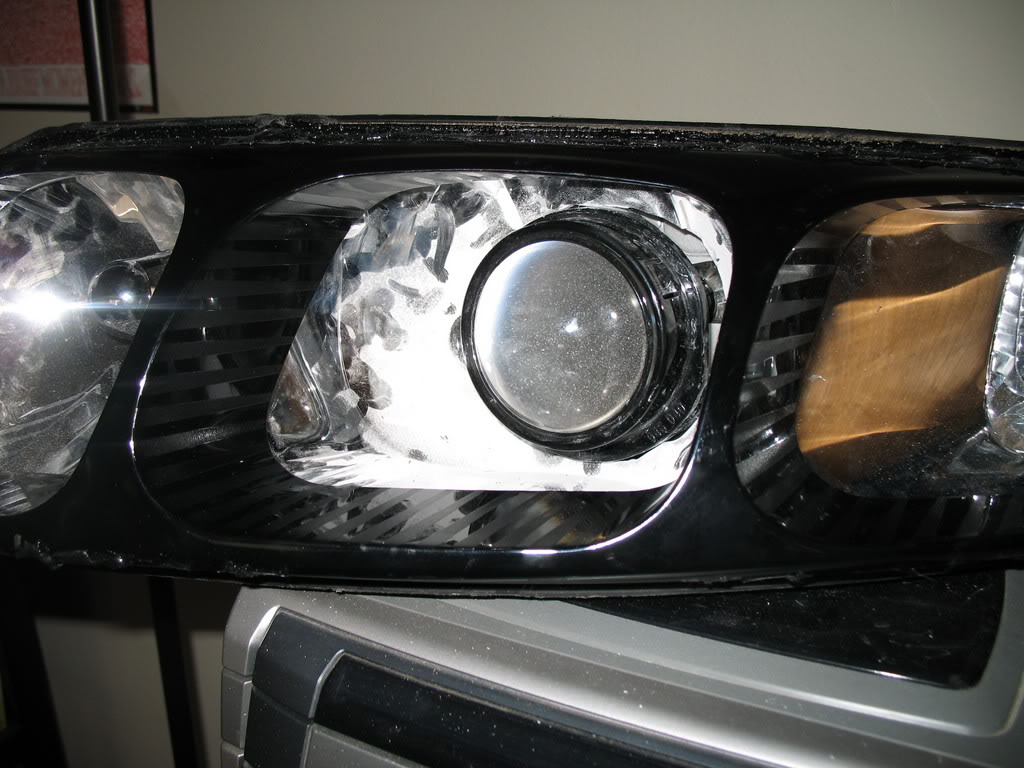

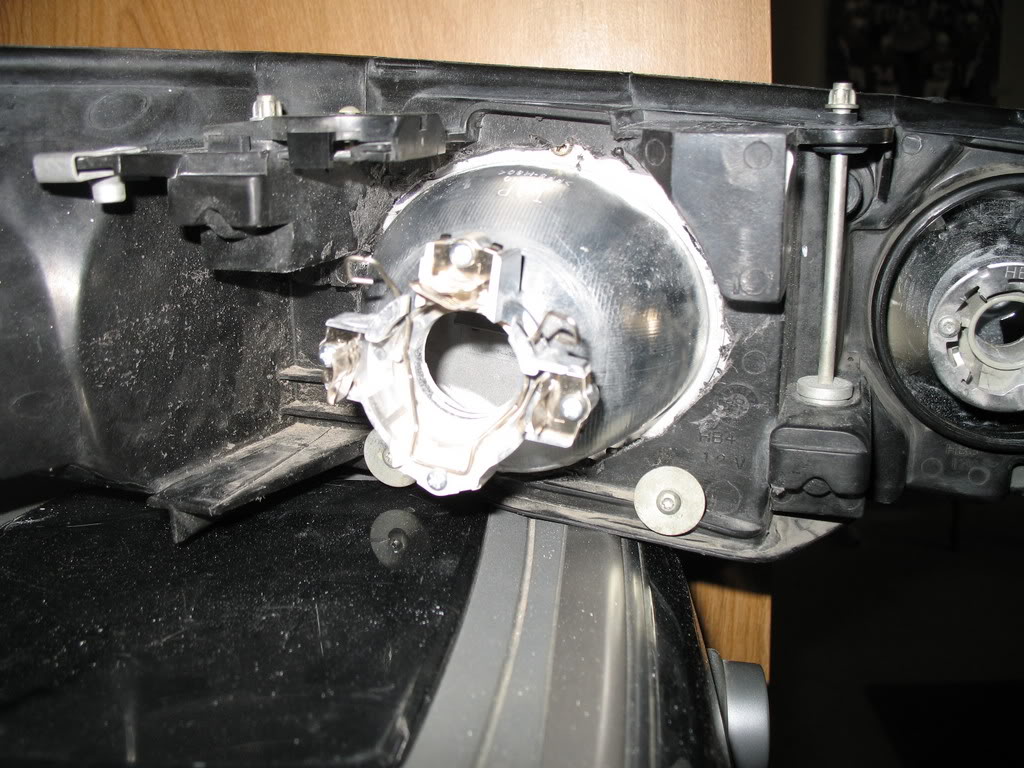

Name:  IMG_2337.jpg
Views: 1
Size:  83.5 KB
Name:  IMG_2336.jpg
Views: 1
Size:  151.6 KB
Name:  IMG_2335.jpg
Views: 1
Size:  125.1 KB
Name:  IMG_2334.jpg
Views: 1
Size:  108.4 KB
slick94prix is offline   Reply With Quote
