Cool My Afternoon Project - Matching Engine Cover!

Well I had some free time today and decided I wanted to do something to my car to make it a bit more unique.

I started thinking of some things I could do and decided to go ahead and paint the engine cover to match the car.

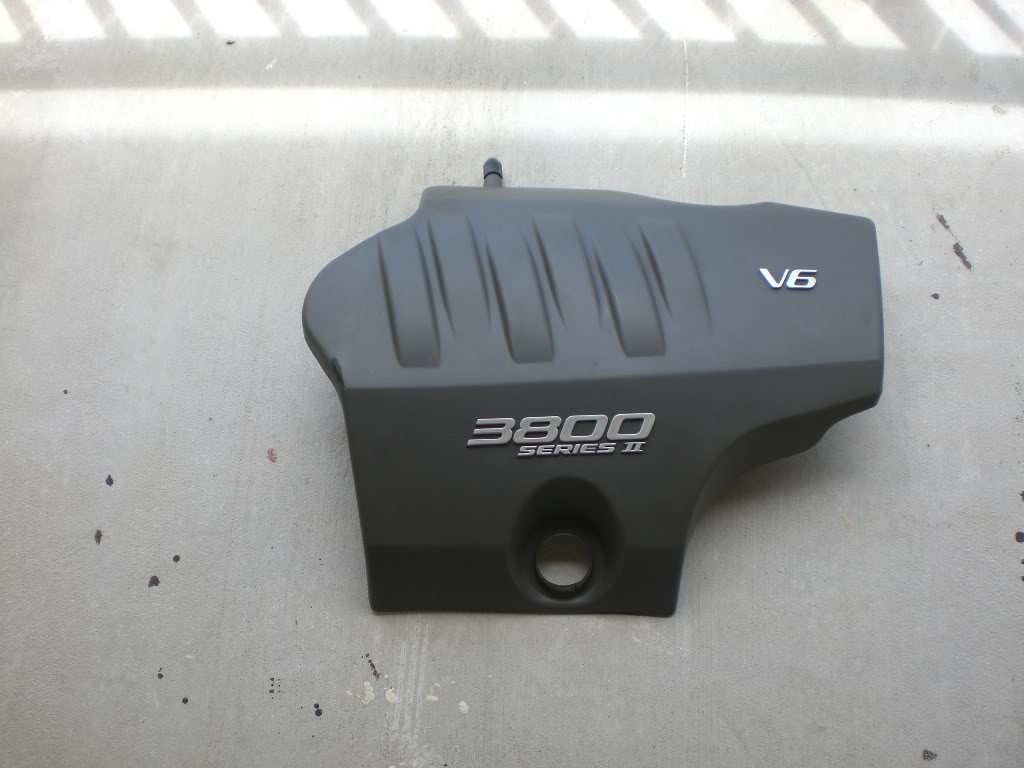

First I took the cover off and preped it for sanding:

Name:  CIMG1354.jpg
Views: 0
Size:  90.4 KB

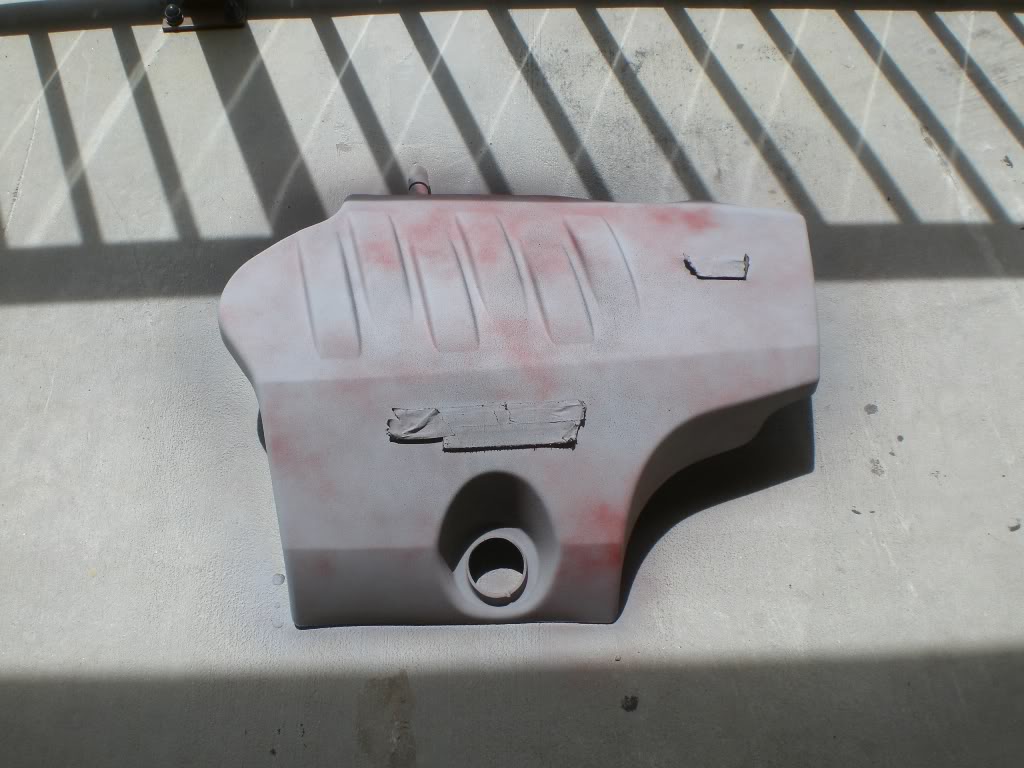

Next I sanded it down in steps starting with 220 grit then 400 grit then shooting it with primer: (Note the red color you see is a 2nd primer that serves as a guide when wet sanding the primer down to be smooth before painting)

Name:  CIMG1356.jpg
Views: 0
Size:  117.4 KB

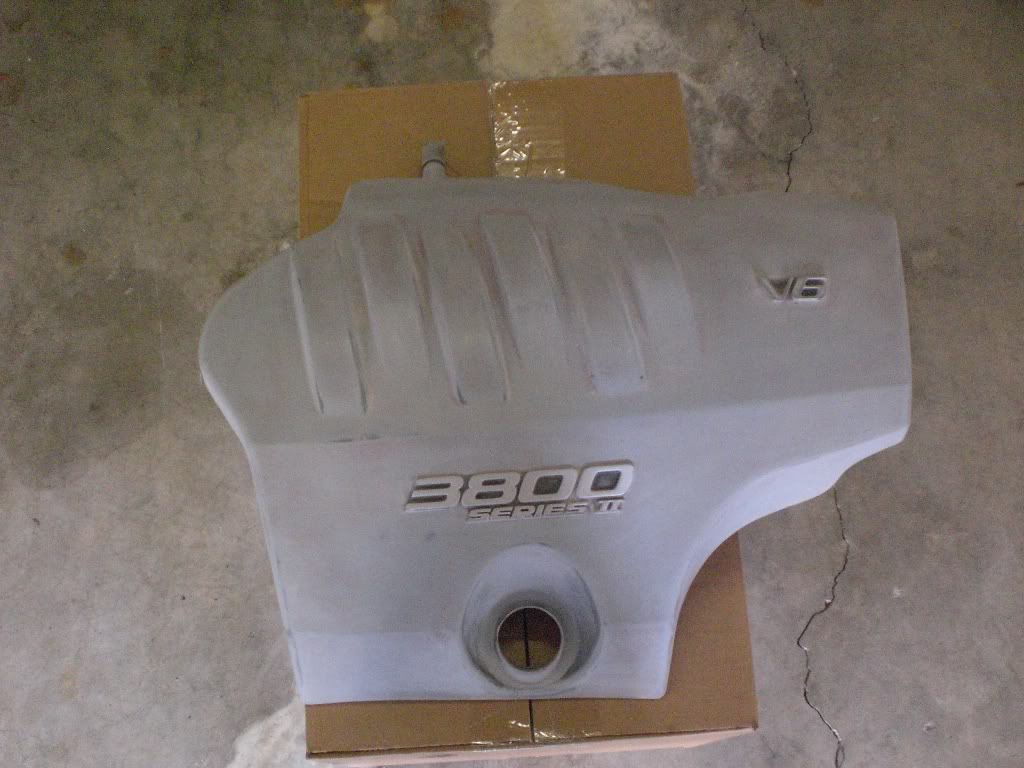

Next I sanded it all down and preped it for paint:

Name:  CIMG1359.jpg
Views: 0
Size:  123.2 KB

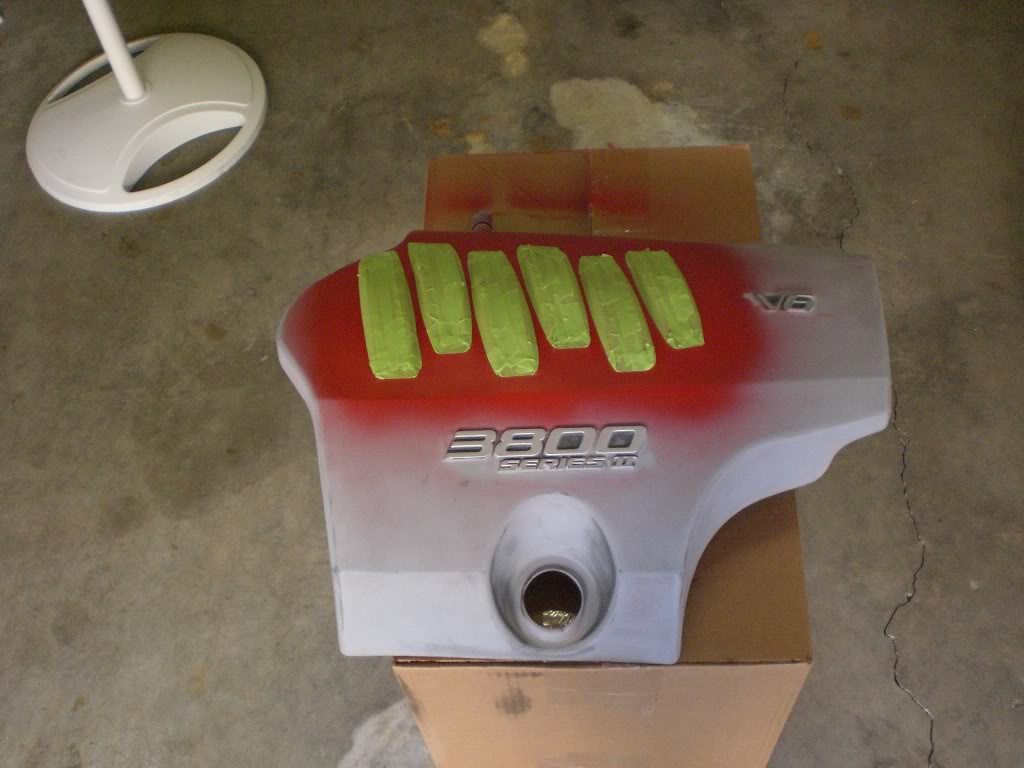

First coat was "Super Red" I beleive was the color I mixed.. a GM Color. I decided to put some red on it being my Calipers are also red, and then I taped off the areas I wanted to keep red in preperation for the next coat:

Name:  CIMG1360.jpg
Views: 0
Size:  97.4 KB

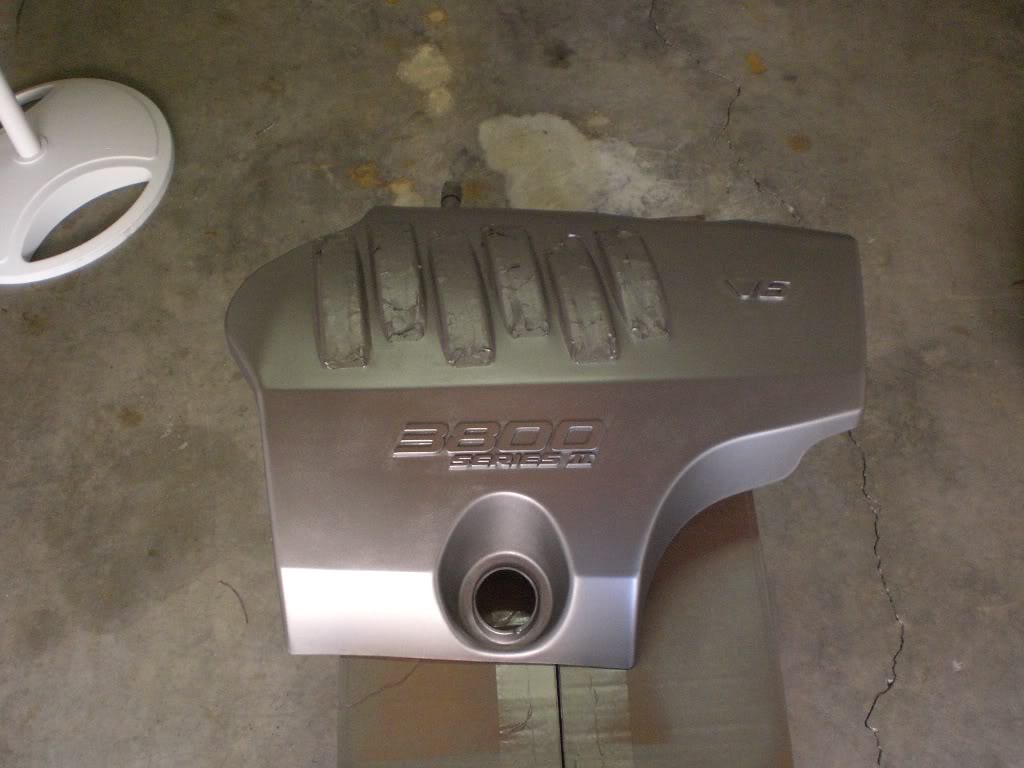

The second coat I mixed up is the same color as my car:

Name:  CIMG1361.jpg
Views: 0
Size:  94.2 KB

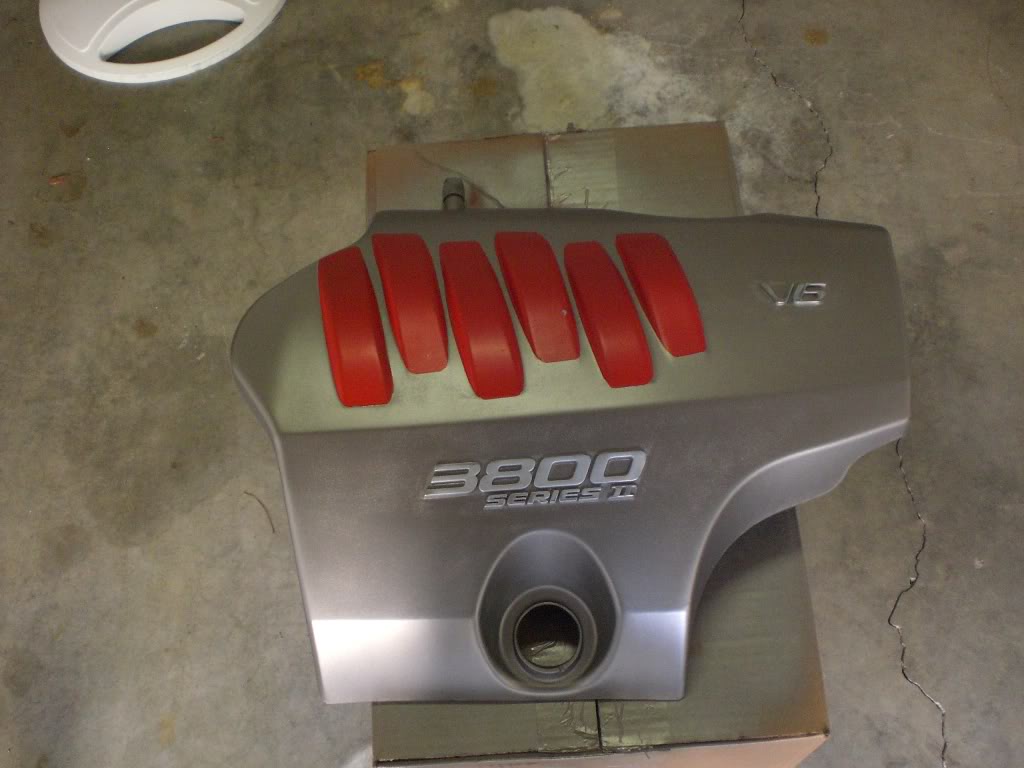

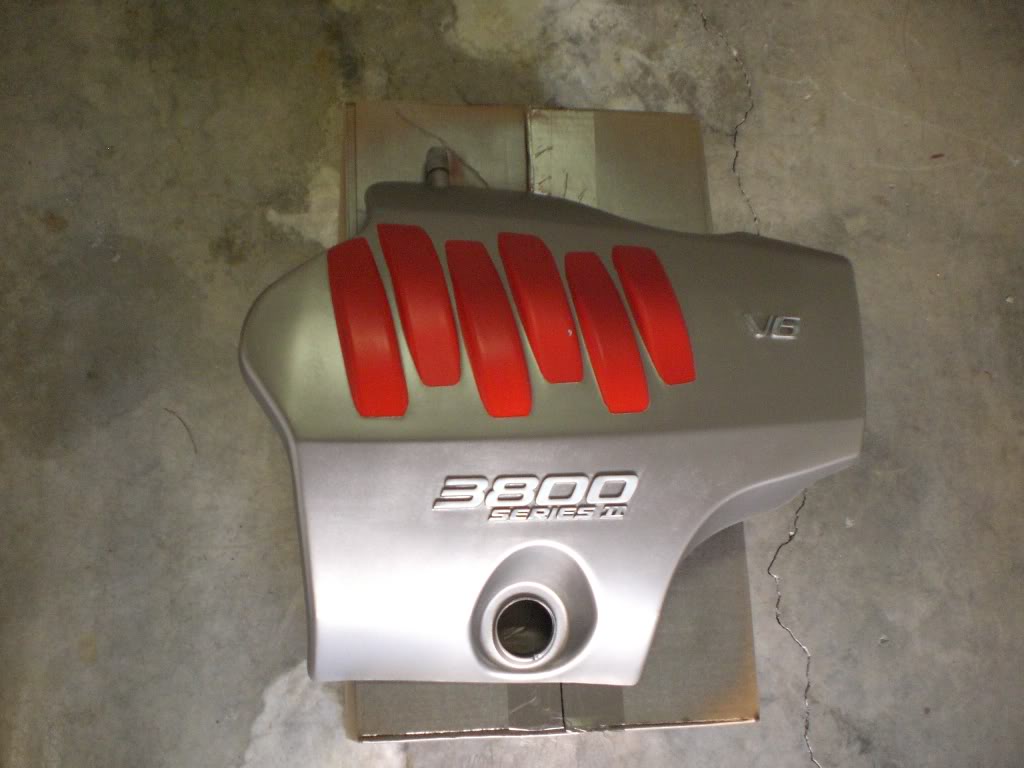

Then I removed the tape and got it ready to apply the final coat:

Name:  CIMG1363.jpg
Views: 0
Size:  95.9 KB

Name:  CIMG1364.jpg
Views: 0
Size:  91.6 KB

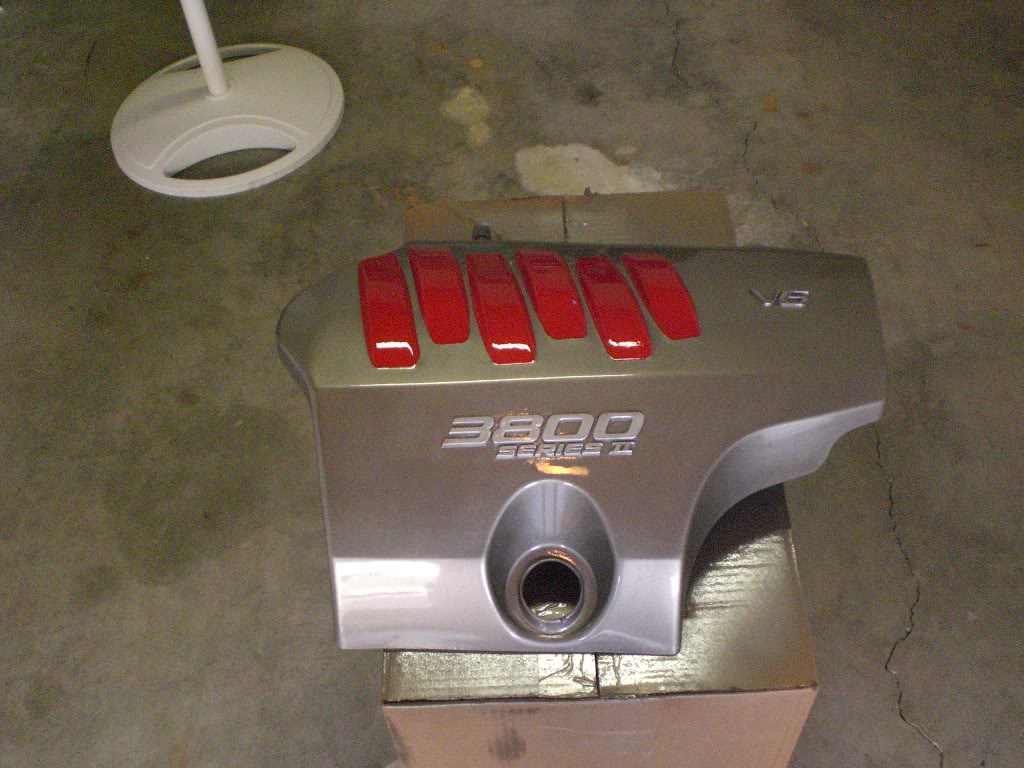

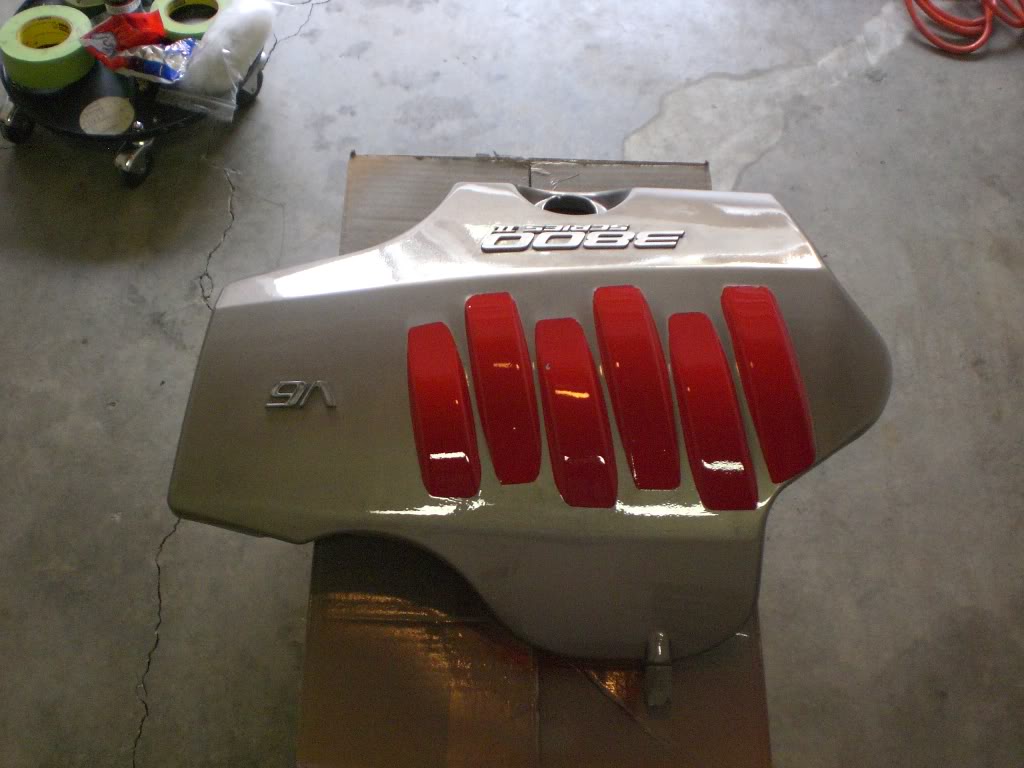

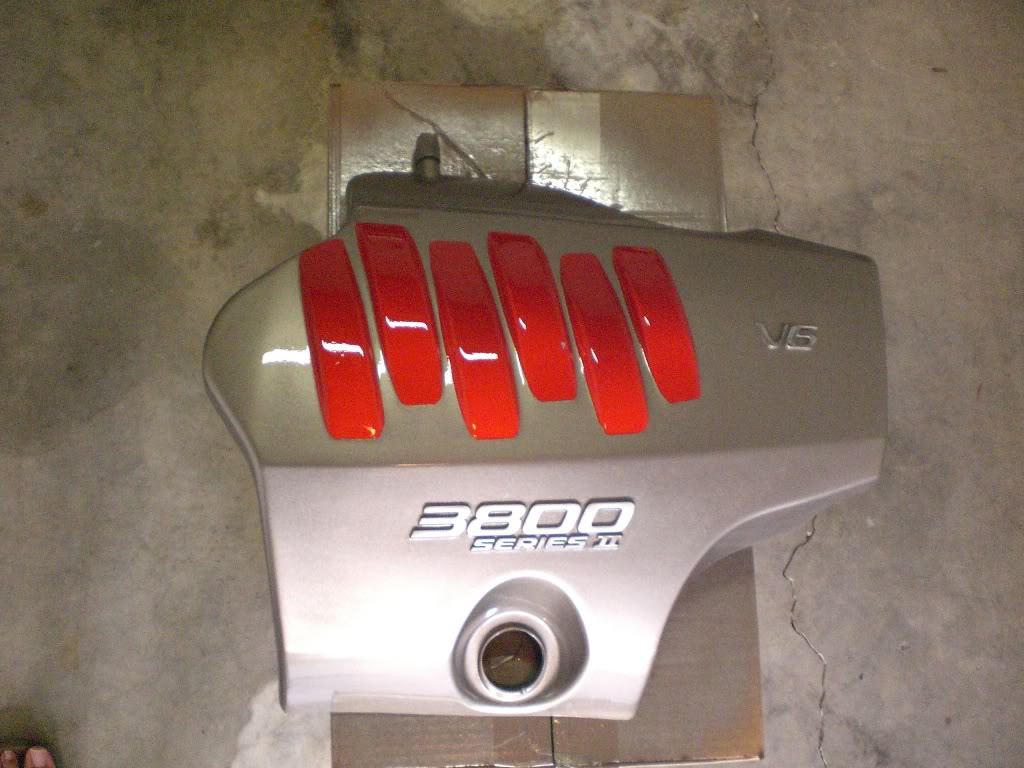

The Final Coat was the clear coat:

Name:  CIMG1365.jpg
Views: 0
Size:  157.8 KB

Name:  CIMG1366.jpg
Views: 0
Size:  128.7 KB

Name:  CIMG1367.jpg
Views: 0
Size:  107.4 KB

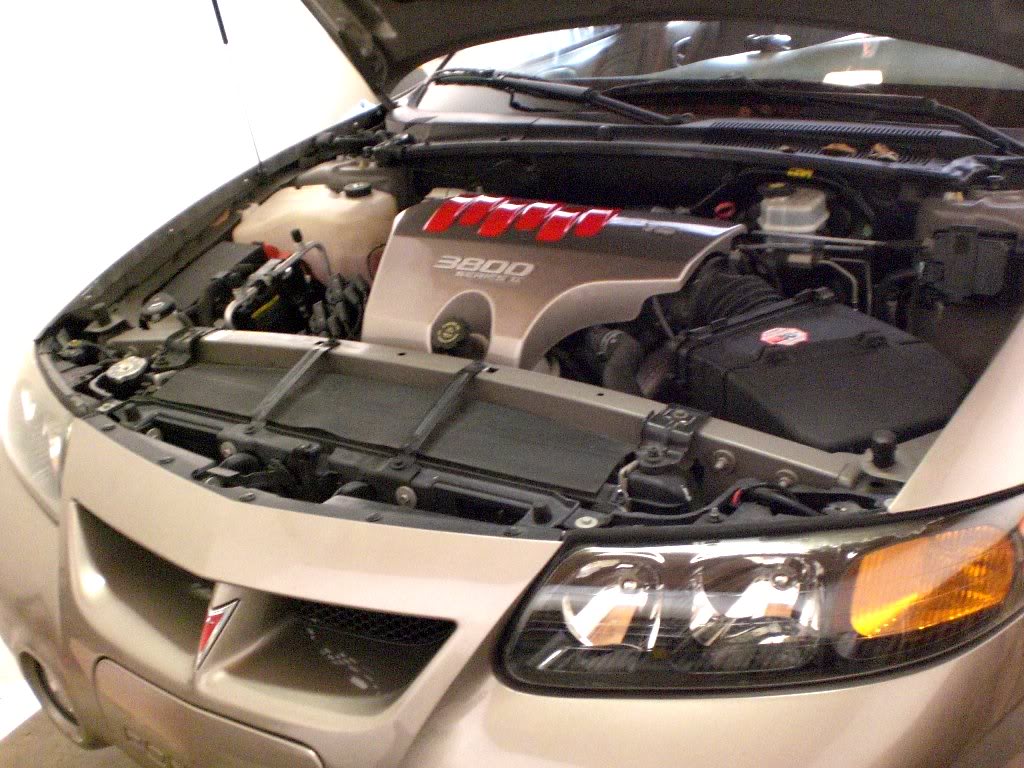

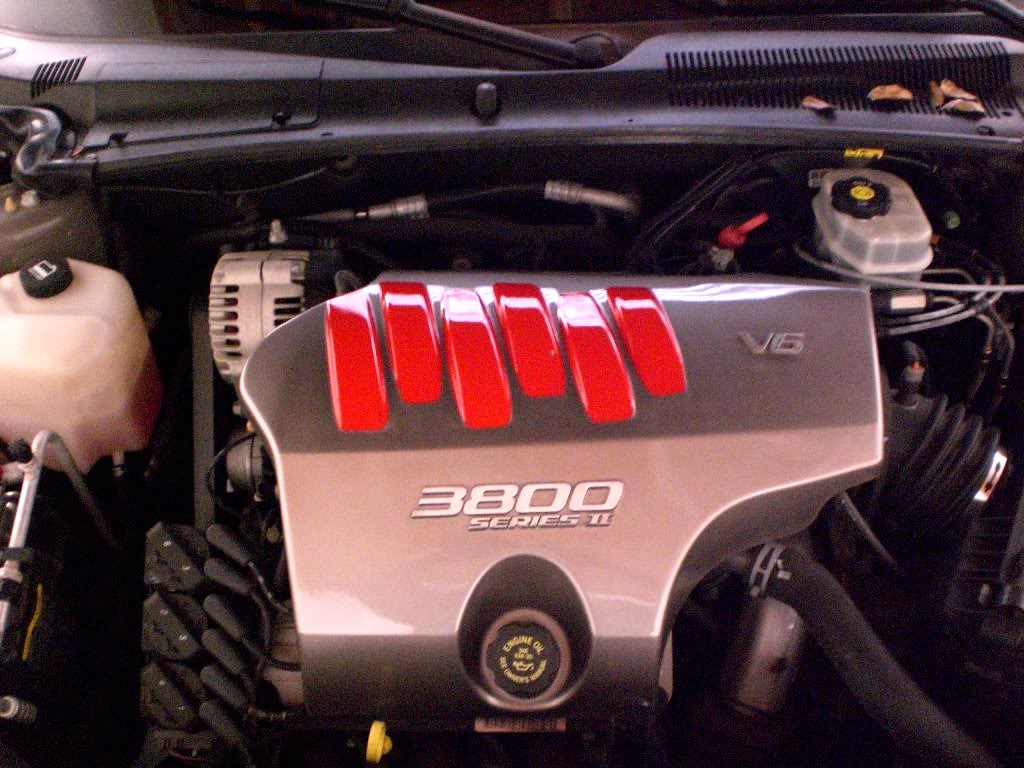

And here it is on the car: (will get some pictures outdoors in a little bit, just wanted to make sure the Clear has begun to harden before I run the car)

Name:  CIMG1371.jpg
Views: 0
Size:  190.3 KB

Name:  CIMG1372.jpg
Views: 0
Size:  177.3 KB


Let me know what you think! I might paint the Lettering Black to make it "pop" a little more. And sorry, for not having any on the car before pictures.. I forgot :(

Last edited by YoungGunLs1; 07-26-2009 at 08:20 PM.
YoungGunLs1 is offline   Reply With Quote
Old 07-26-2009, 10:17 PM   #2
Senior Member
Posts like a Northstar
Thread Starter

YoungGunLs1's Avatar

Join Date: Dec 2006
Location: SW Florida
Posts: 699
Thanks: 0
Thanked 0 Times in 0 Posts
YoungGunLs1 is on a distinguished road
Default

Update:

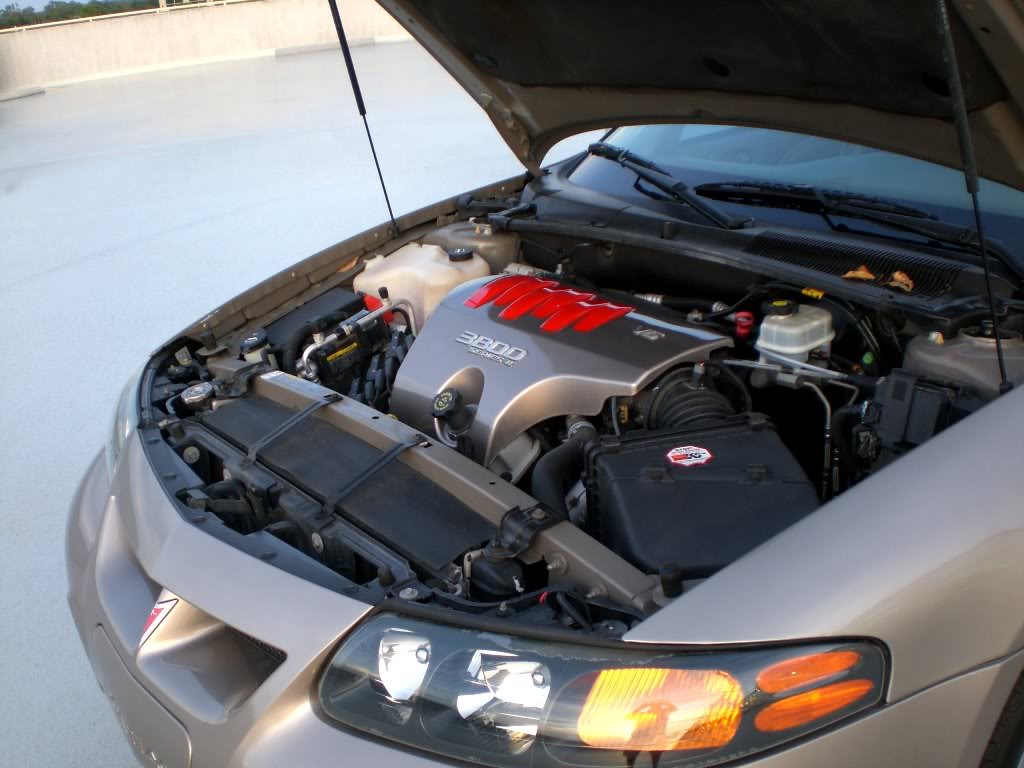

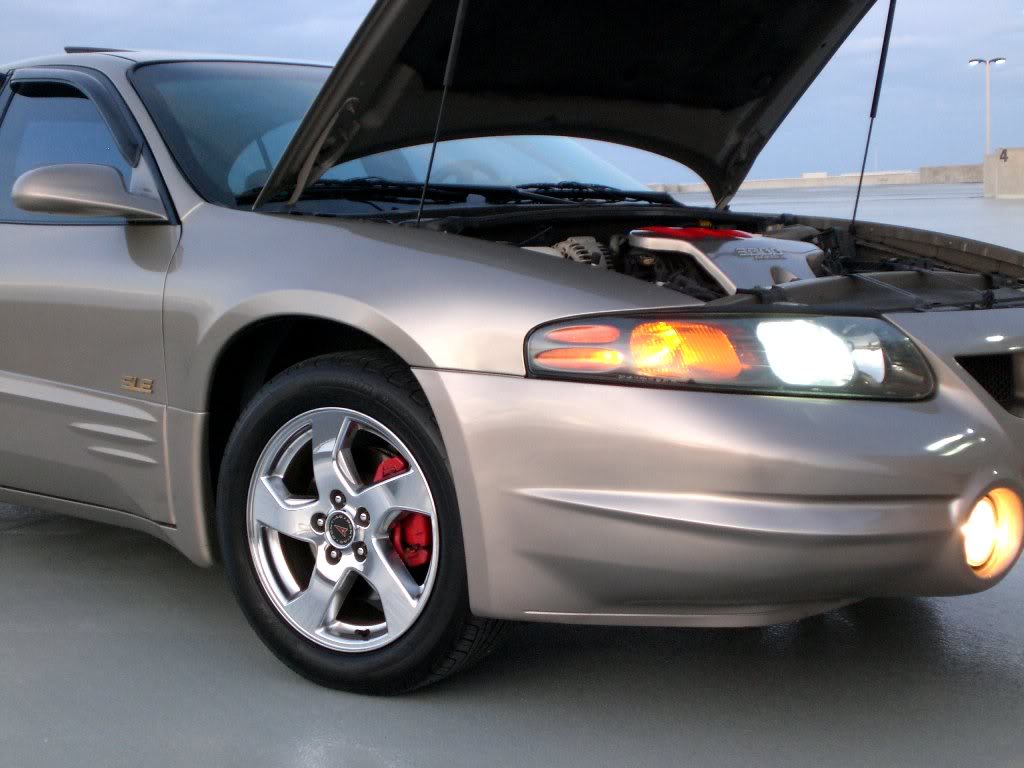

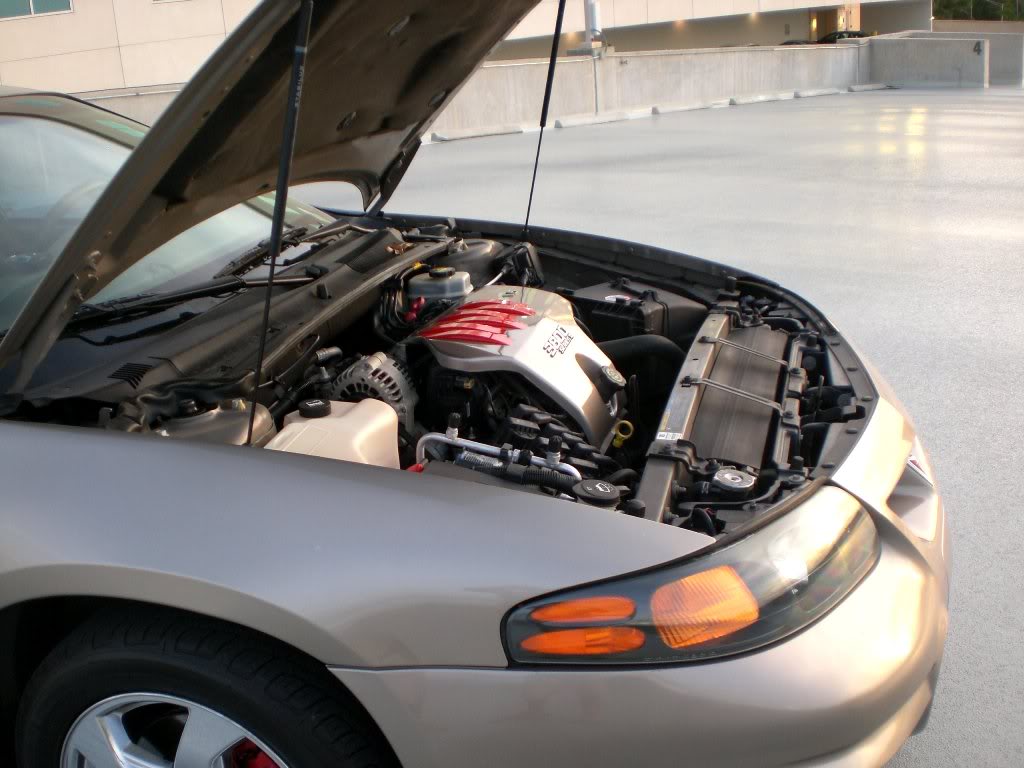

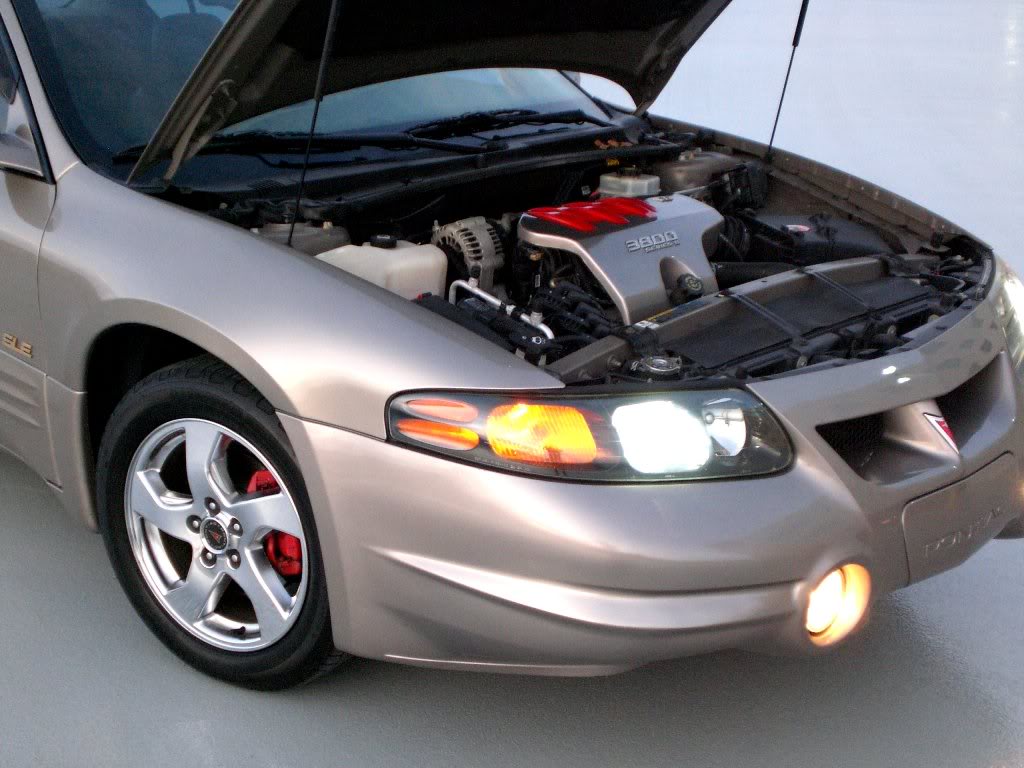

Here are some pictures I got this evening of it on the car, I think it turned out really good, and it'* hard to tell from the pictures but it matches perfect!

First a Before picture of how it looks under the hood (Not my car, but you get the idea)









Name:  CIMG1383.jpg
Views: 0
Size:  123.9 KB

Name:  CIMG1384.jpg
Views: 0
Size:  121.4 KB

Name:  CIMG1412.jpg
Views: 0
Size:  134.4 KB

Name:  CIMG1413.jpg
Views: 0
Size:  109.9 KB

Last edited by YoungGunLs1; 07-26-2009 at 10:24 PM.
YoungGunLs1 is offline   Reply With Quote
Old 07-26-2009, 11:11 PM   #3
Senior Member
Posts like a Turbo

judgemikdredd's Avatar

Join Date: Mar 2009
Location: Clawson, Michigan
Posts: 478
Thanks: 0
Thanked 0 Times in 0 Posts
judgemikdredd is on a distinguished road
Default

thats prety sweet!, i think you should paint the letters black too
judgemikdredd is offline   Reply With Quote
Old 07-27-2009, 07:39 AM   #4
Junior Member

Toddster's Avatar

Join Date: Aug 2005
Posts: 0
Thanks: 0
Thanked 1 Time in 1 Post
Toddster is on a distinguished road
Default

I got ta say that mod you just did looks really good on your car. Way better than stock! Should have been done from the factory.

Great Work!
Toddster is offline   Reply With Quote
Old 07-27-2009, 10:14 AM   #5
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Very nice, it gives the car that little extra.
Danthurs is offline   Reply With Quote
Old 07-27-2009, 12:36 PM   #6
Senior Member
Posts like a 4 Banger

bruzer75's Avatar

Join Date: Jul 2009
Location: Oregon
Posts: 110
Thanks: 0
Thanked 0 Times in 0 Posts
bruzer75 is on a distinguished road
Default

Looks awesome. Thanks for sharing.
Mike
bruzer75 is offline   Reply With Quote
Old 07-27-2009, 12:37 PM   #7
Senior Member
Posts like a Supercharger

Join Date: Dec 2008
Location: NW Arkansas
Posts: 175
Thanks: 0
Thanked 0 Times in 0 Posts
NWASSEi is on a distinguished road
Default

I wanna do that to mine. I should prolly take mine off tho, because of the heat.

Don
NWASSEi is offline   Reply With Quote
Old 07-27-2009, 01:25 PM   #8
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

Probably one of the best stock engine bay mods I've seen. Nicely done!
Purplehazeir is offline   Reply With Quote
Old 07-27-2009, 02:09 PM   #9
Senior Member
Posts like a Northstar
Thread Starter

YoungGunLs1's Avatar

Join Date: Dec 2006
Location: SW Florida
Posts: 699
Thanks: 0
Thanked 0 Times in 0 Posts
YoungGunLs1 is on a distinguished road
Default

Thanks for the compliments guys!

I luckily have all the neccassary things due to my line of work to do all this so that is the first step haha, without everything it wouldn't be so easy. Still took an afternoon to do it, but it was worth it!

Since this is an item that is not needed to drive your car, If anyone is interested in having their'* done shoot me a PM and I would definately work something out for you to ship it to me and I will paint it to match your car/or any color of your choosing and give you a good deal

Last edited by YoungGunLs1; 07-27-2009 at 02:22 PM.
YoungGunLs1 is offline   Reply With Quote
Old 07-27-2009, 05:56 PM   #10
Senior Member
Posts like a Northstar

Join Date: Mar 2007
Location: Minneapolis, MN
Posts: 509
Thanks: 0
Thanked 0 Times in 0 Posts
Barry is on a distinguished road
Default

Very Nice! Well done!
