Default fixed the window trims (MORE pics)

Not shure about the right name for these parts, but they go horizontally under the side window glass. They were faded, cracked, scratched & one of them was startin to peal.

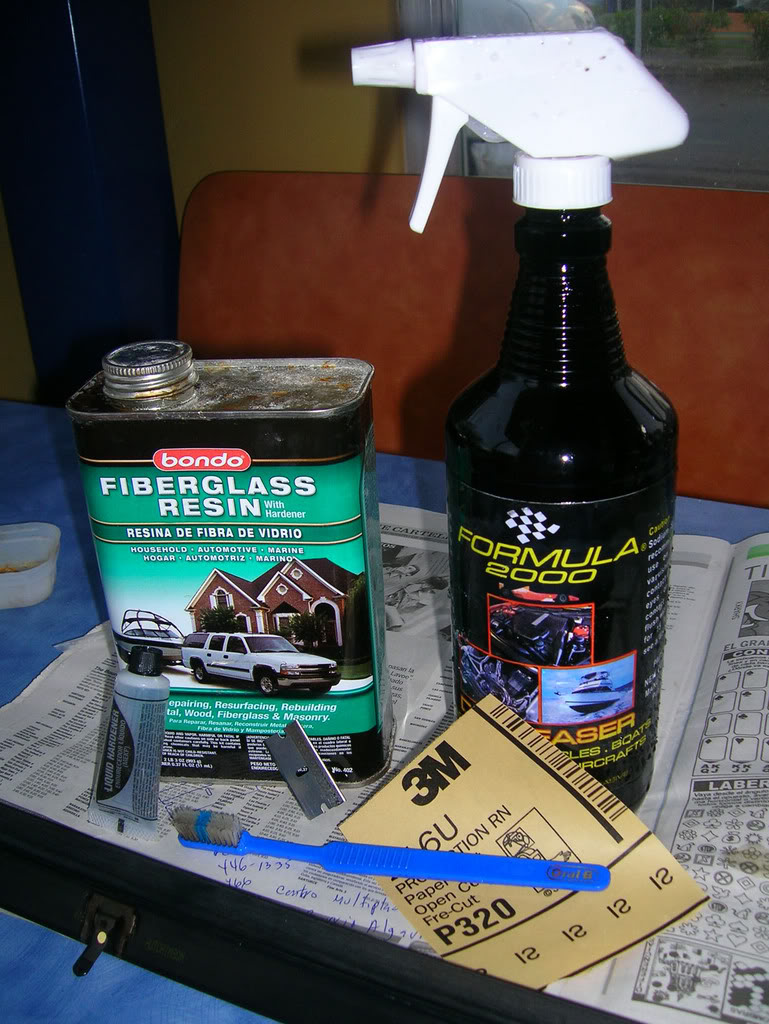

This picture shows all of tools I used.
Name:  DSCN1175.jpg
Views: 0
Size:  161.9 KB

I sanded away most of the cracks & scratches. Used sandpaper 340, 800, 1000.

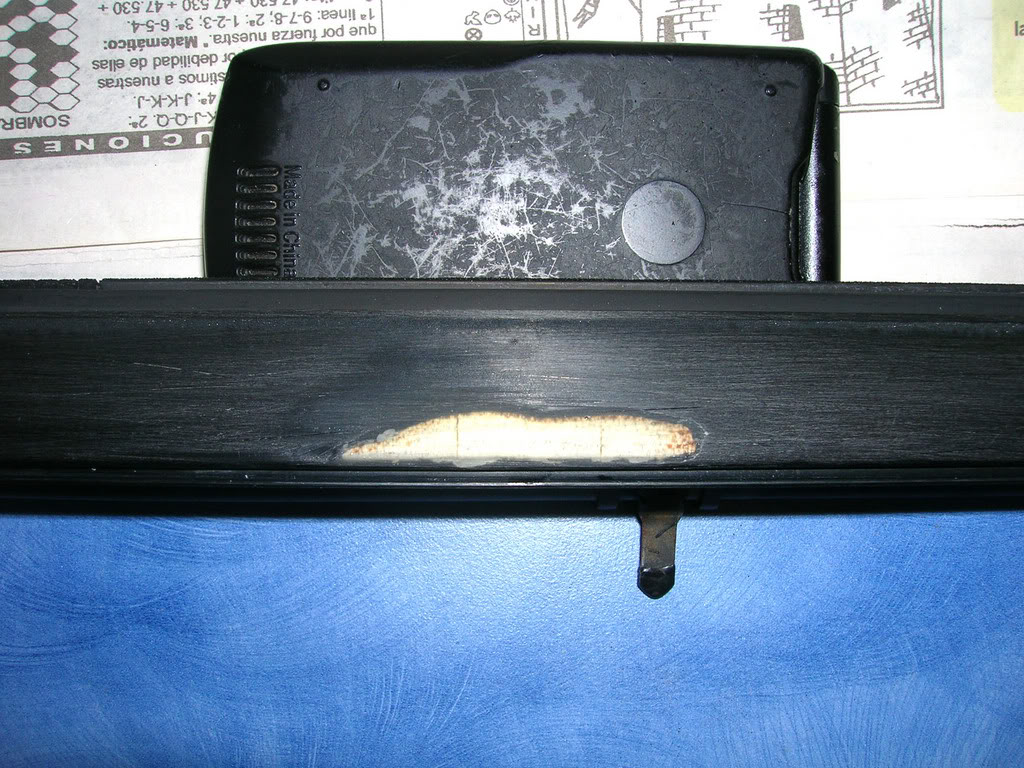

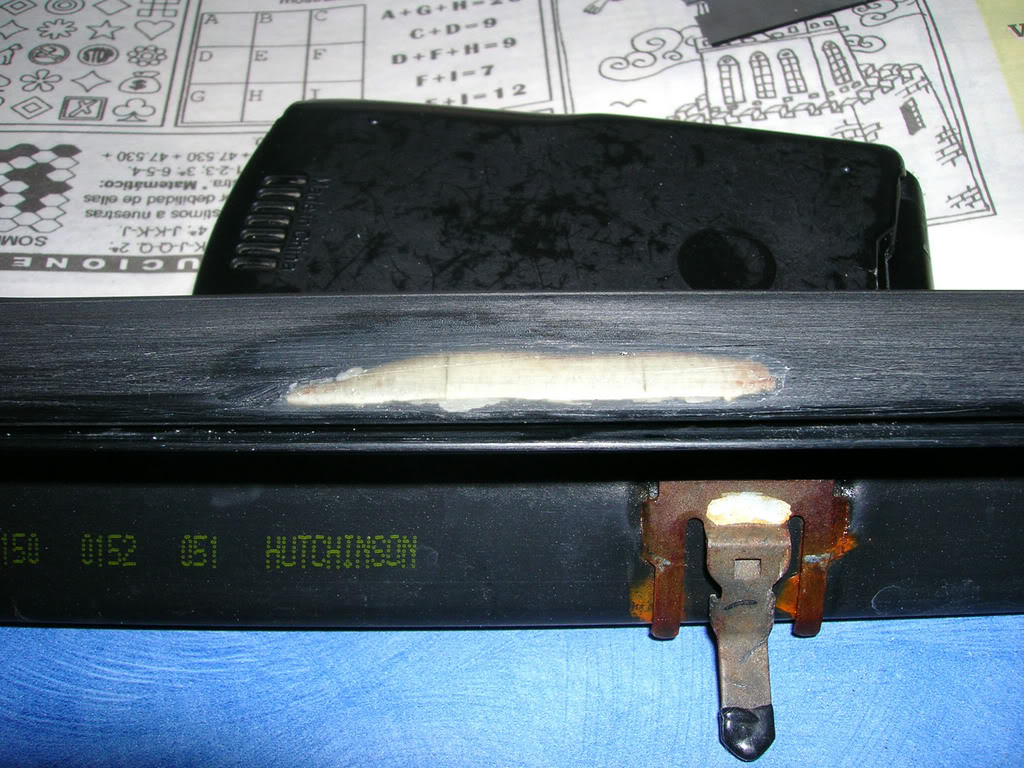

The one in the picture was the worst shaped one, with a pealing plastic. What I did is that I lifted the black rubery coating & applied fiberglas under, then wrapped that part with tape so that it would stick. Sanded the part, applied more fiberglass & so on.
Name:  DSCN1172.jpg
Views: 1
Size:  181.3 KB
Name:  DSCN1173.jpg
Views: 0
Size:  210.4 KB
alexcoqui is offline   Reply With Quote
Old 08-15-2007, 06:38 PM   #2
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Sep 2005
Location: Puerto Rico
Posts: 409
Thanks: 0
Thanked 0 Times in 0 Posts
alexcoqui is on a distinguished road
Default

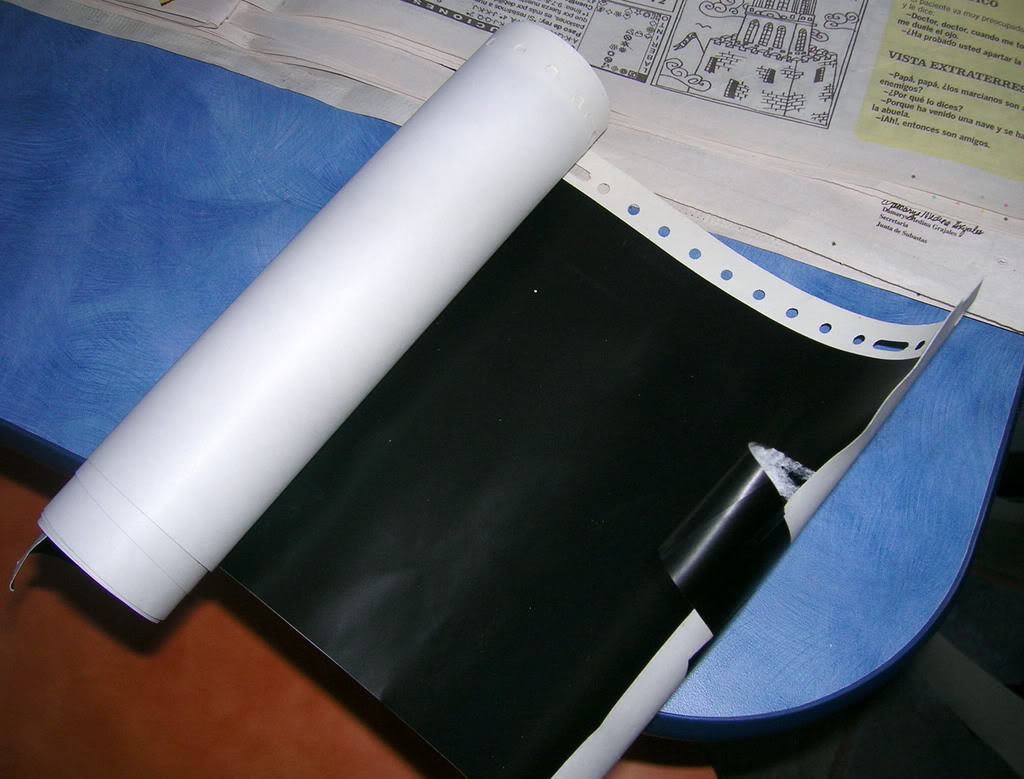

I bought this vinil tape at my local auto-design store. Its flat black, but they have many colors. There is eaven a carbon fiber paper.
Name:  DSCN1176.jpg
Views: 0
Size:  113.1 KB
alexcoqui is offline   Reply With Quote
Old 08-15-2007, 06:41 PM   #3
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Sep 2005
Location: Puerto Rico
Posts: 409
Thanks: 0
Thanked 0 Times in 0 Posts
alexcoqui is on a distinguished road
Default

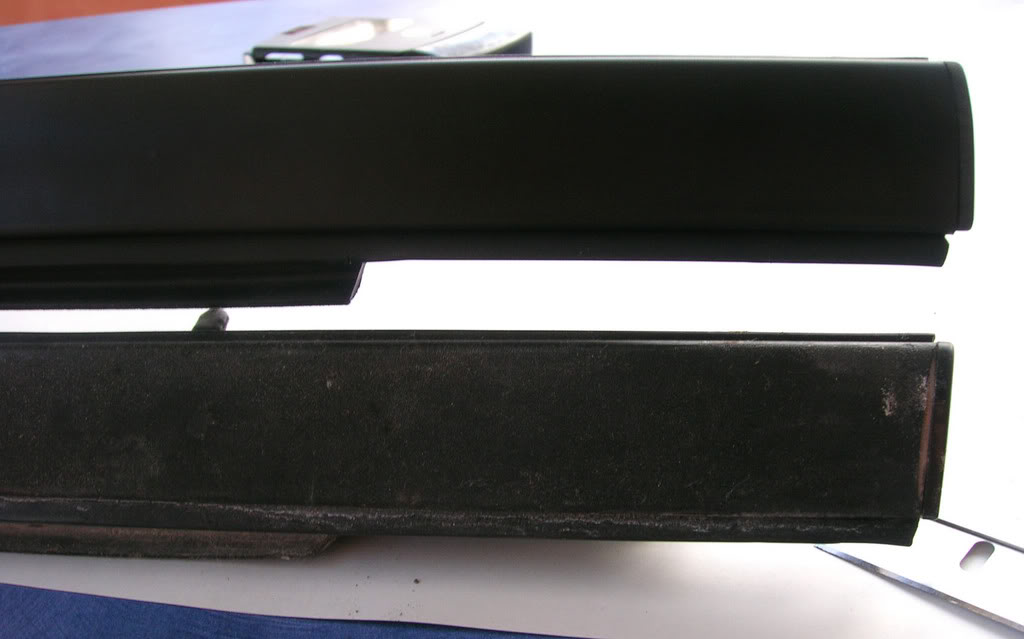

& the final product vs. an undone one.
total cost: & $12.00 for the paper, the rest of the materials I had in the garage.
total work time: about 2 hours between cleaning sanding & pasting.
Name:  DSCN1171.jpg
Views: 0
Size:  58.7 KB
alexcoqui is offline   Reply With Quote
Old 08-15-2007, 06:50 PM   #4
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

looks good, and good idea.

what mil is the vinyl?
harofreak00 is offline   Reply With Quote
Old 08-16-2007, 03:53 PM   #5
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Sep 2005
Location: Puerto Rico
Posts: 409
Thanks: 0
Thanked 0 Times in 0 Posts
alexcoqui is on a distinguished road
Default

mill?
alexcoqui is offline   Reply With Quote
Old 08-16-2007, 04:04 PM   #6
Senior Member
Certified GM nut

Join Date: Jun 2004
Posts: 1,933
Thanks: 0
Thanked 0 Times in 0 Posts
95seand78z28 is on a distinguished road
Default

Quote:
Originally Posted by alexcoqui
mill?
How thick is it?
95seand78z28 is offline   Reply With Quote
Old 08-17-2007, 10:08 AM   #7
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Sep 2005
Location: Puerto Rico
Posts: 409
Thanks: 0
Thanked 0 Times in 0 Posts
alexcoqui is on a distinguished road
Default

I dont know the thicknes, but is the one that they make letters & stickers with.
alexcoqui is offline   Reply With Quote
Old 08-17-2007, 10:33 AM   #8
Senior Member
Certified Car Nut

Join Date: Apr 2004
Location: Quincy, Ma
Posts: 15,341
Thanks: 0
Thanked 0 Times in 0 Posts
Gumball is on a distinguished road
Default

I found some matte black on ebay. I may have to give that a try.
Gumball is offline   Reply With Quote
Old 08-17-2007, 10:49 AM   #9
Senior Member
Certified Car Nut

Join Date: Apr 2004
Location: Quincy, Ma
Posts: 15,341
Thanks: 0
Thanked 0 Times in 0 Posts
Gumball is on a distinguished road
Default

Ok I bought it. and theres plenty for us local 2000+ guys to do at the next meet

Thanks for the tip Alex

Oh, can we see what it looks like on the car?
Gumball is offline   Reply With Quote
Old 08-17-2007, 12:36 PM   #10
Senior Member
Posts like a Camaro

Join Date: Aug 2006
Location: West Michigan
Posts: 1,152
Thanks: 0
Thanked 1 Time in 1 Post
Grimm is on a distinguished road
Default

Did you only do the bottom trim? Mine doesn't look bad, but I'm sure the trim above the window is going to look bad also after a while, and I'm curious if the vinyl will work with that bend in the trim on the top.
