Old 05-02-2008, 09:55 PM   #11
Senior Member
Certified GM nut

Join Date: Oct 2006
Location: burb of detroit. 2 miles north of 8 mile Rd.
Posts: 2,028
Thanks: 0
Thanked 0 Times in 0 Posts
samueljackson is on a distinguished road
Default

can you post a pic of your 1990 egr
samueljackson is offline   Reply With Quote
Old 05-02-2008, 10:36 PM   #12
Senior Member
Posts like a Camaro
Thread Starter

Join Date: Oct 2003
Location: Hamilton, Ontario
Posts: 1,074
Thanks: 0
Thanked 0 Times in 0 Posts
phoenix_flame220 is on a distinguished road
Default

I just compared EGRs. They appear to be completely differant. The inlet and outlets are on differant sides. The old egr has 4 pins, the new one has 5. Looks like a big problem. Ill try to post some pics now if photobucket lets me, dial up you know
phoenix_flame220 is offline   Reply With Quote
Old 05-03-2008, 12:44 AM   #13
Senior Member
Posts like a Camaro
Thread Starter

Join Date: Oct 2003
Location: Hamilton, Ontario
Posts: 1,074
Thanks: 0
Thanked 0 Times in 0 Posts
phoenix_flame220 is on a distinguished road
Default

94 EGR

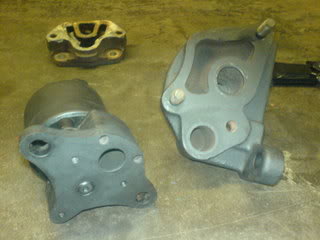

Name:  DSC00808.jpg
Views: 0
Size:  13.5 KB

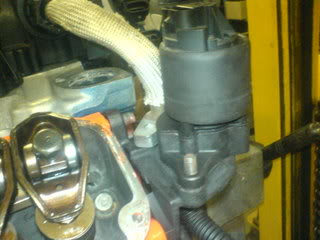

Name:  DSC00812.jpg
Views: 0
Size:  17.4 KB

90 EGR

Name:  DSC00809.jpg
Views: 0
Size:  14.2 KB

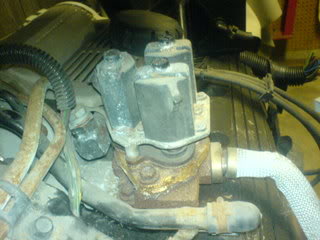

Name:  DSC00815.jpg
Views: 0
Size:  18.1 KB
phoenix_flame220 is offline   Reply With Quote
Old 05-03-2008, 12:47 AM   #14
Senior Member
Certified GM nut

Join Date: Oct 2006
Location: burb of detroit. 2 miles north of 8 mile Rd.
Posts: 2,028
Thanks: 0
Thanked 0 Times in 0 Posts
samueljackson is on a distinguished road
Default

ok, yeah, thats the digital egr. you can use a base from the 92-93 L67 engines.
samueljackson is offline   Reply With Quote
Old 05-03-2008, 12:53 AM   #15
Senior Member
Posts like a Camaro
Thread Starter

Join Date: Oct 2003
Location: Hamilton, Ontario
Posts: 1,074
Thanks: 0
Thanked 0 Times in 0 Posts
phoenix_flame220 is on a distinguished road
Default

Thats awesome Can I still use the new tubing or do I need the old style that runs off the rear manifold?
phoenix_flame220 is offline   Reply With Quote
Old 05-03-2008, 01:03 AM   #16
Senior Member
Certified GM nut

Join Date: Oct 2006
Location: burb of detroit. 2 miles north of 8 mile Rd.
Posts: 2,028
Thanks: 0
Thanked 0 Times in 0 Posts
samueljackson is on a distinguished road
Default

Quote:
Originally Posted by phoenix_flame220
Thats awesome Can I still use the new tubing or do I need the old style that runs off the rear manifold?
i was just thinkin about that. that may be different.

as far as the tube, i believe it will bolt right to the base. but my concern would be the length of it.
samueljackson is offline   Reply With Quote
Old 05-03-2008, 01:10 AM   #17
Senior Member
Posts like a Camaro
Thread Starter

Join Date: Oct 2003
Location: Hamilton, Ontario
Posts: 1,074
Thanks: 0
Thanked 0 Times in 0 Posts
phoenix_flame220 is on a distinguished road
Default

Does the egr tubing come off the front manifold or the rear like the old style? Ive got the old style tubing and the new style as well, but Ive got the rear egr manifolds, if I dont need the new style then I can get away with using the original manis.
phoenix_flame220 is offline   Reply With Quote
Old 05-03-2008, 01:29 AM   #18
Senior Member
Certified GM nut

Join Date: Oct 2006
Location: burb of detroit. 2 miles north of 8 mile Rd.
Posts: 2,028
Thanks: 0
Thanked 0 Times in 0 Posts
samueljackson is on a distinguished road
Default

Quote:
Originally Posted by phoenix_flame220
Does the egr tubing come off the front manifold or the rear like the old style? Ive got the old style tubing and the new style as well, but Ive got the rear egr manifolds, if I dont need the new style then I can get away with using the original manis.
no, the 92-93 L67 egr bases are fed from the front manifold. so you would need the later EMs. and considering the porting on the heads and LIM, you are gonna want to port the EMs as well.
samueljackson is offline   Reply With Quote
Old 05-05-2008, 09:56 AM   #19
Senior Member
Posts like a Camaro
Thread Starter

Join Date: Oct 2003
Location: Hamilton, Ontario
Posts: 1,074
Thanks: 0
Thanked 0 Times in 0 Posts
phoenix_flame220 is on a distinguished road
Default

Looks like its back to the jy. Do you know offhand what size bolts the EGR plate uses? That way I dont have to bring a lot of just-in-case tools.
phoenix_flame220 is offline   Reply With Quote
Old 05-05-2008, 10:31 AM   #20
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

13/15mm.

BTW, you mention ported heads, but I still see carbon deposits in your exhaust ports.
willwren is offline   Reply With Quote
