looks puurdy bandit i like how you ran the coaxial cable
wakefieldl is offline   Reply With Quote
Old 02-10-2006, 03:04 PM   #12
Senior Member
Posts like a Turbo

Join Date: Feb 2006
Location: Phelps, NY
Posts: 320
Thanks: 0
Thanked 0 Times in 0 Posts
Doppleganger is on a distinguished road
Default

That'* how the coax cable is run with all trunk mount antennas. K40 and Wilson have sturdy truck mounts, but, you do have to make sure your trunk is well grounded. What I did with my Buick, was I put a spade terminal under the set screw, then ran a 8 gauge wire from there, to a grounded part of the body. My dad took a little different approach, he grounded the trunk lid to the body, and let the antenna ground thru the lid. Either way, if it'* not well grounded (and most latches aren't well grounded), you'll get all kinda fluxuation in your transmit and receive signal, and your SWR will be all over the place.
Doppleganger is offline   Reply With Quote
Old 02-17-2006, 01:35 PM   #13
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Quote:
Originally Posted by Doppleganger
Antennas...

Just remember, no matter how good of a CB radio you buy, it'* the antenna that really matters. Bigger is better. Really. Coils are no good for transmitting, but, not too many people that don't have 70'* conversion vans don't want a 102" whip on their vehicle. So, coils are a necessary evil.
All vertical antenna'* radiate the same patteren no matter what the length. As far as manufacturers go, an antenna is an antenna. Only difference might be the quality of parts used. All vertical antenna'* have 0dBi of gain. Which also means 0dBi of output. 4 watts out of the radio,= 4 watts out the antenna. Beams and colinears(sp) are different.

Radio'* are no different either. Other than the parts used, it makes no difference. Bells and whistles are just annoyances. Anything more than a 40 channel with WX is a waste of money. If it can transmit more than 4 watts AM. Its ILLEGAL. FCC may not be listening to you, but if you are close to a ham operator, and continue to annoy him, he may turn you in with sufficient evidence to warrant a visit from Uncle Charlie.

Rant over
Mike is offline   Reply With Quote
Old 02-22-2006, 01:00 PM   #14
Senior Member
Posts like a Turbo

Join Date: Feb 2006
Location: Phelps, NY
Posts: 320
Thanks: 0
Thanked 0 Times in 0 Posts
Doppleganger is on a distinguished road
Default

Quote:
Originally Posted by Mike1995
All vertical antenna'* radiate the same patteren no matter what the length. As far as manufacturers go, an antenna is an antenna. Only difference might be the quality of parts used. All vertical antenna'* have 0dBi of gain. Which also means 0dBi of output. 4 watts out of the radio,= 4 watts out the antenna. Beams and colinears(sp) are different.

Radio'* are no different either. Other than the parts used, it makes no difference. Bells and whistles are just annoyances. Anything more than a 40 channel with WX is a waste of money. If it can transmit more than 4 watts AM. Its ILLEGAL. FCC may not be listening to you, but if you are close to a ham operator, and continue to annoy him, he may turn you in with sufficient evidence to warrant a visit from Uncle Charlie.

Rant over
I'd beg to differ on the "antenna is an antenna" part. There are lots of different designs of coils used in various antennas. Base load, center load, top load, thickness of the material that makes up the coil, plating on the coil (silver on Wilsons). Having your coil supported by a few points is better than having it wrapped around a piece of fiberglass or plastic. The less coil you have, and the more straight mast you have, the better. Keeping the coil further away from the ground plane (your vehicle) is better, too. And various vertical antennas have different a mounts of gain. Yes, even vertical antennas. They may only be 1.5dB, but, there is some gain there. (qsl.net makes references to antenna gain in some of their articles). The effective range of a taller antenna will be better than a short antenna. So, yea, spending more on well-designed and tuned antenna will pay off.

Now, radios. Yea, They're all capped at 100% modulation and 4watts by the FCC. But, you can always tweak a little more audio and wattage out of them. I wouldn't worry about trying to get that extra watt of carrier out of your CB, rather, help the audio section. Most radios can have their audio limited tuned to provide louder audio modulation. Everything in moderation, though. Cheap radios will start to clip/distort rather easily, as they're really not designed to do more than FCC specs. A Cobra 29 or Uniden PC76 will be able to modulate louder than a cheapo $30 walmart whatever brand radio before distortion sets in. Keeping the audio limiter in tact is the best idea, and just adjusting it to start cutting back the audio at a higher level is ideal. This way, you won't have that "brutha in the 'burban" sound to yer audio. (Oh man, channel 26 around Rochester, NY has a bunch of people that push out thousdands of watts of power, with audio that sounds like fuzz, and probably has more flat peaks than transitions on a silly scope.)

uh... I think that'* enuf posting at work for now...
Doppleganger is offline   Reply With Quote
Old 03-12-2006, 03:12 AM   #15
Senior Member
Posts like a Camaro

Join Date: Jan 2004
Location: Colorado Springs C.O.
Posts: 851
Thanks: 0
Thanked 0 Times in 0 Posts
duffer26 is on a distinguished road
Default

well i will dust off this topick for 1 comit i run a wil 1000 mag mount on my trunk and it dose ruin the paint in that spot but my lid is tweaked from the rearend
i had and now i need a new one any how but for now it is not to bad
and i dont move it ever so it will not be seen so no harm no foul

besides that i also run a "turned up " 29 NW ST i got for
$50 at a pawn shop and i am pushing over 30 watts out the back with out cliping the limiter one of the best things you can do is get a difrent mike for it like a RK56 or D104M6B

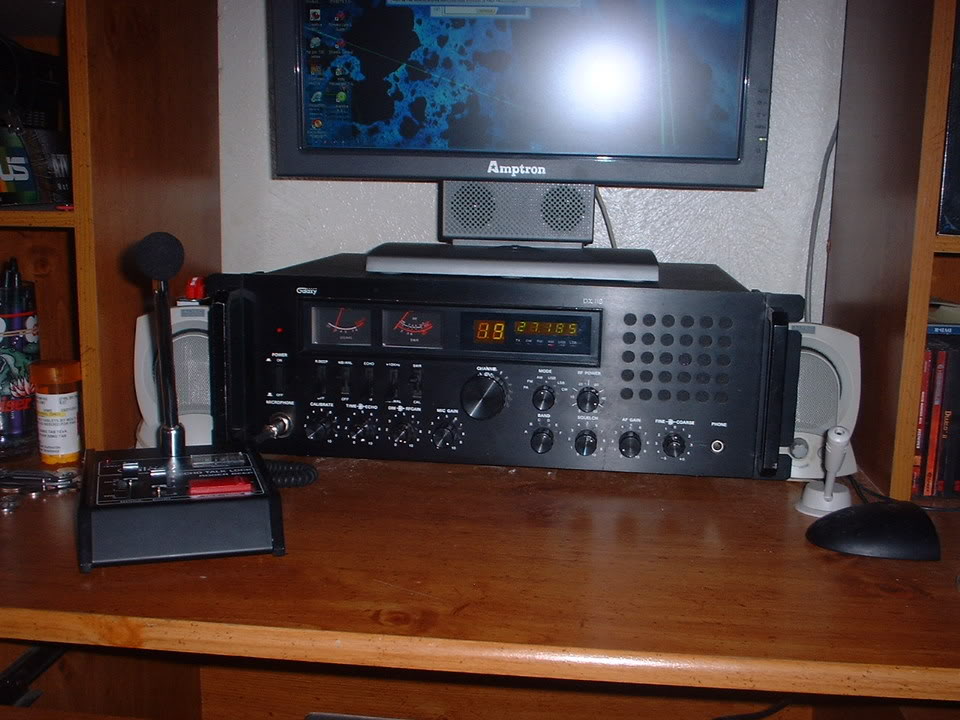

i also run a base here at the house i have a full size Galaxy DX11B with a " POGO " stick antenna on the side of the house
here is a pic of my base
Name:  DSCF0011.jpg
Views: 21
Size:  107.5 KB
any how have fun with whatever you get it is a fun hobby
