Default Aurora light bar mod

hey folk'*
i'm looking for that special individual, that'll take the time to help
someone like me,(little electrical experience) with a project i'm working on.
(was that some sucking up, or what)?

anyways, i did a mod to the light bar on the back of my 97 Aurora.
if ya didn't or don't know the factory, never install any lights in that bar.
and over at the ACNA club forums.everybody used LED strips of varying
colors,

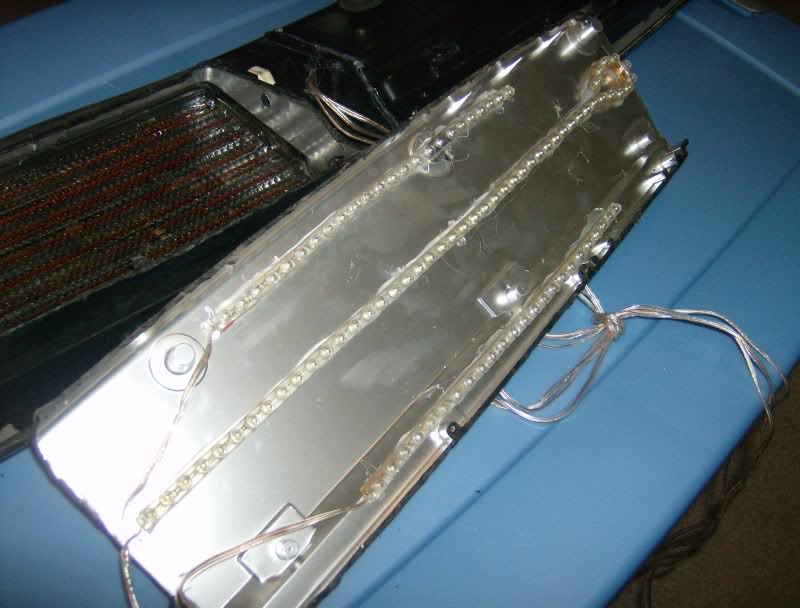

i tryed that with cut down 18"clear in the middle and two red 9" top and bottom
Name:  HPIM3234.jpg
Views: 5
Size:  93.9 KB

the center strip acted off the brake lights,and the top and bottom off the running lights
well i got it all together,it worked ok i guess but i wanted somthing brighter (pun intended)
and not what everybody else did.
this is the original thread over there.and how everybody was doing it
http://aurorah.proboards.com/index.c...d=20373&page=1

so i got another light bar from the boneyard,and went with duel 3057 bulbs
and this is my alternative to LED lights.i did a write up
http://aurorah.proboards.com/index.c...y&thread=20667

end result

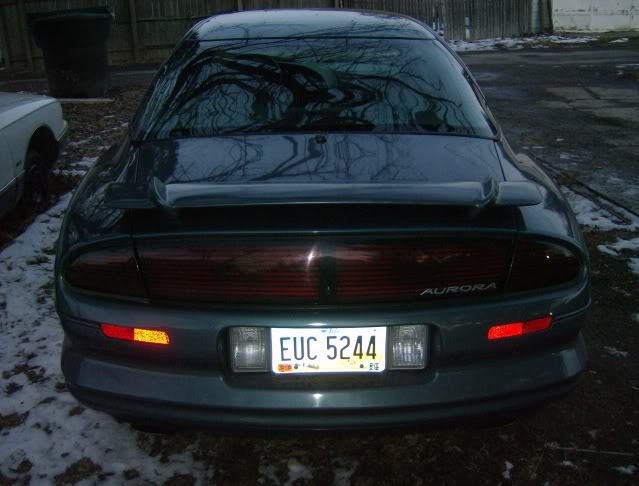

Name:  HPIM4718.jpg
Views: 7
Size:  61.6 KB

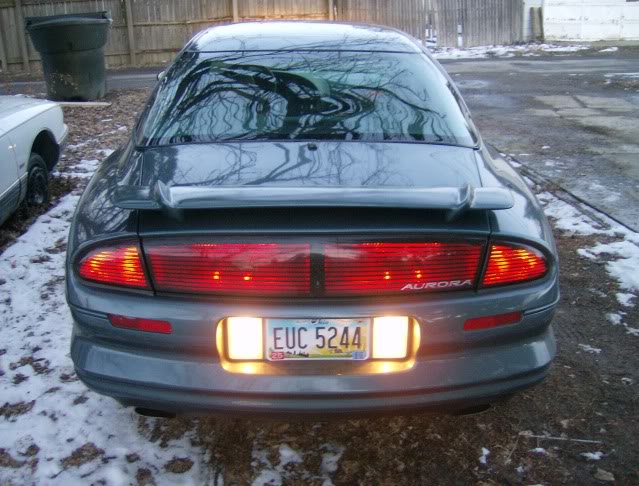

Name:  HPIM4719.jpg
Views: 5
Size:  71.8 KB


(ya,thats off a grand am)
don't look half bad in my opinion, the lights that is (and the spoiler too for that matter)
the whole bar works with running lights, and each side works with the directional and brake lights

hope i'm not boring ya, so i'll get to the intention of this post!
i had a 67 cougar a long time ago, and the Sequential Turn Signals ruled! (67 chargers too)
and i'd like to do this, but i haven't the proper electrical knowledge to get there

after market setups for the cougar parts are a ton of money, might not work right.
and the setups are dif for all model years,and even the XR7 is dif within the same years
from the base model....................whats a guy to do? LOL

the original component(cougar), worked by a triggered rotating contact
switch, that fired each bulb as it spun around.

well ya thats dandy and all, but i'm sitting here looking at my christmass tree lights
blinking in sequence, and know somehow thats key to making this work!

i'm open to any ideas,the cheaper the better. the easiest the best!

i know some changes will need to be done, with the bulb thing
like a divider to compartmentalize the bar,individual bulb scockets.
and i should have used a clear light defuser from a drop ceiling the first time around
to eliminate any hot spots, ay live and learn, right?

some links to maybe extrapolate an archetype
http://cgi.ebay.com/ebaymotors/1968-...61510006r26889
http://www.cougarpartscatalog.com/seflre.html
http://www.thuntek.net/cougars_unlimited/seqts.htm

thanks for reading about my little quandary, look forward to any help



Tipsy
tipsymcstager is offline   Reply With Quote
Old 12-31-2010, 01:51 AM   #2
Senior Member

True Car Nut

sseidriver97's Avatar

Join Date: Mar 2010
Location: Portage mi
Posts: 7,124
Thanked 3 Times in 3 Posts
sseidriver97 is on a distinguished road
Default

NIce work...looks good man
sseidriver97 is offline   Reply With Quote
Old 12-31-2010, 01:53 AM   #3
Senior Member
True Car Nut

sawgunner's Avatar

Join Date: Jan 2009
Location: Dover, NH
Posts: 7,122
Thanks: 0
Thanked 0 Times in 0 Posts
sawgunner is on a distinguished road
Default

looks good!
this is what some of us in the bonnie world have done for the same reason.
https://www.gmforum.com/electrical-133/00-center-tail-light-up-write-up-287275/
sawgunner is offline   Reply With Quote
Old 12-31-2010, 02:57 AM   #4
Member
Posts like a V-Tak
Thread Starter

tipsymcstager's Avatar

Join Date: Nov 2010
Posts: 30
Thanks: 0
Thanked 0 Times in 0 Posts
tipsymcstager is on a distinguished road
Default

thanks
looked at the bonne bar link,<lol sounds like a pub in europe) samedifference, looks good too!

but i'm obsessed with getting Sequential Turn Signals somehow.
i get on these tangents, and can't stop till it'* done.(don't know how my wife puts up with me) LOL
tipsymcstager is offline   Reply With Quote
Old 12-31-2010, 03:29 AM   #5
Senior Member
True Car Nut

sawgunner's Avatar

Join Date: Jan 2009
Location: Dover, NH
Posts: 7,122
Thanks: 0
Thanked 0 Times in 0 Posts
sawgunner is on a distinguished road
Default

Billboost37 did it to his regal may want to PM him and see if he has any ideas.
other than adding more bulbs and getting the sequential turn relay kit i got nothing
sawgunner is offline   Reply With Quote
Old 12-31-2010, 10:01 AM   #6
Senior Member
Posts like a Corvette

StealthGXP's Avatar

Join Date: Aug 2010
Posts: 1,337
Thanks: 0
Thanked 0 Times in 0 Posts
StealthGXP is on a distinguished road
Default

check this out


[yt]http://www.youtube.com/watch?v=gZecDwJYyq0[/yt]

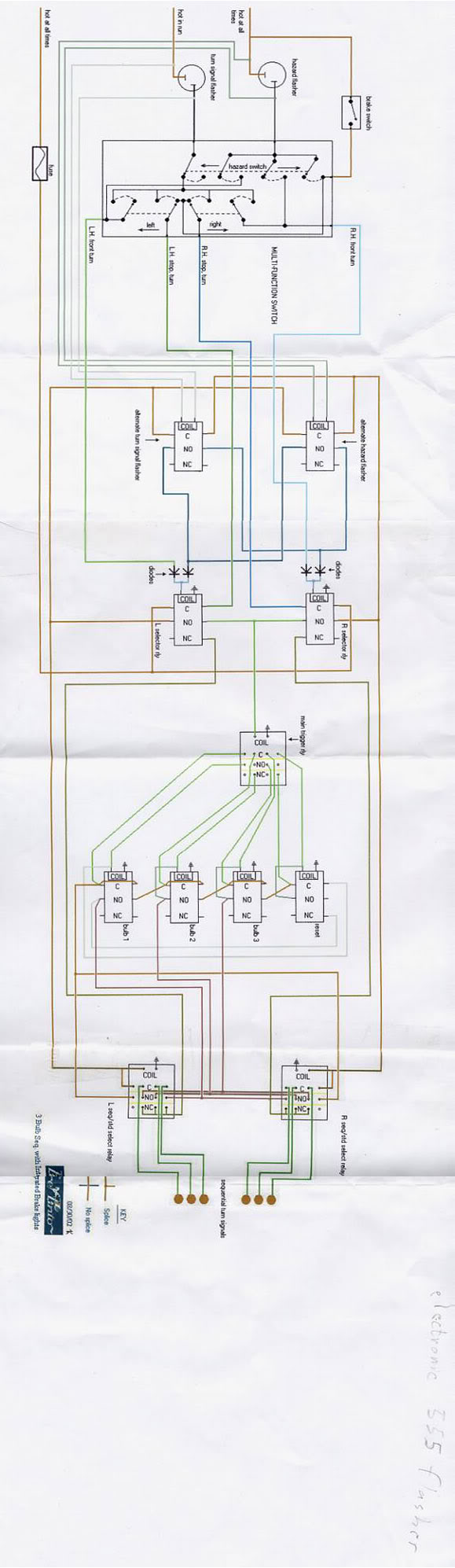

Name:  SeqT.jpg
Views: 2
Size:  126.1 KB
StealthGXP is offline   Reply With Quote
Old 12-31-2010, 12:07 PM   #7
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

That does provide a nice glow. Nice work.
