Default Sway Bar Bushings Mod

The Bullet got a new mod today.

Tightened up the cornering feel and sharpened the response. Noticeably less lean in turns. Not as much as a larger sway bar but a cheap and quick mod that takes it part way.

I uses Suspension Energy 9.8120R end links on all four corners. Polyeurethane bushings with larger diameter (3/8") link bolt.

The rear was a breeze and no alterations were required. A simple bolt on.

The front was a bit trickier. I had to trim the metal spacers 1/4" in order to get the nut started but it fits perfectly otherwise.

The OEM links with soft rubber bushings, plastic spacers, 5/16" bolts are in the parts bin. :P

So, scratch that mod from the WCBM06 Mod day......but I can help others do it.
2000SilverBullet is offline   Reply With Quote
Old 05-27-2006, 12:15 AM   #2
Senior Member
Posts like a Turbo

Join Date: Jul 2005
Location: Palatine, IL
Posts: 239
Thanks: 0
Thanked 1 Time in 1 Post
TommyGloves is on a distinguished road
Default

Good to hear. I've been wanting to do mine for awhile. I'm still trying tofigure out which bushings are used for the swaybars.

When you say "trim the metal spacers", how did you do that?

Parts store...here I come.
TommyGloves is offline   Reply With Quote
Old 05-27-2006, 02:44 AM   #3
Junior Member
Thread Starter

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

Quote:
When you say "trim the metal spacers", how did you do that?
Hacksaw and files to dress it up and ensure parallel flatness.
I have a good eye.
2000SilverBullet is offline   Reply With Quote
Old 05-27-2006, 08:25 AM   #4
jdq
Senior Member
Posts like a Corvette

Join Date: Nov 2005
Location: Hamilton, Ontario , Canada
Posts: 1,201
Thanks: 0
Thanked 0 Times in 0 Posts
jdq is on a distinguished road
Default

No pics
jdq is offline   Reply With Quote
Old 05-27-2006, 10:36 AM   #5
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Maryland, USA
Posts: 3,089
Thanks: 0
Thanked 0 Times in 0 Posts
95SLE is on a distinguished road
Default

Did you need a front end alignment when you finished.
95SLE is offline   Reply With Quote
Old 05-27-2006, 10:41 AM   #6
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

No alignment is necessary. Simply do what Paul did, and buy the kit with a slightly LONGER spacer in it than the stock spacer length. Then trim the spacer to match in the new kit.

I'm assuming there isn't a kit from them with the exact spacer length. This is the next obvious solution.
willwren is offline   Reply With Quote
Old 05-28-2006, 12:35 AM   #7
Junior Member
Thread Starter

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

Suspension Energy 9.8120R is the perfect size for the rear and only 1/4" needs to be trimmed for the fronts.

It has no effect on alignment, it simply reduces compliance or the amount of deflection.

I'll take some pics and post them later.
2000SilverBullet is offline   Reply With Quote
Old 05-28-2006, 12:50 AM   #8
Junior Member
Thread Starter

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

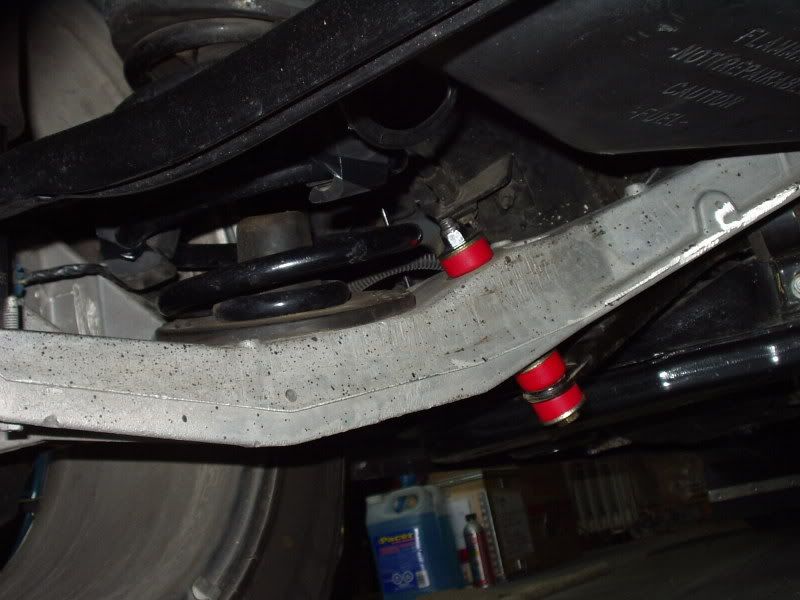

Name:  May27-06PolyBushings003.jpg
Views: 18
Size:  59.9 KB

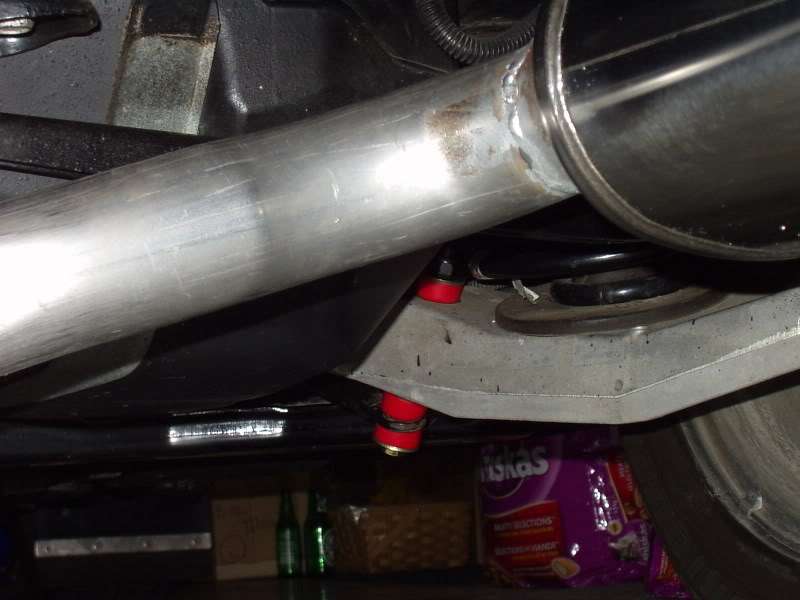

Name:  May27-06PolyBushings004.jpg
Views: 15
Size:  56.9 KB

The fronts are similar.
2000SilverBullet is offline   Reply With Quote
Old 05-28-2006, 07:56 AM   #9
jdq
Senior Member
Posts like a Corvette

Join Date: Nov 2005
Location: Hamilton, Ontario , Canada
Posts: 1,201
Thanks: 0
Thanked 0 Times in 0 Posts
jdq is on a distinguished road
Default

Thanks bullet looks good.
jdq is offline   Reply With Quote
Old 05-28-2006, 10:02 AM   #10
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Maryland, USA
Posts: 3,089
Thanks: 0
Thanked 0 Times in 0 Posts
95SLE is on a distinguished road
Default

Dumb Question Time.

Did you use ramps or jack stands when you replaced the endlinks?
95SLE is offline   Reply With Quote
