Mystery Connector

Thread Tools

Search this Thread

Old Apr 17, 2021 | 03:14 PM
  #1
Stealthblackbird's Avatar
Thread Starter
Junior Member

Joined: Apr 2021
Posts: 2
Likes: 0
Stealthblackbird is on a distinguished road
Default Mystery Connector


I've got this mystery Connector near the alternator connector and the #2 fuel injector and can't find where it goes to. Any ideas?
Reply
Old Apr 17, 2021 | 03:18 PM
  #2
Stealthblackbird's Avatar
Thread Starter
Junior Member

Joined: Apr 2021
Posts: 2
Likes: 0
Stealthblackbird is on a distinguished road
Default

Originally Posted by Stealthblackbird

I've got this mystery Connector near the alternator connector and the #2 fuel injector and can't find where it goes to. Any ideas?
Guess I should've said this is for a 2002 3.8L N/A Impala.
Reply
Old Apr 17, 2021 | 08:27 PM
  #3
carfixer007's Avatar
Senior Member


True Car Nut

Joined: Dec 2018
Posts: 3,242
Likes: 1,599
From: Flint, MI USA
carfixer007 is on a distinguished road
Default

You just kind of found it. If everything is OK don't worry about it. They use the same harness for more options.
Reply
Old Apr 17, 2021 | 11:29 PM
  #4
CathedralCub's Avatar
Senior Member


True Car Nut

Joined: Feb 2015
Posts: 6,827
Likes: 1,009
From: Earth
CathedralCub is a splendid one to beholdCathedralCub is a splendid one to beholdCathedralCub is a splendid one to beholdCathedralCub is a splendid one to beholdCathedralCub is a splendid one to beholdCathedralCub is a splendid one to beholdCathedralCub is a splendid one to behold
Default

I tend to agree with carfixer007 ^^^^^^^

Does anything not work and/or is the check engine light on?

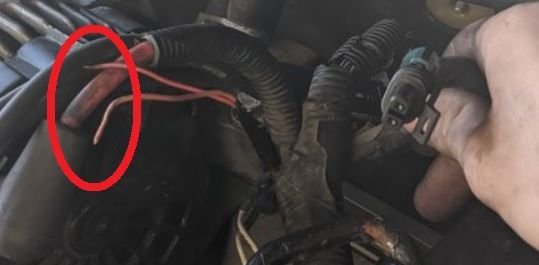

I'm more concerned with this:


Reply
Old Apr 18, 2021 | 12:43 AM
  #5
Soft Ride's Avatar
Senior Member


True Car Nut

Joined: Jan 2012
Posts: 4,911
Likes: 624
From: BC Canada
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

I'm not sure about the spare cut wires but the one in your hand sure looks like the MAF Sensor connector.
__________________
1997 Buick Pk Ave (Soft Ride) Suspension!

Last edited by Soft Ride; Apr 18, 2021 at 12:44 AM.
Reply
Old Apr 18, 2021 | 03:29 AM
  #6
HotZ28's Avatar
Senior Member
Posts like a 4 Banger

Joined: Apr 2006
Posts: 102
Likes: 26
From: USA
HotZ28 is on a distinguished road
Default

The MAf sensor wires are three wires. That 2-wire female connector looks more like something going to the EVAP (gas tank purge) solenoid? Are there any CEL'* showing and if so, what are they from a capable scanner?
Reply
Old Apr 19, 2021 | 01:36 AM
  #7
rjolly87's Avatar
Senior Member
True Car Nut

Joined: Jun 2003
Posts: 7,270
Likes: 465
From: Las Cruces, NM
rjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant future
Default

My guess is that it IS (or, namely, WAS) the plug for the #2 injector, and something happened that led to what is there now (which doesn't look like it came that way).
Reply
Old Apr 19, 2021 | 02:22 AM
  #8
HotZ28's Avatar
Senior Member
Posts like a 4 Banger

Joined: Apr 2006
Posts: 102
Likes: 26
From: USA
HotZ28 is on a distinguished road
Default

I guess the next question would be, where do those strange UN-sheilded wires from the alternator go to?
