Default 4.3 to 5.7 S10 Swap

I'm looking for input on a future project that I am seriously considering doing. Serious enough, that I almost told the junkyard to rip into a 2002 Tahoe to get the engine out for me the other day. But, I have more homework to do first.

I'm also posting this on the *-10 forum to see what they say, but it doesn't hurt to cover more areas eh?

Quoted from the *-10 forum.

Quote:
My goal is to either put in a Gen 3 5.3 liter or a Gen 1 5.7 liter. I seen someone post on here that the 5.7 is easier to install than the 5.3? If true, then what exactly is the difference?

If I am staying with an engine close to my current year, If I read correctly somewhere, that only 2 wires need to be added to the harness for the obvious extra injectors? Or do I need to completely redo the entire harness?

Another question. Swap kits. Only thing I need to complete a swap is engine brackets, manifolds and oil pan. What is a good source for this kit? Again, I have seen multiple sources for kits and want to spend money on only what I need. E-fans, I can pickup from junkyard.
Mike is offline   Reply With Quote
Old 03-02-2013, 10:06 PM   #2
Senior Member
True Car Nut

MouSe's Avatar

Join Date: Oct 2009
Location: Atlanta
Posts: 5,988
Thanked 2 Times in 2 Posts
MouSe is on a distinguished road
Default

5.7 will mount better if you already have the 4.3. You know, since its the same block just missing cylinders.
MouSe is offline   Reply With Quote
Old 03-03-2013, 11:10 AM   #3
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

i doubt the 5.7 has the same mount. i would get 01-03 5.3 or 6.0 if i had the choice because the early ones had the head problems and after 03 is the drive by wire. you can run the later long block and get the upper end from 99-03 and pcm and everything else. the ls series has better power, mods, and efficiency. probably the same fuel requirements as your 6. your fabbing or buying custom mounts either way. there was a show on "trucks" about putting a 5.3 into a s10 blazer, you should check it out
jwfirebird is offline   Reply With Quote
Old 03-03-2013, 12:12 PM   #4
Senior Member
True Car Nut

MouSe's Avatar

Join Date: Oct 2009
Location: Atlanta
Posts: 5,988
Thanked 2 Times in 2 Posts
MouSe is on a distinguished road
Default

04+ 5.3s also have an issue with the heads, mainly the 04s though because they built the PCV valve into the intake. I had a problem with mine burning oil at startup for a little bit. It seems to have cleared itself up.

Also, the 04+ are returnless fuel systems where as before they used return lines.
MouSe is offline   Reply With Quote
Old 03-03-2013, 05:37 PM   #5
Senior Administrator








Certified Car Nut
Thread Starter

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Ive been seeing many posts about how the 5.7 trans mount is identical to the 4.3 mount because the 4.3 was based off of the 5.7.
Mike is offline   Reply With Quote
Old 03-03-2013, 05:56 PM   #6
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

trans bolt pattern and all should be the same from 4.3 to 5.3 or 5.7 because they all used the same transmissions. just the engine mounts would be different
jwfirebird is offline   Reply With Quote
Old 03-03-2013, 06:30 PM   #7
Senior Member
Posts like a Camaro

rjblazer's Avatar

Join Date: Jan 2010
Location: Elmira, New York
Posts: 853
Thanked 31 Times in 29 Posts
rjblazer has a spectacular aura aboutrjblazer has a spectacular aura about
Default

Mike i would check into what it would take to make it legal for inspection and stuff. Its still gotta be hooked up. Unless you got it registered like a custom built one.
rjblazer is offline   Reply With Quote
Old 03-03-2013, 08:22 PM   #8
Retired Administrator

True Car Nut

GunsOfNavarone's Avatar

Join Date: Apr 2009
Location: Williamsport, PA
Posts: 2,856
Thanked 167 Times in 129 Posts
GunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud of
Default

Mike,

What is the motivation for the conversion?

As a S10 and Bravada owner, and former owner of a 84 S10, an a fleet of Astros' over the years, I have NEVER had a problem with a 4.3L other than the LIM gasket. The 4.3 is equivalent to the 3.8 in longevity.

I do wish the 4.3 was better on fuel. Other than that, it does everything I need it to do- flawless and reliable.
GunsOfNavarone is offline   Reply With Quote
Old 03-03-2013, 09:30 PM   #9
Senior Administrator








Certified Car Nut
Thread Starter

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Quote:
Originally Posted by rjblazer View Post
Mike i would check into what it would take to make it legal for inspection and stuff. Its still gotta be hooked up. Unless you got it registered like a custom built one.

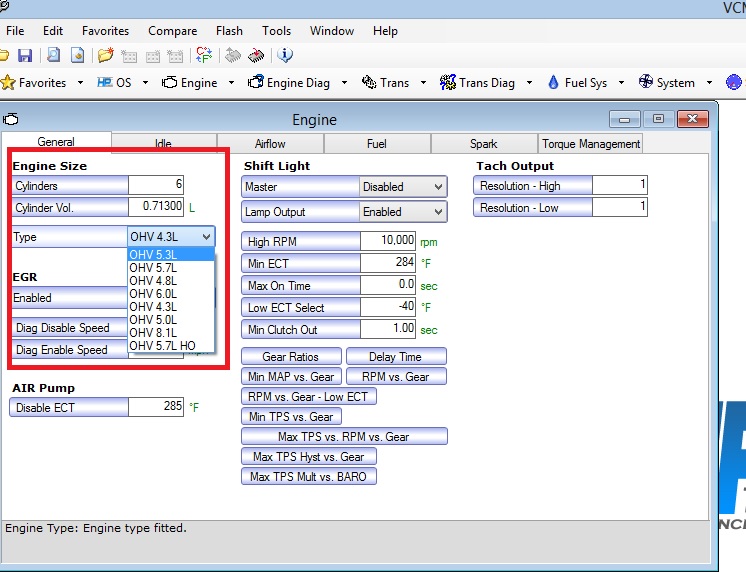

The PCM is already programmed to handle 8 different V8 engines. I only have to tell it which engine it is that I put in and it takes care of the rest. As far as NY is concerned, as long as all emission parts are installed, and OPERATIONAL, and the readiness monitors are ok AND there are no CEL, then I should be fine. From research I have done so far, I only need to add 2 wires for the extra injectors, and possibly another O2 sensor. But again, the PCM is already "ready" for it.



I haven't had a problem yet with my Bonneville in NY and technically, that L67 does not match my current VIN.

Quote:
Originally Posted by GunsOfNavarone View Post
Mike,

What is the motivation for the conversion?
Same reason I swapped out my L36 for a L67. Because it can be done. And there are not too many V-8 *-10'* around here. Sleeper baby!!
Attached Thumbnails
4.3 to 5.7 S10 Swap-pcm.jpg
Mike is offline   Reply With Quote
Old 03-04-2013, 08:25 AM   #10
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

if you put a 5.3 in it you will almost double the power and get better mileage

as far as inspection i dont think it has anything to do with the engine vin just the pcm vin matching the car. if you wanted to do a engine swap that required a different pcm that pcm would have to have your vin put into it.
