Default 2008 Suburban Tailgate Release Switch

Purchased a used 2008 Suburban, not noticing that the 'tailgate release switch' was broken. This is the 'button' that opens the glass portion of the tailgate. Trying to determine how that part is removed and replaced. I was hoping that it could be taken out from the outside, rather than having to remove all the paneling from the inside. Two dealers have told me that 'probably' the paneling needs to be removed, but it seems it would have been an easy design to have it snapped in and out. Any suggestions. Thanks.
bjojwaldeck is offline   Reply With Quote
Old 01-14-2014, 09:00 PM   #2
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

You have to remove the liftgate inner trim panel.
2kg4u is offline   Reply With Quote
The Following User Says Thank You to 2kg4u For This Useful Post:
bjojwaldeck (01-15-2014)
Old 01-15-2014, 09:16 AM   #3
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

they dont make it accessible from the outside for theft reasons im sure
jwfirebird is offline   Reply With Quote
The Following User Says Thank You to jwfirebird For This Useful Post:
bjojwaldeck (01-15-2014)
Old 01-15-2014, 11:07 AM   #4
Junior Member
Thread Starter

Join Date: Jan 2014
Posts: 2
Thanked 0 Times in 0 Posts
bjojwaldeck is on a distinguished road
Default

Hadn't considered the theft angle, makes sense. Any particular trick to removing inner panels?
bjojwaldeck is offline   Reply With Quote
Old 01-15-2014, 11:47 AM   #5
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

havent done that exact one but in general there is no trick, most are held on by some combination of screws and those christmas tree type fasteners
jwfirebird is offline   Reply With Quote
Old 01-15-2014, 03:58 PM   #6
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

Quote:
Originally Posted by bjojwaldeck View Post
Hadn't considered the theft angle, makes sense. Any particular trick to removing inner panels?

Theft, and installation at the factory. Installing from the back side of the sheet metal means the screw guns can't damage paint if they slip off the fastener.

Remove any screws you see. Clips are always a straight pull out from the plane of the liftgate. Typically you take a prying device that won't mark paint, and work your way around the outside edge of the panel popping clips as you go. They make plastic trim removal tools you can buy for not a lot of money, or, in a pinch I have used a screwdriver with a cloth wrapped over the end.
2kg4u is offline   Reply With Quote
Old 01-15-2014, 04:07 PM   #7
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Attached Thumbnails

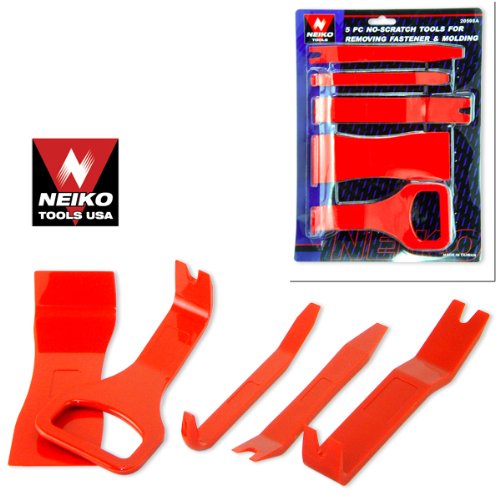

2008 Suburban Tailgate Release Switch-51elk5xjaxl.jpg
Mike is offline   Reply With Quote
Old 01-15-2014, 04:25 PM   #8
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

Yah, that is what I was referring to. You can get that a most automotive stores, and they are all over Ebay.
2kg4u is offline   Reply With Quote
