Default 1985 2.5L valve cover gasket problems.

Hi there, I have a 1985 oldsmobile calais with the 2.5L engine. I have been trying to resolve a leaking valve cover problem. I tried a cork gasket and it didn't work, so then I tried a rubber $12.99 gasket and it didn't work.

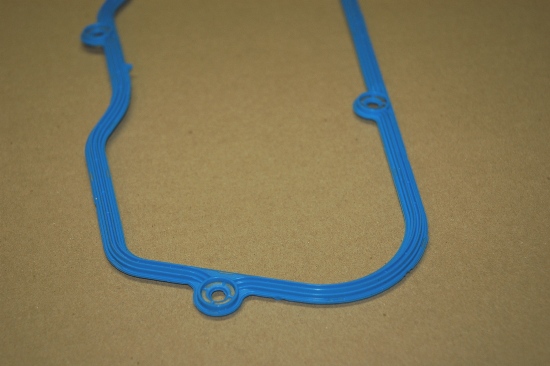

So then I thought the hell with it and got the $32 felpro PN FEL-VS50179T gasket.

This is supposed to be the king of gaskets, no sealing products needed whatsoever. But it still leaks. The valve cover is not distorted or bent in any way. And I cleaned it to like new status. All old silicone is gone, and all oil was completely cleaned with carb cleaner.

Has anyone else had problems with this? I am stumped.
Attached Thumbnails
1985 2.5L valve cover gasket problems.-cover_gasket.jpg   1985 2.5L valve cover gasket problems.-cover_gasket2.jpg
dkisdatrump is offline   Reply With Quote
Old 10-03-2013, 09:36 PM   #2
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

throw some ultra black permatex on it, and only snug it down a little from the center out. too tight is as bad as not enough
jwfirebird is offline   Reply With Quote
Old 10-03-2013, 09:57 PM   #3
Junior Member
Thread Starter

Join Date: Sep 2012
Posts: 5
Thanks: 0
Thanked 0 Times in 0 Posts
dkisdatrump is on a distinguished road
Default

Thanks, but they say no sealent at all. So your reply makes me confused. Can I get this thing to seal or no?
dkisdatrump is offline   Reply With Quote
Old 10-03-2013, 11:20 PM   #4
Senior Member

Posts like a Camaro

Join Date: Aug 2013
Location: Northern California
Posts: 1,014
Thanked 164 Times in 130 Posts
75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold
Default

Yeah don't worry about the instructions. A thin layer of RTV on the valve cover side will be your friend. The head side should be fine with out sealant. The tin valve cover can't provide a flat even surface for to gasket so she sealant will fill in the voids.
75 racer is offline   Reply With Quote
The Following User Says Thank You to 75 racer For This Useful Post:
Rhensonsr (12-28-2014)
Old 10-04-2013, 05:50 AM   #5
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,643
Thanked 997 Times in 774 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

I agree with Will and Justin. It appears that tin cover isn't sealing very well.
Mike is offline   Reply With Quote
Old 10-04-2013, 08:18 AM   #6
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

if you work on old cars for a while you will find you have to come up with your own solutions. the older engines have been taken apart and put back together so many times no way both surfaces are flat. alot of times i will throw out the gasket all together if it wont seal for valve covers. i do this first with intake end gaskets on sbc, they always end up leaking if you follow the instructions
jwfirebird is offline   Reply With Quote
Old 12-15-2014, 08:07 PM   #7
Member
Posts like a V-Tak

Join Date: Nov 2014
Location: spokane , wa.
Posts: 31
Thanked 1 Time in 1 Post
Twinpilot is on a distinguished road
Default

using many types of gaskets over the many years - even the blue & non use sealer types.=I even remember when GM used -ONLY RTV sealer on vc'* and no gasket at all!! oil pans also. heres what i still do - I get that old cork gasket- & a tube of 3m 8001 gasket sealer -or i believe that # has been updated now too?? yet i use the yellow 3 m brand!! coat the valve cover area with it & the gasket - 1 side let dry / very tacky!! then put those two together- adding some weight to the top of valve comer !! let sit- then when dry- add rtv silicone (small amount) to the head side of that vc gasket & install it - tighten down screws =SNUGLY!! only - then after a few hours of running or a day or so -retighten the screws again tighter =remembering this -if you are NOT used to working on cars - the ameteuer will always tighten screws & bolts way too loose or way too tight!! be careful-- and ill add = clean that vc extermely good =inspecting for cracks @ the bolt hole areas!! might be that leak there u cant stop??
Twinpilot is offline   Reply With Quote
Old 12-21-2014, 05:12 PM   #8
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,143
Thanked 780 Times in 609 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

The valve cover on this engine is just like the timing cover on this engine, they can distort and leak......

They had cork gaskets, then rubber with metal rings where the bolts went through the cover.......

I use rtv.....trick is to make sure there is absolutely no oil on the deck of the engine or on the valve cover......when applying rtv to both sides of the gasket, do it quickly so it doesn't skin over.......and don't overtorque the valve cover bolts, it will distort the cover and squeeze out the rtv.......give it an hour or so to seal before starting...
Tech II is offline   Reply With Quote
Old 12-22-2014, 03:10 PM   #9
Senior Member
Posts like a Turbo

chevy82's Avatar

Join Date: Jan 2014
Location: Missouri
Posts: 396
Thanked 99 Times in 84 Posts
chevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of light
Default

Have you checked the ventilation system on the engine? Internal pressure will cause oil leaks. Also agree a little sealant wont hurt.
chevy82 is offline   Reply With Quote
