Default What is the P.E.D. Connector for on my L67? (New Pics)

I was changing the back valve cover gasket, and I noticed that there was a connector dangling. I looked at it and the head of the connector was broken off like this...
Name:  DSCF0013-1.jpg
Views: 107
Size:  22.9 KB

Name:  DSCF0011-2.jpg
Views: 97
Size:  23.1 KB

Name:  DSCF0001-1.jpg
Views: 97
Size:  46.6 KB

The connector says P.E.D. on one side and has a number 6 on the other side. I have not turned the car over to see if it acts differently, first I would like to know what this connector regulates. Any info on it would be greatly appreciated, Thanks!
Buickman104 is offline   Reply With Quote
Old 06-18-2006, 04:21 AM   #2
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

maybe an injector connector?
harofreak00 is offline   Reply With Quote
Old 06-18-2006, 04:25 AM   #3
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Mar 2006
Location: NY
Posts: 400
Thanks: 0
Thanked 0 Times in 0 Posts
Buickman104 is on a distinguished road
Default

I don't think it is, all the connectors to my injectors are counted for. I thought that too when I saw it dangling to the head of the other connector it was supposed to be connected to.
Buickman104 is offline   Reply With Quote
Old 06-18-2006, 12:19 PM   #4
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

So, you know where it is supposed to connect? If so, a picture of that would be more helpful.
Archon is offline   Reply With Quote
Old 06-19-2006, 01:31 AM   #5
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Mar 2006
Location: NY
Posts: 400
Thanks: 0
Thanked 0 Times in 0 Posts
Buickman104 is on a distinguished road
Default

Cool I got new pics of what it is supposed to connect to...
Name:  Head.jpg
Views: 97
Size:  65.0 KB
Name:  matingarea.jpg
Views: 96
Size:  47.8 KB
Name:  headwithbrokenhead.jpg
Views: 95
Size:  90.5 KB
Name:  nexttoeachother.jpg
Views: 98
Size:  78.2 KB

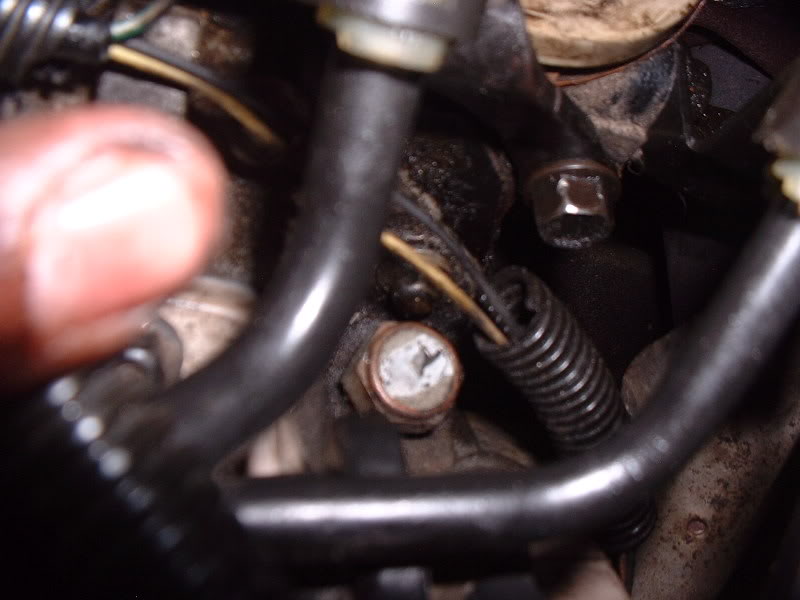

Name:  Prongs.jpg
Views: 100
Size:  48.7 KB

Sorry for the dirty engine bay. I did not have a chance to clean it after getting oil all over it after changing the gasket. Do these pics help?
Buickman104 is offline   Reply With Quote
Old 06-19-2006, 01:32 AM   #6
Junior Member

Join Date: Apr 2006
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
Bonneville92V688 is on a distinguished road
Default

That is the coolant sensor. Should replace it ASAP.
Bonneville92V688 is offline   Reply With Quote
Old 06-19-2006, 01:34 AM   #7
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Mar 2006
Location: NY
Posts: 400
Thanks: 0
Thanked 0 Times in 0 Posts
Buickman104 is on a distinguished road
Default

Since the connector head is broken off, how would I be able to replace it? Can I strip and extend the wires somehow?
Buickman104 is offline   Reply With Quote
Old 06-19-2006, 01:36 AM   #8
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

Yeah, that will be a coolant temp sensor. There will be one underneath the TB, as well. One is for the PCM, and one for the gauge, I believe. If your gauge reads normal, your PCM is flying a little blind. Get a new one. Be prepared for a little coolant to come out. And put some sealant on the threads so it won't leak.
J Wikoff is offline   Reply With Quote
Old 06-19-2006, 01:37 AM   #9
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

Quote:
Originally Posted by Buickman104
Since the connector head is broken off, how would I be able to replace it? Can I strip and extend the wires somehow?
You will need a new sensor. I don't think those are real expensive. They are very simple components.
J Wikoff is offline   Reply With Quote
Old 06-19-2006, 01:38 AM   #10
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Mar 2006
Location: NY
Posts: 400
Thanks: 0
Thanked 0 Times in 0 Posts
Buickman104 is on a distinguished road
Default

Is it a module? When I felt it it kinda felt like the wire was coming from the lim metal area not from a sensor???
Buickman104 is offline   Reply With Quote
