Default Transmission Slipping

Recently I found my transmission slipping a bit in 3rd gear, anything after 2,200 rpm'* was slipping, I dropped the pan and found a tiny bit of grit, but no real metal bits/shavings, there was a bit of goo on the magnet, but ro metal shavings visible in it, the fluid was black/overdue a change, so since I know I have normally taken good care of changing the fluid, I checked the fluid level and it was about 2 quarts high somehow.
So I dropped the pan and changed the filter/fluid, put some lucas additive and Mobil 1 Synthetic transmission fluid in there, the slipping stopped right away and it shifts nicely now.
When I examined the filter I found something, it was larger, but I broke it into pieces trying to see what it was made of.
Any idea what it could have been from?



Uploaded with ImageShack.us
WilliamE is offline   Reply With Quote
Old 06-06-2012, 05:32 PM   #2
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,586
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

I think William Your Transmission filter was made in Thailand.
Zkids just for laughs though it would be cool to throw you a real curve in there..
A Piece of a boomerang!
Soft Ride is offline   Reply With Quote
Old 06-06-2012, 06:30 PM   #3
-- SITE DONATOR --
True Car Nut

ymmot04's Avatar

Join Date: May 2009
Posts: 4,638
Thanked 5 Times in 4 Posts
ymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of light
Default

That looks like a piece of the filter itself.. it should be a sack that goes the length of the filter. See here: https://www.gmforum.com/4t65e-hd-147/rebuilding-4t65e-hd-part-1-reference-material-284788/
ymmot04 is offline   Reply With Quote
Old 06-06-2012, 08:29 PM   #4
Senior Member

True Car Nut
Thread Starter

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,087
Thanked 418 Times in 376 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

Quote:
Originally Posted by Soft Ride View Post
I think William Your Transmission filter was made in Thailand.
Zkids just for laughs though it would be cool to throw you a real curve in there..
A Piece of a boomerang!
Ha ha, yeah it was made somewhere strange for sure, it has a good ole AC Delco filter in it now.

Quote:
Originally Posted by ymmot04 View Post
That looks like a piece of the filter itself.. it should be a sack that goes the length of the filter. See here: https://www.gmforum.com/showthread.php?t=284788
Thanks, I am hoping that is all it is, the transmission shifts fine in all gears now, and hopefully it holds out a little longer, I'll give it a full flush as soon as I can afford to get 13 cans of Mobil 1 Synthetic ATF and some lucas additive.
I don't want to have to come up with the money to rebuild it any time soon, I am going to have to save up for that, or learn to rebuild one myself.
WilliamE is offline   Reply With Quote
Old 06-15-2012, 05:05 PM   #5
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,586
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

William, If you are about to flush or even if you are not in the near future, a 1/2 can of Seafoam TransTune will really help to remove sludge & varnish. It is a 3 oil based product and is safe to leave in after a fresh change. I just added a whole can as I think my 4T65E is gummed up and will do the TransGo Shift kit and am going to use DexronVI this time.
http://www.seafoamsales.com/trans-tune.html
Soft Ride is offline   Reply With Quote
Old 06-15-2012, 09:53 PM   #6
Senior Member

True Car Nut
Thread Starter

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,087
Thanked 418 Times in 376 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

Quote:
Originally Posted by Soft Ride View Post
William, If you are about to flush or even if you are not in the near future, a 1/2 can of Seafoam TransTune will really help to remove sludge & varnish. It is a 3 oil based product and is safe to leave in after a fresh change. I just added a whole can as I think my 4T65E is gummed up and will do the TransGo Shift kit and am going to use DexronVI this time.
http://www.seafoamsales.com/trans-tune.html
I will keep that in mind for sure, as my shifting problems seemed due to something like maybe a solenoid clogging from thick old fluid.
I use Seafom Motor Treatment on occasion, Seafoam is pretty good stuff!
WilliamE is offline   Reply With Quote
Old 06-16-2012, 12:48 AM   #7
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,586
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

I noticed smoother transmission operation after using the trans tune seafoam.
You should get your codes read by a good scanner.

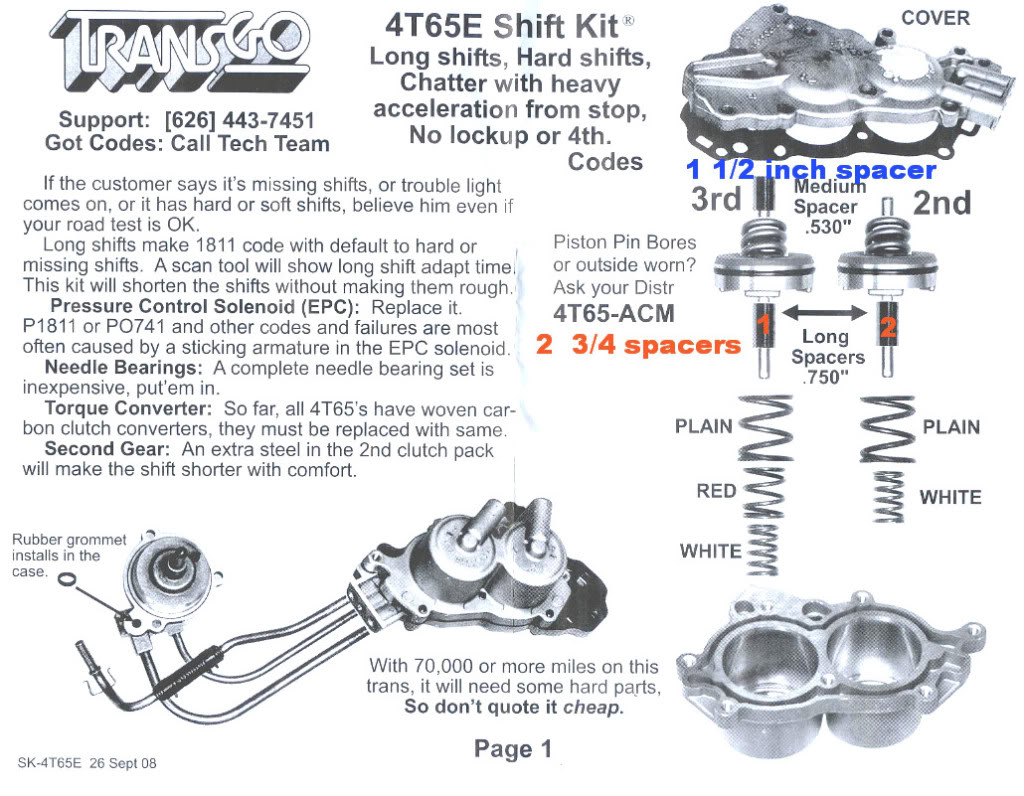

In my case the P1811 is long adapt shift, and is caused by pressure solenoid (EPC)at valve body. My guess the (EPC) code can be prevented by quickening up the shifts by installing the Shift Kit.
Name:  TransGo4T65E.jpg
Views: 115
Size:  180.6 KB
Will post back after installing tomorrow.
Also beside sticking by varnish etc these solenoids may crack on top housings.
See this video at 2:00 minutes in...
Attached Thumbnails
Transmission Slipping-transgo4t65e.jpg
Attached Images
File Type: jpg TransGo4T65E.jpg (180.6 KB, 8 views)
Soft Ride is offline   Reply With Quote
Old 06-16-2012, 02:06 AM   #8
Senior Member

True Car Nut
Thread Starter

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,087
Thanked 418 Times in 376 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

I got the P1811 a few years back, that is what made me change the filter and fluid the first time I changed it, the code never came back after changing the fluid.

Will that shift kit work for the 4T60E?
Or is the main problem a sticking armature in the EPC solenoid?
WilliamE is offline   Reply With Quote
Old 06-16-2012, 11:47 AM   #9
Senior Member
Posts like a Northstar

RobertISaar's Avatar

Join Date: Jul 2010
Location: Camden, MI
Posts: 615
Thanks: 0
Thanked 0 Times in 0 Posts
RobertISaar is on a distinguished road
Default

4T60E use a LOT of the same parts.... not the PCS obviously, but you can shim the accumulators the same way.
RobertISaar is offline   Reply With Quote
Old 06-16-2012, 11:59 AM   #10
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,586
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

Yup agreed. The Transgo kit for the 60E seems to be more valve body related.
From what I understand in the 60E Mike did a write up using the shims in accumulator.
https://www.gmforum.com/performance-137/making-installing-shift-kit-4t60-e-transmission-287906/
The P1811 stems from the EPC solenoid. It senses taking too long time/duration to shifts. Then the computer will increase fluid pressure trying to assist in shifting. That is what then causes the harsh up shifts.
So when the spacers go in it shortens the shift time from accumulator, so that the EPC signal is no longer activated, or no more upshift problems. This is still a band aid to replacing the EPC solenoid which is difficult to replace in the valve body.
What ever works to get smooth shifting back!
I think that the 65e kit including springs may be an exact fit, maybe Dan or Mike would be able to confirm that?
Soft Ride is offline   Reply With Quote
