Question Signal Mirrors??

All,
I saw a Lesabre with Red Cadillac Deville style signals in the side view mirror. My car does have that. Was it an option? How do I get a pair? Will mirrors from another GM car fit the Lesabre?

Z
zehn is offline   Reply With Quote
Old 01-21-2011, 01:35 PM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I do believe Billboost made signal mirrors. Might want to try contacting him. I'll see if I can find the thread.
Danthurs is offline   Reply With Quote
Old 01-21-2011, 01:38 PM   #3
Senior Member
True Car Nut

sawgunner's Avatar

Join Date: Jan 2009
Location: Dover, NH
Posts: 7,122
Thanks: 0
Thanked 0 Times in 0 Posts
sawgunner is on a distinguished road
Default

they were available on the 2003-05 lesabre limiteds only. try searching the yards for a pair but they are very expensive even from there
sawgunner is offline   Reply With Quote
Old 01-21-2011, 01:40 PM   #4
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Found a thread, but it'* not a lot of information, but might help.

https://www.gmforum.com/showthread.p...=signal+mirror
Danthurs is offline   Reply With Quote
Old 01-21-2011, 01:57 PM   #5
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 6,855
Thanked 298 Times in 246 Posts
rjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant future
Default

Found another thread, but no pictures
https://www.gmforum.com/showthread.p...=signal+mirror
rjolly87 is offline   Reply With Quote
Old 01-21-2011, 07:17 PM   #6
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Here ya go. Dan..I'll toss it in GH as well

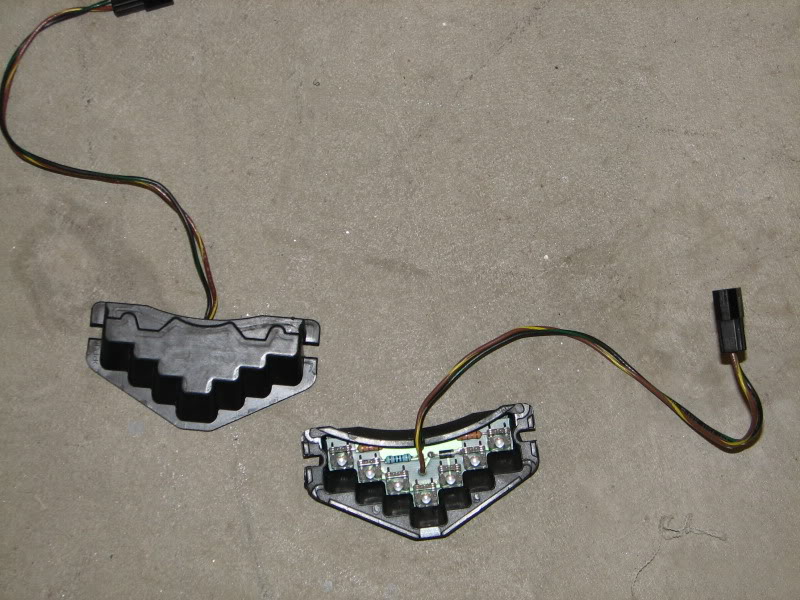

LED pods were from an 2004 Cadillac DTS.
Mirrors were found on Century/Regal.

LED Pods
Name:  IMG_5064.jpg
Views: 10
Size:  110.0 KB

I found that the mirrors with straight lines going up and down them were much easier to use/mod the heater than the other zigzag version

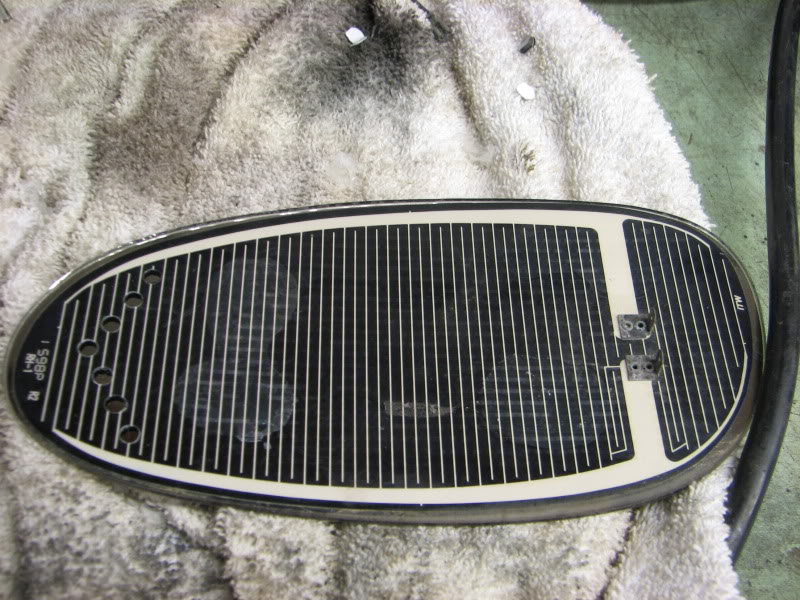

Up/Down heater
Name:  IMG_5122.jpg
Views: 11
Size:  132.6 KB

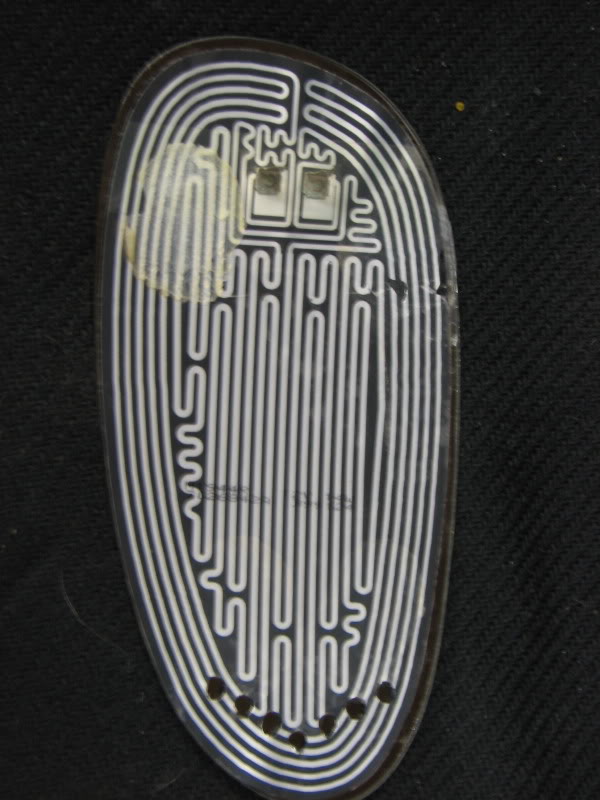

Zigzag heater
Name:  IMG_5152.jpg
Views: 10
Size:  81.9 KB

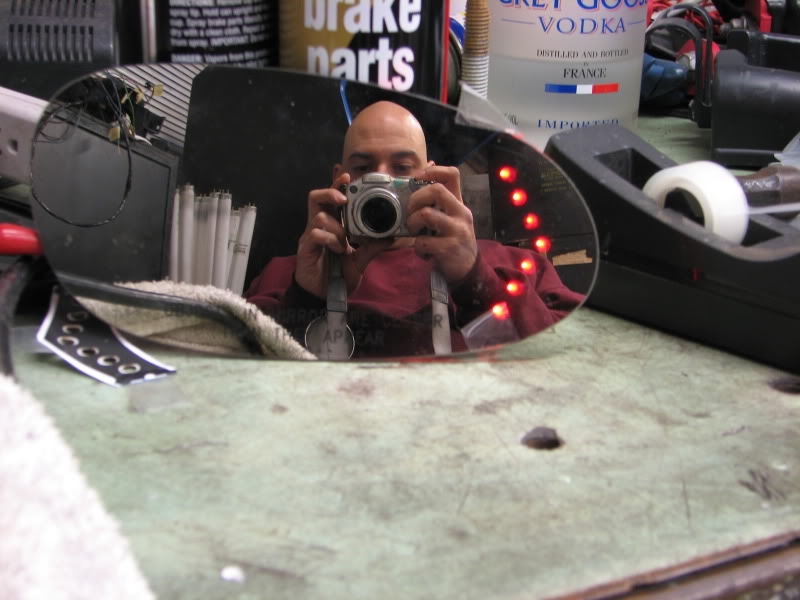

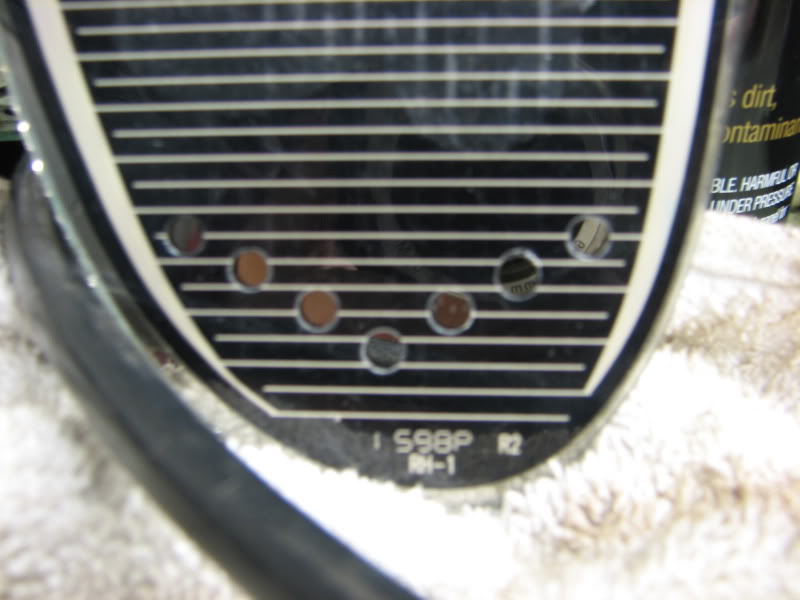

Upon trying to peel the heater in the zigzag, I found that the coating holding it to the mirror would have spots where it no longer covered. Illuminating the LED'* would show the areas where the coating had peeled. It looked bad up close. Looking for a method of making holes w/o lifting the heater, I came across a set of leather punches. They don't actually cut, so I used a torch to heat the end and melt the heater with the end. This gave me perfect circles. Cleaned the goop from the circles and illuminated, perfect.
Name:  IMG_5125.jpg
Views: 10
Size:  63.5 KB
Name:  IMG_5117.jpg
Views: 12
Size:  72.3 KB

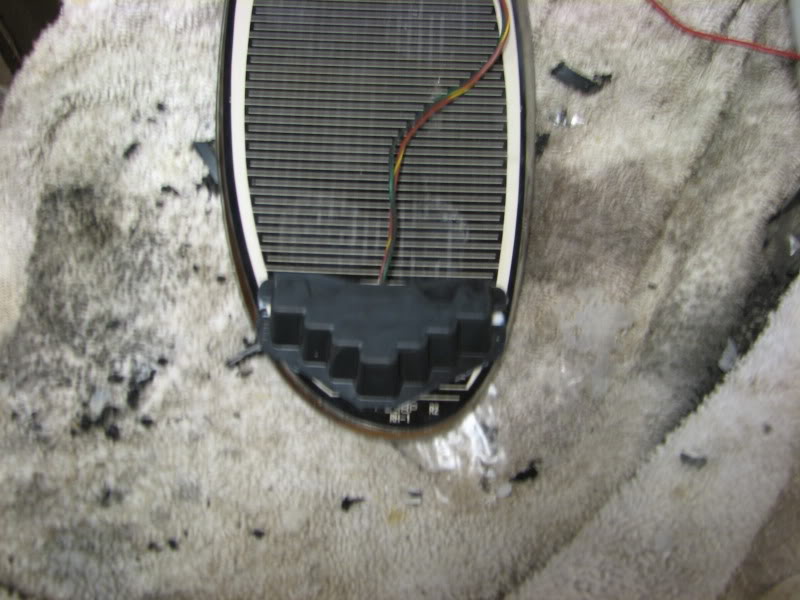

Placed the LED on and gooped in place
Name:  IMG_5127.jpg
Views: 10
Size:  82.6 KB

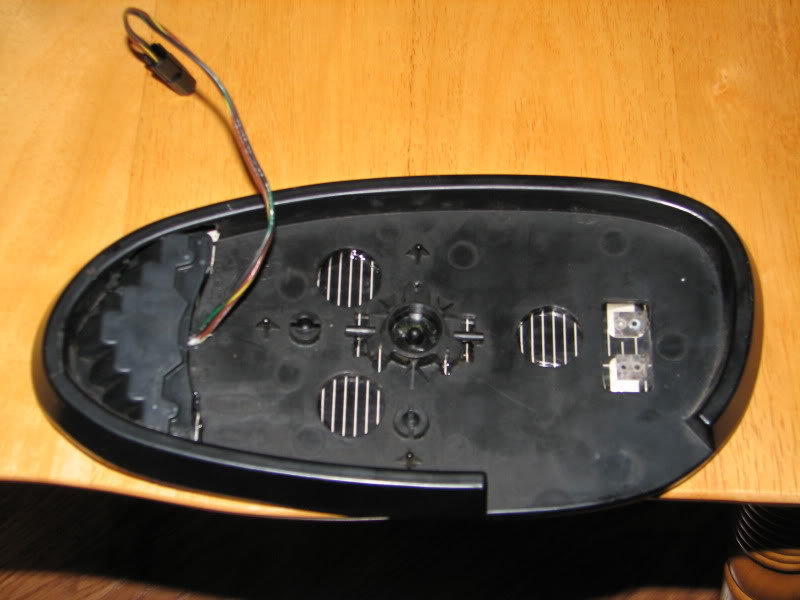

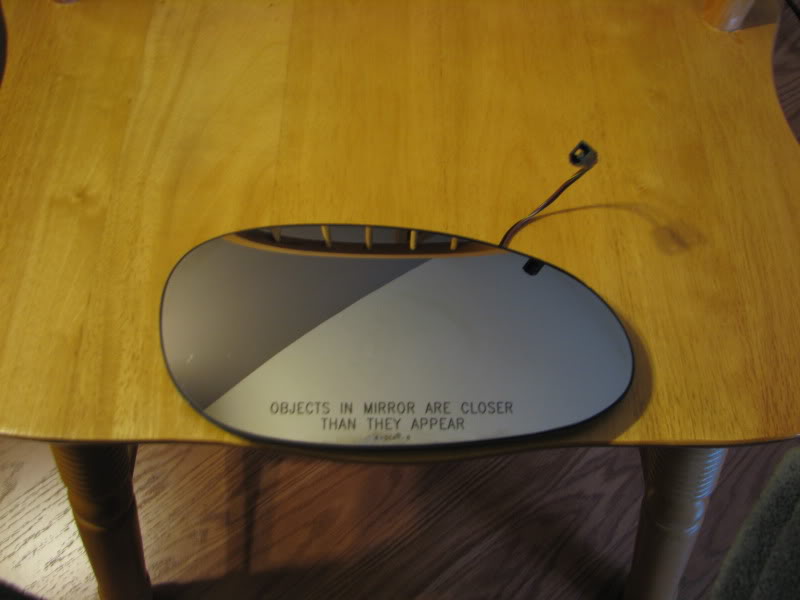

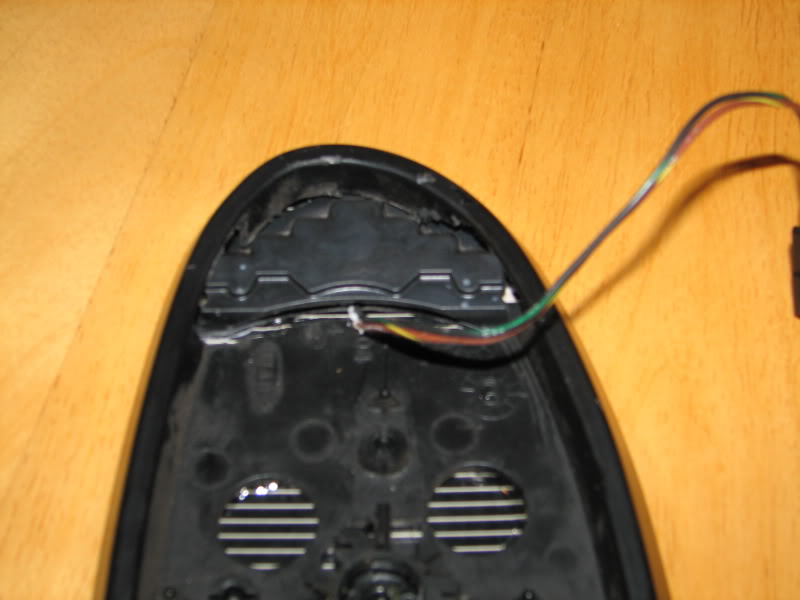

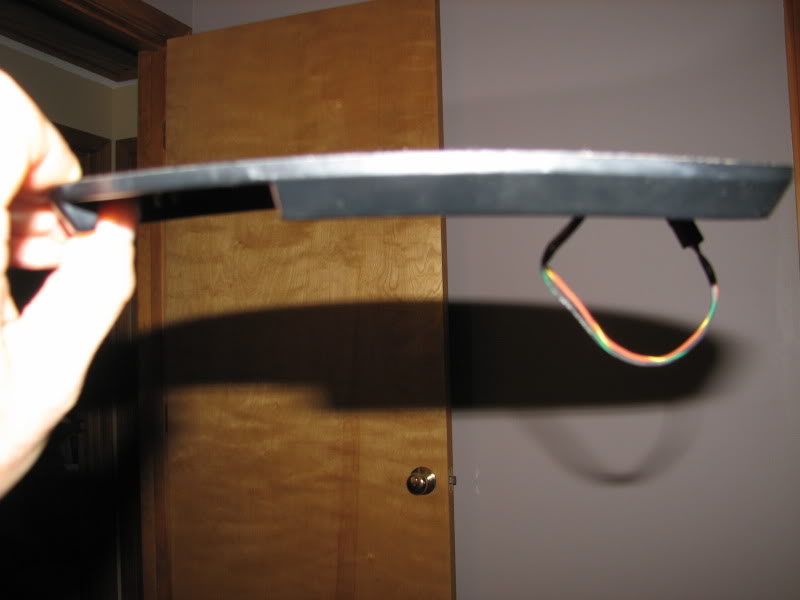

Gooped the backing onto the mirror, the final product is ready to be put into the car.
Name:  IMG_5149.jpg
Views: 12
Size:  41.2 KB
Name:  IMG_5147.jpg
Views: 10
Size:  52.2 KB
Name:  IMG_5146.jpg
Views: 12
Size:  61.8 KB
Name:  IMG_5144.jpg
Views: 14
Size:  47.7 KB
BillBoost37 is offline   Reply With Quote
Old 01-21-2011, 07:27 PM   #7
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Thanks Bill.
Danthurs is offline   Reply With Quote
Old 01-31-2011, 04:57 PM   #8
Junior Member
Posts like a V-Tak
Thread Starter

zehn's Avatar

Join Date: Dec 2010
Location: Califonia
Posts: 28
Thanked 0 Times in 0 Posts
zehn is on a distinguished road
Default

Thanks for the info!
