Ikeep getting a DTC P1635 reading about the 5 Volt Reference Circuit. I have replaced sensors but still get the error. I foun d a electrical diagram and troubleshooting guide for a 99 firebird but I'm sure that my 2003 Park Ave Ultra is different. I have searched but cannot find the diagram for the PA. Does anyone have a valid link?
paradisesky is offline   Reply With Quote
Old 03-11-2012, 09:23 AM   #2
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Which sensors did you replace?
Mike is offline   Reply With Quote
Old 03-12-2012, 08:22 AM   #3
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

https://www.gmforum.com/showthread.p...ighlight=P1635

did you check the sensors connectors for 5v?
jwfirebird is offline   Reply With Quote
Old 03-18-2012, 07:28 PM   #4
Junior Member
Thread Starter

Join Date: Jan 2012
Location: Honolulu, Hi.
Posts: 5
Thanks: 0
Thanked 0 Times in 0 Posts
paradisesky is on a distinguished road
Default

To answer both questions

I changed the MAP sensor and the EGR.
The reason I am looking for a link to the circuit diagram for the 2003 ParkAve Ultra is so I can find out which terminals between the PCM and sensors to check. The diag I have is for a 99 Firebird. The PCM for the buick has a lot more connections.

Thanks for the responses.
paradisesky is offline   Reply With Quote
Old 03-19-2012, 07:42 AM   #5
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

Attached Thumbnails

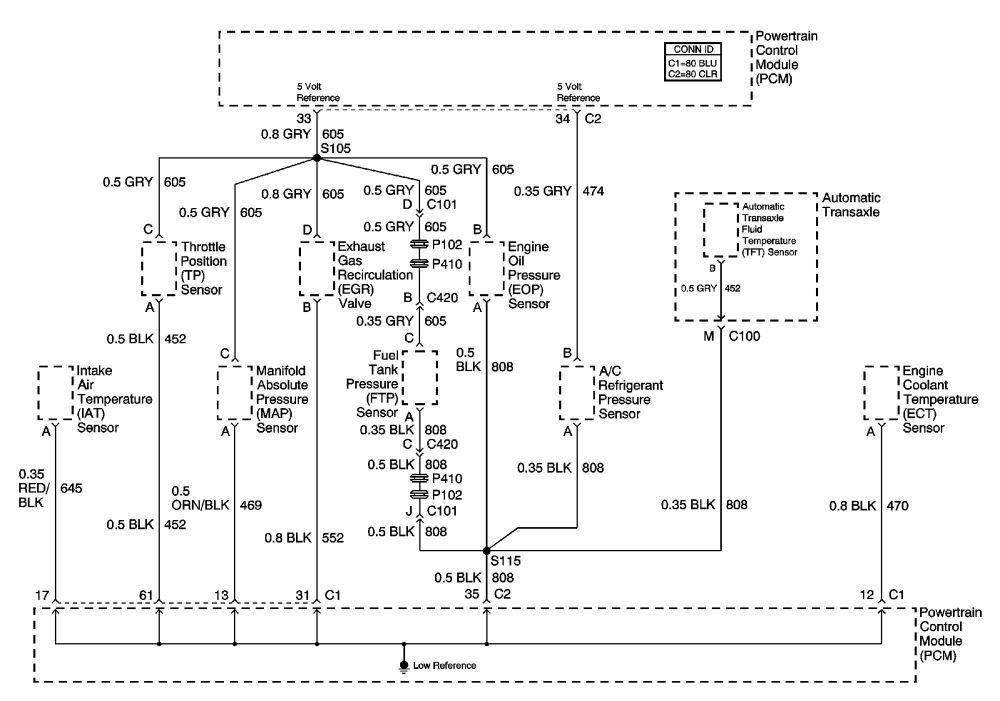

P1635 DTC Diags help-03bonnie5v.gif
jwfirebird is offline   Reply With Quote
Old 03-19-2012, 11:49 PM   #6
Junior Member
Thread Starter

Join Date: Jan 2012
Location: Honolulu, Hi.
Posts: 5
Thanks: 0
Thanked 0 Times in 0 Posts
paradisesky is on a distinguished road
Smile Excellent

GREAT ! ! This is exactly what I was looking for. The one I had for the firebird only had 2 sensors.

Thanks !
paradisesky is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
p1635 00 bonneville ssei jonkamholtz 2000-2005 2 03-31-2015 05:50 AM
P1635 Code 2002 Century Limited dudenamedric Buick 4 10-11-2013 08:42 AM
p1635 code masguapo 1992-1999 3 07-15-2010 11:21 PM
P1635 Danthurs OBD-II Trouble Shooting 0 09-27-2009 01:00 PM
More findings-FIXED!! - 93 SSE: DTC (Code) 42 & DTC 18 93RedSled-SSE 1992-1999 45 04-21-2008 03:21 PM
