Quote:
Originally Posted by WilliamE View Post
Watching and waiting for the pics, and to hear how tough the job was, eventually I'll be doing mine I'm sure.
You forgot something, but I'll bring it when I come to the show...

Attached Thumbnails
Oil Pan Gasket -What to expect in Replacement?-beermug.jpg
Mike is offline   Reply With Quote
Old 04-06-2013, 04:15 PM   #22
Senior Member
True Car Nut
Thread Starter

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,588
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Thumbs up Oil Pan Gasket Finally Replaced Today!

Ya had to wait for some lift time. Anyways I did not do all the photos just basics as really had to work & get it done without getting oil all over camera.

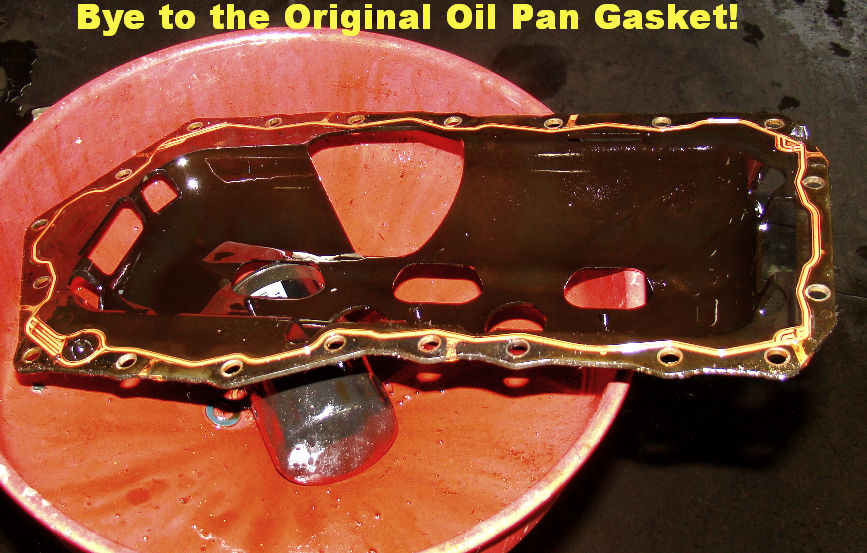

Was no big deal to remove the factory gasket, came down easily once the PU tube was removed.

You can see where build ups from oil leaking past the old gasket was a problem.

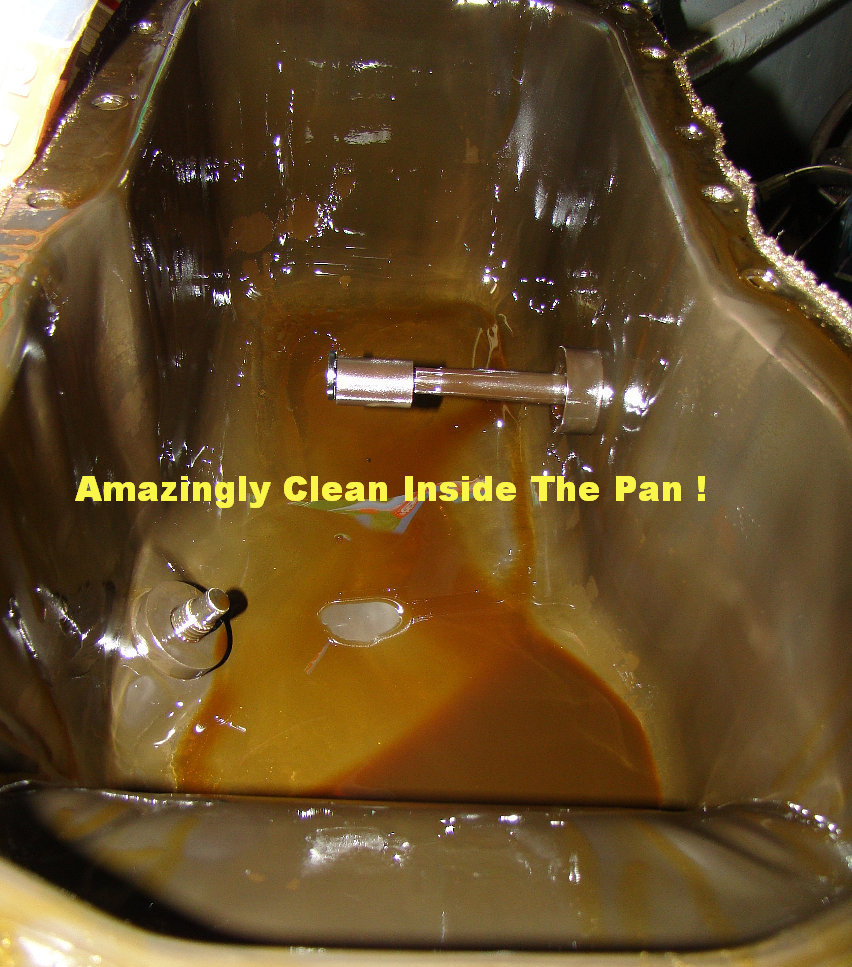

The good news no surprises inside the pan on the Pk Ave with now 97 k miles.
Obviously the previous owner did oil changes! No Gunk & chunks! Thank YOU!

Connecting rods were all pretty tight no upwards movement. Took a small flashlight into the exposed bores, clean as a whistle!

Got the pick up tube with gasket installed and electrical connections on/bolted right up & torqued it up..ALL IS WELL NO LEAKS NOW!!!

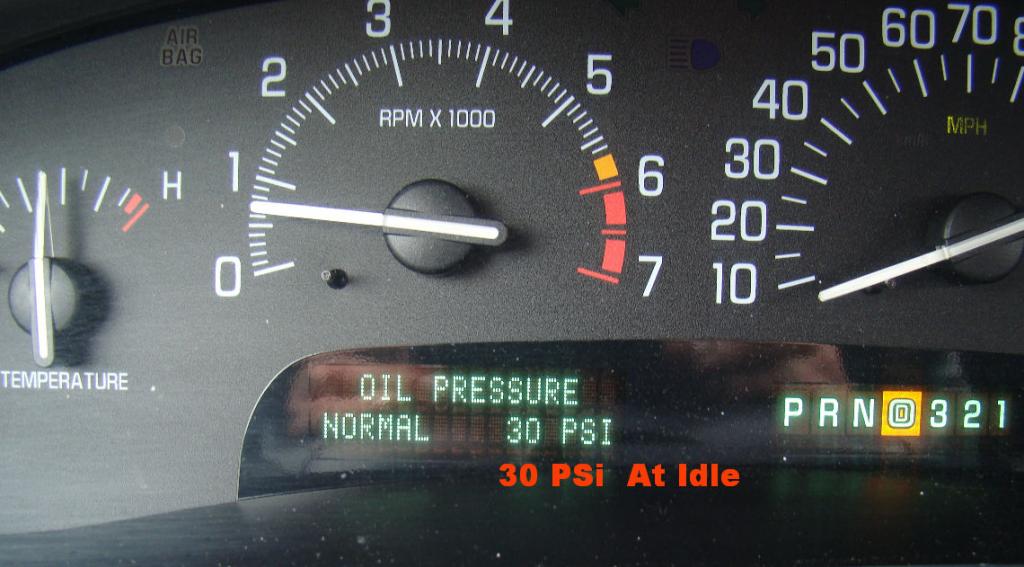

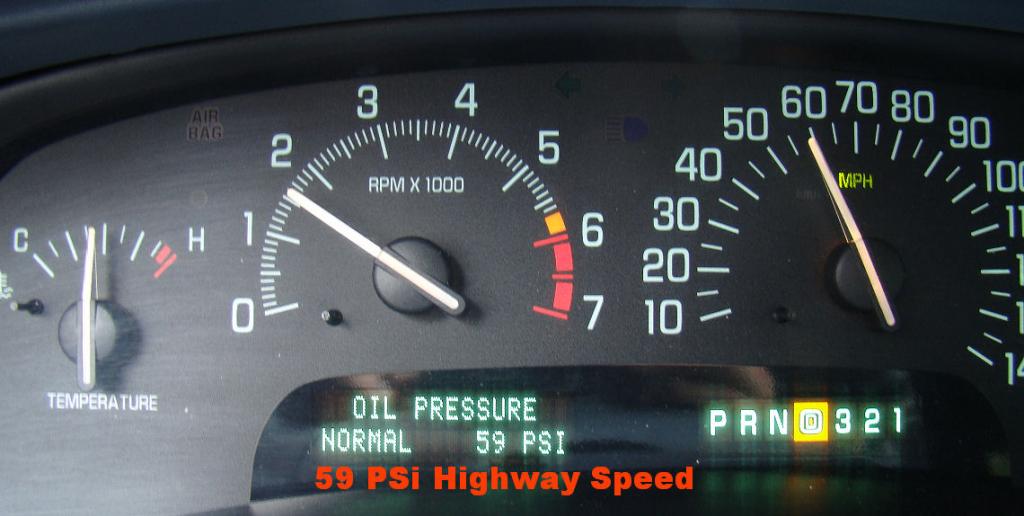

Reading from the oil pressure is now accurate without varying swings.


Inspected all the subframe bushings while the pan was off they look all good & bolts tight BUT>>>>
The Front lower control arm bushings are developing some minor cracks...
So when I do the front suspension strutt etc..will have to order the 2 new bushings & press some new one in...fun...
Well that solves the oil pan leak problem. I used synthetic oil like always with a new Napa Gold Filter, and LubeGard engine treatment, PA is happy again
Oil life monitor was at 35 % with 3000 miles on it and I think the synthetics have really cleaned this motor well. First time since I bought it that the oil was still really clean at 3000 miles!!!
Attached Thumbnails
Oil Pan Gasket -What to expect in Replacement?-parkaveoilpangasket1_zps48685818.jpg   Oil Pan Gasket -What to expect in Replacement?-parkaveoilpangasket2_zpsee4e3606.jpg   Oil Pan Gasket -What to expect in Replacement?-parkaveoilpangasket3_zps9d4e4da6.jpg   Oil Pan Gasket -What to expect in Replacement?-parkaveoilpangasket4_zps71aabb1c.jpg   Oil Pan Gasket -What to expect in Replacement?-parkaveoilpangasket5_zps68196fb6.jpg

Oil Pan Gasket -What to expect in Replacement?-parkaveoilpangasket6_zps9168967a.jpg
Soft Ride is offline   Reply With Quote
Old 04-06-2013, 06:58 PM   #23
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

That'* the way the oil pan is suppose to look with normal changes.
Mike is offline   Reply With Quote
Old 04-06-2013, 10:33 PM   #24
Senior Member

True Car Nut

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,087
Thanked 418 Times in 376 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

Nice job Art, I am thinking when I do mine I'll need a lift as well, that job does not look like it would be fun without one!
Looks like it was a fairly easy, but messy job, I can handle easy and messy, lol
When you removed the oil PU tube, does it just slide out, or is it held on by bolts?
I should know this, but I have yet to replace an oil pan.
WilliamE is offline   Reply With Quote
Old 04-06-2013, 10:56 PM   #25
Senior Member
True Car Nut
Thread Starter

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,588
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

Thanks William!

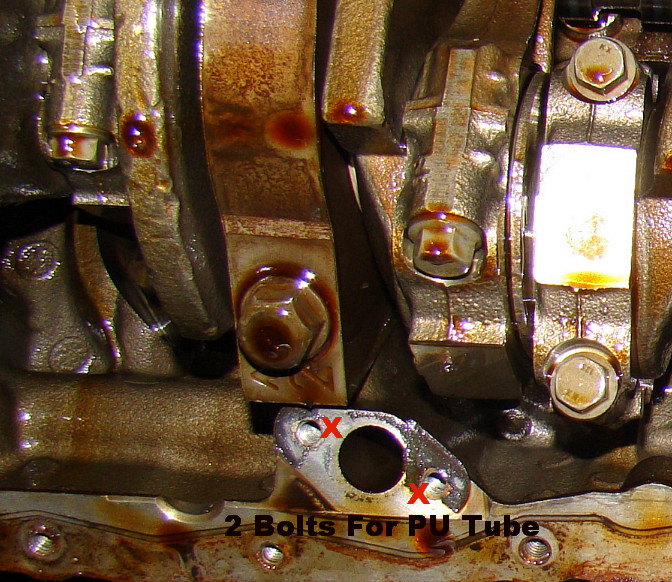

There are two bolts to remove pick up tube, shown in photo below.

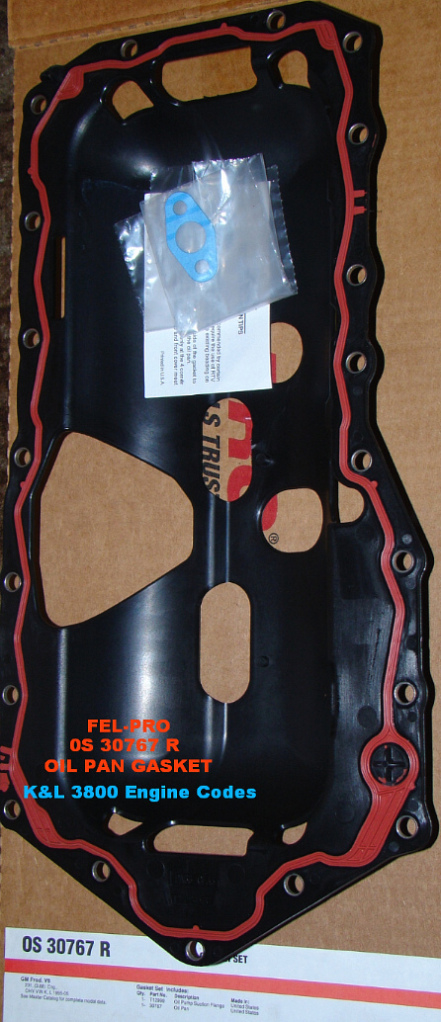

The new felpro gasket includes the pick up tube gasket. Be sure to scrape off the old one & install the new one! Good cleaning of mating surfaces & inside oil pan are needed.
Attached Thumbnails
Oil Pan Gasket -What to expect in Replacement?-parkaveputubeboltlocation_zpsccb6ee49.jpg   Oil Pan Gasket -What to expect in Replacement?-buickoilpangasket.jpg
Soft Ride is offline   Reply With Quote
