Default need pic of top of a 3800 engine

does anyone have a pic of a 2000 3800 in the car so I can see how the rear 3 plug wires were routed ?? I think this one is wrong...they have the wires going under the big wie harness....seems stupid
goldfinger22 is offline   Reply With Quote
Old 05-08-2013, 08:29 PM   #2
Member
Posts like a V-Tak

Join Date: Dec 2010
Posts: 66
Thanked 0 Times in 0 Posts
Bretton65 is on a distinguished road
Default Here is how mine are routed.

I attached a couple of files of my engine. I hope that they help.
Attached Thumbnails

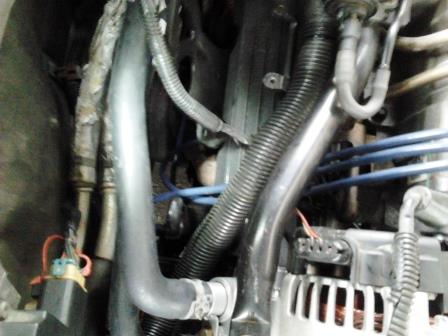

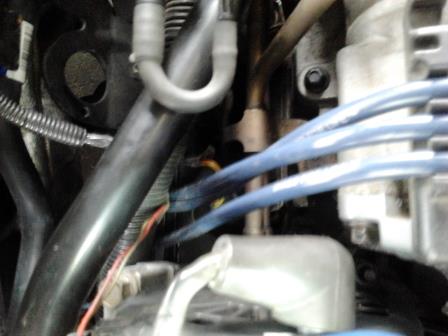

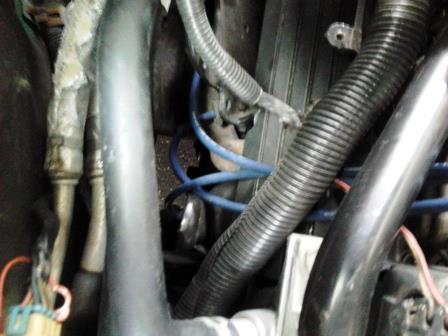

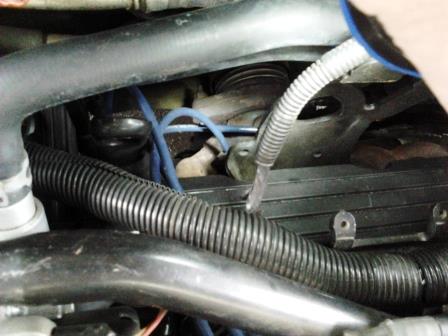

need pic of top of a 3800 engine-back-spark-wires-1.jpg   need pic of top of a 3800 engine-spark-wires-2.jpg   need pic of top of a 3800 engine-spark-wires-3.jpg   need pic of top of a 3800 engine-spark-wires-4.jpg   need pic of top of a 3800 engine-spark-wires-5.jpg

Bretton65 is offline   Reply With Quote
Old 05-08-2013, 08:38 PM   #3
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Dec 2006
Posts: 471
Thanks: 0
Thanked 1 Time in 1 Post
goldfinger22 is on a distinguished road
Default

Quote:
Originally Posted by Bretton65 View Post
I attached a couple of files of my engine. I hope that they help.
yea your wires are nice and short...mine are long...oh well guess it doesnt matter as long as they work
goldfinger22 is offline   Reply With Quote
Old 05-09-2013, 10:18 PM   #4
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

you can start at the plug and make them the same, click into the wire holders and loose the excess under the engine cover by the coils. better there then by the firewall and all that other stuff
jwfirebird is offline   Reply With Quote
Old 05-11-2013, 10:45 AM   #5
Member
Posts like a V-Tak

Join Date: Dec 2010
Posts: 66
Thanked 0 Times in 0 Posts
Bretton65 is on a distinguished road
Default

My spark plug wire set was from NAPA.
Bretton65 is offline   Reply With Quote
Old 05-11-2013, 10:48 AM   #6
Member
Posts like a V-Tak

Join Date: Dec 2010
Posts: 66
Thanked 0 Times in 0 Posts
Bretton65 is on a distinguished road
Default

Quote:
Originally Posted by jwfirebird View Post
you can start at the plug and make them the same, click into the wire holders and loose the excess under the engine cover by the coils. better there then by the firewall and all that other stuff
That is a great idea - I noticed one of mine was touching the oxygen sensor so I adjusted it like you suggested.
