Buick When starting new posts, please specify YEAR, MAKE, MODEL, ENGINE type, and whatever modifications you have made.

LIM Runner Now Leaking Coolant

Old 06-07-2019, 10:48 PM
  #1
Senior Member


True Car Nut
Thread Starter

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 4,153
Received 416 Likes on 368 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default LIM Runner Now Leaking Coolant

I'm on the hwy and suddenly the PK Ave is starting to overheat..eek. Pull over, shut it off & discover rad cap is cold & nothing in the the coolant reservoir.
Pop the rad cap off & luckily I had 1 gallon of coolant in trunk. Filled it up and all was good but could not find the leak, but could smell it, nothing dripping below car heater & rad hose all dry.

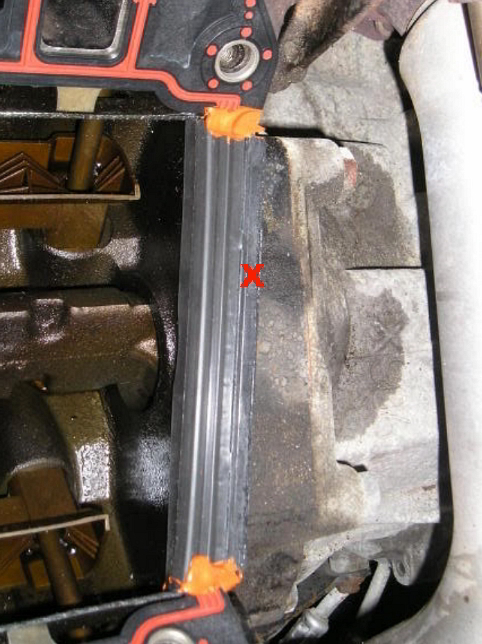

Next day when car cold, I got a bright inspection light and found the source,, the rubber runner from LIM, outside edge is leaking with a small crack..

The upper & lower intake gaskets were refreshed /done 4 years ago.
I have LPS cleaned and alcohol wiped compressed air the area, applied a silicone patch for now, I guess I will know more tomorrow how bad the leak still is, or not.

Mike do you know if there are any better quality runners available beside what comes with the fel pro gasket set? Kinda disappointing this one only lasted 4 years.
Soft Ride is offline
Old 06-08-2019, 10:51 AM
  #2
Senior Administrator



Certified Car Nut

Join Date: Jul 2003
Location: Dark Side, AZ
Posts: 16,594
Received 1,331 Likes on 991 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

I don't know of any better kits.

Don't forget to check/change your oil.
Mike is offline
Old 06-08-2019, 12:31 PM
  #3
Senior Member
Posts like a Turbo

Join Date: Dec 2018
Location: Flint, MI USA
Posts: 353
Received 68 Likes on 60 Posts
carfixer007 is on a distinguished road
Default

I know you probably know this but make sure you didn't get glycol in the oil, Also the Fel Pro is as good as any.
carfixer007 is offline
Old 06-08-2019, 01:32 PM
  #4
Senior Member


True Car Nut
Thread Starter

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 4,153
Received 416 Likes on 368 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

Yes not to worry, Luckily I believe it is leaking outwards only it seems, and the oil appears to be fine,no smoke from tailpipe, but I will check oil condition daily now until proper repairs can be made.
With the 24 hour external silicone patch,almost fully cured, I am going to take the car for a drive and re-inpect for any leaks.
I think this was an un-noticed slow leak over time, that caught up to me..
Soft Ride is offline
Old 06-08-2019, 05:19 PM
  #5
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 7,136
Received 400 Likes on 318 Posts
rjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant future
Default

I don't think that coolant should be in that area, and suspect the issue is something else. That should be oil only right there.
rjolly87 is offline
The following users liked this post:
Soft Ride (06-08-2019)
Old 06-08-2019, 05:43 PM
  #6
Senior Administrator



Certified Car Nut

Join Date: Jul 2003
Location: Dark Side, AZ
Posts: 16,594
Received 1,331 Likes on 991 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

You could try a lower PSI radiator cap.
Mike is offline
The following users liked this post:
Soft Ride (06-08-2019)
Old 06-08-2019, 06:52 PM
  #7
Senior Member


True Car Nut
Thread Starter

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 4,153
Received 416 Likes on 368 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

I've got a shop inspection booked for Thurs by a friend who is very familiar with these engines. I'll report back what he finds.
My silicone patch did nothing, as it is still leaking from somewhere ..but where..?? I will have to report back.
Hoping for the best/..preparing for the worst.
Soft Ride is offline
Old 06-08-2019, 07:14 PM
  #8
Senior Administrator



Certified Car Nut

Join Date: Jul 2003
Location: Dark Side, AZ
Posts: 16,594
Received 1,331 Likes on 991 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

You'll figure it out.
Mike is offline
Old 06-08-2019, 10:28 PM
  #9
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 7,136
Received 400 Likes on 318 Posts
rjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant future
Default

Looking at it again, I would check the underside of the LIM for a leak right in that area. But, that is right where the UIM and TB can all leak too.
rjolly87 is offline
The following users liked this post:
Soft Ride (06-09-2019)
Old 06-13-2019, 11:17 PM
  #10
Senior Member


True Car Nut
Thread Starter

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 4,153
Received 416 Likes on 368 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

It turned out to be the UIM gasket weaping pretty good on the drivers side.
New Prestone coolant (long life) was used as this system was flushed a long time ago of dex cool.
New gasket installed and then pressure tested, all is good again.
Soft Ride is offline
