Default Heater Core 1997 Buick LeSabre

i performed extensive searches on both google and b/c but i couldn't find definitive info on how to change out my heater core. it blew this past weekend...it'* bypassed rigth now...but do i have to completely rip apart the dash (as i had to on my taurus)? please tell me no!

1997 buick lesabre limited
Mr Bean is offline   Reply With Quote
Old 08-05-2005, 03:43 PM   #2
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Nov 2002
Location: Arizona. Snowboarder. Happy Shredding.
Posts: 1,296
Thanks: 0
Thanked 0 Times in 0 Posts
Mr Bean is on a distinguished road
Default

bump..i need help
Mr Bean is offline   Reply With Quote
Old 08-08-2005, 11:14 AM   #3
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Nov 2002
Location: Arizona. Snowboarder. Happy Shredding.
Posts: 1,296
Thanks: 0
Thanked 0 Times in 0 Posts
Mr Bean is on a distinguished road
Default

no one?
Mr Bean is offline   Reply With Quote
Old 08-10-2005, 06:00 PM   #4
Senior Member
True Car Nut

Join Date: May 2005
Location: _Phoenix, AZ_ _WCBF '05, '06, '07 Survivor_ ____NEBF '07 Remnant___
Posts: 3,448
Thanks: 0
Thanked 0 Times in 0 Posts
Echo SSEI is on a distinguished road
Default

I may be able to help. I have the 97 H-body FSM'* and will look to see what is in there for ya
Echo SSEI is offline   Reply With Quote
Old 08-10-2005, 06:50 PM   #5
Senior Member
True Car Nut

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

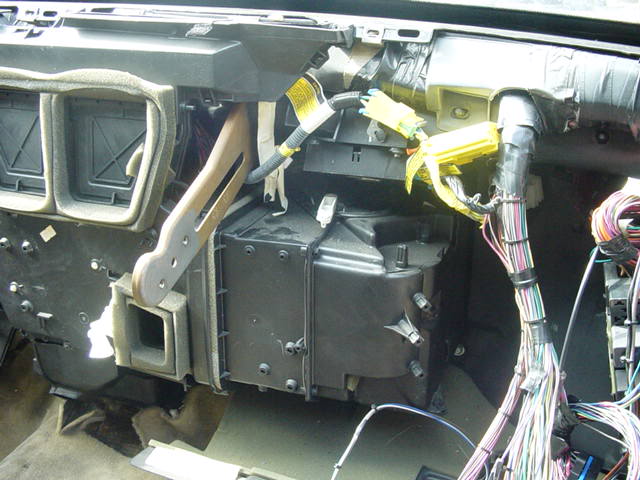

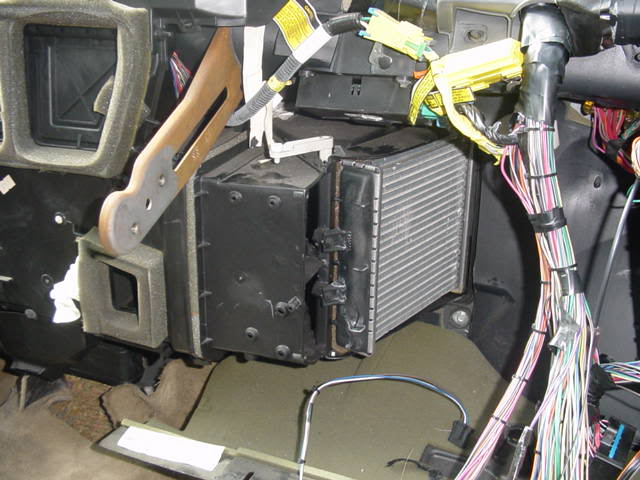

If it'* the same as the Bonneville, and it should be, you won't have to remove the dash. There is an access door for the heater core. Here'* a couple of pics of a 93 which is very similar to a 97. These pics were taken after dash removal for clarity.

Name:  DSC01066.jpg
Views: 1207
Size:  54.6 KB

Name:  DSC01068.jpg
Views: 1700
Size:  53.9 KB

There'* only two screws that secure the heater core cover but the top one is a little tough to reach. You will have to also remove a couple of items to the right of this assembly to remove the cover and core such as the HVAC programmer and bracket.
randman1 is offline   Reply With Quote
Old 08-10-2005, 11:34 PM   #6
Senior Member
True Car Nut

Join Date: May 2005
Location: _Phoenix, AZ_ _WCBF '05, '06, '07 Survivor_ ____NEBF '07 Remnant___
Posts: 3,448
Thanks: 0
Thanked 0 Times in 0 Posts
Echo SSEI is on a distinguished road
Default

http://www.autozone.com/servlet/UiBr...3d8017f921.jsp

Hopefully this will help. Scroll down for your appropriate year. Basically the same as the FSM. The autozone website is good for many other repair procedures as well.
Echo SSEI is offline   Reply With Quote
Old 08-11-2005, 12:46 PM   #7
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Nov 2002
Location: Arizona. Snowboarder. Happy Shredding.
Posts: 1,296
Thanks: 0
Thanked 0 Times in 0 Posts
Mr Bean is on a distinguished road
Default

fantastic! thanks guys. after rooting around under there, and looking at the photos/manuals i figured out exactly what i need to do now. this job is much easier than many other cars. i appreciate your guy'* time,

scott
Mr Bean is offline   Reply With Quote
Old 08-11-2005, 04:33 PM   #8
Senior Member
True Car Nut

Join Date: May 2005
Location: _Phoenix, AZ_ _WCBF '05, '06, '07 Survivor_ ____NEBF '07 Remnant___
Posts: 3,448
Thanks: 0
Thanked 0 Times in 0 Posts
Echo SSEI is on a distinguished road
Default

Your welcome! Sorry, I didn't jump in earlier. Didn't mean to leave you hanging (I sometimes forget that I have the "H-body" manuals ) Use the autozone site when you can. It is 100% an on-line Chiltons. Diagrams and steps are word for word. Also, PM me in the future if you need something from the service manuals, so I don't "overlook" you in the "Other H-bodied Cars" section.
Echo SSEI is offline   Reply With Quote
Old 08-15-2005, 11:07 AM   #9
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Nov 2002
Location: Arizona. Snowboarder. Happy Shredding.
Posts: 1,296
Thanks: 0
Thanked 0 Times in 0 Posts
Mr Bean is on a distinguished road
Default

thanks echo,

got the old one pulled yesterday...going to purchase a new one probably tomorrow. quite an easy task i might say...compared to the 88 taurus. that thing was literally three days solid

i can tell you that i will definitely install screw clamps inplace of the spring jobs. those things were by far the most difficult part of the job.

thanks again...you saved me on this one
Mr Bean is offline   Reply With Quote
Old 08-15-2005, 12:03 PM   #10
Senior Member
True Car Nut

Join Date: May 2005
Location: _Phoenix, AZ_ _WCBF '05, '06, '07 Survivor_ ____NEBF '07 Remnant___
Posts: 3,448
Thanks: 0
Thanked 0 Times in 0 Posts
Echo SSEI is on a distinguished road
Default

Quote:
Originally Posted by Mr Bean
thanks echo,

got the old one pulled yesterday...going to purchase a new one probably tomorrow. quite an easy task i might say...compared to the 88 taurus. that thing was literally three days solid

i can tell you that i will definitely install screw clamps inplace of the spring jobs. those things were by far the most difficult part of the job.

thanks again...you saved me on this one
No problem.

Again, I will look up anything I can for you, anytime. All I ask is that you check the Autozone site first, then either post or PM, me with questions/requests. (Good thing you have a 97 although I have noticed in the FSMs that they will probably work for 96-99.)

The Taurus sounds like too much fun.........not and don't even get me started on spring/tension clamps
