Default Broken Trunk Spring. 97 sabre

Hey guys I went out to my Buick last night and popped the trunk only to find that the lid ways 50plus pounds, Looking further into my trunk I saw that one of the "springs" one of those crisscrossing rod ends had snapped right off. I can go to the junkyard and get a new one no prob but where do I start to remove the old rod and replace with the new? this is a job I have never done on any car so any help would be appreciated Thanks guys.
rogers is offline   Reply With Quote
Old 01-27-2008, 03:01 PM   #2
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default Re: Broken Trunk Spring. 97 sabre

Quote:
Originally Posted by rogers
Hey guys I went out to my Buick last night and popped the trunk only to find that the lid ways 50plus pounds, Looking further into my trunk I saw that one of the "springs" one of those crisscrossing rod ends had snapped right off. I can go to the junkyard and get a new one no prob but where do I start to remove the old rod and replace with the new? this is a job I have never done on any car so any help would be appreciated Thanks guys.
Use the search feature at the top of the page. I remember someone here talking about replacing and adjusting the tension of trunk springs.
bill buttermore is offline   Reply With Quote
Old 01-27-2008, 03:10 PM   #3
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

Okay, I found the article, but I need to have Stan move it for you. Help is on the way....
bill buttermore is offline   Reply With Quote
Old 01-27-2008, 03:25 PM   #4
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jan 2007
Location: waterloo,ontario
Posts: 375
Thanks: 0
Thanked 0 Times in 0 Posts
rogers is on a distinguished road
Default

Sweet Thanks Bill. I will be awaiting.
rogers is offline   Reply With Quote
Old 01-27-2008, 06:36 PM   #5
Darrel
Guest

Posts: n/a
Default

if its the same setup that the 95 bonnie has be carefull when putting a new one in. those suckers are under a lot of stress.
  Reply With Quote
Old 01-27-2008, 08:54 PM   #6
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

Well, I guess Stan must be off in a corner somewhere calculating trajectories with the other rocket scientists, so, I'll try to offer some assistance until he logs on. Stan wrote an article on how to adjust trunk springs complete with pictures, and even though he did not replace them, the procedure has to be similar.

What you do to adjust them is get a foot long 3/8" drive socket extension and use the socket end over the end of the spring rod to provide yourself with a convenient lever to move the spring end in and out of the different adjustment slots. I am guessing (cause I haven't done it) that you use the same procedure to install and adjust a replacement.

I'll try again to find someone who has actually done it......goes looking......
bill buttermore is offline   Reply With Quote
Old 01-29-2008, 09:00 PM   #7
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jan 2007
Location: waterloo,ontario
Posts: 375
Thanks: 0
Thanked 0 Times in 0 Posts
rogers is on a distinguished road
Default

Thanks for the Info so far Bill. I still have yet to remove the old bar because of my Subs in the trunk.
rogers is offline   Reply With Quote
Old 01-30-2008, 02:43 PM   #8
Guest
Certified GM nut

Join Date: Jul 2004
Location: West Point, Utah - Village Idiot
Posts: 1,606
Thanks: 0
Thanked 2 Times in 2 Posts
SSE Motorhead is on a distinguished road
Default

Who sez I'm slow?

Here'* the article Bill'* referring to. It doesn't get into replacing the spring, but it may help you get the tension off the spring (or ON the spring) so you can replace it. Sorry for the delay!

Trunk Spring Adjustment


The intention of this tech article is to provide step-by-step instructions for adjusting the spring tension on the deck lid.

Liability Statement:
Perform this task at your own risk! Neither the author nor anyone associated with this article accept ANY liability if you damage your car, hurt yourself, or otherwise screw something up. This is a guideline designed to help you perform the tasks described herein, therefore the risk is yours and so is the responsibility.

Application Note:
The following procedures were performed on a 2003 Bonneville SSEi. They should, however, be applicable to all vehicles with a similar spring arrangement.

Skill Level Required ~ 1-1.5
On a scale of 1 to 5 where
1 = What’* a wrench?
1.5 = I’ve seen a wrench before.
2 = Got me some tools!
2.5 = Got me some tools, and I know how ta use ‘em.
3 = Decent mechanic, but some things scare me.
3.5 = Good mechanic – ain’t skeert.
4 = Highly skilled in the mechanical arts.
4.5 = Mechanical wizard.
5 = Automotive god…don’t try this at home.

Tools Needed –
12” long 3/8” Drive socket extension (or something similar)

The first time I opened the trunk on my 2003 Bonneville, the deck lid opened up so hard & fast I thought the rear wheels came up off the ground. Aye Carumba! I couldn’t live with that, so I decided to do something about it. This turned out to be a very simple task. Using the following procedure you can take tension out of the trunk spring, or put more in (to a point). If your trunk pops open too hard, or doesn’t pop up at all, here’* how you rectify the problem. This assumes, of course, that your springs are both in good condition to begin with – this is an adjustment, not a replacement. Carry On!

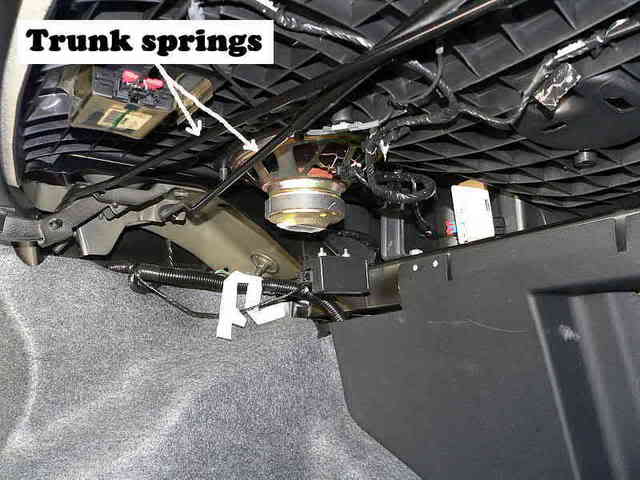

1. Open the trunk, duh. Poke your head in there and look along the top of the trunk under the back window. See a couple of long rods that run from one side of the trunk to the other and form a shallow “X”? Them’* the springs what holds the deck lid up. Actually, they’re more like a torsion bar, but we’ll calls ‘em springs ‘cause it’* easier.
Name:  trunk1.jpg
Views: 498
Size:  32.6 KB

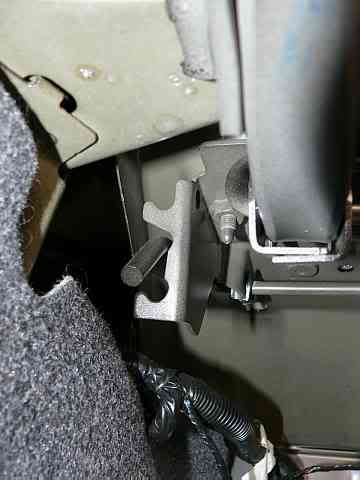

2. Follow either spring to it’* end and you will find, just outboard of the deck lid hinge, a bracket with three notches in it. The end of the spring should be hooked on one of these notches. Since there are two springs, logic would dictate that there are two of these brackets. Go look on the outboard side of the other deck lid hinge. Is there another bracket like this? Sweeeeet.
Name:  trunk2.jpg
Views: 126
Size:  13.8 KB

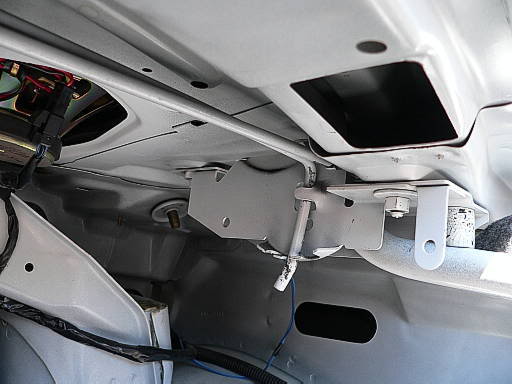

If you have a 92-99, it might look more like this:
Name:  93spring.jpg
Views: 206
Size:  27.6 KB
3. If your deck lid pops up too fast, you’ll want to take some tension out of the spring. Conversely, if you’d like your deck lid to come up a little faster/farther, you’ll want to put tension into the spring. Cool how that works, eh? To take tension out of the spring, you’ll want to move one, or both, of the springs into a lower notch. You should be able to figure out what to do to crank tension into the spring, you crazy rocket scientist, you.

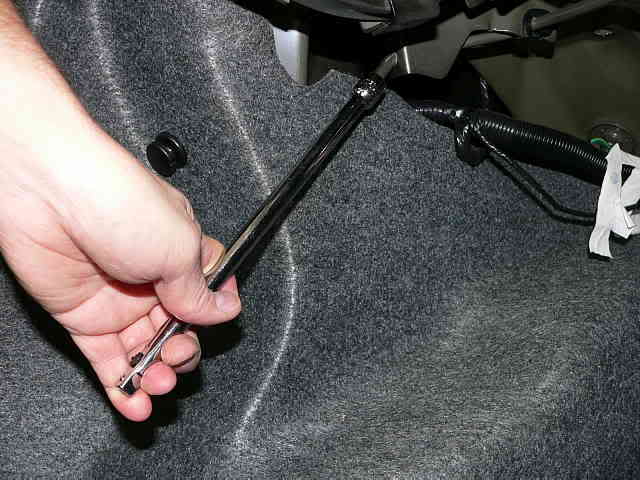

4. You can move the spring to another notch using a hollow (or drilled) rod of some sort that will just slip over the end of the spring. I used a handy 3/8” drive socket extension…about 1 foot long or so. The ratchet end will slip over the spring nicely and it won’t bend. Not that there’* an excessive amount of tension in the springs, but you’re probably better off not using something like a stick of Bamboo. I found the easiest way to move the spring was to lie in the trunk on my back (first you’ll probably want to remove your spare PCMs, superchargers, crankshafts, whatever you store back there for emergencies), then slip the extension over the spring (make sure it bottoms out in the extension), and carefully lift & drop the spring to the next notch.
Name:  trunk3.jpg
Views: 153
Size:  33.6 KB

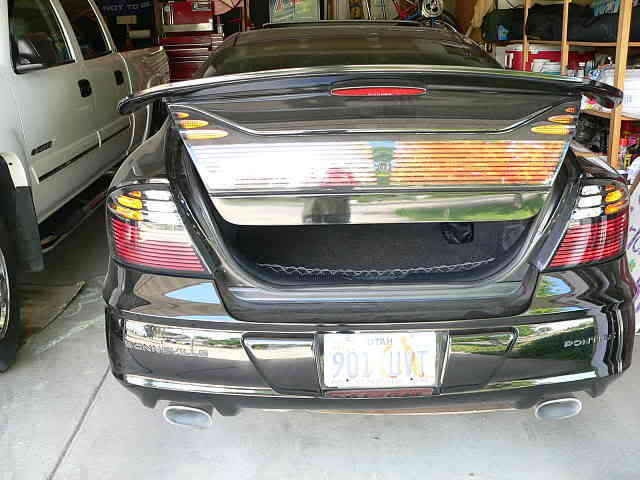

5. Hop outta there, close the trunk, then pop it open. Does it still open too hard for your liking? Then crawl back in and adjust the spring on the other side. Try the trunk again. Too strong still? If so, keep adjusting. You don’t have to have both springs in the same notch, and the tension rate appears to be different in each spring. What that means is that the deck lid will operate differently with the right spring in the second notch and the left spring in the third notch than vice versa (i.e. the left spring in the second notch and the right spring in the third). Experiment with different settings until the trunk opens how you like. Mine now opens slowly, waves at me for a few seconds then settles in the position in the picture.
Name:  trunk4.jpg
Views: 135
Size:  33.4 KB
6. Obviously there is a limit to the amount of adjustment you can do. If you have the springs in the lowest notch and the deck lid still acts like a Jack-In-The-Box, there’* not much you can do about that. Nothing simple, anyway. Again, the opposite is true – if you have the springs in the top notch and the deck lid just won’t come off the seal, you’re pretty much out of luck. The rest of us who have more cooperative trunks can adjust it to our liking and subsequently enjoy hours of playing with our trunks…trunk goes up, trunk goes down. Trunk goes up, trunk goes down, trunk goes up, trunk goes down…
