Broken spring?? - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


2000-2005 Discuss your 2000-2005 Bonneville SE, SLE, and SSEi Please use General Chat for non-mechanical issues, and Performance and Brainstorming for improvements.

Reply



Thread Tools Search this Thread
Old 01-18-2008, 12:13 AM   #1
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Jun 2006
Location: Moon of meepsorp
Posts: 183
Thanks: 0
Thanked 0 Times in 0 Posts
Roadrunner is on a distinguished road
Default Broken spring??

Top coil on RF spring broke Ė maybe this one was not a fluke.

Holy broken strut spring batman!

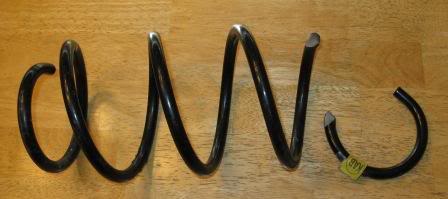

Name:  Picture020.jpg
Views: 22
Size:  18.7 KB

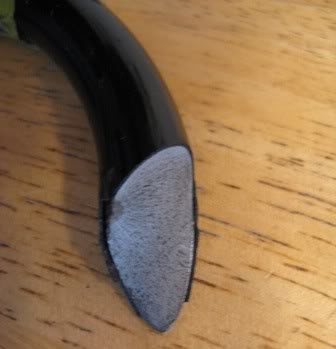

Name:  Picture024.jpg
Views: 23
Size:  17.4 KB

There were ball bearings everywhere too.

Iím guessing the bearing might have gone first. The wife said it started making a loud pop when you turn the wheel.
When I drove it a few days earlier, a couple times it kind of felt like the intermediate shaft problem was returning.

I popped a new spring & bearing assembly in to keep the car on the road with the intention of changing the other side later.
Now Iím thinking I donít need to since there are no issues with ride height or handling.

This was more of a than a cuz it'* not something I was expecting on a car that hasn't been abused Ė but it wasnít too bad a job to do and GM spring was in stock / not too $.
Roadrunner is offline   Reply With Quote
Old 02-09-2009, 04:54 PM   #2
Member
Posts like a V-Tak

Join Date: Oct 2008
Location: Central NY
Posts: 38
Thanks: 0
Thanked 0 Times in 0 Posts
sbortoloni is on a distinguished road
Default

Do you have to change the spring and the strut at the same time?
sbortoloni is offline   Reply With Quote
Old 02-09-2009, 05:16 PM   #3
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I must say that is the first broken spring I have seen on these cars.
Danthurs is offline   Reply With Quote
Old 02-09-2009, 07:30 PM   #4
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

I'm no metallurgist, but looking at the broken spring, it looks like it might have been a bad forging job with the metal. Can you see what looks like the metal striations from a dark spot..they kind of look like grains going from the dark spot to the outside edge of the spring. Very rare occurrence for most vehicles!
Purplehazeir is offline   Reply With Quote
Old 02-09-2009, 09:11 PM   #5
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

I'm with you, P.Hazier. Certainly looks like the striations go out from that dark spot. It was probably a fluke R.Runner. One in a Million springs type of deal, I wouldnt worry about the other side. I can not recall a broken spring post here before.
GXP Venom is offline   Reply With Quote
Old 03-23-2009, 08:36 AM   #6
Junior Member

Join Date: May 2008
Location: Muskegon, Mi
Posts: 5
Thanks: 0
Thanked 0 Times in 0 Posts
afieroman is on a distinguished road
Default

WOW!!! My 2000 just broke same spring!!! 2 in a million...
afieroman is offline   Reply With Quote
Old 04-05-2009, 09:58 PM   #7
Junior Member

tbirdrv's Avatar

Join Date: Oct 2007
Location: Northwest Ohio
Posts: 7
Thanks: 0
Thanked 0 Times in 0 Posts
tbirdrv is on a distinguished road
Default 3 in a Million!

Three in a million now, my 2000 broke the right front spring at the same spot last month.
tbirdrv is offline   Reply With Quote
Old 04-06-2009, 11:13 AM   #8
Member
Posts like a V-Tak

Join Date: Oct 2008
Location: Central NY
Posts: 38
Thanks: 0
Thanked 0 Times in 0 Posts
sbortoloni is on a distinguished road
Default

So i did the brakes this weekend and i have the strut spring combo ready to install but I cant get the lower bolts off. Any ideas on how to get the bolts out? The nuts came off easy. Are those bolts threaded in?
sbortoloni is offline   Reply With Quote
Old 04-06-2009, 11:32 AM   #9
Senior Member
Posts like a 4 Banger

Join Date: Dec 2005
Location: North East, PA
Posts: 134
Thanks: 0
Thanked 0 Times in 0 Posts
turkaloo is on a distinguished road
Default

I think I may have this problem. I thought mine was the intermediated shaft, I grease that and its no better. Clunks and snaps when I turn sharp either direction and when I hit pot holes. I'll have to check this out.
turkaloo is offline   Reply With Quote
