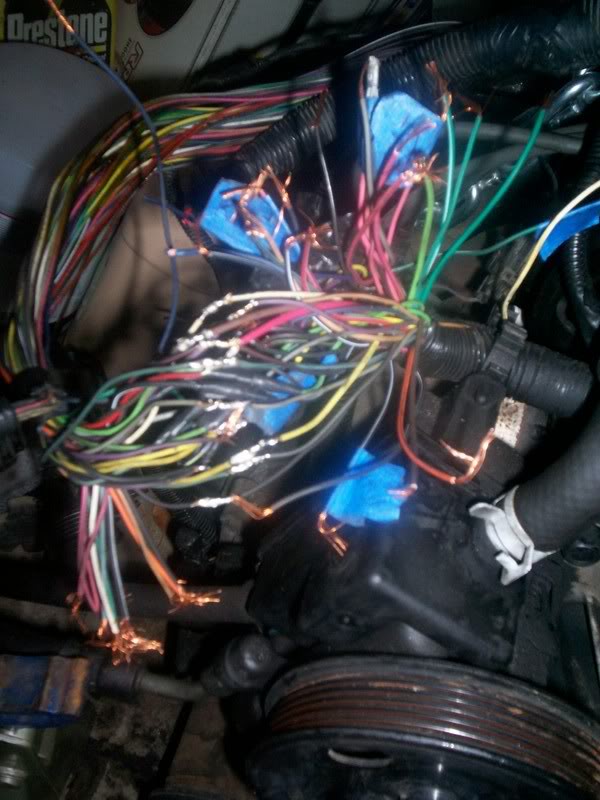

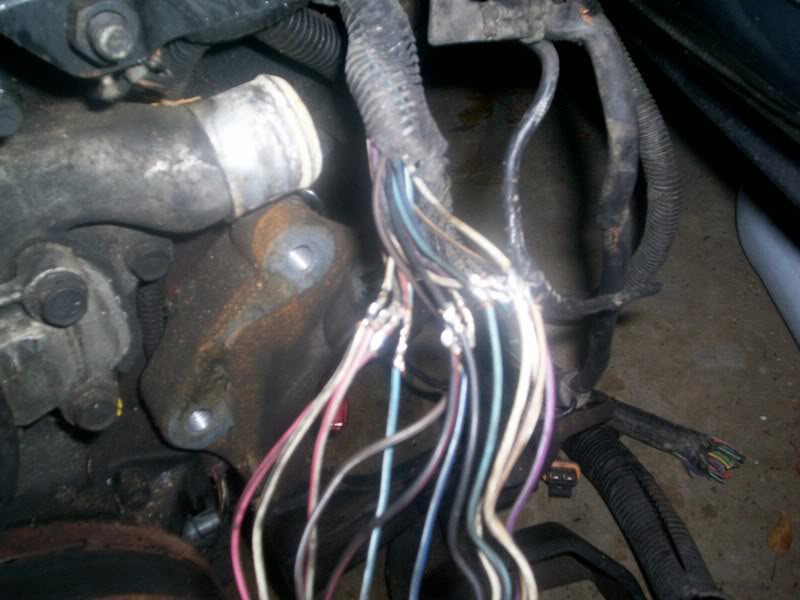

well, heres some progress on the soldering of the ecu harness and the icm harness. Name:  100_0416.jpg
Views: 19
Size:  63.7 KB
Name:  100_0417.jpg
Views: 20
Size:  79.7 KB
alot of the green and red wire are for ac which is useless in my application. those will go.

i got a question for u experts. and not the guy whos 27% correct (J-K)

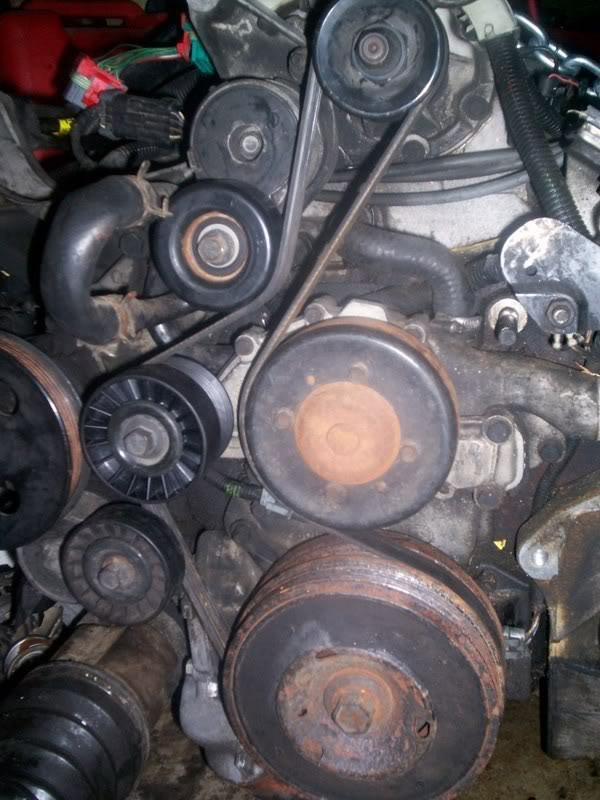

i believe the pulleys will go in the same direction. can any one confirm?
see any problem with this routing that i missed?
Name:  100_0415.jpg
Views: 19
Size:  88.6 KB
samueljackson is offline   Reply With Quote
Old 10-20-2006, 10:50 PM   #2
PopaDopaDo
True Car Nut

popatim's Avatar

Join Date: Jan 2005
Location: NY
Posts: 4,957
Thanks: 0
Thanked 0 Times in 0 Posts
popatim is on a distinguished road
Default

In regards to your soldering job, I would have shrink wrapped every single one of those connections not only for the addition short-circuit protection, but to help keep out moisture too. Corroded wires suck.
popatim is offline   Reply With Quote
Old 10-23-2006, 08:42 AM   #3
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I'm with Tim on that. If you can...I'd pull them apart and add it.

A little more informaiton about why you are doing this may be nice.
BillBoost37 is offline   Reply With Quote
Old 10-23-2006, 04:02 PM   #4
Senior Member
Certified GM nut
Thread Starter

Join Date: Oct 2006
Location: burb of detroit. 2 miles north of 8 mile Rd.
Posts: 2,028
Thanks: 0
Thanked 0 Times in 0 Posts
samueljackson is on a distinguished road
Default

i used that liquid electrical tape. works well. then i wrapped it with traditional elec tape.

but im not using the ac to save room ,and an extra headache. lil less weight, and less drag on the engine. i bought an ac bypass pulley, but it was too cheap. made in china pos. so i returned it.

and i used a 53.5 in belt if anyone has to do the same thing. goodyear, and dayco do not make one. gates is the only company i could find. i believe their part # was 5060535.
samueljackson is offline   Reply With Quote
Old 05-05-2007, 11:52 AM   #5
Senior Member
Certified GM nut
Thread Starter

Join Date: Oct 2006
Location: burb of detroit. 2 miles north of 8 mile Rd.
Posts: 2,028
Thanks: 0
Thanked 0 Times in 0 Posts
samueljackson is on a distinguished road
Default

well its been awhile sincei touched my lil project. but ive made considerable progress. all motor mounts are done.

and i scrapped the soldered harness. i just went to my local junk yard and gutted a full eng and body harness out of a 93 regal. now all i have a a couple add-on solder jobs. rather than the entire thing. and the best part about the harness was that it only cost me 15.99. and i left the fuse panel. pcm, and bcm attached. they didnt care. i love that place.
samueljackson is offline   Reply With Quote
Old 05-06-2007, 11:23 PM   #6
Senior Member
Certified GM nut
Thread Starter

Join Date: Oct 2006
Location: burb of detroit. 2 miles north of 8 mile Rd.
Posts: 2,028
Thanks: 0
Thanked 0 Times in 0 Posts
samueljackson is on a distinguished road
Default

today was a good day! i started the new engine for the first time. ohh man, what an awesome feeling to hear it turn right over. i got the eng mounts all tightened up. the cv shafts in. now all i need to do is a couple of vacuum lines. and weld the new down pipe to the existing exhaust. its always nice when a plan comes together.

edit. ill post some pics soon.
