Alternator sensing Wire Mod- Need more Volts - Page 2 - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


Buick When starting new posts, please specify YEAR, MAKE, MODEL, ENGINE type, and whatever modifications you have made.

Reply



Thread Tools Search this Thread
Old 05-30-2014, 04:17 PM   #11
Senior Member
True Car Nut
Thread Starter

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,588
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

Thanks again Justin, When I get some time I am going to to post a schematic & hopefully you can look at it so we can confirm what goes where.
I wonder if the * wire already has a resistor on it..we will find out...maybe greater resistance needed.
Soft Ride is offline   Reply With Quote
Old 05-30-2014, 08:29 PM   #12
Senior Member
True Car Nut
Thread Starter

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,588
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

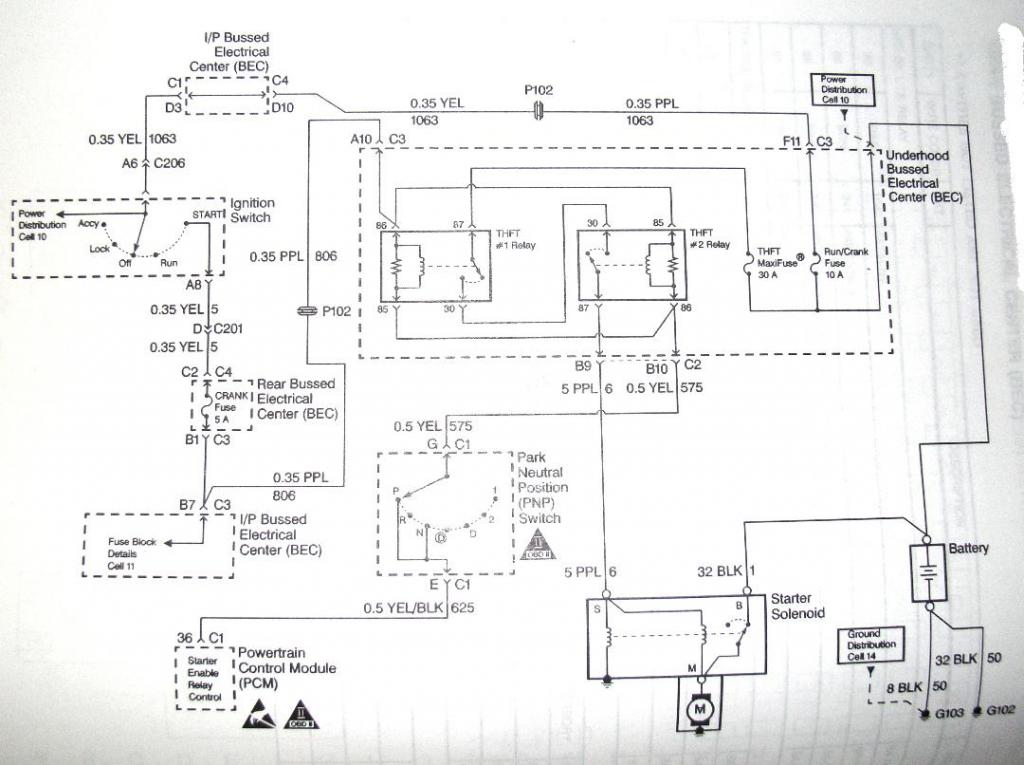

Hope this helps Justin:



Attached Thumbnails
Alternator sensing Wire Mod- Need more Volts-97pkavecharging3_zpsd346f010.jpg   Alternator sensing Wire Mod- Need more Volts-97pkavecharging4_zpsc51cdbab.jpg   Alternator sensing Wire Mod- Need more Volts-97pkavecharging1_zpsdab93b09.jpg   Alternator sensing Wire Mod- Need more Volts-97pkavecharging2_zpsfc7e765d.jpg
Soft Ride is offline   Reply With Quote
Old 05-30-2014, 09:35 PM   #13
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

the l terminal turns it on, f is fault indication to pcm. * needs to be added like on the h-body and if you hook it to something inside that is keyed it should work. you may need to get a plug that has all the wires. and you want something decent gauge like 12 so it doesnt drop any and gets an accurate reading
jwfirebird is offline   Reply With Quote
Old 05-31-2014, 12:10 AM   #14
Senior Member
True Car Nut
Thread Starter

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,588
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

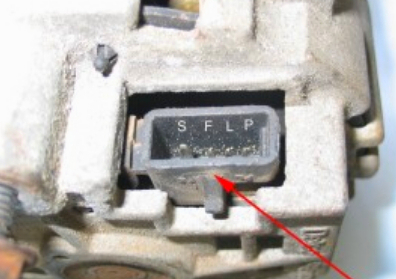

On Regulator terminal F&I are the same wire. I dont see I wire indicated on schematic.
So anyways only the * wire needs to come inside then. What wire would you recommend that is keyed?
Attached Thumbnails
Alternator sensing Wire Mod- Need more Volts-sflpregulatorwires_zps335b637b.jpg

Last edited by Soft Ride; 05-31-2014 at 04:08 AM.
Soft Ride is offline   Reply With Quote
Old 05-31-2014, 05:48 AM   #15
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Quote:
Originally Posted by Tech II View Post
"With a basic load on, fan on lights on & brakes lights on at idle, volts drops from interior accessory socket reading to 12.2 -12.4 volts..that is huh?? Should it not be kicking out at least 13.6 volts?.
This is always after driving when it gets hot outside.. doesn't help either..
At 1800 rpm with same load, I am lucky to see 13.4 volts....this is not charging the battery very well. "

If you go out to any stock GM car, those readings will be normal......at warm idle, and under a load, you will not get 12.6 volts.....No way will your alternator be charging at 13.6, at warm idle under a load.....

At 2000 rpms, with a warm engine, with a load, 13.4 volts sounds about right.....

As Mike asked, if you have an old battery/bad connection, that can skew the voltages a little lower.....

I don't know if anyone can print the TSB that pertains to this....the TSB has a graph of the output of the alternator for a cold and warm engine, and how voltage will drop, if the alternator is warm, and especially under a load, like for example, at night, when you come to a stop and the lights may dim a little....
I'm with Gus on this.

Though, I can replicate different/higher readings in the winter time vs the summer time. In other words, your chasing ghosts.
Mike is offline   Reply With Quote
Old 05-31-2014, 08:03 AM   #16
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

it is normal, for regular LA batteries. but agm batteries like the one he has like more volts. the good agm chargers are like 14.5. i dont think it matters what circuit you put it on its not going to be much current
jwfirebird is offline   Reply With Quote
The Following User Says Thank You to jwfirebird For This Useful Post:
Soft Ride (06-03-2014)
Old 06-29-2014, 06:18 AM   #17
Senior Member
True Car Nut
Thread Starter

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,588
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

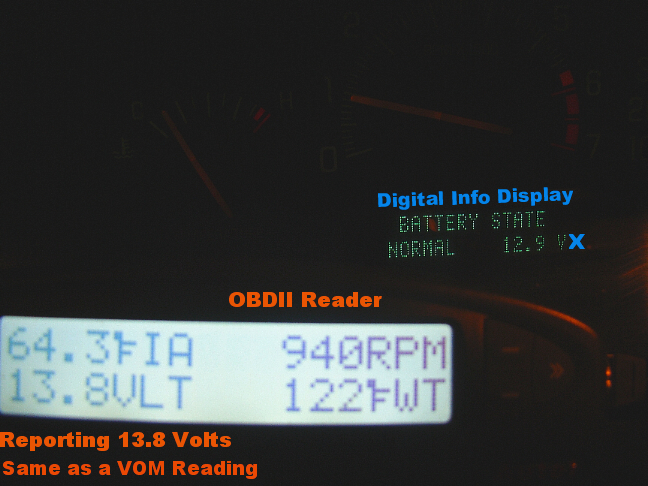

I have to ask this why is the digital info center volts reporting low by .9 of a volt
When an OBDII reader and VOM both agree it is out by .09?
I am going to get to a PCM scan soon.
Is there an error correction or a way to fix this in a TechII scanner programming method?
Could this be something up with the PCM?
I have since I owned the PA simply been adding 1 volt knowing its been reporting wrong.
Attached Thumbnails
Alternator sensing Wire Mod- Need more Volts-buickvoltageerrorreporting_zpsc15f8a28.jpg
Soft Ride is offline   Reply With Quote
Old 06-29-2014, 08:34 AM   #18
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Your PCM and OBD reader are probably on 2 different circuits. The PCM takes its voltage reading from within itself and the OBD reader takes its reading from the OBD 2 port. Get a PCM pinout schematic for your car and backprobe the power input to your PCM and compare.
Mike is offline   Reply With Quote
The Following 2 Users Say Thank You to Mike For This Useful Post:
Soft Ride (06-29-2014), WilliamE (06-29-2014)


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
rain sensing wiper issues park00 Buick 0 08-28-2013 10:23 AM
36 volts Arrr arr arr Gumball Lounge 8 06-20-2006 04:25 PM
Drop in Volts Rye Guy Bonneville GXP/ Northstar Powered Cars 5 02-10-2006 06:32 PM
low volts as car gets warm chachi 1992-1999 5 08-24-2003 03:15 PM
Check Engine: Not enough volts to the computer Sasage 1992-1999 8 06-12-2003 12:55 AM


Tags
alternator exciter, buick park avenue, charging system, electrical issue

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 10:53 PM.


We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
