Default Air Conditioning -Insulate Pipes?

Has anyone insulated their under hood AC lines/Pipes with foam or other thermal material to get the AC colder?

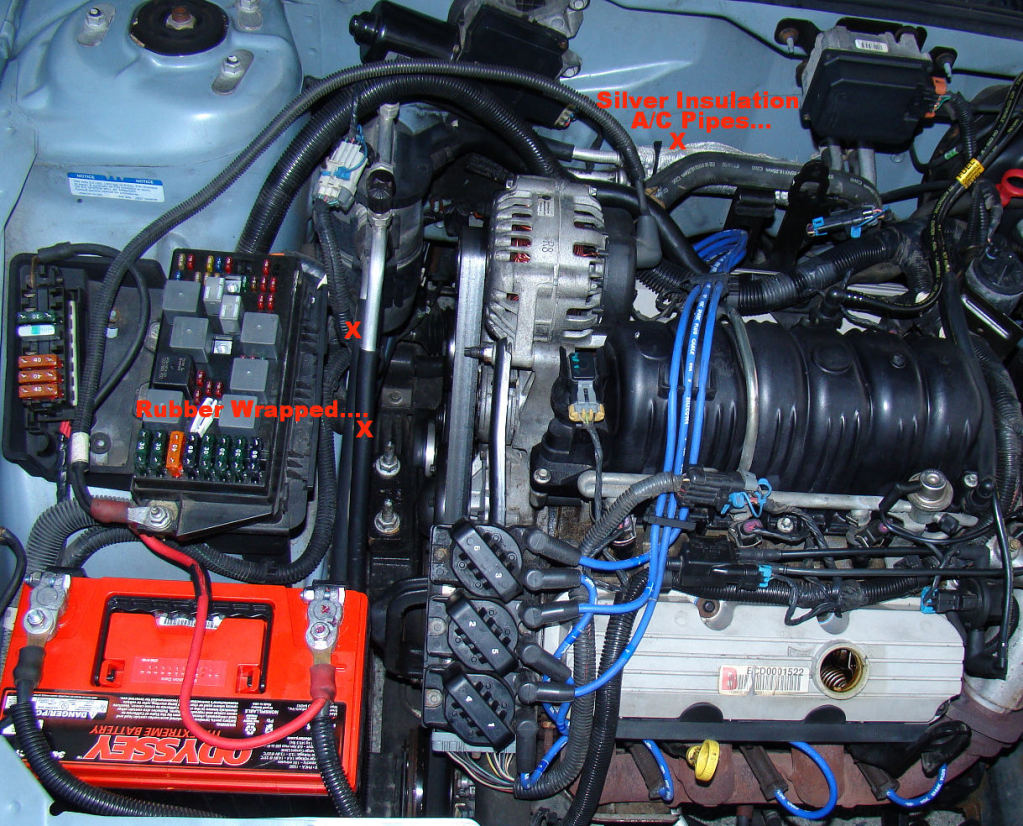

Under the hood of my Park Ave my two lines by the firewall have a silver material on the top. However the two on left side only have some thin rubber liner....Ideas what I should use ?? The condensation still needs to drain off...

I had though of using a split type of foam, but maybe a silver wrap is better?
It really is not all that hot outside but it seems the car get warm quickly.

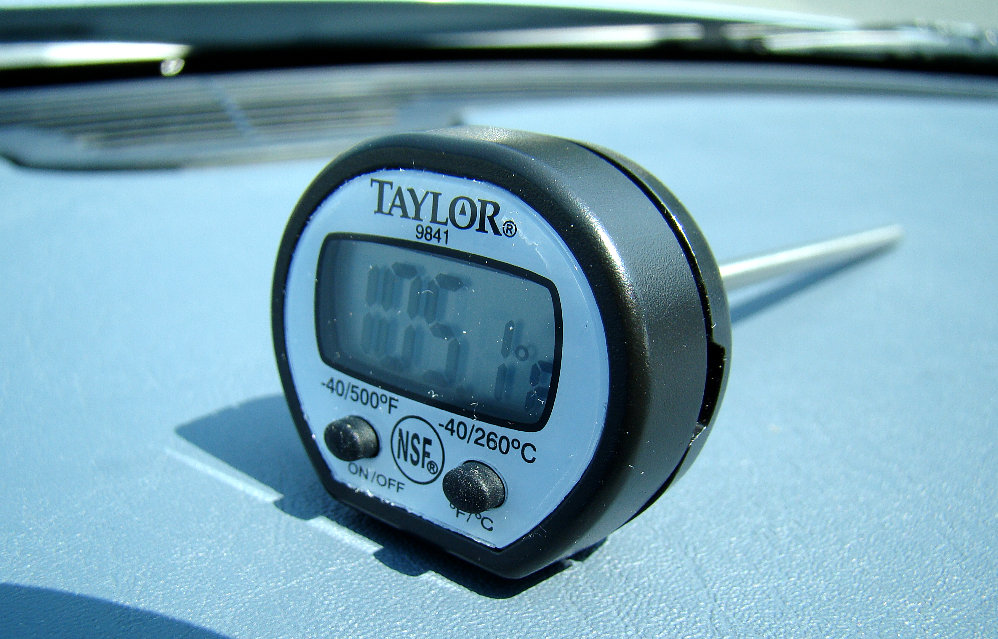

The dash temp was 105 using an instant probe..

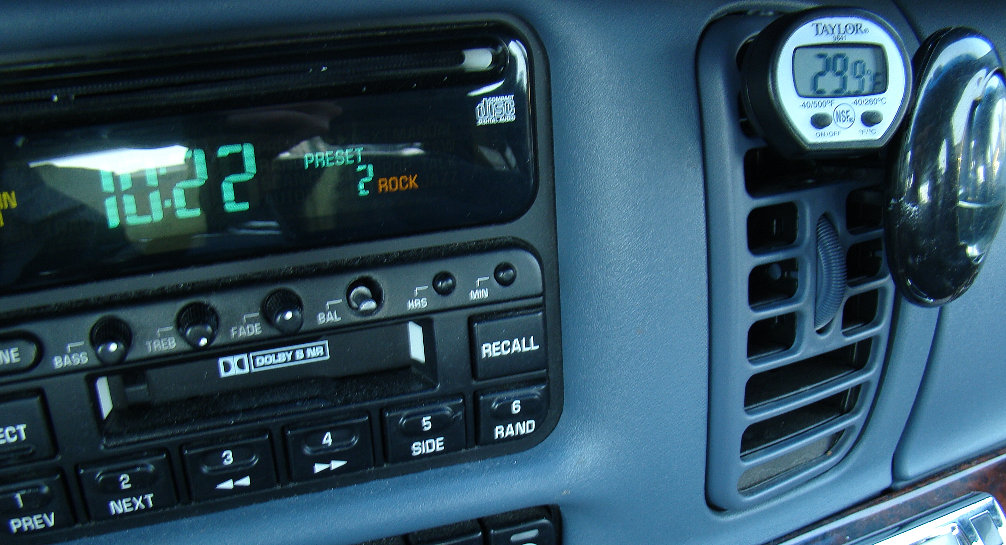

In the sun I would like it cooler but the vent temps are really good when set at 60F. Managed just under 30F coming out of vent.

So does wrapping the lines make it better, anyone done this?
Attached Thumbnails
Air Conditioning -Insulate Pipes?-parkaveaclineswrapped.jpg   Air Conditioning -Insulate Pipes?-parkavedashtemp.jpg   Air Conditioning -Insulate Pipes?-parkaveventtemp.jpg
Soft Ride is offline   Reply With Quote
Old 07-07-2012, 08:21 PM   #2
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

If anything, just wrap the colder line with that foam insulation you use for household water pipes. Don't wrap the other one. That one needs to cool back down to "condense" the gas.
Mike is offline   Reply With Quote
Old 07-08-2012, 09:47 AM   #3
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

i would stay away from adding insuation just because keeping the water in is going to rust the pipes, its such a short run likely no effect anyway.
jwfirebird is offline   Reply With Quote
Old 07-08-2012, 11:04 AM   #4
Senior Member
True Car Nut

MouSe's Avatar

Join Date: Oct 2009
Location: Atlanta
Posts: 5,988
Thanked 2 Times in 2 Posts
MouSe is on a distinguished road
Default

If your vent temp is 29 when set to 60, there'* not much you can do to make it colder. That'* optimal temp.
MouSe is offline   Reply With Quote
Old 07-08-2012, 12:15 PM   #5
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Never seen aluminum rust.
Mike is offline   Reply With Quote
Old 07-08-2012, 02:15 PM   #6
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 6,857
Thanked 298 Times in 246 Posts
rjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant future
Default

Quote:
Originally Posted by Mike1995 View Post
Never seen aluminum rust.
Neither have I, but it does corrode.

As far as insulation, don't see much need with temps like that. Wish mine was that ice cold
rjolly87 is offline   Reply With Quote
Old 07-08-2012, 02:19 PM   #7
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 6,857
Thanked 298 Times in 246 Posts
rjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant future
Default

On thinking about it, the concern is in the sun, and these readings are with it cranked to 60* maxed out. I wonder if there is a dirty temperature sensor, or a solar sensor is not working right? Maybe you can make an adjustment to another component of the system?
rjolly87 is offline   Reply With Quote
Old 07-08-2012, 03:31 PM   #8
Senior Member
True Car Nut
Thread Starter

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,588
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

I dont often see 29F. That was 1st thing in AM and cranked. I generally have readings of 35-41F with setting left at 60F and the fan down one from MAX speed , driving at 1500rpm.
The whole system is reduced at at idle and I often see temps rise above 42, set at MID vents using the Taylor Temp probe.

I did go and buy some of the pipe foam insulation, and found temps not to be as good once installed. I just removed the stuff I put on pipes near firewall but have left the run I did on the cold pipe left of serpentine belt area. I may just end up ripping it all out?
I placed the opening down wards on pipes so it still can drain. I think my AC is in good shape and I wonder if the foam is preventing the pipes from turning to the real icy white?
Soft Ride is offline   Reply With Quote
Old 07-08-2012, 03:55 PM   #9
Senior Member
True Car Nut

MouSe's Avatar

Join Date: Oct 2009
Location: Atlanta
Posts: 5,988
Thanked 2 Times in 2 Posts
MouSe is on a distinguished road
Default

Fan at max speed will result in higher vent temps than a lower fan speed. The air gets blown over the cooling gills faster and therefore can't cool down as much. Set the fan lower and you'll see lower temperatures.
MouSe is offline   Reply With Quote
Old 07-08-2012, 09:49 PM   #10
Senior Member
True Car Nut
Thread Starter

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,588
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

Today it was hot enough.. temps inside car after parked was 125 F.
The AC worked well after car cooled down with windows down, but had a bit of an issue after driving for 30 minutes on highway. It seemed like the temps hit 29.9 in center vents and then very little air coming out of them. I turned off the system, then restarted it in auto 5 minutes later, and it was ok again normal air flow. Is it freezing up?
Question: What does the park ave do when it reaches it 60 inside or what ever it is set at? Does the fan slow down or??
It does not seem that the AC clutch is cycling at all. I am going to try in the Am, to set in defrost mode @ 70F tomorrow and see if it then cycles. Maybe a low pressure switch if it does not cycle?
Soft Ride is offline   Reply With Quote
