Default 99 regal gs strut tower

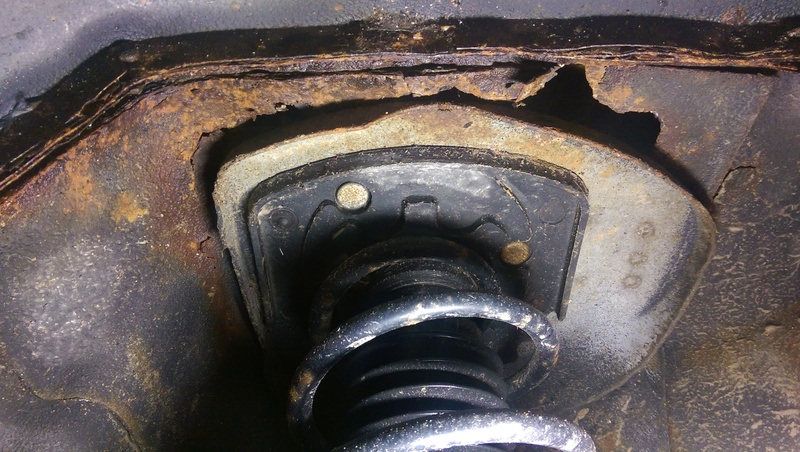

Poor thing only has 250k on the odomoter. I investigated the clunking that has been going on in the rear all winter. For the moment this car is retired. it looks like its 1 set of railroad tracks away from sending the strut into the trunk.

However, i build industrial machinery for a living, am a fairly competent fabricator and have a machine shop at my disposal.

Any chance i can safely get away with cutting/bending/forming a chunk of 1/8 plate to fit up in there and just weld the crap out of it to anything i can find that'* solid? Other then the heavy bracket at the top, the rest of the tower seems to be made of lighter sheetmetal. Guessing 16g or so. The whole setup seems like it was kind of flimsy when it was brand new.

Or maby just cut some of that 1/8 plate to fit around that heavy bracket and weld to everything around it?

If i can get another year or 2 out of this thing, that would be awesome. Its just too fun to drive to send to the crusher.

I took a screwdriver to it and knocked off what was loose and bent the hanging bits back and forth till they came off. Not a whole lot left.

Any advice?


[/URL]
Attached Thumbnails
99 regal gs strut tower-imag0108_zpstnepyzgh.jpg
Asymetric is offline   Reply With Quote
Old 05-17-2016, 10:34 PM   #2
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,586
Thanked 339 Times in 301 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

You really need to determine the full scope of rusted area.
Can't weld to rust but if you can find a good amount of clean metal, it may be repairable.
Remove the carpet inside trunk on that side, how does it look on the inside?
Soft Ride is offline   Reply With Quote
Old 05-17-2016, 10:47 PM   #3
Member
Posts like a V-Tak
Thread Starter

Join Date: Dec 2009
Posts: 39
Thanks: 0
Thanked 0 Times in 0 Posts
Asymetric is on a distinguished road
Default

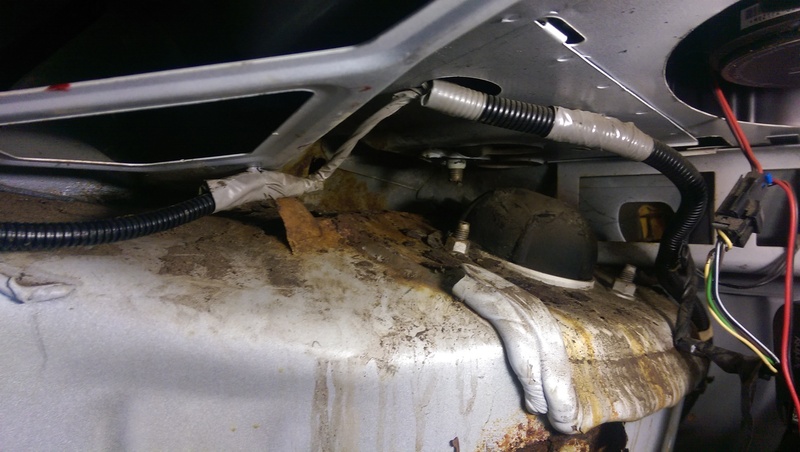

Its hard to get a decent picture in there, but it looks like most of the rust stops where the glue is. There is a small patch where there is some rot on the outside of the glue joint in the direction of the quarter pannel.

Some of that mess is just the rust cookies that i pulled off the top trying to feel what is going on back there.

The passenger side is rusty too, but i couldnt stab a screwdriver through anywhere.


[/URL]
Attached Thumbnails
99 regal gs strut tower-imag0109_zpsd5jtt2ck.jpg
Asymetric is offline   Reply With Quote
Old 05-18-2016, 03:37 AM   #4
Senior Member

Posts like a Turbo

Join Date: Feb 2015
Location: Earth
Posts: 234
Thanked 37 Times in 35 Posts
CathedralCub has a spectacular aura aboutCathedralCub has a spectacular aura about
Default

Maybe:

Looks like that thicker-metal support pad that rests on top of the strut is just spot-welded. Drill the spot-welds out. Then find a rust-free 1997-2004 donor, hack more-than that chunk (of shock tower sheer metal) out, sandwich it under the rusted/damaged area on yours, bolt and/or weld it in place, bolt and/or weld that support pad in place, drown it in rustoleum, reassemble strut etc. bolted through both layers of sheet metal and the support pad, and voila' . . . ?

That corner would be 1/8" taller but probably not noticeable.

If the other side is about as bad then do same over there?
CathedralCub is offline   Reply With Quote
Old 05-18-2016, 04:44 PM   #5
Senior Administrator


Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,641
Thanked 995 Times in 772 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

I wouldn't waste my time for a beater. If it was in my shop and I was doing a NYS inspection on it, I'd fail it.
Mike is offline   Reply With Quote
Old 05-18-2016, 11:02 PM   #6
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,141
Thanked 779 Times in 608 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

Agree with Mike......can only imagine what the rest of that underside looks like.....

I think I told this story before....customer came in with a late 90'* Regal/Century, with a 3.1L....had a head gasket job done.....came in two weeks later with the left front strut assembly through the hood of her car....the headgasket job should never have been done...
Tech II is offline   Reply With Quote
Old 05-19-2016, 12:58 AM   #7
Senior Member

Posts like a Turbo

Join Date: Feb 2015
Location: Earth
Posts: 234
Thanked 37 Times in 35 Posts
CathedralCub has a spectacular aura aboutCathedralCub has a spectacular aura about
Default

Agree also, just trying to find Asymetric an option to get another couple of years out of it. Welding unformed pieces to that mostly-rusted sheet metal would be way worse. Really that much rust is pretty insane to me.
CathedralCub is offline   Reply With Quote
