Default 96' Regal Heater Inlet adapter Check valve.

Just an FYI.

My 96 Regal has 242, 590. miles and I am doing the upper & lower intake gaskets again for the second time.
Also going through and fixing numerous oil leaks. I took the heater adapters off the tensioner to change out those o rings and much to my surprise there was a check valve on the inlet adapter. It fell apart upon removing the adapter. It'* only sold with the adapter which is discontinued. I went with one for a 96-99 lesabre as it'* still available for about $16.00. I removed the check valve from the new adapter and put it in the original adapter as the adapter itself is different. The GM part number is 24504476. I spent a lot of time coming to this conclusion so I thought I would post a thread about it in order to help someone out in the future. I'm not sure how important this check valve is for the heater coreand I did not want to take any chances with my heat. So if anyone has ever wondered about this check valve / reducer here is what it looks like.

Rich
Attached Thumbnails

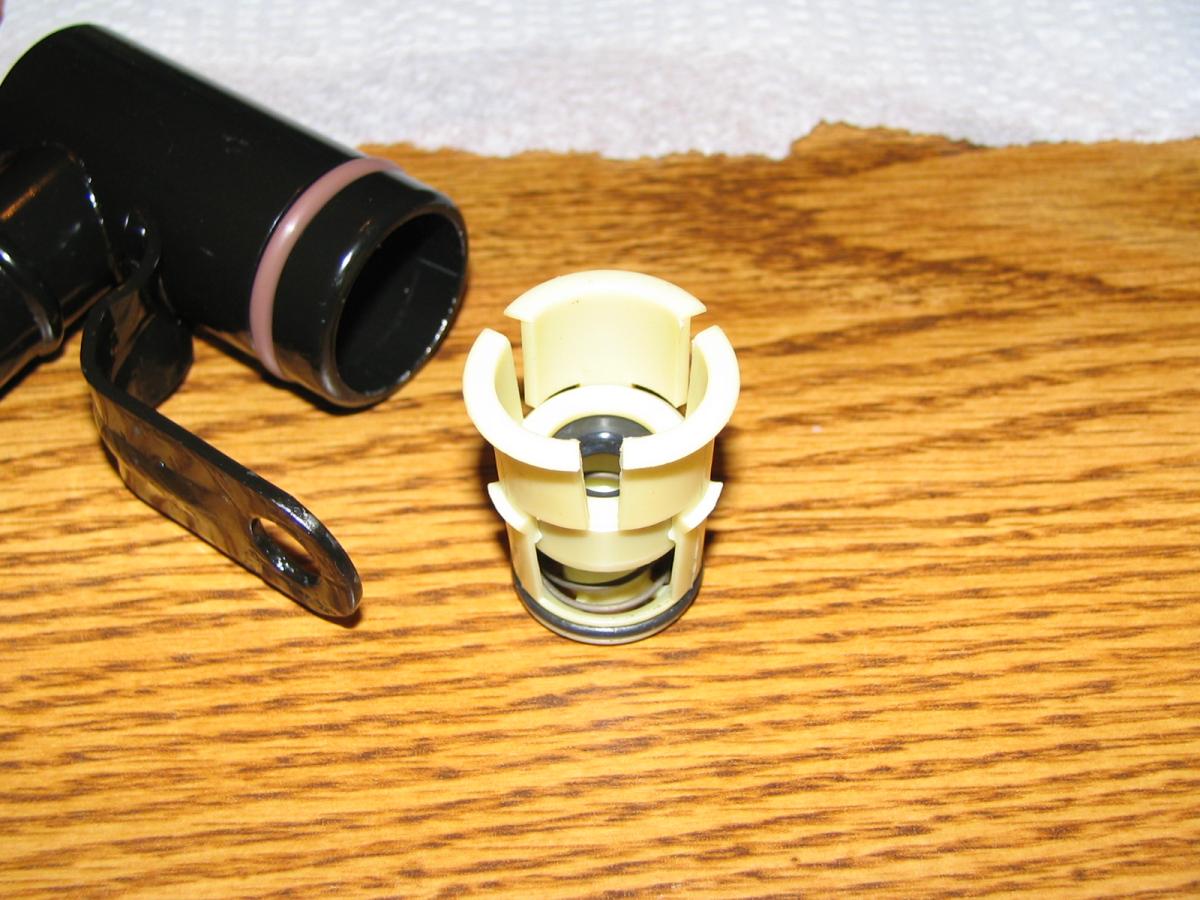

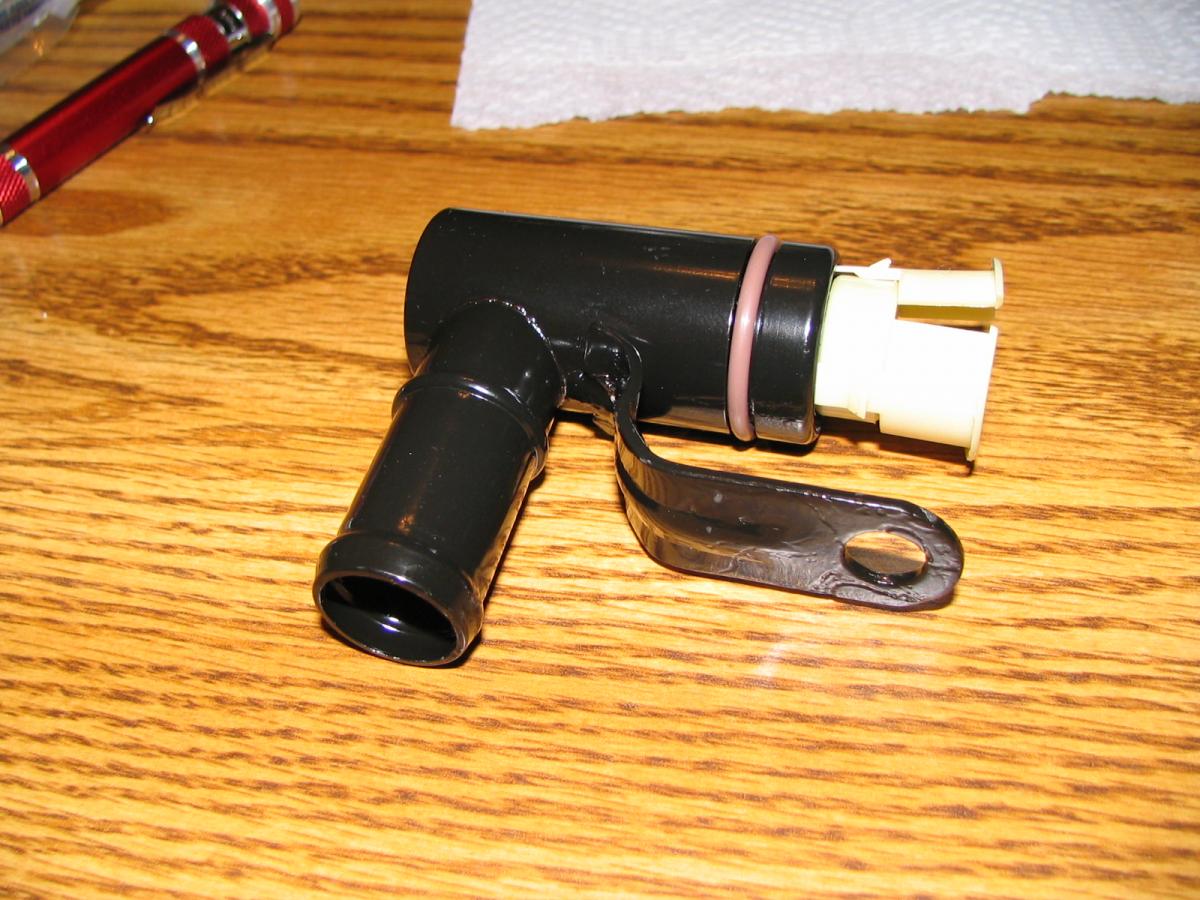

96' Regal Heater Inlet adapter Check valve.-img_5207.jpg   96' Regal Heater Inlet adapter Check valve.-img_5204.jpg
grtpumpkin is offline   Reply With Quote
The Following User Says Thank You to grtpumpkin For This Useful Post:
CathedralCub (05-18-2016)
Old 03-12-2011, 08:07 PM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I've pulled several engines apart, and either they didn't have one of those, or I just never looked that close.
Danthurs is offline   Reply With Quote
Old 05-15-2016, 05:43 PM   #3
Member
Posts like a V-Tak

Join Date: Jul 2007
Location: West coast, Fl
Posts: 51
Thanks: 0
Thanked 0 Times in 0 Posts
bigj6360 is on a distinguished road
Default

So, I know this has been a long time but I am finding myself in the same situation after grabbing up a 96 regal. The check valve crumbled and fell apart when replacing the tensioner.

How did you get the check valve out of the new unit without breaking it? If you remember.

Thanks
Josh
bigj6360 is offline   Reply With Quote
Old 05-15-2016, 08:22 PM   #4
Member
Posts like a V-Tak
Thread Starter

grtpumpkin's Avatar

Join Date: Nov 2005
Location: Hooksett NH
Posts: 58
Thanks: 0
Thanked 1 Time in 1 Post
grtpumpkin is on a distinguished road
Default

Quote:
Originally Posted by bigj6360 View Post
So, I know this has been a long time but I am finding myself in the same situation after grabbing up a 96 regal. The check valve crumbled and fell apart when replacing the tensioner.

How did you get the check valve out of the new unit without breaking it? If you remember.

Thanks
Josh
Ya that'* been a while. I used a couple of small flat blade screw drivers, possibly 3, and carefully worked it out. Look at the pictures. See the tabs, the smaller ones towards the bottom that hold it into the adapter. You need to carefully lever those inward towards the center to release them from the adapter bore. It takes a little doing but it will come out. Just be gentle so as not to break the new plastic insert. Some wd - 40 might help to slide it out also. It definitly goes in way easier than it comes out.
grtpumpkin is offline   Reply With Quote
Old 05-16-2016, 01:18 AM   #5
Senior Member

True Car Nut

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,087
Thanked 418 Times in 376 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

Never seen one of those in my cars, of course I have not checked my 96' Park Ave yet, but my 2006 Grand Prix does not have that for sure.
WilliamE is offline   Reply With Quote
