Default 4t65e cooler line return fitting?

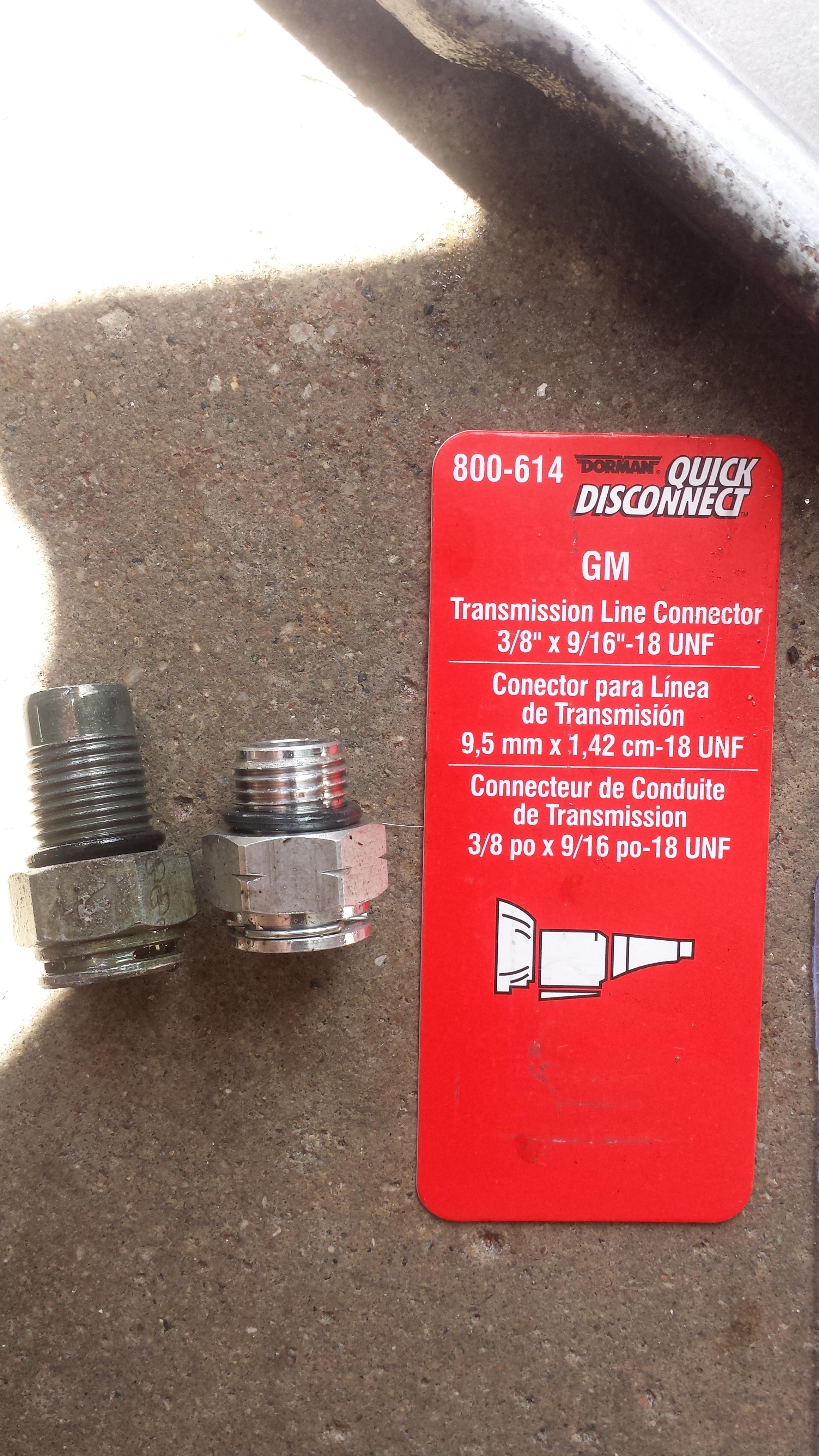

Hi guys, I went to change the leaking return line on my transmission on my 2004 buick lesabre and the new fitting was completely different. I bought the dorman version of what is supposed to be 04+ models with 9/16-18 thread. The threads sorta looked a bit bigger than the old one and wouldn't thread on.


Any ideas? None of the suggested parts on rockauto are long like the one in my transmission.
GerGa is offline   Reply With Quote
Old 05-03-2015, 11:20 AM   #2
Senior Member
Posts like a Supercharger

Join Date: Apr 2015
Posts: 156
Thanked 21 Times in 17 Posts
John01 will become famous soon enoughJohn01 will become famous soon enough
Default

Can you point out the Item # of your fitting
Attached Thumbnails
4t65e cooler line return fitting?-ccc.jpg
John01 is offline   Reply With Quote
Old 05-03-2015, 12:51 PM   #3
Junior Member
Posts like a V-Tak
Thread Starter

Join Date: Oct 2014
Posts: 29
Thanks: 0
Thanked 1 Time in 1 Post
GerGa is on a distinguished road
Default

It is 6.
I am also interested to know the c clip number 5!
thanks
GerGa is offline   Reply With Quote
Old 05-03-2015, 02:26 PM   #4
Senior Member
Posts like a Supercharger

Join Date: Apr 2015
Posts: 156
Thanked 21 Times in 17 Posts
John01 will become famous soon enoughJohn01 will become famous soon enough
Default

See if these look ok

#5 - Clip is GM # 24205103


#6 - Fitting is GM # 19125677
These threads look more like the ones you need
Attached Thumbnails
4t65e cooler line return fitting?-image.jpg   4t65e cooler line return fitting?-image.jpg
John01 is offline   Reply With Quote
The Following 2 Users Say Thank You to John01 For This Useful Post:
Soft Ride (05-04-2015), Tech II (05-03-2015)
Old 05-03-2015, 03:46 PM   #5
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,150
Thanked 785 Times in 614 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

Why did you change the fitting? Did it leak after replacing the line?
Tech II is offline   Reply With Quote
Old 05-03-2015, 03:59 PM   #6
Junior Member
Posts like a V-Tak
Thread Starter

Join Date: Oct 2014
Posts: 29
Thanks: 0
Thanked 1 Time in 1 Post
GerGa is on a distinguished road
Default

It was already leaking by the inside oring.

Thanks John for the info
