Default 1992 Riv Tranny problem

I have been having what I thought were misfire problems but mechanic has diagnosed as a drive link assembly slippage problem. He says the link is jumping teeth causing a bang in the tranny that sounds like a misfire. It happens only when warm, in park or neutral, or when almost coming to a stop at a red light. He say I need a new transmission. Any second opinions?
stevecass is offline   Reply With Quote
Old 02-18-2011, 06:27 PM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Hard to say without actually looking at it. have you talked to another shop? If the trans is jumping teeth then that'* the drive chain. If that'* the case it will need a new chain and likely gears. Do you have any codes you can post up?
Danthurs is offline   Reply With Quote
Old 02-18-2011, 06:57 PM   #3
Junior Member
Thread Starter

Join Date: Jul 2010
Posts: 5
Thanks: 0
Thanked 0 Times in 0 Posts
stevecass is on a distinguished road
Default

No codes generated. New coils, plugs, wires, fuel pump, injectors/fuel rail, battery and the alternator tests good. The mechanic did not dissamble the tranny just went on an earkier experience with a similar problem.
stevecass is offline   Reply With Quote
Old 02-18-2011, 06:59 PM   #4
Junior Member
Thread Starter

Join Date: Jul 2010
Posts: 5
Thanks: 0
Thanked 0 Times in 0 Posts
stevecass is on a distinguished road
Default

sorry, it'* my typing not my spelling that'* bad. Can the link be replaced with tearing down the whole trans?
stevecass is offline   Reply With Quote
Old 02-18-2011, 08:15 PM   #5
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Transmission work is expensive work. I would want a better answer then a hunch. To change the drive chain you would at the least need to lower the sub frame and transmission/engine low enough to get the side pan off. You looking at 8 to 10 hours in a shop.
Danthurs is offline   Reply With Quote
Old 02-20-2011, 08:47 AM   #6
Senior Member
Posts like a Northstar

Join Date: Oct 2009
Location: Boston Mass
Posts: 684
Thanks: 0
Thanked 0 Times in 0 Posts
sgp358 is on a distinguished road
Default

Do you get a "popcorn popper" type noise if you brake torque the car in drive? If so, it probably is a bad chain and it can be done in the car. You will need to remove the side cover and the valve body/channel plate assembly. You can leave the valve body bolted to the channel plate if you are careful. But if you do swap the chain, DO NOT remove the input shaft!!! Take the snap ring off the drive sprocket and leave the input shaft where it is
sgp358 is offline   Reply With Quote
Old 02-20-2011, 06:45 PM   #7
Junior Member
Thread Starter

Join Date: Jul 2010
Posts: 5
Thanks: 0
Thanked 0 Times in 0 Posts
stevecass is on a distinguished road
Default

When I brake torque the car in drive I do not get the popcorn popping sound. It only sounds like that in Park or Neutral or when I slow down to a stop in Drive. If I coast to a stop then put it in Drive the noise stops. I love my Riv but can't justify $2500 to replace the trans. If I can get a shop to replace the chain and sprockets do you think I can get it done for less? .
stevecass is offline   Reply With Quote
Old 02-20-2011, 06:53 PM   #8
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

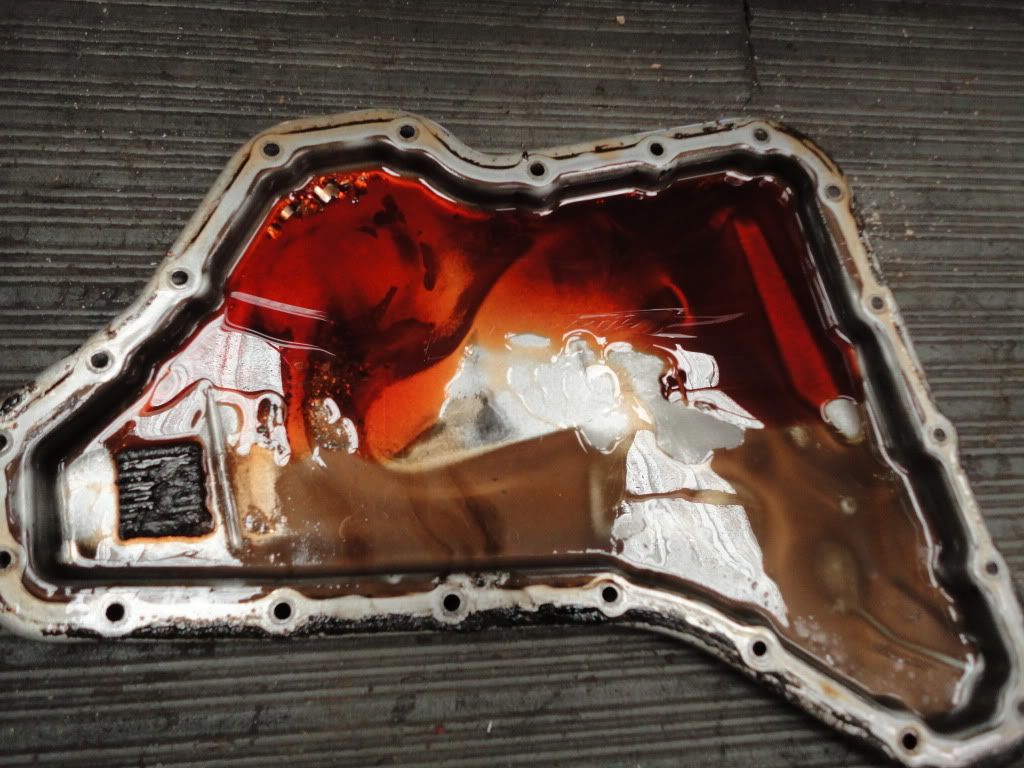

Nothing in the transmission is moving when the car is not moving. The torque converter is turning, but nothing inside the trans. So I don't feel the chain is the problem. Might want to check where the flex plate and the torque converter connect. You could drop the bottom pan to change the fluid and filter. Then inspect the pan for any chunks. Anything like this is bad.
Name:  DSC00404.jpg
Views: 5
Size:  163.8 KB
Danthurs is offline   Reply With Quote
Old 02-20-2011, 07:08 PM   #9
Senior Member
Posts like a Northstar

Join Date: Oct 2009
Location: Boston Mass
Posts: 684
Thanks: 0
Thanked 0 Times in 0 Posts
sgp358 is on a distinguished road
Default

Quote:
Originally Posted by stevecass View Post
When I brake torque the car in drive I do not get the popcorn popping sound. It only sounds like that in Park or Neutral or when I slow down to a stop in Drive. If I coast to a stop then put it in Drive the noise stops. I love my Riv but can't justify $2500 to replace the trans. If I can get a shop to replace the chain and sprockets do you think I can get it done for less? .
Based on what you just posted, you don't have "chain jump". You probably have a Reverse Reaction Drum (we call it a stovepipe) that is coming apart. It is a common problem with this trans.

The gear train is turning by centrifugal force and stops moving when you put the trans in gear.
sgp358 is offline   Reply With Quote
Old 02-20-2011, 07:24 PM   #10
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

That'* the first I've heard on that one Steve. Good to know.

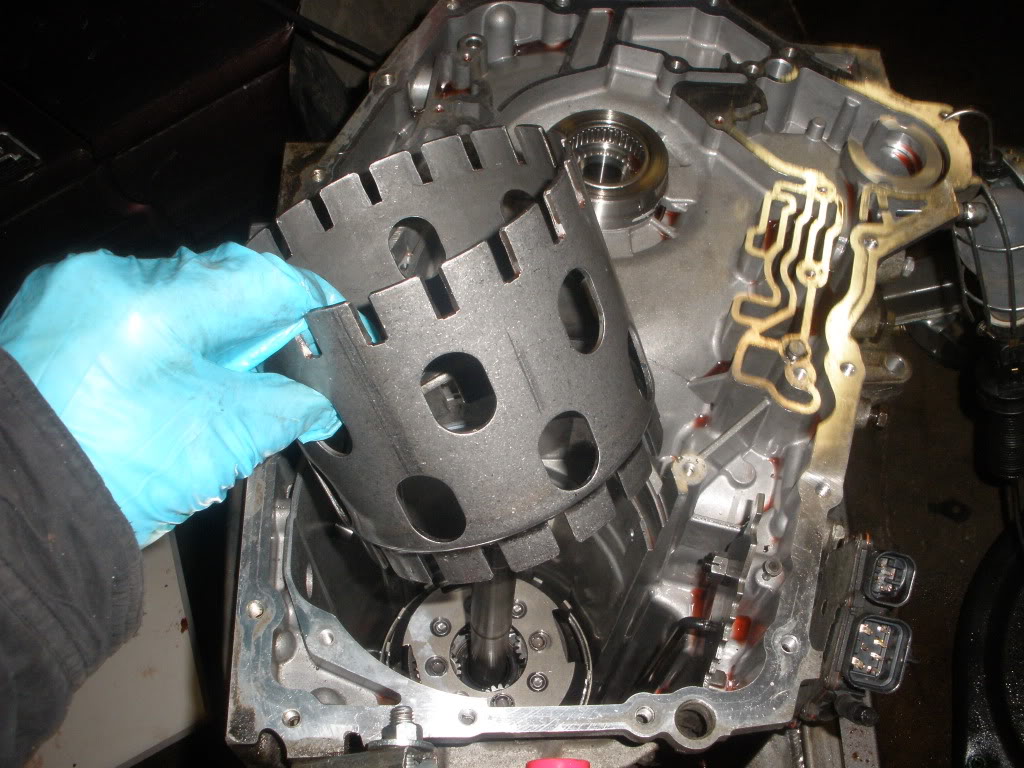

Here'* what Steve is talking about, and it'* just about in the center of the transmission.
Name:  P2210171.jpg
Views: 4
Size:  166.4 KB
Danthurs is offline   Reply With Quote
