Old 05-18-2012, 06:06 PM   #11
Senior Member
Posts like a Turbo

Join Date: Nov 2011
Posts: 407
Thanked 18 Times in 14 Posts
Kimberly will become famous soon enoughKimberly will become famous soon enough
Default

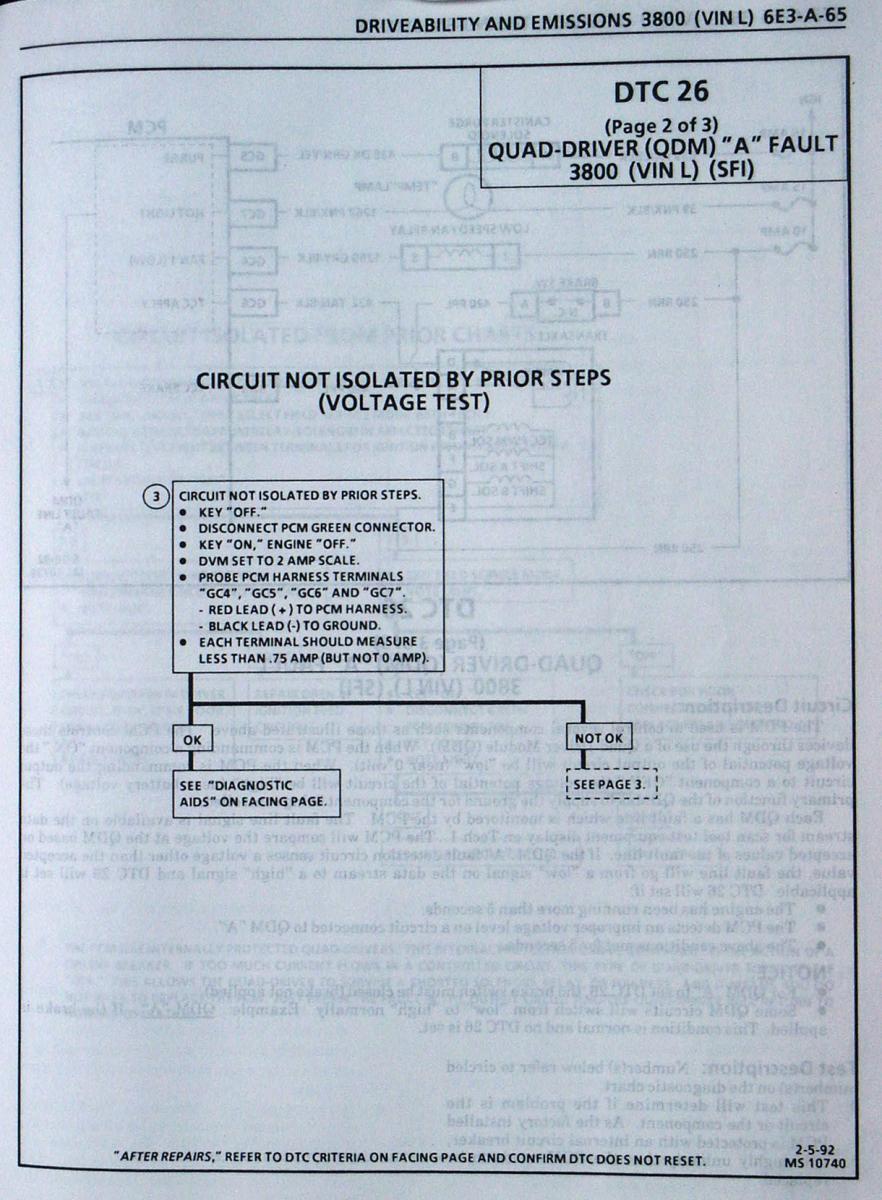

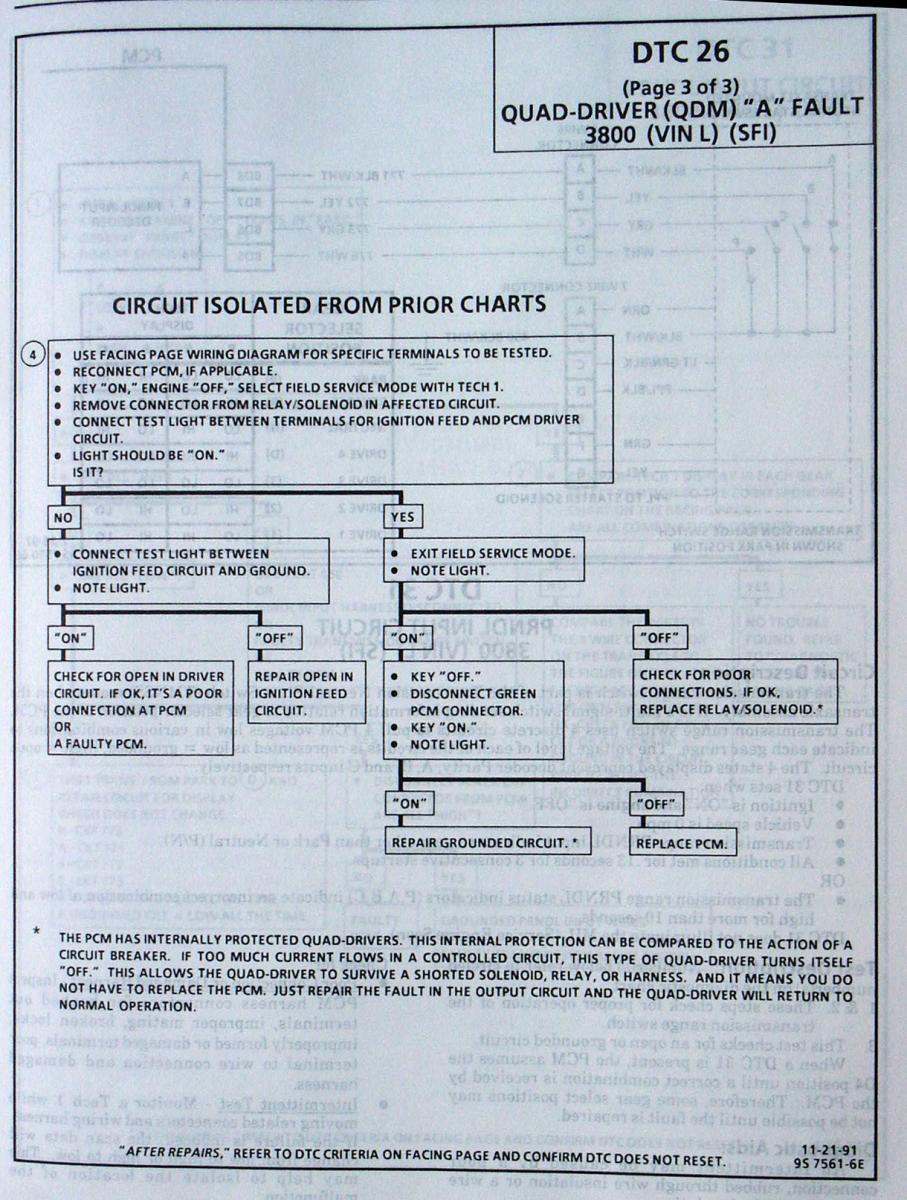

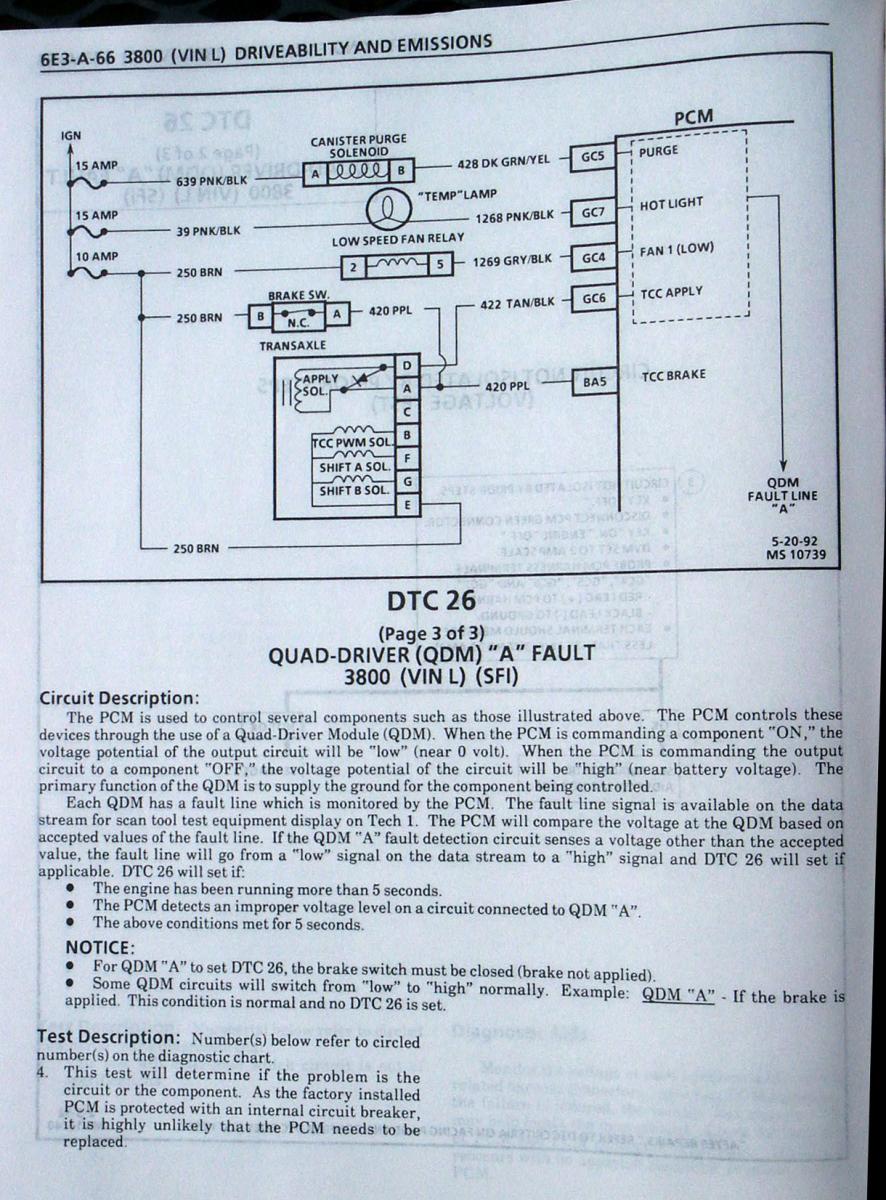

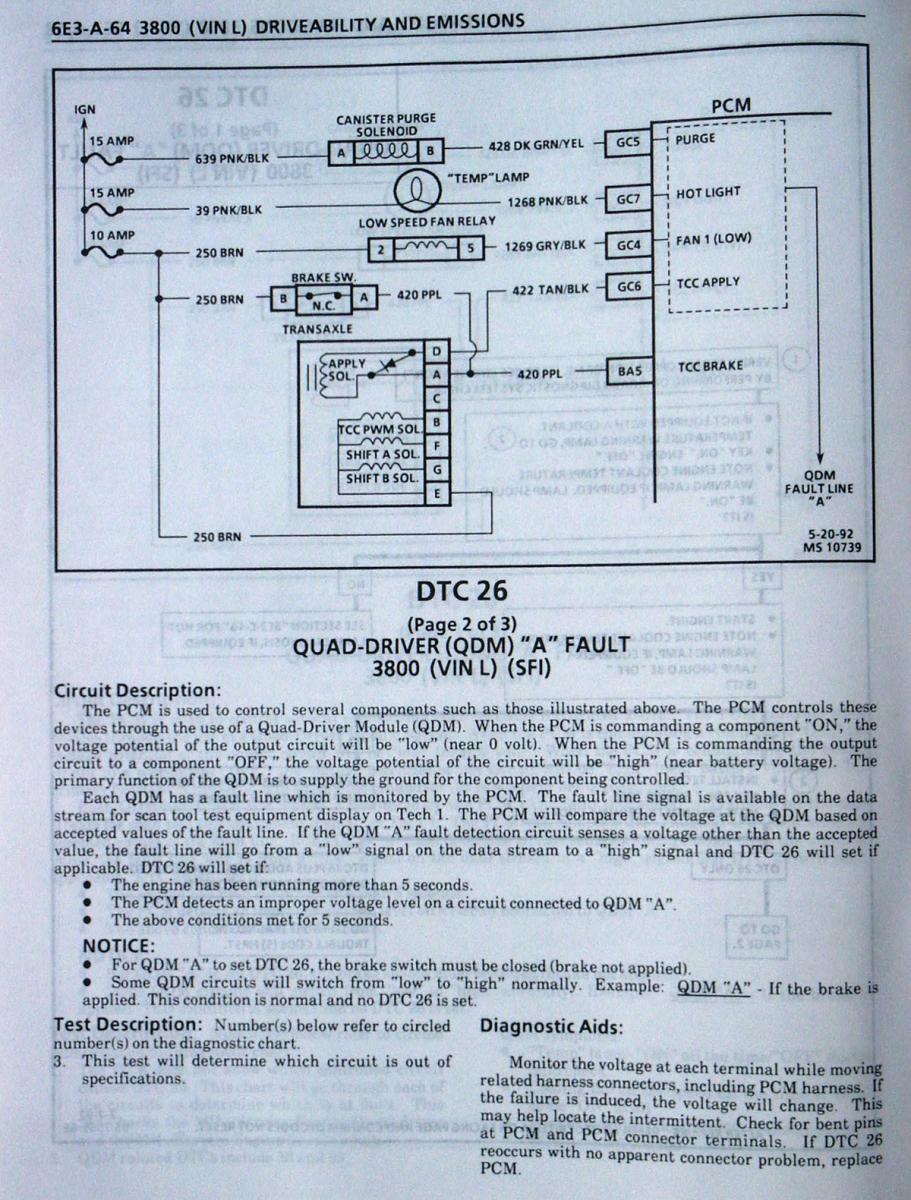

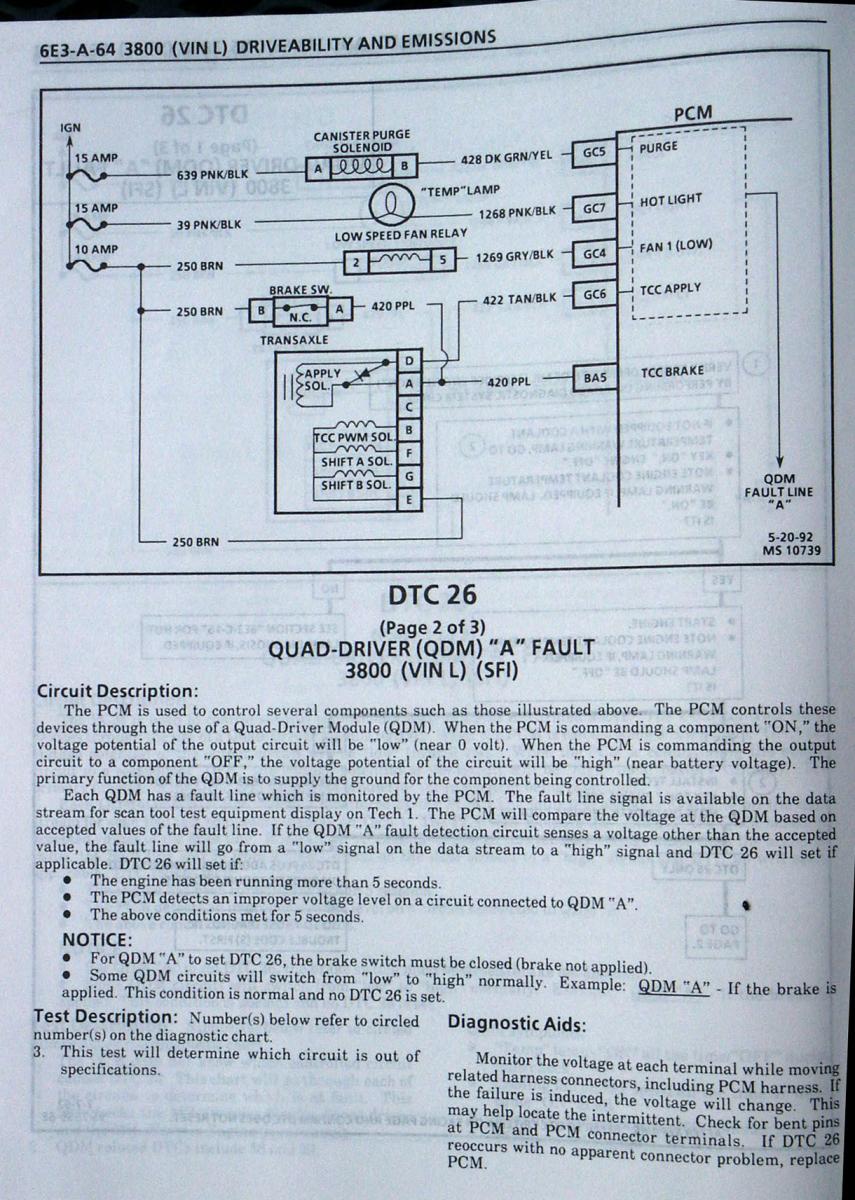

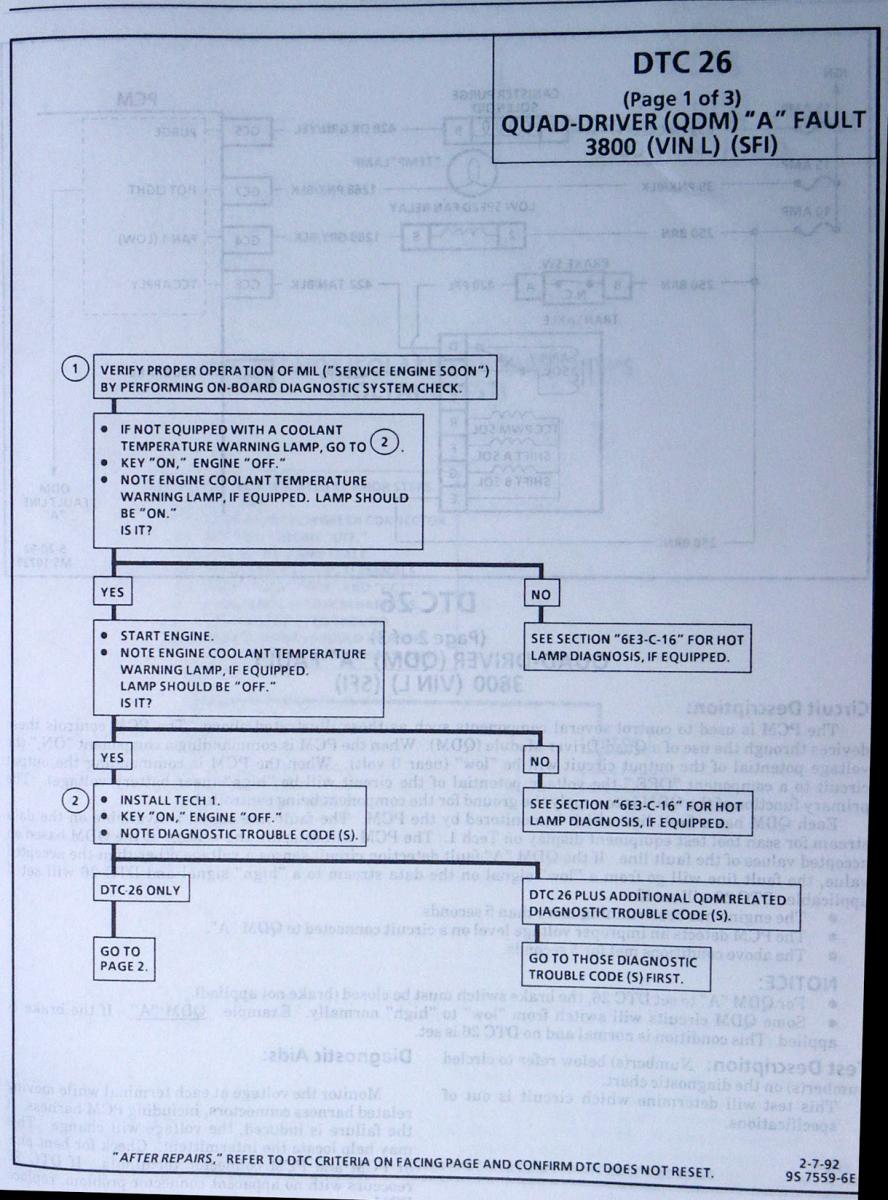

These are the pages in my GM Shop Manual. I apologise for the poor quality.
Attached Thumbnails
1992 buick lesabre code 26 qdm 1 failure-page-1.jpg   1992 buick lesabre code 26 qdm 1 failure-page-2.jpg   1992 buick lesabre code 26 qdm 1 failure-page-3.jpg   1992 buick lesabre code 26 qdm 1 failure-page-4.jpg   1992 buick lesabre code 26 qdm 1 failure-page-5.jpg

1992 buick lesabre code 26 qdm 1 failure-page-6.jpg
Kimberly is offline   Reply With Quote
Old 05-18-2012, 06:07 PM   #12
Senior Member
Posts like a Turbo

Join Date: Nov 2011
Posts: 407
Thanked 18 Times in 14 Posts
Kimberly will become famous soon enoughKimberly will become famous soon enough
Default

I am guessing you can download the images to your computer where you can open them up and zoom in for a better view.
Kimberly is offline   Reply With Quote
Old 05-18-2012, 06:12 PM   #13
Senior Member
Posts like a Turbo

Join Date: Nov 2011
Posts: 407
Thanked 18 Times in 14 Posts
Kimberly will become famous soon enoughKimberly will become famous soon enough
Default

Quote:
Originally Posted by Kimberly View Post
I am guessing you can download the images to your computer where you can open them up and zoom in for a better view.
When you open up the thumbnail image, you can right click and either open in a new tab where you can then view full size, or you can choose to save the image out to your hard drive. I hope these can help you to trace your problem.
Kimberly is offline   Reply With Quote
Old 05-18-2012, 10:46 PM   #14
Junior Member
Thread Starter

Join Date: Oct 2011
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
gspot32 is on a distinguished road
Default

thank you very much ill try im pretty illiterate when it comes to this stuff though

i appreciate all your help
gspot32 is offline   Reply With Quote
Old 05-18-2012, 11:05 PM   #15
Senior Member
Posts like a Turbo

Join Date: Nov 2011
Posts: 407
Thanked 18 Times in 14 Posts
Kimberly will become famous soon enoughKimberly will become famous soon enough
Default

Quote:
Originally Posted by gspot32 View Post
thank you very much ill try im pretty illiterate when it comes to this stuff though

i appreciate all your help
You are welcomed. It is why we are here, a community for sharing and helping. The problem I had with my Code 18 turned out to have nothing to do with what the manual was telling me. So use it as a starting point and if running through the tests it outlines does not help, then it is time to consider other things.
Kimberly is offline   Reply With Quote
