Default 03 Regal heater core hose bolt broke

flushed the heater core out today along with the coolant and thermostat... was tightening the bolts back for the heater hoses and as it started to get snug, it just broke the head off? ive worked on cars for years, but not sure if the bolt was weakened or what.... Cant get a drill in there to drill it out... need my car so in a panic, i used some JB weld on the flat bracket thats attached to the hose, to mate to the motor where it goes anyways to hopefully hold.

Any real world solution to fix this? hopefully the jb weld will hold and hopefully wont have any issues from it.
jmcracken1214 is offline   Reply With Quote
Old 01-10-2018, 01:35 AM   #2
Senior Member

Posts like a Turbo

Join Date: Feb 2015
Location: Earth
Posts: 311
Thanked 53 Times in 46 Posts
CathedralCub is a jewel in the roughCathedralCub is a jewel in the roughCathedralCub is a jewel in the rough
Default

Can you take it apart enough to get vice grips on what'* left?

Trying to picture where you are talking about. Maybe can you add a picture?
CathedralCub is offline   Reply With Quote
Old 01-10-2018, 08:08 AM   #3
Junior Member
Thread Starter

Join Date: Jan 2018
Posts: 4
Thanks: 0
Thanked 2 Times in 1 Post
jmcracken1214 is on a distinguished road
Default

Quote:
Originally Posted by CathedralCub View Post
Can you take it apart enough to get vice grips on what'* left?

Trying to picture where you are talking about. Maybe can you add a picture?

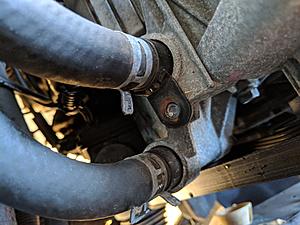

Heres the pic
Attached Thumbnails
03 Regal heater core hose bolt broke-img_20180109_163039.jpg
jmcracken1214 is offline   Reply With Quote
Old 01-10-2018, 11:28 PM   #4
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,200
Thanked 819 Times in 637 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

Soak with PB Blaster overnight....buy a left handed drill bit....tap a starting point in the middle........have had good luck with the bit catching ad backing it out......if that doesn't work, then use an easy out on the hole that was drilled.....
Tech II is offline   Reply With Quote
Old 01-11-2018, 09:29 AM   #5
Junior Member
Thread Starter

Join Date: Jan 2018
Posts: 4
Thanks: 0
Thanked 2 Times in 1 Post
jmcracken1214 is on a distinguished road
Default

Quote:
Originally Posted by Tech II View Post
Soak with PB Blaster overnight....buy a left handed drill bit....tap a starting point in the middle........have had good luck with the bit catching ad backing it out......if that doesn't work, then use an easy out on the hole that was drilled.....
I can't get a drill in there. Any other ideas?
jmcracken1214 is offline   Reply With Quote
Old 01-12-2018, 02:10 AM   #6
Senior Member

Posts like a Turbo

Join Date: Feb 2015
Location: Earth
Posts: 311
Thanked 53 Times in 46 Posts
CathedralCub is a jewel in the roughCathedralCub is a jewel in the roughCathedralCub is a jewel in the rough
Default

Quote:
Originally Posted by jmcracken1214 View Post
I can't get a drill in there. Any other ideas?
Perhaps take out the coolant reservoir and use an angle drill like this one?:


CathedralCub is offline   Reply With Quote
Old 01-12-2018, 07:40 AM   #7
Junior Member
Thread Starter

Join Date: Jan 2018
Posts: 4
Thanks: 0
Thanked 2 Times in 1 Post
jmcracken1214 is on a distinguished road
Default

Quote:
Originally Posted by CathedralCub View Post
Perhaps take out the coolant reservoir and use an angle drill like this one?:


That'* exactly what I did. I took off motor mounts and rolled the engine forward and drilled it out, wouldn't back out so I drilled it all the way and tapped new threads and got a new bolt.
jmcracken1214 is offline   Reply With Quote
The Following 2 Users Say Thank You to jmcracken1214 For This Useful Post:
CathedralCub (01-12-2018), Mike (01-12-2018)
Old 01-12-2018, 06:32 PM   #8
Senior Member

Posts like a Turbo

Join Date: Feb 2015
Location: Earth
Posts: 311
Thanked 53 Times in 46 Posts
CathedralCub is a jewel in the roughCathedralCub is a jewel in the roughCathedralCub is a jewel in the rough
Default

Quote:
Originally Posted by jmcracken1214 View Post
That'* exactly what I did. I took off motor mounts and rolled the engine forward and drilled it out, wouldn't back out so I drilled it all the way and tapped new threads and got a new bolt.
Cool, glad you got it worked out. Thanks for letting us know how it went!
