Default '03 Lesabre heated seat wiring coloring

Does anyone know the coloring of the wires for the driver'* car seat heater, both the seat pan and seat back rest?

My 2003 Buick Lesarbe driver'* seat heater is not working, brought the vehicle used and the seat has never worked. I figured I start with trying to check for resistance in wiring located under the seat.

Fuses appear to be ok.

Mike from Cleveland
Mike from Cle is offline   Reply With Quote
Old 08-26-2014, 06:41 PM   #2
Senior Member

Posts like a Camaro

Join Date: Aug 2013
Location: Northern California
Posts: 1,014
Thanked 164 Times in 130 Posts
75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold
Default

If you remove the seat from the car and flip it over the bottom cushion is real easy to remove from the seat frame. I'm betting the elmant is bad.
75 racer is offline   Reply With Quote
Old 08-26-2014, 09:22 PM   #3
Senior Member
Posts like a Turbo

chevy82's Avatar

Join Date: Jan 2014
Location: Missouri
Posts: 396
Thanked 99 Times in 84 Posts
chevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of light
Default

Agree ^^^^^
Should see a nice burnt spot in the cover.
chevy82 is offline   Reply With Quote
Old 08-26-2014, 09:44 PM   #4
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,148
Thanked 783 Times in 612 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

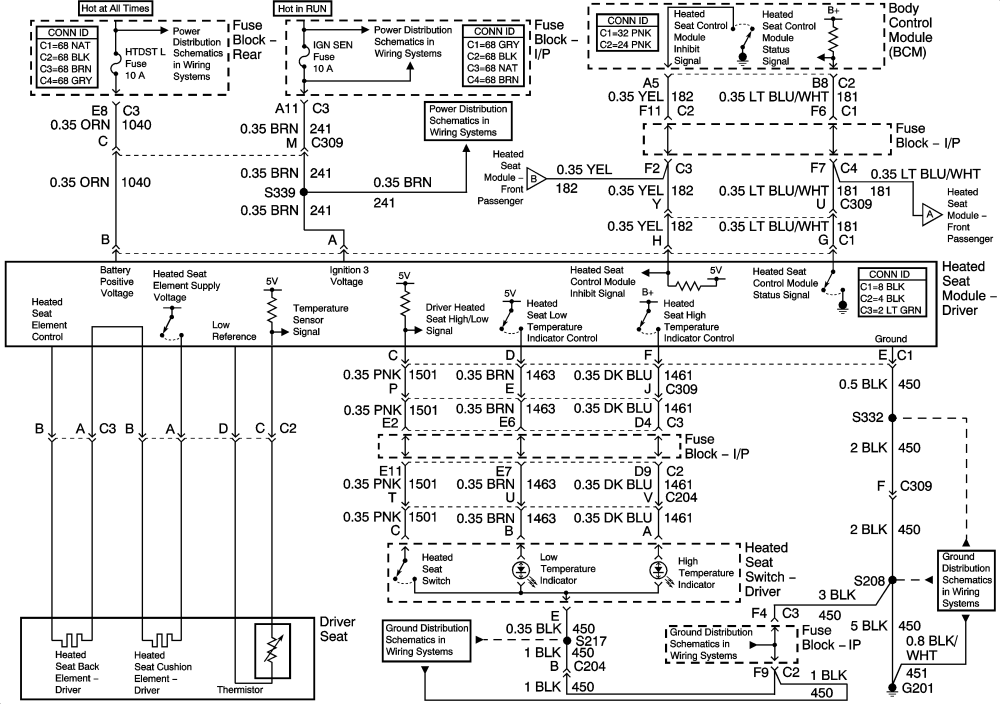

Need a schematic for the harness to the module under the seat.....



Attached Thumbnails
'03 Lesabre heated seat wiring coloring-0996b43f80244ad8.gif
Tech II is online now   Reply With Quote
Old 08-26-2014, 09:51 PM   #5
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,148
Thanked 783 Times in 612 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

Stupid 5 minute rule....

I never pull the seat, just remove the seat covers......the new grids go over the old ones, and have self adhesive to hold in place.....just connect the new harnesses......I replace both, just a matter of time before the other one goes, so while you are in there....
Tech II is online now   Reply With Quote
