Default 01 regal only 1 D & N lights up

I have a 01 ls regal
having a problem that sounds weird
the gear selector lights up great
but only N D & 1 lights up
no P R 2 3 have tried 3 clusters
and 2 gear selector switch'*
same thing
well the old one only 1 would light up
so new switch got N & D
I am wondering if bad body control
module now?
I think it controls the dash but just guessing
any idea would help
and last note when you are moving
the floor shifter from P to R just before you get it
in Rev N will light up for a sec
REGAL GUY is offline   Reply With Quote
Old 04-14-2014, 10:58 AM   #2
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

lets keep it to this post, we would rather you didnt make multiple posts for one question.

does the error cause any trans issues?
jwfirebird is offline   Reply With Quote
Old 04-14-2014, 11:02 AM   #3
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

it sounds like its miss adjusted if you are getting n when you are supposed to be getting r, or its the wrong one
jwfirebird is offline   Reply With Quote
Old 04-14-2014, 11:22 AM   #4
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Apr 2014
Posts: 419
Thanks: 0
Thanked 35 Times in 30 Posts
REGAL GUY has a spectacular aura aboutREGAL GUY has a spectacular aura about
Default

its the lights
not a adjustment trans works normal and old switch only 1 would light up
texas car no wire corrosion so
maybe body cont mod ? or do you care to supply wireing chart for this ?
REGAL GUY is offline   Reply With Quote
Old 04-14-2014, 11:27 AM   #5
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Apr 2014
Posts: 419
Thanks: 0
Thanked 35 Times in 30 Posts
REGAL GUY has a spectacular aura aboutREGAL GUY has a spectacular aura about
Default

so your not suppose to ask a other regal owner were he got the alum sub frame and pan off from????
and ask someone that knows what they are doing same question?
seams could not send private message I need 15 post first to do that
so what was my choice????
REGAL GUY is offline   Reply With Quote
Old 04-14-2014, 11:50 AM   #6
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

it would be ok but, you only ask once or it gets confusing. because some may post here and not see the other, and vice versa. but the original post is several years old and the original poster is not on here anymore.
jwfirebird is offline   Reply With Quote
Old 04-14-2014, 12:01 PM   #7
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

most gms just have serial connection to pcm so everything goes to pcm, not much to trouble shoot and bcm doesnt have anything to do with it.

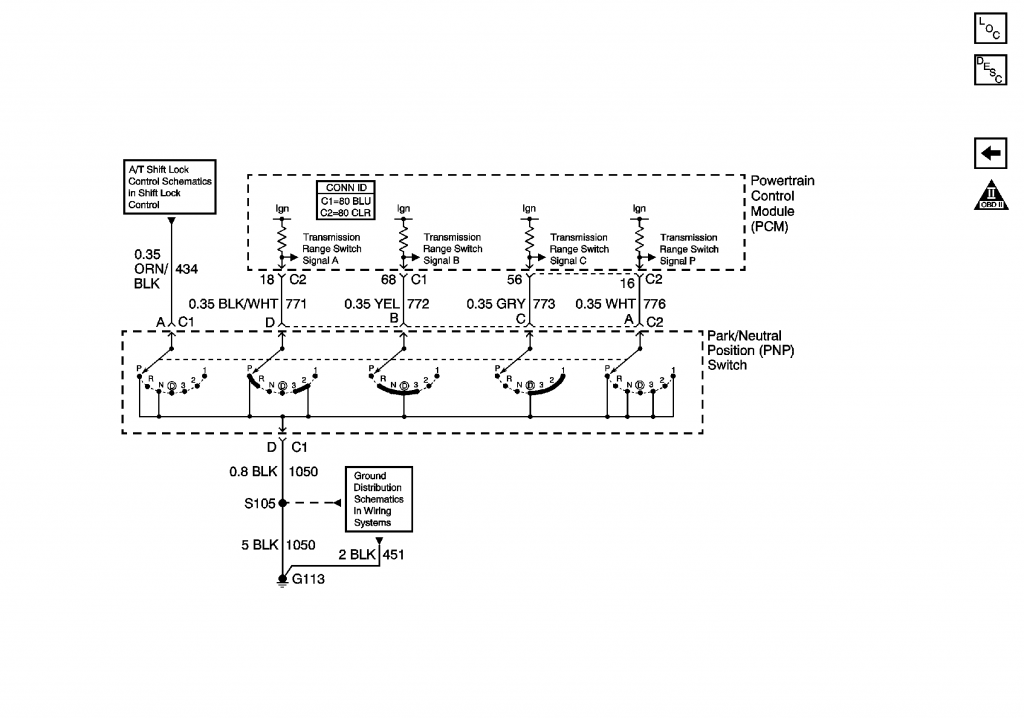

Attached Thumbnails
01 regal only 1 D & N lights up-01regalpnp_zps19800458.png
jwfirebird is offline   Reply With Quote
Old 04-14-2014, 12:03 PM   #8
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

verified in the manual your indicator is via serial bus connection so if everything else is good that is good
jwfirebird is offline   Reply With Quote
Old 04-19-2014, 09:02 PM   #9
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Apr 2014
Posts: 419
Thanks: 0
Thanked 35 Times in 30 Posts
REGAL GUY has a spectacular aura aboutREGAL GUY has a spectacular aura about
Default

I guess it did not sink in at first
so if you had to guess would you say a bad power train control ?
and if I may ask other question I see the pin locations
4 wires going to pcm I guess?
and a ground but the switch has 7 wires on it so it has 3 grounds?
and if 4 wires how would it light up more then 4 gears?
when there is 7 gear levels? P R N D 3 2 1
do 3 wires run to other pins I am not seeing ?
I see pin
18 68 56 and 16
REGAL GUY is offline   Reply With Quote
Old 04-19-2014, 09:34 PM   #10
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

those four are all you are concerned with, make sure those connections are good and the wires are not broke, shorted, or loose. the ground make nothing work and the other wires are for start enable in neutral or park
jwfirebird is offline   Reply With Quote
