Default 01' LeSabre Oil Leak (pics)

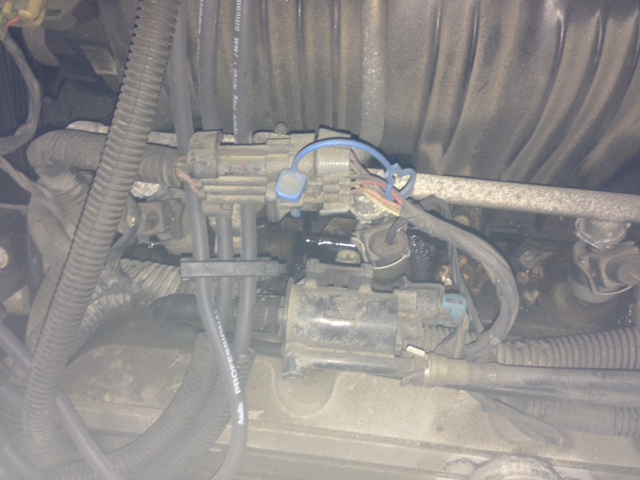

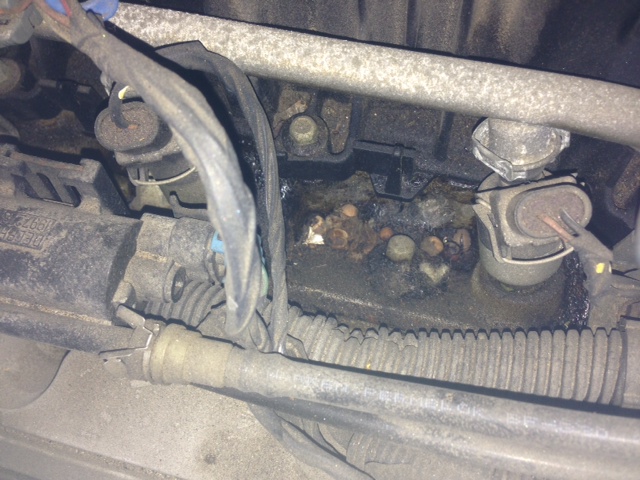

I have a 2001 Lesabre with a 3800 series V6. It is leaking oil on the top of the motor and it will puddle into the intake valley. It appears to be leaking from where the plastic intake plentum mounts to the lower intake, but i didnt think any oil flows through there? Please look at the pics below and let me know what you guys think! Thanks!




Attached Thumbnails
01' LeSabre Oil Leak (pics)-photo5-9.jpg   01' LeSabre Oil Leak (pics)-photo3-17.jpg   01' LeSabre Oil Leak (pics)-photo1-19.jpg   01' LeSabre Oil Leak (pics)-photo2-20.jpg
atvkid4eva is offline   Reply With Quote
Old 11-05-2012, 12:20 AM   #2
Senior Member
Posts like a Supercharger

viniepooh's Avatar

Join Date: Dec 2010
Location: MIchigan
Posts: 177
Thanks: 0
Thanked 1 Time in 1 Post
viniepooh is on a distinguished road
Default

it really looks like ur valve covers
viniepooh is offline   Reply With Quote
Old 11-05-2012, 05:29 AM   #3
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

I disagree. The placement of the valve covers and the way the LIM is mounted to the head, if the valve cover leaked, the oil would follow the channel between the LIM and head and eventually flow to either end of the head. Not down into the recessed areas of the LIM like shown in the pictures.

I'm suspecting the oil is seeping up the LIM bolts and puddling in the recessed areas of the LIM where the bolts are. Or, its coming from the between the UIM and the LIM.
Mike is offline   Reply With Quote
Old 11-05-2012, 07:35 AM   #4
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

jwfirebird is offline   Reply With Quote
Old 11-05-2012, 07:19 PM   #5
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Nov 2012
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
atvkid4eva is on a distinguished road
Default

i was leaning towards the lower intake manifold gasket just like you guys said. Its definetly not the valve cover gasket.
atvkid4eva is offline   Reply With Quote
Old 11-06-2012, 02:36 AM   #6
Senior Member

True Car Nut

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,087
Thanked 418 Times in 376 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

If you do the LIM job, which I suggest doing if it has never been done whether leaking or not, make sure you go with the aluminum framed LIM Gaskets, and not the old nylon 6,6 gaskets shown in the UIM thread, the Fel-Pro MS98014T Kit is the one I recommend, but the ACDelco 89017816 Intake Manifold Gasket Kit is also acceptable, I just prefer the Fel-PRO kit because you get more in the kit, both gaskets appear to be of the same quality.

If you do the UIM/LIMjob and have any questions we are here to help.

Also, when you replace your coolant elbow, look into getting the new Dorman aluminum elbow, if not either get a nylon elbow from GM, or get the Dorman Help Section nylon one, just be sure to change the o-rings out for these, as the Dorman o-rings are known to cause leaks.
http://www.rockauto.com/dbphp/prt,315,1534066
WilliamE is offline   Reply With Quote
Old 11-06-2012, 09:46 AM   #7
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Nov 2012
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
atvkid4eva is on a distinguished road
Default

thanks fir the p/n. Im a big felpro fan as well. So that kit is only for the LIM and dosent incluse the UIM gasket? Also can you show me a pic of what your talking about as far as the coolant elbow and maybe even give me the dorman p/n? That would help a bunch. Thanks!
atvkid4eva is offline   Reply With Quote
Old 11-06-2012, 11:04 AM   #8
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

The aluminum p/n'* can be found about halfway down in this Tech-Info article...

https://www.gmforum.com/mechanical-1...2005-a-304071/
Mike is offline   Reply With Quote
Old 11-06-2012, 11:23 AM   #9
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Nov 2012
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
atvkid4eva is on a distinguished road
Default

found it. So there is no Felpro kit that comes complete with the UIM and LIM gaskets? So id have to buy the kit you listed above and then felpro #MS95812 which is the UIM plentum gasket set?
atvkid4eva is offline   Reply With Quote
Old 11-06-2012, 11:28 AM   #10
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

I don't ever recall seeing a complete UIM/LIM gasket kit. Technically, they are separate tasks, which would deem the parts to be separate.

Yes, you would need to purchase...
LIM gaskets
UIM gasket
and the aluminum elbows.
Mike is offline   Reply With Quote
