Default rear air shocks

getting a clunking sound from the passenger rear shock on my 05 gxp. I do not hear the compressor when I start the car. from a diagnostic point of view what do I check first?2nd?3rd? having never worked on rear air before I need a starting point. thanks
kaptainkhaos is offline   Reply With Quote
Old 04-01-2014, 10:25 PM   #2
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,142
Thanked 778 Times in 608 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

Can you recreate the sound by manually bouncing the rear end?

If you can, get under there with a light, while someone bounces the car and see if you can pinpoint the noise.
Tech II is offline   Reply With Quote
Old 04-03-2014, 07:58 PM   #3
Member
Posts like a V-Tak
Thread Starter

Join Date: Feb 2012
Location: mi
Posts: 69
Thanks: 0
Thanked 1 Time in 1 Post
kaptainkhaos is on a distinguished road
Default reae air shocks

I cant hear anything with a vigorous bouncing. only going down the road can I hear the clunk. not on every bump though. I can notice a very slight difference in height from the drivers side to the passenger side. my gxp seems to have a stiffer suspension than the other two bonnies I have driven. I think that'* why I cant hear anything on the bounce test.
kaptainkhaos is offline   Reply With Quote
Old 04-04-2014, 12:15 AM   #4
certified crazy person
Certified GM nut

eltatertoto's Avatar

Join Date: Sep 2010
Location: hobart indiana (1 hr from chicago)
Posts: 1,871
Thanked 64 Times in 52 Posts
eltatertoto is a jewel in the rougheltatertoto is a jewel in the rougheltatertoto is a jewel in the rougheltatertoto is a jewel in the rough
Default

the compressor is bad.... but this shouldnt affect the ride or clunk. the compressor only levels the rear end when weight is put back there. i would start by checking the tie rods for play. if that isnt the case, then i would move onto shock mounts.. then traction bars and if you cant find anything there, then it is either the wheel bearing (not very likely to clunk) or the strut is damaged internally.
eltatertoto is offline   Reply With Quote
Old 04-04-2014, 09:00 AM   #5
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

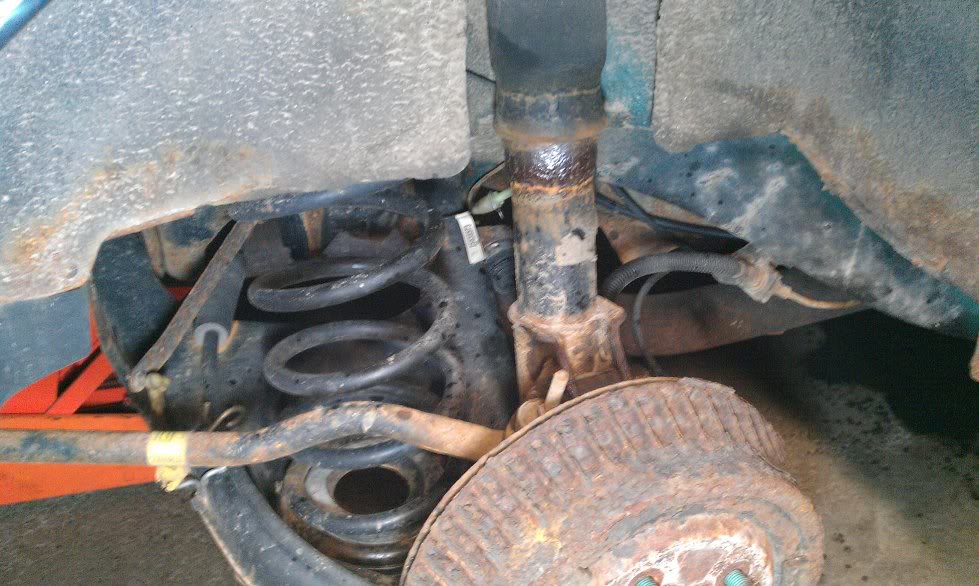

if your strut looks like this its bad, mine was leaking and that takes out the compressor, i got regular shocks and a airline kit that gives you a fill valve,under 20 bucks let me know if you want the part number

Attached Thumbnails
rear air shocks-imag0006.jpg
jwfirebird is offline   Reply With Quote
Old 04-06-2014, 10:09 PM   #6
Member
Posts like a V-Tak
Thread Starter

Join Date: Feb 2012
Location: mi
Posts: 69
Thanks: 0
Thanked 1 Time in 1 Post
kaptainkhaos is on a distinguished road
Default rear air shocks

finally got under the gxp today. checked the sway bars. moved on to the shock mounts and there it was. upper mount bad. will shock have to be replaced? repair procedure greatly appreciated for the upper mount. big thanks to eltatertoto and all who posted!
kaptainkhaos is offline   Reply With Quote
Old 04-07-2014, 09:34 AM   #7
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

you have to remove the shock to replace the mount because there is a big nut like a strut on top that you are unlikely to be able to remove without a impact wrench
jwfirebird is offline   Reply With Quote
Old 05-04-2014, 11:57 AM   #8
Member
Posts like a V-Tak
Thread Starter

Join Date: Feb 2012
Location: mi
Posts: 69
Thanks: 0
Thanked 1 Time in 1 Post
kaptainkhaos is on a distinguished road
Default kyb shocks

received the new shocks from rockauto. not sure if they are what I wanted or can use. hoping to hook up shocks without using compressor because it is not working. info from KYB says they contain pump,sensor,regulator and reservoir in the sealed unit. can someone check these out and tell me if they will work without being hooked up to the compressor?More Information for KYB SR1002 this is the link. thanks!
kaptainkhaos is offline   Reply With Quote
Old 05-04-2014, 12:19 PM   #9
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

thats not right, its just going to be the oem type shock set. monroe ak29 to replace the air lines with ones that go to a air fill valve. then you dont need the compressor or anything else. just the new oem shocks

Amazon.com: Monroe AK29 Monroe Air Shock Accessory Kit: Automotive Amazon.com: Monroe AK29 Monroe Air Shock Accessory Kit: Automotive
jwfirebird is offline   Reply With Quote
Old 05-04-2014, 01:56 PM   #10
Member
Posts like a V-Tak
Thread Starter

Join Date: Feb 2012
Location: mi
Posts: 69
Thanks: 0
Thanked 1 Time in 1 Post
kaptainkhaos is on a distinguished road
Default ak29

the ahahhhhhhh moment. fill the shocks manually! looks like this kit will work with the factory or after market snocks. thanks Justin!
