Talking Removal of Factory radio In PA 97 tips

Replacing radio in my 97 Park ave and front/back speakers any tips on removal process and or things to look out for?
wonderwoman305 is offline   Reply With Quote
Old 03-24-2014, 11:46 PM   #2
Member
Posts like a V-Tak
Thread Starter

wonderwoman305's Avatar

Join Date: Mar 2014
Location: Miami,Fl
Posts: 35
Thanked 0 Times in 0 Posts
wonderwoman305 is on a distinguished road
Default

Took out my factory radio tryin to put in a pioneer radio in but it wont fit. I have the kit and everything from best buy....
wonderwoman305 is offline   Reply With Quote
Old 03-24-2014, 11:55 PM   #3
certified crazy person
Certified GM nut

eltatertoto's Avatar

Join Date: Sep 2010
Location: hobart indiana (1 hr from chicago)
Posts: 1,871
Thanked 64 Times in 52 Posts
eltatertoto is a jewel in the rougheltatertoto is a jewel in the rougheltatertoto is a jewel in the rougheltatertoto is a jewel in the rough
Default

you need to do a LOT of hollowing out. gm put a cubby where the stereo goes.

as for the rear speakers, you need to use a pair of needle nose pliers to remove the center part of each push pin that holds the speakers in. dont break these, as gm charges an astonishing $4.00 for EACH ONE!!! and its next to impossible to find any at any parts store.

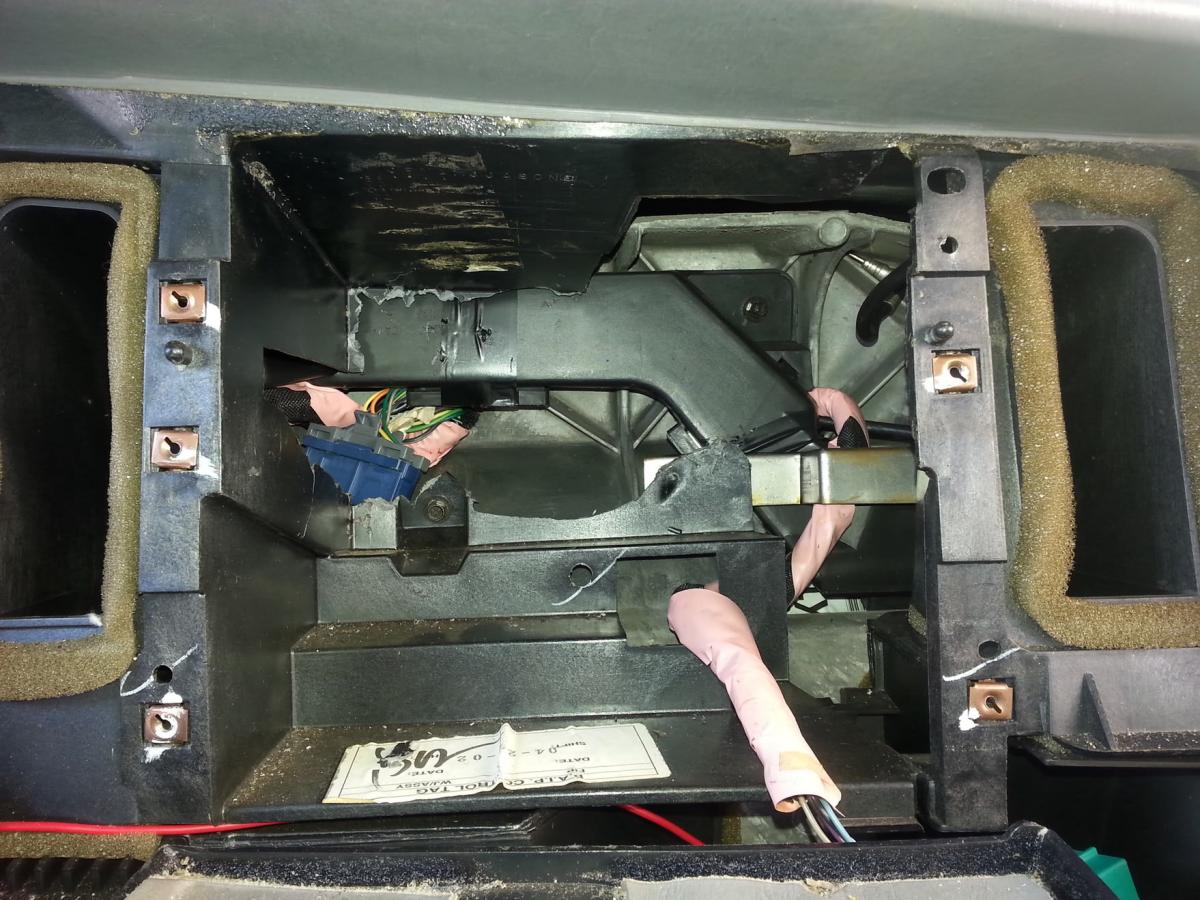

here is a picture of my cubby in order to fit my stereo. once i got an amp and had to run RCA preouts, i had to remove the duct looking thing. there are about 50 wires running thru that duct, so be careful if you need to cut it out.


Attached Thumbnails
Removal of Factory radio In PA 97 tips-20130329_135733_zpsc0fd320e.jpg
