Default Factory CD head unit...

Hey all, I just got a factory cd head unit for my Bonne, and the cd player doesn't work, I'll pop the CD in, and it just says ERR... doesn't show any codes or anything... any ideas on what to do with it?
Cyric78 is offline   Reply With Quote
Old 08-20-2006, 01:01 PM   #2
Senior Member
Certified GM nut

Join Date: Oct 2005
Location: Western New York
Posts: 1,942
Thanks: 0
Thanked 0 Times in 0 Posts
Technical Ted is on a distinguished road
Default

I could be way off base but I seem to remember a post saying to flip the CD. They may read from the other side.
Technical Ted is offline   Reply With Quote
Old 08-20-2006, 04:20 PM   #3
panda1956
Guest

Posts: n/a
Default

ERR message may also means that the CD you putting in is not a genuine CD
or a copy of a CD "WAV format" but maybe a CD-R or a CD-RW with MP3
format.
Flipping the disc is kind of very basic "blonde" mistake...but I don't think that Bonnies drivers are affected by this illness lol
  Reply With Quote
Old 08-20-2006, 06:06 PM   #4
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by panda1956
Flipping the disc is kind of very basic "blonde" mistake...but I don't think that Bonnies drivers are affected by this illness lol
agreed....the ERR just means the CD cannot be read by the player.....try a "real" CD and see it that helps
1993 SLE is offline   Reply With Quote
Old 08-20-2006, 11:12 PM   #5
Senior Member
Posts like a Turbo

Join Date: May 2005
Location: Fredericton, New Brunswick.
Posts: 380
Thanks: 0
Thanked 1 Time in 1 Post
Timothy's Buick is on a distinguished road
Default

i pulled apart the cd-player, and cleaned the lens. It stopped spitting cd'* out after that.
After 15 years of use, you think it might be dirty????
Timothy's Buick is offline   Reply With Quote
Old 08-21-2006, 09:37 AM   #6
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Jan 2006
Location: Edmonton, Alberta, Canada
Posts: 176
Thanks: 0
Thanked 0 Times in 0 Posts
Cyric78 is on a distinguished road
Default

Well, I know that the shiney side goes down... and both cd'* that I tried were 'real' cd'* that were purchased, so, its not a worry about it being a burnt cd... I'm thinking that I'm just going to have to break down and pull it out again and open it up to see if its dirty inside....

Thanks for the help guys
Cyric78 is offline   Reply With Quote
Old 08-22-2006, 11:24 AM   #7
Senior Member
Certified GM nut

Join Date: Feb 2004
Location: CT
Posts: 2,099
Thanks: 0
Thanked 1 Time in 1 Post
SSEBONNE4EVA is on a distinguished road
Default clean

they make a CD disk lense cleaner that you just indert and press play and it cleans the lense.
SSEBONNE4EVA is offline   Reply With Quote
Old 08-23-2006, 09:48 AM   #8
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Jan 2006
Location: Edmonton, Alberta, Canada
Posts: 176
Thanks: 0
Thanked 0 Times in 0 Posts
Cyric78 is on a distinguished road
Default

Yeah, I've used one of those already, and that helped a little, the player will read the disc now, but it skips so easily... I guess I'll have to look into a new head unit...
Cyric78 is offline   Reply With Quote
Old 08-23-2006, 11:14 PM   #9
Senior Member
Posts like a Turbo

Join Date: May 2005
Location: Fredericton, New Brunswick.
Posts: 380
Thanks: 0
Thanked 1 Time in 1 Post
Timothy's Buick is on a distinguished road
Default

I doubt those cleaning cd'* will actually clean the laser. I still recommend taking the player apart, and cleaning the laser.

BTW, is this a factory cd-player? What does it look like?
Timothy's Buick is offline   Reply With Quote
Old 08-24-2006, 01:49 AM   #10
Member
Posts like a V-Tak

Join Date: Jul 2006
Posts: 40
Thanks: 0
Thanked 0 Times in 0 Posts
tz2772 is on a distinguished road
Default

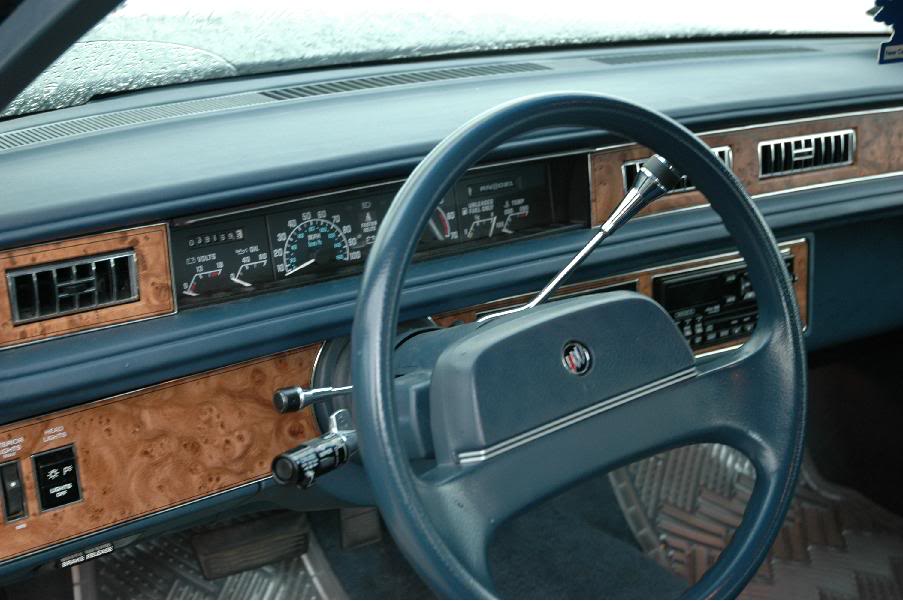

The factory cd player should look like the one in my car here, except instead of black face it would be gray.

Name:  DSC_00273.jpg
Views: 10
Size:  102.9 KB

The ERR problem usually means the mechanism that reads the cd'* has failed. When I took mine apart, I found this to be the problem, and had my mechanism rebuilt. This is the only thing that can be done, as far as fixing it.

The units themselves are old, while mine is a 1990, the circuitry inside reveals dates of 1986 and 1987.

When fixed, pressed, store bought CD performance will be fine, but CD R performance will never be what it is in newer cars, and forget about CDRWs.

Instructions I used:
http://www.lukez34.com/galleries/ref...air/index.html

When you take the unit apart, be VERY careful not to break the plastic clips that hold the faceplate to the radio chassis, I did this and had to epoxy them, and they are fine now, but its a pain that is easily avoided.

matt
