EDITED: How to upgrade an SE/SLE to SSEi audio - Page 4 - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


Audio (and aftermarket electronics) This is your place for alarms, remote starters, to brag about your system, exaggerate your db levels, or simply ask questions for stock or aftermarket audio. No Flames! (except from roasted amps)

View Poll Results: Read the first post first, then vote
Relocate the bass gain control to some place other than OEM 6 42.86%
Relocate the boost gauge somewhere else OTHER than the pillar 6 42.86%
Neither, I'll post a better idea 2 14.29%
Voters: 14. You may not vote on this poll

Reply



Thread Tools Search this Thread
Old 04-16-2008, 01:23 AM   #31
Senior Member
Posts like a Camaro

Join Date: Nov 2007
Location: MN
Posts: 1,172
Thanks: 0
Thanked 0 Times in 0 Posts
Bonnevillan is on a distinguished road
Default

mis-communication error. i have an OEM head unit, but obviously not an amplifier... are the head units in cars with the amplified system the same?
Bonnevillan is offline   Reply With Quote
Old 04-16-2008, 01:27 AM   #32
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Gain control on the camera muted it as the bass came on, but trust me, it came on strong enough to shake my rear view mirror, just like the Zilla:



Everything is in EXCEPT the rear speaker grilles with tweeters. I have to cut my rear deck to fit the tweeties. A simple job for a dremel or strong scissors without removing the rear deck.

This was tonight'* work:


Rounding the HUD control cutout for the boost gauge
Name:  DSC01358.jpg
Views: 0
Size:  57.7 KB

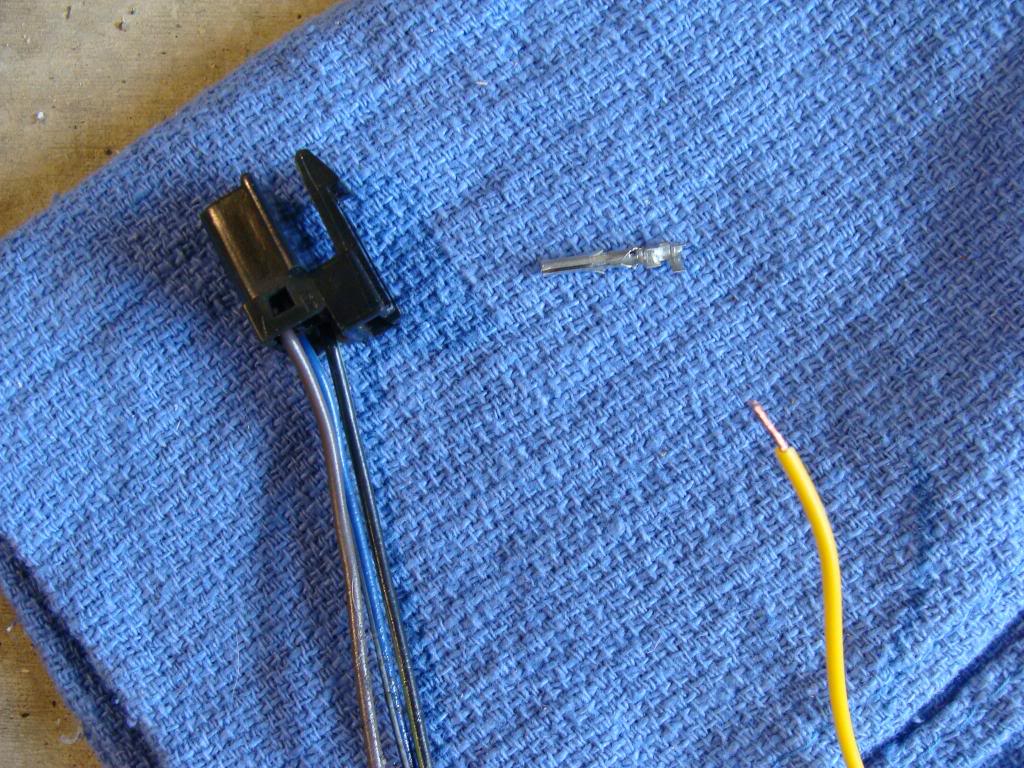

Repairing the pin and wire from the donor harness (missing when I got it)
Name:  DSC01359.jpg
Views: 0
Size:  198.1 KB

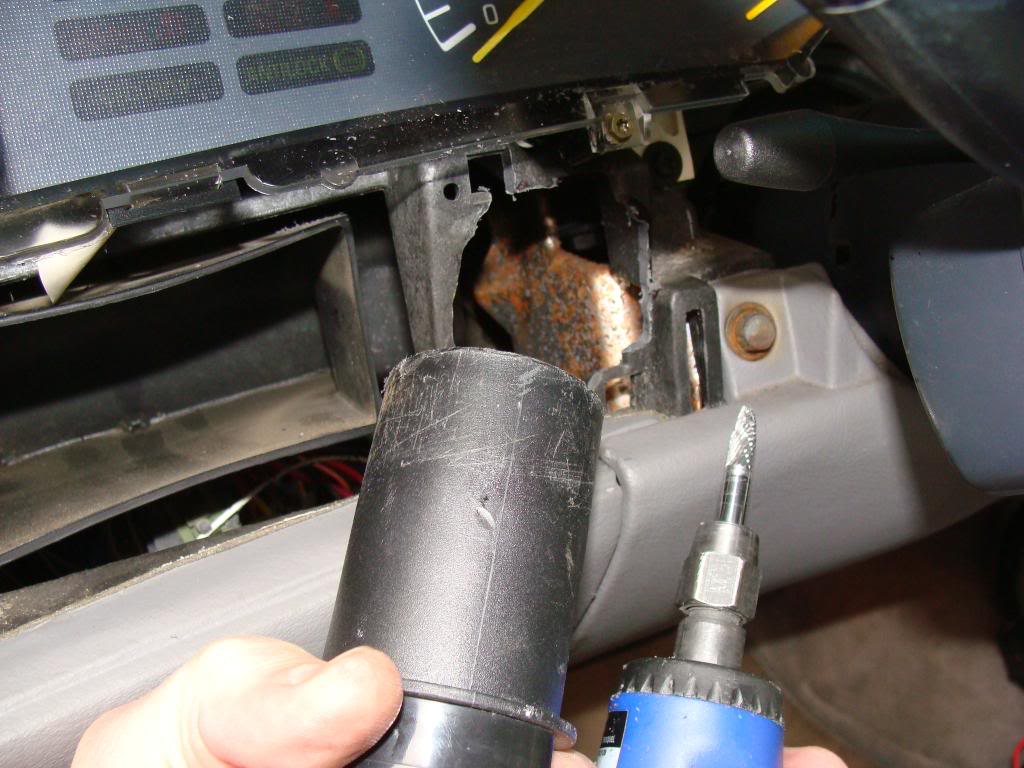

Hogging out the IP support for the boost gauge body
Name:  DSC01361.jpg
Views: 0
Size:  108.3 KB

Backlinghting for the bass gain control working with the dash lights/dimming
Name:  DSC01365.jpg
Views: 0
Size:  42.9 KB
willwren is offline   Reply With Quote
Old 04-16-2008, 01:29 AM   #33
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Quote:
Originally Posted by Bonnevillan
mis-communication error. i have an OEM head unit, but obviously not an amplifier... are the head units in cars with the amplified system the same?
It doesn't matter. The amp samples the front and rear speaker inputs (splice in) has power, radio on signal, and ground, all spliced from the OEM radio harness, and then your standard rear speaker wires power the standard SSEi rear speakers AND tweeters, then you run 4 new wires for the amp output to the factory SSEi subs.
willwren is offline   Reply With Quote
Old 04-16-2008, 01:34 AM   #34
Senior Member
Posts like a Camaro

Join Date: Nov 2007
Location: MN
Posts: 1,172
Thanks: 0
Thanked 0 Times in 0 Posts
Bonnevillan is on a distinguished road
Default

so you need to splice a wire from front and rear speakers into the amp? i thought the amp had nothing to do with the front... sorry if im hijacking, but im interested in doing this upgrade
Bonnevillan is offline   Reply With Quote
Old 04-16-2008, 09:37 AM   #35
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Read my post at the top of this page. It answers your question.

All 8 wires for the factory speakers get spliced to the amp. I did this in the radio harness directly behind the radio. Very easy access.

While wire colors changed a bit from year to year in my case (93 amp in a 95), it doesn't really matter. Wire locations (pin numbers) remained the same.

The most difficult part of the job (no kidding) was running the new wires to the trunk.

Tonight I'll hack up my rear deck for the larger speaker grilles and tweeters, then wire the tweets in. That'* the only 'audible' thing left to do. Cosmetic as well. It'll be completely done by that point.
willwren is offline   Reply With Quote
Old 04-17-2008, 11:09 AM   #36
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

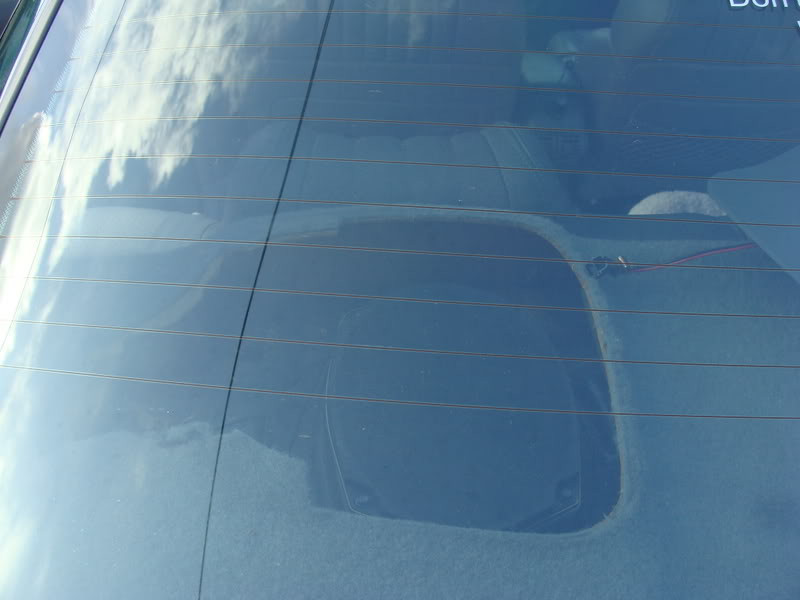

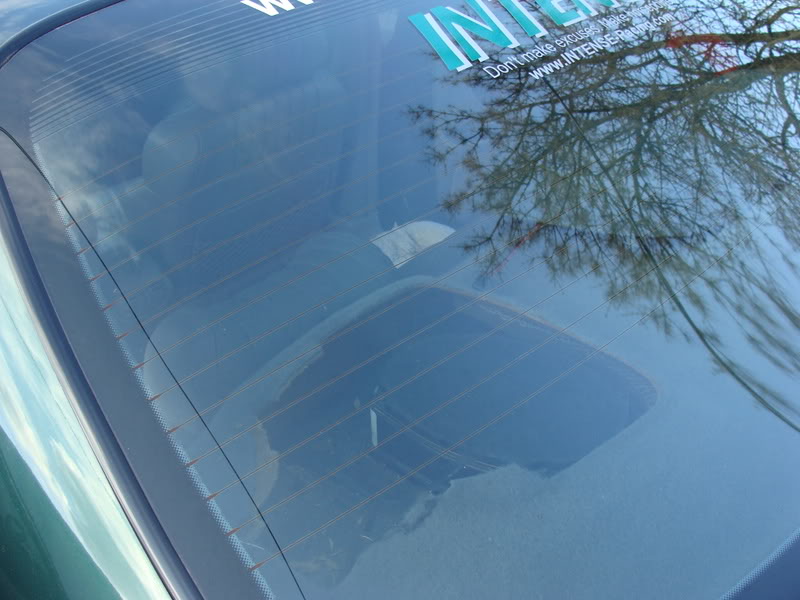

Done. Finished cutting in the rear deck for the bigger speaker grilles and tweeters. Found that the shape of the 'humps' is a little different, but not by much. Worked out pretty well.

Name:  DSC01369.jpg
Views: 0
Size:  80.8 KB

Name:  DSC01367.jpg
Views: 0
Size:  47.0 KB

Name:  DSC01366.jpg
Views: 0
Size:  155.8 KB

Name:  DSC01370.jpg
Views: 0
Size:  67.4 KB

I drove it yesterday without the tweeters, and I have to tell you it makes a HUGE difference with them last night after they were installed. Both cars now sound identical. Components are completely interchangeable between them as well, as I used factory wiring from the ground up.
willwren is offline   Reply With Quote
Old 04-25-2008, 02:49 AM   #37
Senior Member
True Car Nut

radomirthegreat's Avatar

Join Date: Sep 2006
Location: Indianapolis, IN
Posts: 4,606
Thanks: 0
Thanked 0 Times in 0 Posts
radomirthegreat is on a distinguished road
Default

That'* really nicely done. When I got my 94, the sound was already pretty pooped out by the previous owner. I had no tweeters in the back. :( I love your attention to detail by painting the speaker covers and making it all OE-like. Do your speakers provide in-tune bass, or do they just give you a WHOMF that'* the same each time hard bass hits no matter the pitch? Hard bass specifically.
radomirthegreat is offline   Reply With Quote
