Default CRAZY insane Subwoofer Box Idea (w/ Pictures)

Ok, so i was doing research and wanted to share my subwoofer box idea with you.

I know this is way beyond standard, and I kinda want to experiment anyways so im going to give this a try.

The basic box is an Isobaric design and the total sealed box volume (not including the front sub chamber because its effectively useless) is approx 2.664 cubic feet. So if this works as planned it will be one responsive box. AND it fits just about perfectly in the two little pockets on each side of the trunk taking up very little usable space. (Yes the jack is being relocated)

So give me your thoughts, positive or negative. I think outside the box so i expect a bit of both. Especially you audio veterans, im going for sound quality versus SPL numbers. I have a 700 Watt amp driving the 12" subs so hopefully it has enough kick to make them pressurize that box.I have plenty of years of woodworking to do this, its just the audio theory im newer at.

And here'* my preliminary designs:

Name:  isometric.jpg
Views: 127
Size:  71.4 KB
Isometric (3D Angled) View

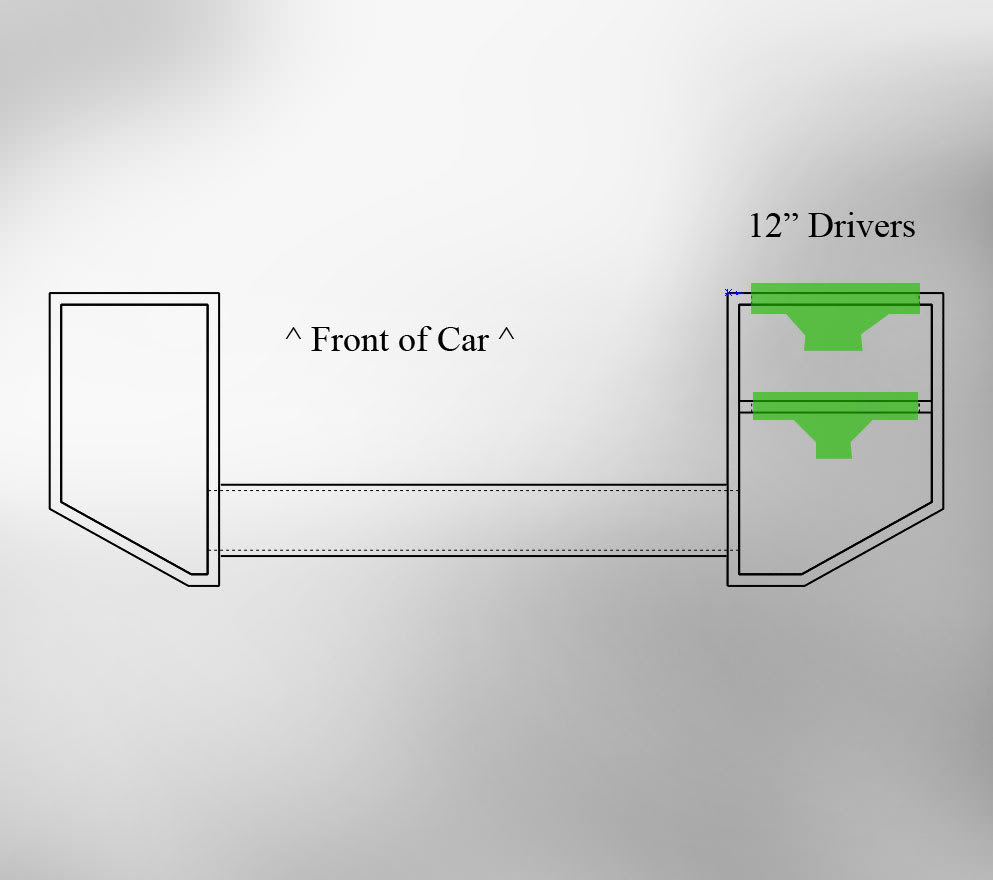

Name:  top.jpg
Views: 93
Size:  40.9 KB
View from the top rear. the opening to the trunk is 2 inches wider than the space between the two boxes, so no real usable space is wasted..
bmsgaffer86 is offline   Reply With Quote
Old 03-18-2007, 06:36 PM   #2
Senior Member
Posts like a Turbo

black_friday's Avatar

Join Date: Dec 2006
Location: Cincinnati, Ohio
Posts: 484
Thanks: 0
Thanked 0 Times in 0 Posts
black_friday is on a distinguished road
Default

I am very interested in seeing what that box looks like when it is done! Please keep me posted on your progress. Now with that amount of air space, what type of subs are you running?
black_friday is offline   Reply With Quote
Old 03-18-2007, 06:42 PM   #3
Senior Member
True Car Nut

toastedoats's Avatar

Join Date: Sep 2004
Location: Fitchburg Ma _ToastedRice_
Posts: 6,837
Thanks: 0
Thanked 0 Times in 0 Posts
toastedoats is on a distinguished road
Default

i have never seen anything like this... whats the idea behind the sub area... why are they back to back? seems useless to me, unless i dont know somethig
toastedoats is offline   Reply With Quote
Old 03-18-2007, 07:05 PM   #4
Senior Member
True Car Nut

Join Date: Jun 2004
Location: Rochester, NY (college)
Posts: 6,182
Thanks: 0
Thanked 0 Times in 0 Posts
corvettecrazy is on a distinguished road
Default

Quote:
Originally Posted by toastedoats
i have never seen anything like this... whats the idea behind the sub area... why are they back to back? seems useless to me, unless i dont know somethig
Advantages of this design are increased linearity in the speaker movement, lower space requirements, and increased power handling.

Disadvantages are increased cost, increased design and assembly complexity, and decreased efficiency.
corvettecrazy is offline   Reply With Quote
Old 03-18-2007, 07:15 PM   #5
Senior Member
True Car Nut

toastedoats's Avatar

Join Date: Sep 2004
Location: Fitchburg Ma _ToastedRice_
Posts: 6,837
Thanks: 0
Thanked 0 Times in 0 Posts
toastedoats is on a distinguished road
Default

Quote:
Originally Posted by corvettecrazy
Quote:
Originally Posted by toastedoats
i have never seen anything like this... whats the idea behind the sub area... why are they back to back? seems useless to me, unless i dont know somethig
Advantages of this design are increased linearity in the speaker movement, lower space requirements, and increased power handling.

Disadvantages are increased cost, increased design and assembly complexity, and decreased efficiency.
but couldnt this be accieved with a passive radiator instead, and reduce cost and complexity greatly?
toastedoats is offline   Reply With Quote
Old 03-18-2007, 08:35 PM   #6
Senior Member
True Car Nut

Join Date: Sep 2006
Location: Somewhere south of Ottawa with your girlfriend driving faster then you.
Posts: 3,277
Thanks: 0
Thanked 0 Times in 0 Posts
ReallyAGXP is on a distinguished road
Default

I have kicked that Idea around in my head and with a few installers I know.... Interesting to say the least.. im not to sure on how it'* going to work but even if it doesn't you can always redo them to make 2 separate boxes...
ReallyAGXP is offline   Reply With Quote
Old 03-18-2007, 09:07 PM   #7
Senior Member
True Car Nut

Join Date: Jun 2004
Location: Rochester, NY (college)
Posts: 6,182
Thanks: 0
Thanked 0 Times in 0 Posts
corvettecrazy is on a distinguished road
Default

Quote:
Originally Posted by toastedoats
Quote:
Originally Posted by corvettecrazy
Quote:
Originally Posted by toastedoats
i have never seen anything like this... whats the idea behind the sub area... why are they back to back? seems useless to me, unless i dont know somethig
Advantages of this design are increased linearity in the speaker movement, lower space requirements, and increased power handling.

Disadvantages are increased cost, increased design and assembly complexity, and decreased efficiency.
but couldnt this be accieved with a passive radiator instead, and reduce cost and complexity greatly?
Not really. Due to improved subwoffer design equal results could be gained with just using a sealed box. The design would be different if you were using a passive radiator. In an isobaric you want both of them to have power because that is what gives you the ability to make the box 1/2 the size (twice the motor strength) and help keeps its linearity. A passive radiator wouldn't help you with either of those.

more good info at the bottom of this page
http://www.mtx.com/caraudio/educatio...sureDesign.cfm
corvettecrazy is offline   Reply With Quote
Old 03-18-2007, 09:20 PM   #8
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Jan 2003
Posts: 1,250
Thanks: 0
Thanked 0 Times in 0 Posts
bmsgaffer86 is on a distinguished road
Default

Brian:

Ill take detailed pictures, ill proly start building this week (im off on spring break) and keep yall updated. Two inexpensive (especially for me since i already have them) Pioneer TS-W300R'*. I had one in a leaky birch plywood 1.5-2 cu.ft. box before and it really sounded amazing, but took up more'n half my trunk. So i thought i wold experiment since i had two of them already anyways and needed more trunk space.

Toasty:

[Edit out now that it has been answered]
What corvette said.

AGXP:

Exactly my thought. If it doesnt work, it isnt that hard to fix it so it does.
bmsgaffer86 is offline   Reply With Quote
Old 03-19-2007, 01:20 AM   #9
Senior Member
Posts like a Supercharger

Join Date: Oct 2006
Location: Sioux City, IA
Posts: 154
Thanks: 0
Thanked 0 Times in 0 Posts
sandness is on a distinguished road
Default

I would not build that design. Running isobaric with those subs in 2.66cu.ft. is too big. With the dimensions of that box, you'd be better off running one sub sealed in each side, sharing about 3 cu.ft. This would be a more efficient use of power for the space used IMO.

If you do build an isobaric box like that, I would consider making it ported. My $.02
sandness is offline   Reply With Quote
Old 03-19-2007, 02:40 AM   #10
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Jan 2003
Posts: 1,250
Thanks: 0
Thanked 0 Times in 0 Posts
bmsgaffer86 is on a distinguished road
Default

Quote:
Originally Posted by sandness
I would not build that design. Running isobaric with those subs in 2.66cu.ft. is too big. With the dimensions of that box, you'd be better off running one sub sealed in each side, sharing about 3 cu.ft. This would be a more efficient use of power for the space used IMO.

If you do build an isobaric box like that, I would consider making it ported. My $.02

According to WinISP (or whatever that subwoofer design software is) i calculated that that would give me more VOLUME but less accuracy. It would distort about a 50Hz section in the middle of the band to be too loud. Where as the Isobaric makes a more accurate curve and reproduces bass 10-15Hz lower than a standard 2 driver system putting my -3db point at closer to 25 Hz than 40Hz.

Why is the box too big for an isobaric design is it a factor of the drivers im using?

Are you going for SPL or quality most of your recommendations seemed like they were based on volume?

Sorry for all the questions Im just trying to learn and I am going at this with an open mind.

Thanks!
