Default bypass Bose amp

just wondering how to bypass the Bose amp. im installing an alpine head unit and new amp. If anyone has a wire diagram or can tell me what wire is what, would help me out.
sseiboss is offline
Old 09-28-2006, 05:43 PM   #2
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

well if you dont connect the bose amp you will get no sound....so install the HU and then use RCA'* from the HU to the Amp, then hook up the speaker wires to the respective speakers
1993 SLE is offline
Old 09-28-2006, 05:57 PM   #3
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Diagram coming.

You'd be cutting wires etc to do so.
BillBoost37 is offline
Old 09-28-2006, 06:19 PM   #4
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

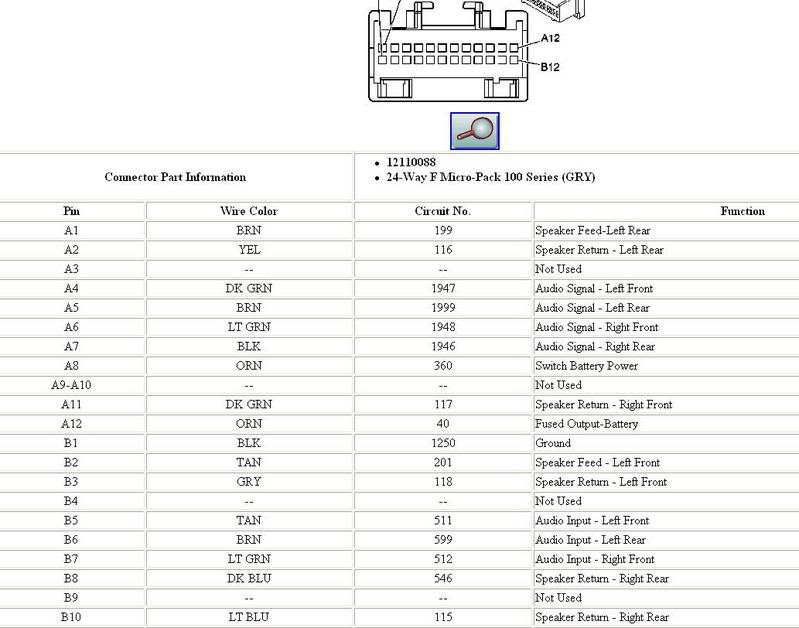

Name:  97-99SBoseAmp.jpg
Views: 495
Size:  65.5 KB
BillBoost37 is offline
Old 09-28-2006, 10:01 PM   #5
Member
Posts like a V-Tak
Thread Starter

Join Date: Sep 2006
Location: Farmington hills, MI
Posts: 37
Thanks: 0
Thanked 0 Times in 0 Posts
sseiboss is on a distinguished road
Default

i just ran rcs'a and ran speaker wire. i used a bigger gauge audio wire for better sound. thanks for the diagram, and the reply'*. i looked online for an hour for a diagram and just gave up.

thanks again guys......
sseiboss is offline
Old 10-13-2007, 02:07 AM   #6
Senior Member
True Car Nut

radomirthegreat's Avatar

Join Date: Sep 2006
Location: Indianapolis, IN
Posts: 4,606
Thanks: 0
Thanked 0 Times in 0 Posts
radomirthegreat is on a distinguished road
Default

I am claiming that I am the first one that has studied this post and figured out the left front speaker wiring. Sorry to bring up this old post, but I need to know the B12 row. I'm working with 1337ssei on his 97 SSEi, and though we've been struggling, things are going well. Please let me know if you can still find the B12 line. Thanks.
radomirthegreat is offline
Old 10-13-2007, 03:03 AM   #7
Senior Member
Posts like a Corvette

Join Date: Feb 2007
Location: Sanford Michigan
Posts: 1,200
Thanks: 0
Thanked 0 Times in 0 Posts
crash93ssei is on a distinguished road
Default

Quote:
Originally Posted by radomirthegreat
Sorry to bring up this old post
This thread is over a year old

If you need additional info from it, start a new thread and link this one to yours.....
crash93ssei is offline
