Old 10-19-2005, 10:46 AM   #11
Member
Posts like a V-Tak
Thread Starter

Join Date: Oct 2005
Posts: 34
Thanks: 0
Thanked 0 Times in 0 Posts
btw1217 is on a distinguished road
Default

Quote:
Originally Posted by BillBoost37
Ok.. The ring is useless when the lights are on.

But you could merely tap into the fog light connector at the lights like you did for the main light.

Or.. Hook the ring to your parking light (I used the driverside inner amber light) and that way they are on anytime the headlights are on and you can control the driving lights with the switch.


Well, if I tied into the power wire of my radio to the power wire that goes to the switch, wouldn't that make the switch "turn off" after the delay or door opening? In other words, I'd still be able to control whether I want the rings or the main lights with that one swtich, but power to the switch would cut off with the radio, which in turn would cut off power to whatever the switch was turned to (rings or main lights).
btw1217 is offline   Reply With Quote
Old 10-19-2005, 10:58 AM   #12
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Ok..hold up. Do not hook the whole harness to your radio. That is too much power draw.

We thought you were talking only the outer rings.

I cut the black wires and spliced to the black of my existing fog light wiring at the fog light. White when to the other wire at the fog light connector (aka power) and the yellow is the ring around the light. I put that yellow to my parking lights.

If you are going to use the whole system then you'd need to use an additional relay and power source.

The relay would allow the power from your source to switch on and off with retained power from the radio.
BillBoost37 is offline   Reply With Quote
Old 10-19-2005, 11:00 AM   #13
Senior Member
Posts like a Turbo

Join Date: Oct 2005
Location: Woodbridge, Va
Posts: 263
Thanks: 0
Thanked 0 Times in 0 Posts
SUPRCHRGD is on a distinguished road
Default

Can i see a pick of these angel eyes...(installed)
just wanted to see what they look like.....
SUPRCHRGD is offline   Reply With Quote
Old 10-19-2005, 11:07 AM   #14
Member
Posts like a V-Tak
Thread Starter

Join Date: Oct 2005
Posts: 34
Thanks: 0
Thanked 0 Times in 0 Posts
btw1217 is on a distinguished road
Default

Quote:
Originally Posted by BillBoost37
Ok..hold up. Do not hook the whole harness to your radio. That is too much power draw.

We thought you were talking only the outer rings.

I cut the black wires and spliced to the black of my existing fog light wiring at the fog light. White when to the other wire at the fog light connector (aka power) and the yellow is the ring around the light. I put that yellow to my parking lights.

If you are going to use the whole system then you'd need to use an additional relay and power source.

The relay would allow the power from your source to switch on and off with retained power from the radio.
So the way you have it set up, the main lights are controlled by the stock fog switch, and the rings are turned on when the parking lights are on but the fogs are off. Right? So in other words, you didn't even need to install another switch?
btw1217 is offline   Reply With Quote
Old 10-19-2005, 11:10 AM   #15
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

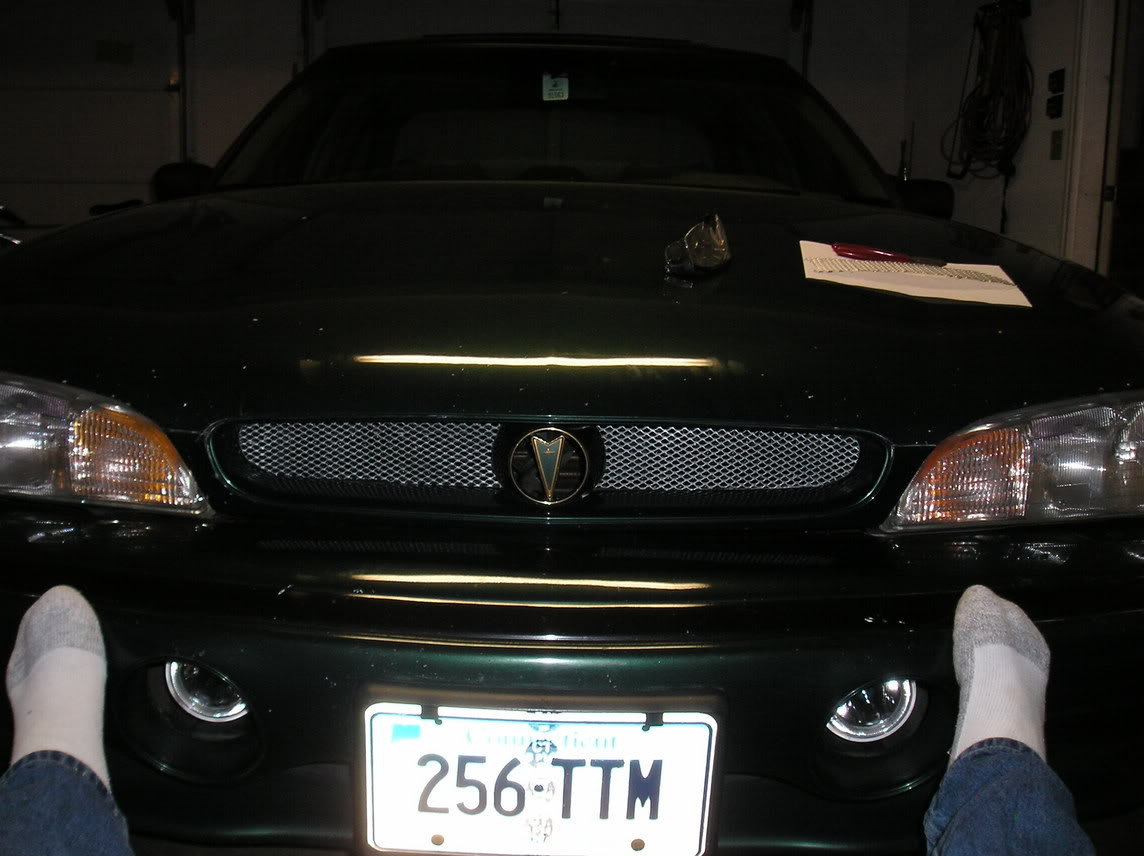

I don't have a good straight on pic. The lights are not touching the bumper cover

Name:  Grill1.jpg
Views: 2
Size:  106.8 KB
BillBoost37 is offline   Reply With Quote
Old 10-19-2005, 12:20 PM   #16
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by btw1217

So the way you have it set up, the main lights are controlled by the stock fog switch, and the rings are turned on when the parking lights are on but the fogs are off. Right? So in other words, you didn't even need to install another switch?
to make it simple......

use the existing wiring that you already have for your fog lights and use that for your driving lights

find a 12v constant or switched power and install the rings to that...add a switch and done OR

attach the rings to the parking lights
1993 SLE is offline   Reply With Quote
Old 10-19-2005, 02:47 PM   #17
Senior Member
Posts like a Turbo

Join Date: Oct 2005
Location: Woodbridge, Va
Posts: 263
Thanks: 0
Thanked 0 Times in 0 Posts
SUPRCHRGD is on a distinguished road
Default ?????

uh... nice socks...
what am i supposed to be looking at?
SUPRCHRGD is offline   Reply With Quote
Old 10-19-2005, 03:00 PM   #18
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default Re: ?????

Quote:
Originally Posted by SUPRCHRGD
uh... nice socks...
what am i supposed to be looking at?
Dunno..I'd look at the angel eyes you asked for a pic of.....
BillBoost37 is offline   Reply With Quote
Old 10-19-2005, 03:50 PM   #19
Senior Member
Posts like a Turbo

Join Date: Oct 2005
Location: Woodbridge, Va
Posts: 263
Thanks: 0
Thanked 0 Times in 0 Posts
SUPRCHRGD is on a distinguished road
Default

just looks like fog lights to me....
dont see any thing else...
thanks!
any one else w/ a pic..
SUPRCHRGD is offline   Reply With Quote
Old 10-19-2005, 04:47 PM   #20
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by SUPRCHRGD
just looks like fog lights to me....
dont see any thing else...
thanks!
any one else w/ a pic..

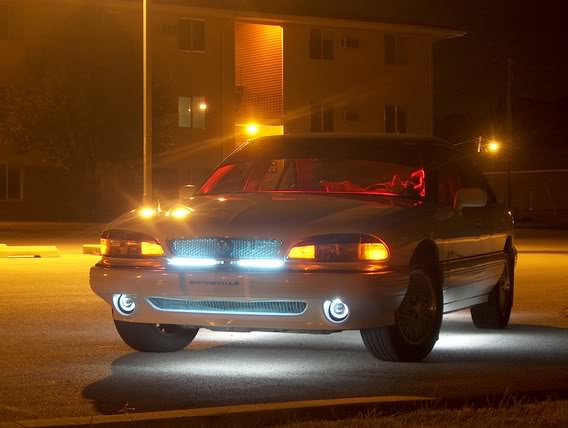

Name:  7-2neonpics021.jpg
Views: 2
Size:  45.9 KB

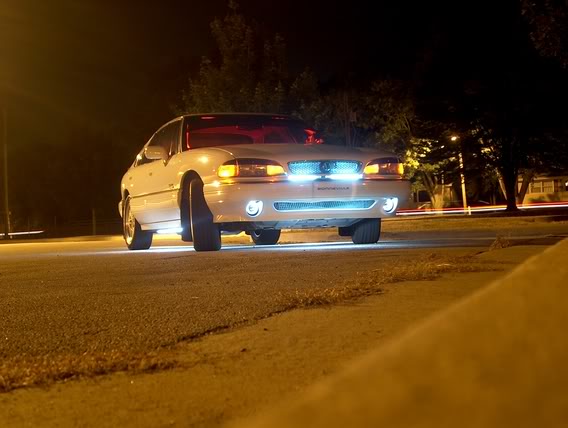

Name:  7-2neonpics025.jpg
Views: 3
Size:  48.5 KB

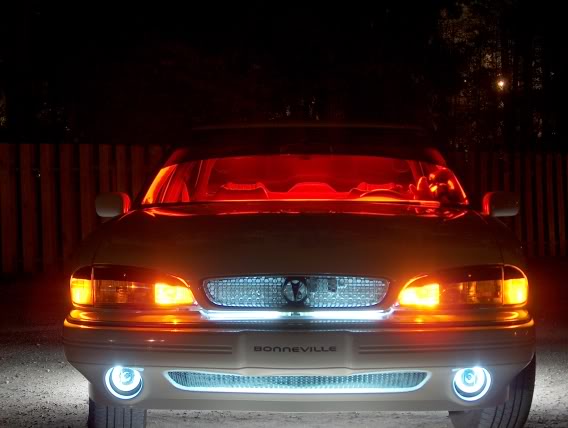

Name:  9-24neonshots013.jpg
Views: 2
Size:  47.4 KB

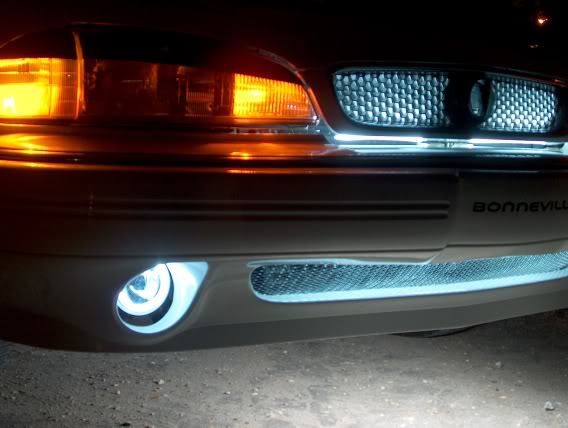

Name:  9-24neonshots015.jpg
Views: 3
Size:  49.6 KB
1993 SLE is offline   Reply With Quote
