Default Adding a second Battery, myth vs fact, whats the right way to do it

So in BlackBetty'* 2010 Impala we r installing 2 12" Pioneer Premier Champion Pro'* and a MA Audio HK2000D amp... we will be doing the big three upgrade and adding a kinetic powercell.

there r alot of mis imformation outthere... on how to add a second battery in the trunk, should a isolator be used? how do u wire it? I gathered a bunch of info a while ago, because i was going to throw a yellowtop in my trunk, but i forgot the info and got conflicting info...
I know there r people here that have done it (John), is a quick write up possible?
raptor660 is offline   Reply With Quote
Old 02-07-2011, 11:32 PM   #2
Senior Member
Posts like a Turbo

04MonteLS's Avatar

Join Date: Jul 2010
Location: Sacramento, CA.
Posts: 326
Thanks: 0
Thanked 0 Times in 0 Posts
04MonteLS is on a distinguished road
Default

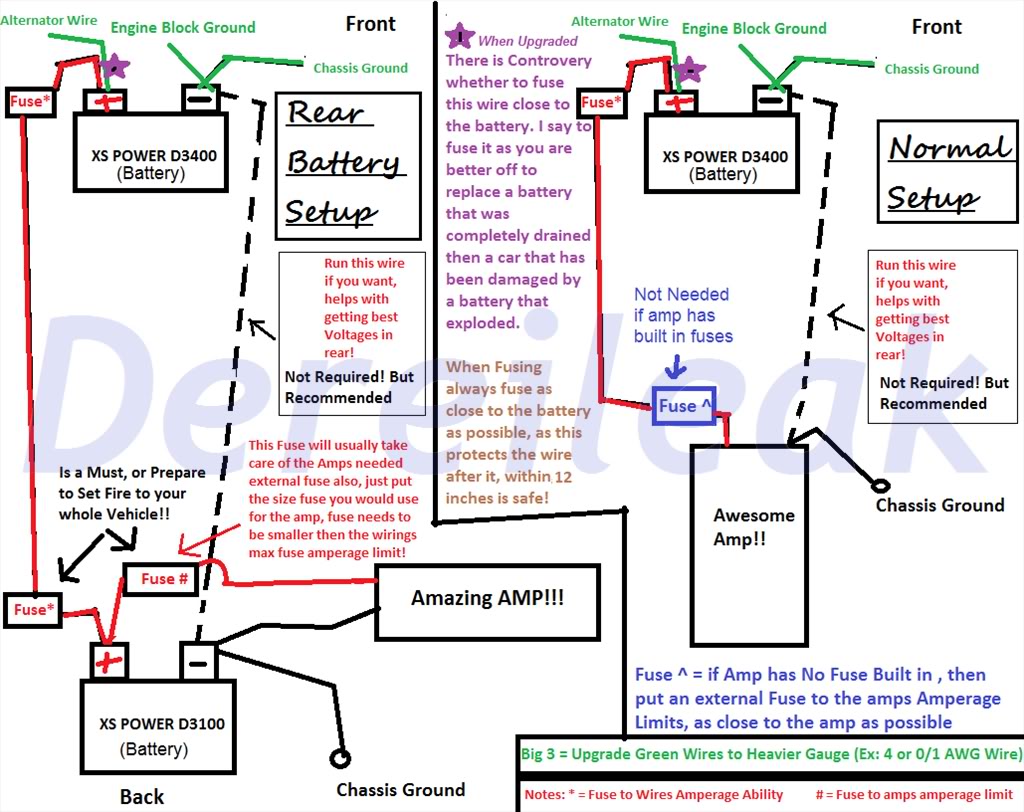

Quick write up coming right up!

Name:  batterysetup.jpg
Views: 2
Size:  161.2 KB
04MonteLS is offline   Reply With Quote
Old 02-08-2011, 12:58 AM   #3
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

Looks good to me. My preference is two identical batterys, of the same age and no isolator is needed. Trucks have been doing it fro years without one. Not sure but I believe using wire grounds and chassis grounds also helps interference noise to a min.
GXP Venom is offline   Reply With Quote
Old 02-08-2011, 05:27 AM   #4
Senior Member
True Car Nut
Thread Starter

raptor660's Avatar

Join Date: Mar 2010
Location: Eaton Rapids MI
Posts: 2,964
Thanks: 0
Thanked 0 Times in 0 Posts
raptor660 is on a distinguished road
Default

awesome! Thanks
raptor660 is offline   Reply With Quote
Old 02-08-2011, 10:55 AM   #5
Senior Member
Posts like a Turbo

04MonteLS's Avatar

Join Date: Jul 2010
Location: Sacramento, CA.
Posts: 326
Thanks: 0
Thanked 0 Times in 0 Posts
04MonteLS is on a distinguished road
Default

No problem
04MonteLS is offline   Reply With Quote
Old 02-08-2011, 12:58 PM   #6
Senior Member
Posts like a Supercharger

Join Date: Feb 2011
Location: Margate, UK
Posts: 199
Thanks: 0
Thanked 0 Times in 0 Posts
rustyroger is on a distinguished road
Default Twin batteries.

Isolating the trunk battery is a good idea if you are going to run a megapower system for any length of time without running the engine. If that is the case a leisure battery may suit your needs better. Twin batteries are nothing new, my '79 Olds diesel had them, some MGs had two 6 volt batteries in series either side of the steering column.
One thing to consider, is the alternator up to coping with the load.
Battery size is determined by the starter motor load, alternator size by the demands of the electrical system (ignition, lights, A/C, awesome stereo etc).
rustyroger is offline   Reply With Quote
Old 02-08-2011, 01:13 PM   #7
Junior Member
Posts like a Ricer Type-R

Join Date: Jan 2011
Posts: 19
Thanks: 0
Thanked 0 Times in 0 Posts
BlackBetty is on a distinguished road
Default

Quote:
Originally Posted by 04MonteLS View Post
Quick write up coming right up!

Hey thanks for the great diagram!
