Old 03-21-2011, 08:37 AM   #21
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Can't tell if you already pulled the trigger??? If not, don't buy the headunit. I know a buddy with that exact one with under 5 minutes on it because it doesn't fit in a GP.

Now.. my 00 Regal buddy. What you need for an install is simple. Get the scoshe wiring adapter, the antenna adapter, an Axxess module to retain the steering wheel controls and the cheapo double din bracket. Then if I may suggest ... the backup camera is primo. Oh..and scoop a relay somewhere if you want to have DVD while driving.

I did
Quote:
Headunit is a Pioneer AVH-P3200BT DVD capable bluetooth ready unit. Cabling from KnuKnoncepts.
Knu Kit, added speaker wire for a total of 80 feet and another 2 channel RCA http://www.knukonceptz.com/productDe...rodID=KFX-AK44.
Details in total are
18 Feet 4 Gauge Red Kolossus Fleks Power Wire
3 Feet 4 Gauge Smoke Kolossus Fleks Ground Wire
One Waterproof Mini-ANL Fuse Holder with 120A Fuse
One 6 Meter 4 Channel Karma SS RCA Cable
One 6 meter 2 Channel Karma SS RCA Cable
20 Feet Karma SS 12 Gauge Speaker Wire (up'd to 80 feet)
2 Gold Plated 4 Gauge Ring Terminals, 2 Gold Plated 4 Gauge Spade Terminals
6 feet split loom, 20 feet of remote wire, and wire ties






Added the Pioneer backup camera with park assist/night vision, and HD radio modules. Had to add a rear USB cable (by soldering to the headunit) because no other Pioneer product will control the iPod w/o wires hanging off the front of the headunit. Now all wiring is hidden from sight.

Adding the usb to the back was a "hide iPod in center cubby" decision. The backup camera is amazing at night. It see'* better than I can.
BillBoost37 is offline   Reply With Quote
Old 03-21-2011, 11:33 AM   #22
Senior Member
True Car Nut
Thread Starter

xtremerevolution's Avatar

Join Date: Jun 2007
Location: New Lenox, IL
Posts: 2,478
Thanks: 0
Thanked 0 Times in 0 Posts
xtremerevolution is on a distinguished road
Default

Quote:
Originally Posted by BillBoost37 View Post
Can't tell if you already pulled the trigger??? If not, don't buy the headunit. I know a buddy with that exact one with under 5 minutes on it because it doesn't fit in a GP.

Now.. my 00 Regal buddy. What you need for an install is simple. Get the scoshe wiring adapter, the antenna adapter, an Axxess module to retain the steering wheel controls and the cheapo double din bracket. Then if I may suggest ... the backup camera is primo. Oh..and scoop a relay somewhere if you want to have DVD while driving.

I did


Adding the usb to the back was a "hide iPod in center cubby" decision. The backup camera is amazing at night. It see'* better than I can.
I did actually pull the trigger. Why doesn't it fit?? I suppose I can cancel my order at some point today if I call them. The AVH-P3200B doesn't seem to be anything more than a Bluetooth version of the one I bought. Are they really supposed to be that different?
xtremerevolution is offline   Reply With Quote
Old 03-21-2011, 11:35 AM   #23
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

it doesn't fit in his GP. It'll fit great in a Regal. I saw a chance to save you some money by getting it from him.
BillBoost37 is offline   Reply With Quote
Old 03-21-2011, 11:37 AM   #24
Senior Member
True Car Nut
Thread Starter

xtremerevolution's Avatar

Join Date: Jun 2007
Location: New Lenox, IL
Posts: 2,478
Thanks: 0
Thanked 0 Times in 0 Posts
xtremerevolution is on a distinguished road
Default

Quote:
Originally Posted by BillBoost37 View Post
it doesn't fit in his GP. It'll fit great in a Regal. I saw a chance to save you some money by getting it from him.
You think he'll sell it to me brand new in box for under $275 shipped?

Oh, and I picked up 100ft of copper 4 AWG wire for $50 shipped. Beat KNU'* price by a landslide. I'll double up the wiring to make up for the size difference and instead of replacing engine bay wiring, I'll just add another on top.
xtremerevolution is offline   Reply With Quote
Old 03-21-2011, 11:43 AM   #25
Senior Member
True Car Nut
Thread Starter

xtremerevolution's Avatar

Join Date: Jun 2007
Location: New Lenox, IL
Posts: 2,478
Thanks: 0
Thanked 0 Times in 0 Posts
xtremerevolution is on a distinguished road
Default

You know what, nevermind. I'll just keep this one. Thanks for the offer and the heads up.

I did order the Axxess steering wheel controls, and a Metra Electronics 70-2001 harness.

I decided for the rear speakers to go with 4 Dayton RS100'*. They'll be severely overpowered, but I'll probably cross them at around 120.
xtremerevolution is offline   Reply With Quote
Old 03-21-2011, 01:51 PM   #26
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Hang on Tex..I'm textin him. It'* pretty easy to beat Knu'* prices, the problem is the quality. Their power cables are amazingly flexible etc. Awesome quality and running a 5 channel amp, I had worries about power etc. No worries at all in the car.
BillBoost37 is offline   Reply With Quote
Old 03-29-2011, 12:16 PM   #27
Senior Member
True Car Nut
Thread Starter

xtremerevolution's Avatar

Join Date: Jun 2007
Location: New Lenox, IL
Posts: 2,478
Thanks: 0
Thanked 0 Times in 0 Posts
xtremerevolution is on a distinguished road
Default

Well this was a pleasant surprise. The head unit came in yesterday. I ordered the P3200DVD and they sent me the P3200BT. Free upgrade!
xtremerevolution is offline   Reply With Quote
Old 03-29-2011, 12:18 PM   #28
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Awesome price then... copycat!

Seriously..I like this HU a lot. Overy easy to work with and it sounds good through the Bostons.
BillBoost37 is offline   Reply With Quote
Old 03-29-2011, 12:31 PM   #29
Senior Member
True Car Nut
Thread Starter

xtremerevolution's Avatar

Join Date: Jun 2007
Location: New Lenox, IL
Posts: 2,478
Thanks: 0
Thanked 0 Times in 0 Posts
xtremerevolution is on a distinguished road
Default

Quote:
Originally Posted by BillBoost37 View Post
Awesome price then... copycat!

Seriously..I like this HU a lot. Overy easy to work with and it sounds good through the Bostons.
Awesome. Should sound good through the Boston Amps I got (which came in as well) and the Massive Audio RK6 front comps. The fun part will be getting those comps to fit properly in there. I might end up just making MDF baffles and sealing them very well, and lining as much of the doors as possible with sound dampening. At 250W RMS each, those components should hit very hard.

For the rear deck, I've changed my plans entirely. I realized rear sound will be questionable at best due to reflections, so instead of a couple of mediocre speakers, I'll be installing 8 (yes, eight) of these:

https://www.madisound.com/store/prod...oducts_id=8992

Neodymium motors allow for very low distortion and high output. I have already tested these free air and they do get very loud, very cleanly, and they sound great doing it. I also picked up two tweeters and some capacitors to rig together some resemblance of a crossover. The 3.5" drivers are capable of playing full range and won't need one. I'm thinking I'll just build mini sealed boxes with 1/2" MDF for the rear deck for these. Rated at 20W each, 160W for all 4, I should have exactly as much power as I need out of the GT-50.
xtremerevolution is offline   Reply With Quote
Old 03-29-2011, 03:03 PM   #30
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Sooo since you are going all out.

I used KnuConceptz for the wiring. And it'* awesome.
I used SecondSkinAudio for their version of dynamat and their Sludge product. I pulled uh...everything but the dash, literally. Sludge in in all the doors (yes the windows and regulators were pulled). and the trunk lid too. Because I yanked the Monsoon system, I put the power wire into the wiring harness and out the passenger floor grommet by the ps rack (it'* originally for the wirign harness, I piggybacked). Then along the frame to the battery totally out of sight.

You will need to cut the back of the dash out. Be careful..directly behind it is the airbox of the HVAC system.
Name:  IMG_6108.jpg
Views: 24
Size:  125.0 KB

Sludge in the doors and trunk lid
Name:  IMG_6070.jpg
Views: 25
Size:  87.1 KB


Sound deadening ....everything else.
Name:  IMG_6081.jpg
Views: 25
Size:  71.0 KB

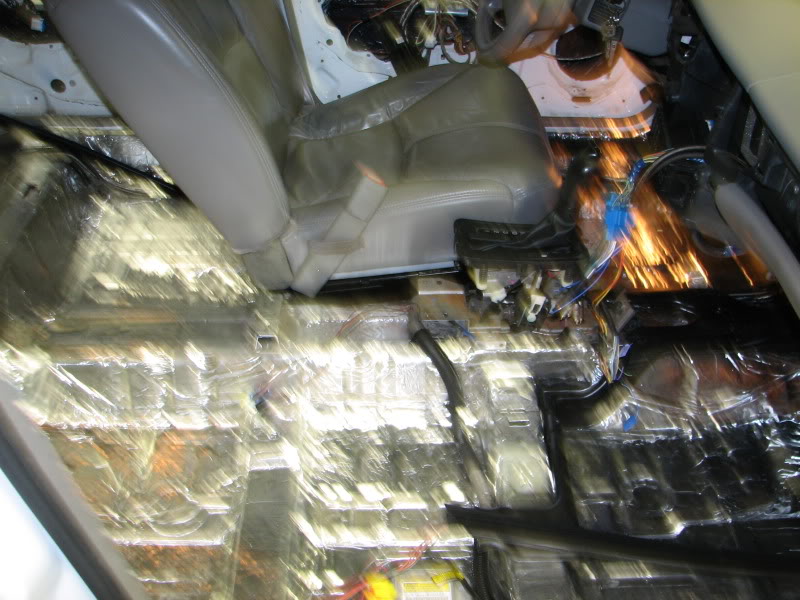

Name:  IMG_6080.jpg
Views: 24
Size:  104.8 KB

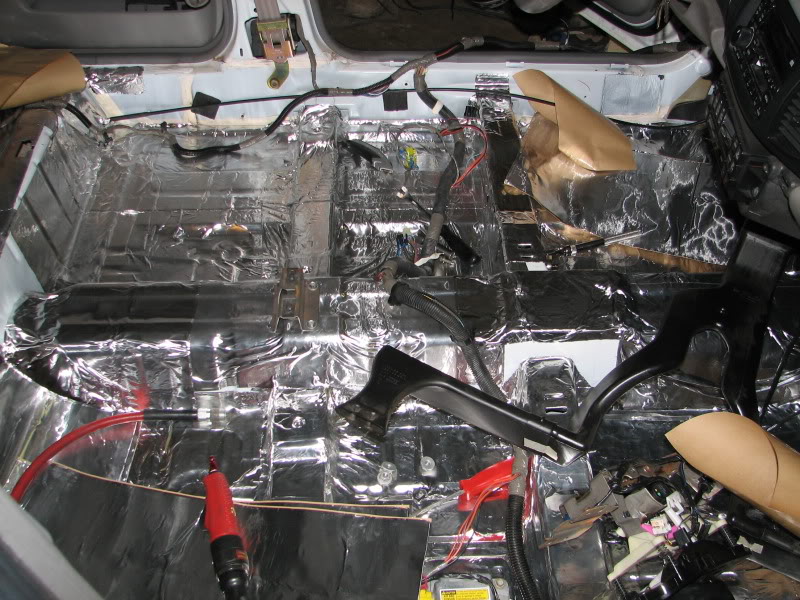

Name:  IMG_6051.jpg
Views: 25
Size:  145.6 KB

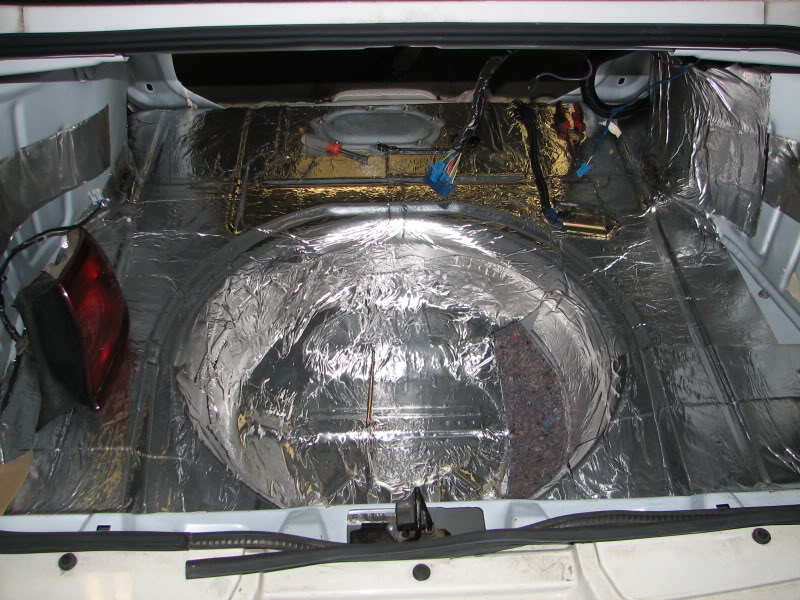

Name:  IMG_6021.jpg
Views: 25
Size:  130.4 KB

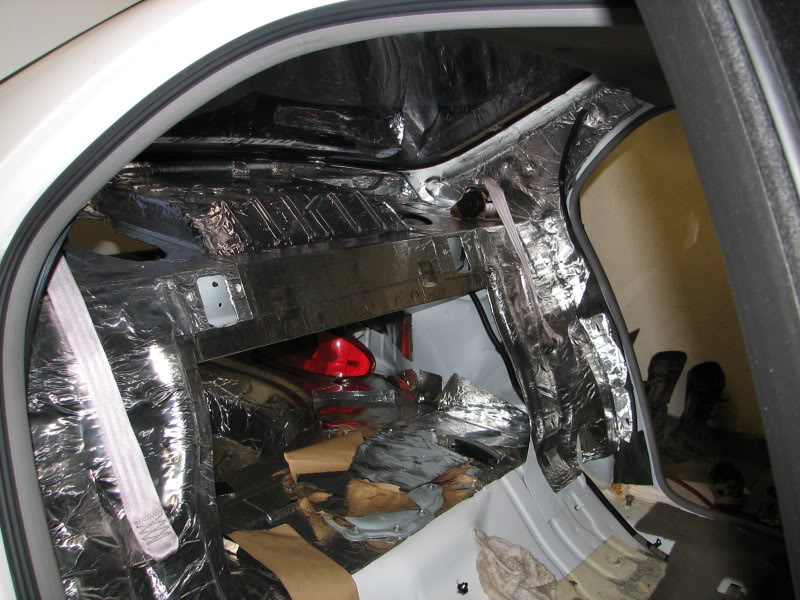

Name:  IMG_6022.jpg
Views: 25
Size:  116.4 KB

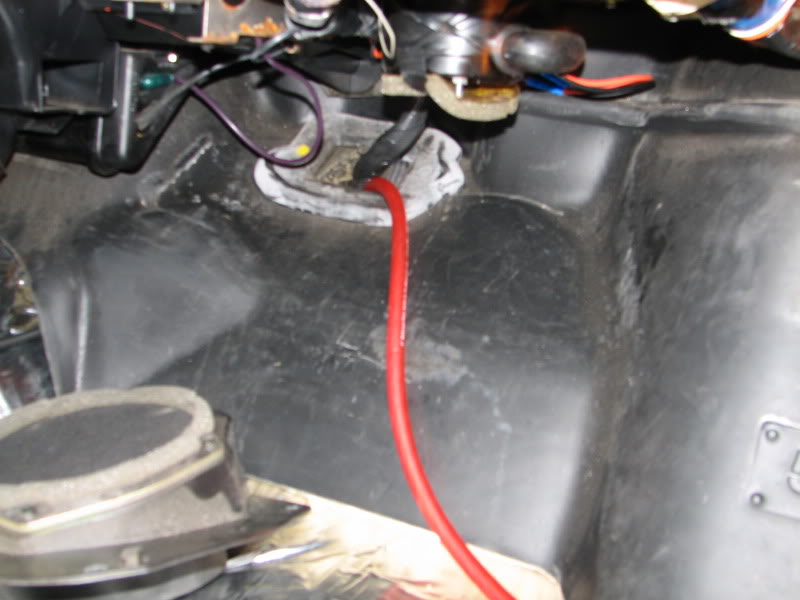

The grommet I used for power
Name:  IMG_6062.jpg
Views: 37
Size:  62.2 KB

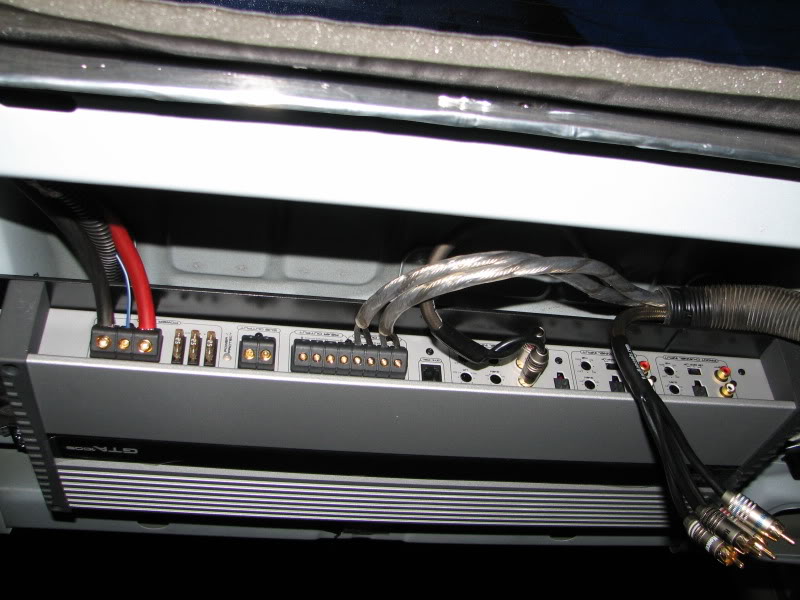

After it went back together, I mounted the amp and all the wires were all tucked nicely in places that will never be seen again.

Name:  IMG_6032.jpg
Views: 22
Size:  83.9 KB

Components in the stock location
Name:  IMG_5901.jpg
Views: 24
Size:  77.0 KB

Maybe I went overboard?
Name:  IMG_5904.jpg
Views: 24
Size:  112.7 KB

Ok X... you are using better stuff... let'* see the magic.
BillBoost37 is offline   Reply With Quote
