Ok someone had to have front drivers side sunroof drain fixed.I need to know where, and how to get to where the drain hose connects to the outside world.My car inside is pretty well a skeleton and I dont want to remove dash.I have the end of the hose out but need to connect it.Please and thankyou.
Reply
Old Mar 21, 2006 | 12:55 PM
  #12
BillBoost37's Avatar
DINOSAURUS BOOSTUS

Expert Gearhead

Joined: Mar 2005
Posts: 41,391
Likes: 30
From: Enfield, CT
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

So it'* a sunroof drain that is clogged or something or that and a rubber gasket torn. I hear that you can get a gasket from GM. No idea on part number though.
Reply
Old Mar 21, 2006 | 05:19 PM
  #13
jdq's Avatar
jdq
Thread Starter
Senior Member
Posts like a Corvette

Joined: Nov 2005
Posts: 1,201
Likes: 1
From: Hamilton, Ontario , Canada
jdq is on a distinguished road
Default

Yes it either came unattached or the gasket is no good .I have the end of the drain hose,it is not plugged but I dont know how to get to the gasket where it hooks up to.I took apart plastic on windshield where wiper arm goes, not there,the hose went in a hole at the very corner of the dash that joins the windshield.
Reply
Old Mar 21, 2006 | 08:27 PM
  #14
jdq's Avatar
jdq
Thread Starter
Senior Member
Posts like a Corvette

Joined: Nov 2005
Posts: 1,201
Likes: 1
From: Hamilton, Ontario , Canada
jdq is on a distinguished road
Default

Ok the plot thickens.I found all my problems,took apart toomuch stuff but ,at least I found the drainage end.Well I am stuck with trying to reconnect sunroof drainage hose between corner of dash , thru side quarter panel frame out the wheel well.So any help threading thru a 1/2 inch hole blindly out to the dash would be super fantastic.thank you
Reply
Old Mar 22, 2006 | 11:17 AM
  #15
gene super's Avatar
Junior Member

Joined: Dec 2004
Posts: 8
Likes: 0
From: Fredericktown, Ohio
gene super is on a distinguished road
Default

I'd use mechanics wire to thread thru the proposed route, wrap it around the end of the hose and duct tape it, and use it as a pull wire to pull the hose into place.
Good luck!
Reply
Old Mar 22, 2006 | 11:28 AM
  #16
jdq's Avatar
jdq
Thread Starter
Senior Member
Posts like a Corvette

Joined: Nov 2005
Posts: 1,201
Likes: 1
From: Hamilton, Ontario , Canada
jdq is on a distinguished road
Default

Thanks Gene Ill give it a shot the entry is 1/2 inch and lots of twists and turns 90degrees at top
Reply
Old Mar 22, 2006 | 02:30 PM
  #17
BillBoost37's Avatar
DINOSAURUS BOOSTUS

Expert Gearhead

Joined: Mar 2005
Posts: 41,391
Likes: 30
From: Enfield, CT
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

jdq.. sounds like you found the problem. Please let us know how you get it fixed. I'm sure other members will run across it soon enough.
Reply
Old Mar 22, 2006 | 04:39 PM
  #18
jdq's Avatar
jdq
Thread Starter
Senior Member
Posts like a Corvette

Joined: Nov 2005
Posts: 1,201
Likes: 1
From: Hamilton, Ontario , Canada
jdq is on a distinguished road
Default

oK Bill I did find the problem ,the fix is another problem.I got Archon in on it , hes a smart guy,if you got any tips let me know.
Reply
Old Mar 23, 2006 | 04:59 PM
  #19
jdq's Avatar
jdq
Thread Starter
Senior Member
Posts like a Corvette

Joined: Nov 2005
Posts: 1,201
Likes: 1
From: Hamilton, Ontario , Canada
jdq is on a distinguished road
Default

Still trying, heres where Im at

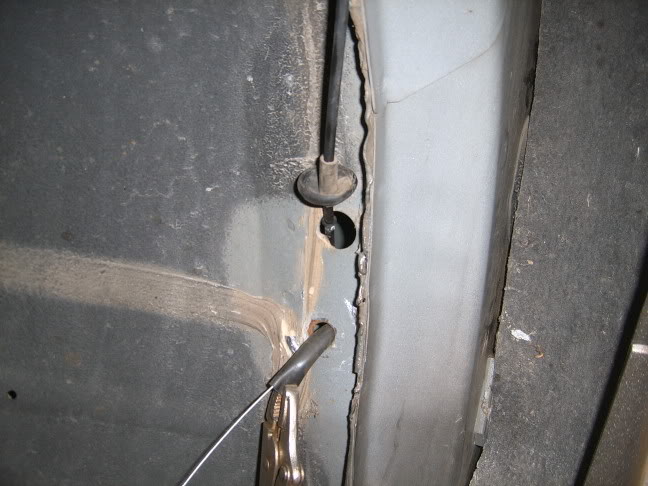

This is wheel well , I have fed cable wire thru rubber hose that stops half way to where I want to get.The cable above is hood release.
Name:  SUC50792.jpg
Views: 42
Size:  97.2 KB

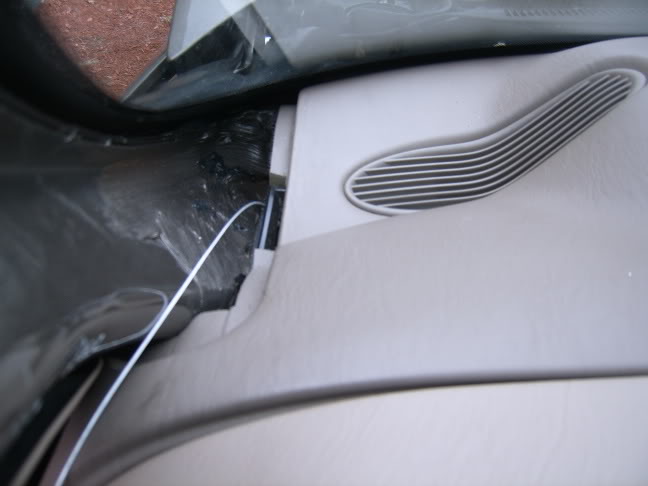

This is where it comes out of dash right in corner
Name:  SUC50794.jpg
Views: 42
Size:  70.3 KB

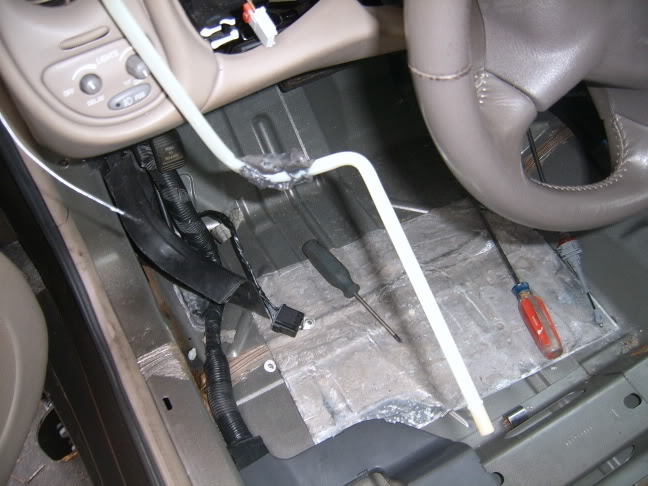

And this is the end coming down pillar that has to connect to short rubber hose inside
Name:  SUC50793.jpg
Views: 41
Size:  100.7 KB
Off to work , feel free to advise
Reply
Old Mar 23, 2006 | 08:22 PM
  #20
PontiacDad's Avatar
Senior Member
True Car Nut

Joined: Jun 2003
Posts: 6,313
Likes: 2
From: Purgatory
PontiacDad is on a distinguished road
Default

Sorry I've been tied up last few days.
According to the manual that white hose should be long enough to poke thru the floor board?
Tape it onto the end of your wire and have someone feed it down while you pull on the other end of the wire to fish it thru.
You could remove the park brake and lower panel for better access, there are only 3 nuts (10mm?) to remove the braket and pedal. Leave the brake cable on and set to the side.
