Default Today is leak test

Has anyone pulled console.I waas wondering how to disconnect shift cable and break cable, looks like pins but want to make sure they go back in easy.
Seats are out ,today console and carpets for cleaning and drying.And I will be looking for the leaks hopefully with a bare floor and doors leak will appear ,any other suggestions.thanks.
jdq is offline   Reply With Quote
Old 03-20-2006, 11:23 AM   #2
Senior Member
True Car Nut

Join Date: Jun 2004
Location: Rochester, NY (college)
Posts: 6,182
Thanks: 0
Thanked 0 Times in 0 Posts
corvettecrazy is on a distinguished road
Default

they should just pull off the shifter assembly. Then they snap back on.
corvettecrazy is offline   Reply With Quote
Old 03-20-2006, 04:56 PM   #3
jdq
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Nov 2005
Location: Hamilton, Ontario , Canada
Posts: 1,201
Thanks: 0
Thanked 0 Times in 0 Posts
jdq is on a distinguished road
Default

Thanks the floor is bare , did the water test found water coming in rear passenger floor where seat and floor meet.Looks like sunroof , now headliner does not get wet so is there any easy way to get to that one drain.I do not want to pull whole headliner.And where would I find bottom of drain hose.
Carpets are out I dont really like the car wash idea of cleaning as the ground is alays dirty and muddy and you would have to bring them home all wet.Any good ideas short of renting shampooer.thanks.
Also while inside of car is bare anything else I should look at ,hopefully this will be the only time carpet is out.I will caulk everything inside.Under carpet there is little black square patches ,they look like maybe drainage is this possible.
jdq is offline   Reply With Quote
Old 03-20-2006, 04:59 PM   #4
Senior Member
True Car Nut

Join Date: Jan 2005
Location: Montevideo, MN MWBF '05, '06, '07 WCBF '06 '07 survivor
Posts: 3,882
Thanks: 0
Thanked 0 Times in 0 Posts
sonoma_zr2 is on a distinguished road
Default

Quote:
Originally Posted by jdq
Thanks the floor is bare , did the water test found water coming in rear passenger floor where seat and floor meet.Looks like sunroof , now headliner does not get wet so is there any easy way to get to that one drain.I do not want to pull whole headliner.And where would I find bottom of drain hose.
Carpets are out I dont really like the car wash idea of cleaning as the ground is alays dirty and muddy and you would have to bring them home all wet.Any good ideas short of renting shampooer.thanks.
hang the carpet on the floor mat hooks, clean, let them drip dry for a 1/2 hr, squeegy off the bottom part that is still wet and throw in the back of a pickup for the ride home.
sonoma_zr2 is offline   Reply With Quote
Old 03-20-2006, 08:17 PM   #5
jdq
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Nov 2005
Location: Hamilton, Ontario , Canada
Posts: 1,201
Thanks: 0
Thanked 0 Times in 0 Posts
jdq is on a distinguished road
Default

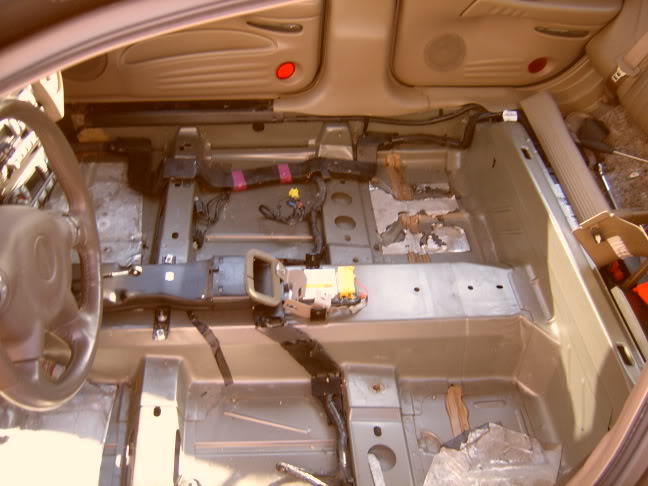

Ok here is where I am at heres the inside stripped
Name:  SUC50770.jpg
Views: 0
Size:  94.1 KB
This is the tear in my sunroof where water enters
Name:  SUC50767.jpg
Views: 0
Size:  103.6 KB

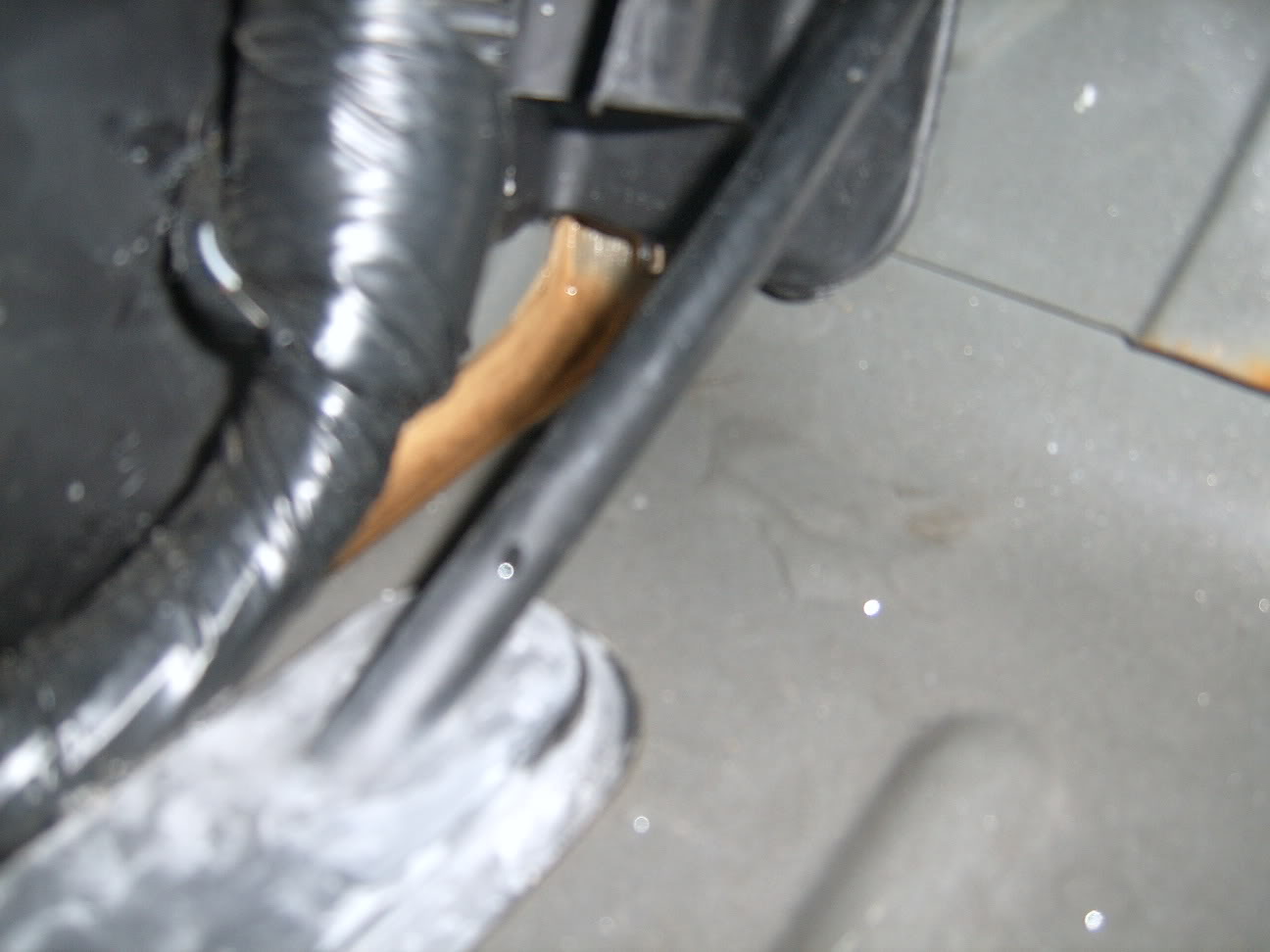

It comes into floor thru the rubber/plastic cover beside e brake pedal and runs along the trough starting where the orangeish /brown is
Name:  SUC50787.jpg
Views: 0
Size:  123.9 KB

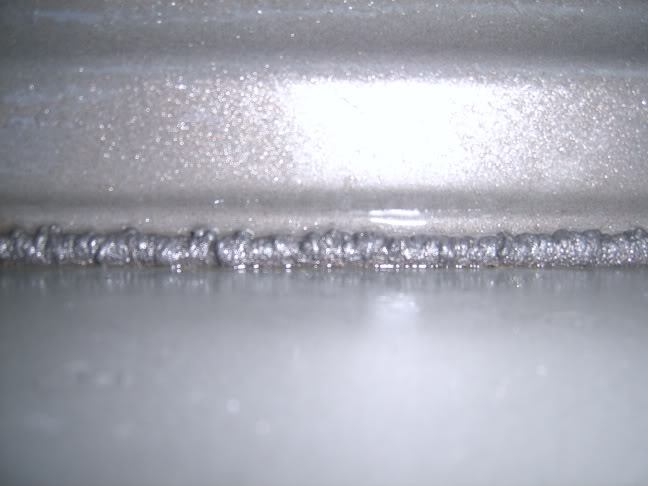

This is along drivers side floor trough ,water goes right to the back
Name:  SUC50789.jpg
Views: 0
Size:  98.0 KB
Name:  SUC50790.jpg
Views: 0
Size:  79.0 KB

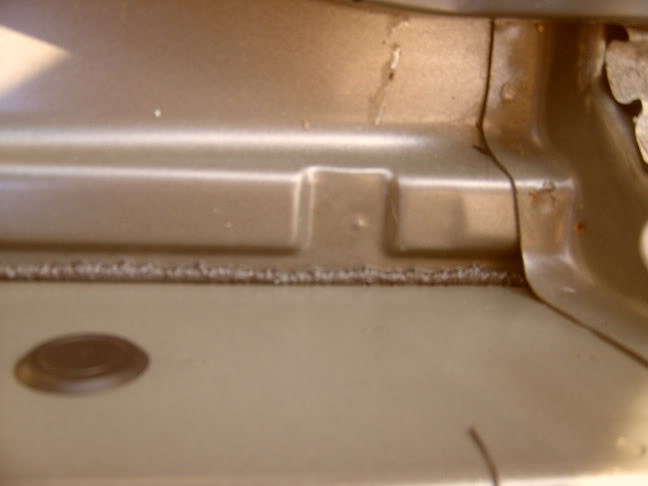

And this is where it oozes out thru the floor and gets sucked up by the thick foam sound barrier padding at back corner where floor meets seat.
Name:  SUC50769.jpg
Views: 0
Size:  62.2 KB
Now I have a couple of questions

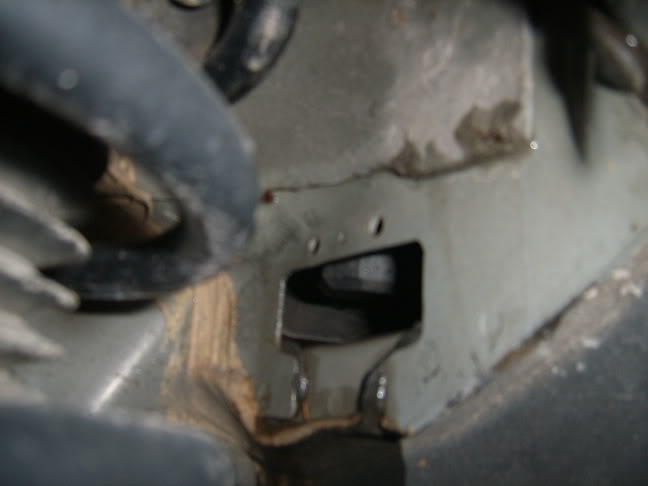

Is the sunroof drain on drivers side suppose to drain thru wheel well(in pic)I took off rubber flap
Name:  SUC50780.jpg
Views: 0
Size:  64.2 KB
And since nowhere is wet above could the drain just not be pointing out this drain exit in wheel well.Thanks
jdq is offline   Reply With Quote
Old 03-21-2006, 10:42 AM   #6
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Glad you pulled the interior. It takes the guesswork out of finding the leaks.
BillBoost37 is offline   Reply With Quote
Old 03-21-2006, 10:52 AM   #7
jdq
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Nov 2005
Location: Hamilton, Ontario , Canada
Posts: 1,201
Thanks: 0
Thanked 0 Times in 0 Posts
jdq is on a distinguished road
Default

Yes Bill sometimes we need a little BOOST. to do things.you know anything about the sunroof ,the rubber around it needs replaced,guess ill have to get that from dealer.
jdq is offline   Reply With Quote
Old 03-21-2006, 11:36 AM   #8
Senior Member
Posts like a Camaro

Join Date: Apr 2005
Location: Niagara Falls Ontario Canada
Posts: 1,121
Thanks: 0
Thanked 0 Times in 0 Posts
brianj is on a distinguished road
Default

That'* one of the reasons why I don't like sunroofs.........windnoise and waterleaks! Hope you get it dry again John! When you get that fix done then you start on my window regulator! Oh and of course that'* in between replacing the tails on your '90!
brianj is offline   Reply With Quote
Old 03-21-2006, 12:02 PM   #9
jdq
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Nov 2005
Location: Hamilton, Ontario , Canada
Posts: 1,201
Thanks: 0
Thanked 0 Times in 0 Posts
jdq is on a distinguished road
Default

ok Brian thought you are going away.
jdq is offline   Reply With Quote
Old 03-21-2006, 12:04 PM   #10
Senior Member
Posts like a Camaro

Join Date: Apr 2005
Location: Niagara Falls Ontario Canada
Posts: 1,121
Thanks: 0
Thanked 0 Times in 0 Posts
brianj is on a distinguished road
Default

After I get back! That'll give you time to get your car dried out! See you in April!
