Default Tech article on how to replace springs

Is there a tech article on how to replace the springs written up formally somewhere. I want to do my springs to 105# but don't know the proper way to do so. I have some info from different people but nothing from one source complete.
jshelton54 is offline   Reply With Quote
Old 07-02-2007, 12:06 AM   #2
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

its quite simple once you know what you are doing. first, you need to go shopping. you will need to rent a valve spring compressor, autozone does it for free.



you will also need an air compressor to hold the valves up while you have the spring removed. you can grab one of these fittings from a compression tester, or I can send you mine.

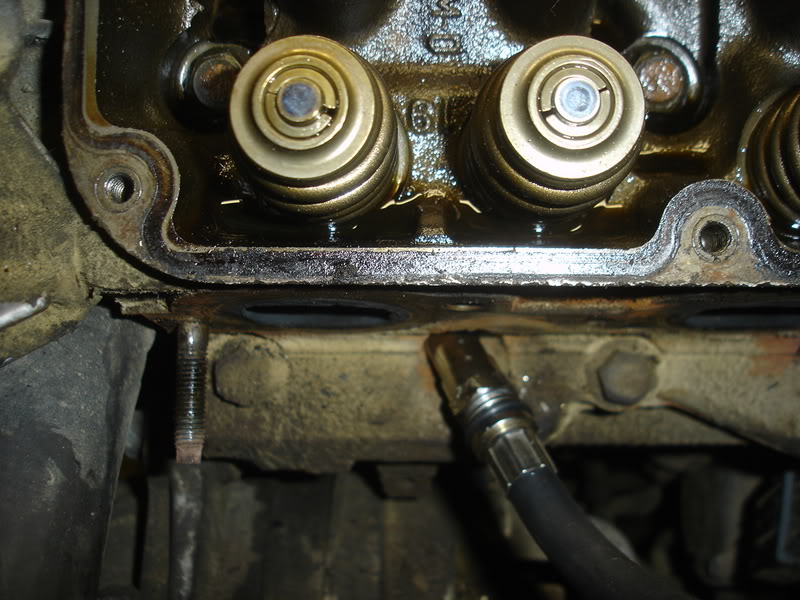

first, remove the valve covers, and the rockers. then to make sure the valve'* dont drop into the cylinder, you need to pressurize the chamber. this is done with the fitting and compressed air.


Name:  DSC05900-1.jpg
Views: 1
Size:  97.2 KB

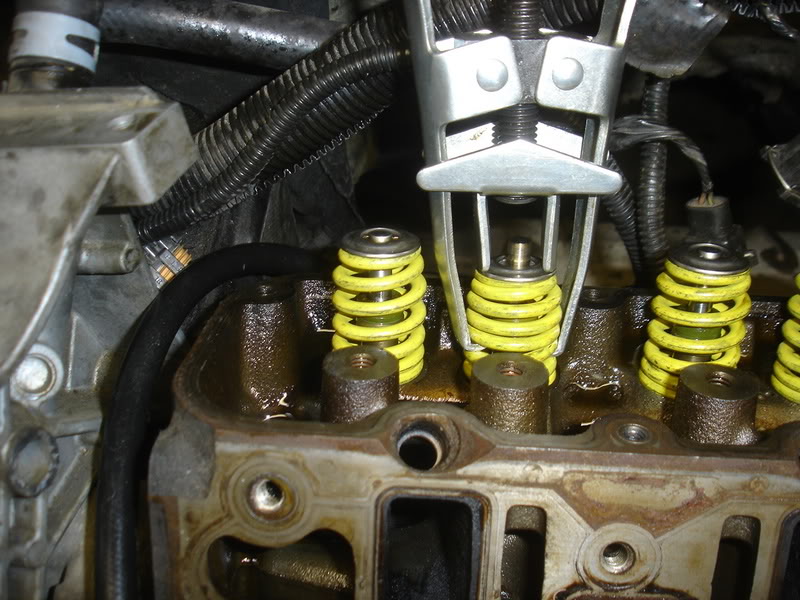

then, put the spring compressor tool on the spring and compress it. you will be able to feel if the valve is tight, or if it is going to drop. DO NOT let it drop, as you wil have to remove the head, $$$.

Name:  DSC05910-1.jpg
Views: 1
Size:  102.2 KB

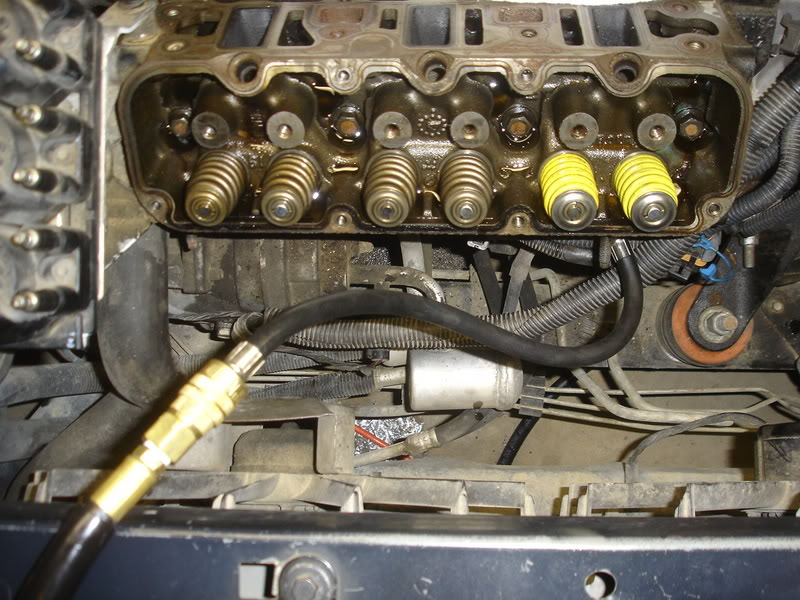

do the springs one by one, use a magnet to remove and apply the retainer locks.

Name:  DSC05907-1.jpg
Views: 1
Size:  118.9 KB

i dont really have much to add, other than, take your time.
harofreak00 is offline   Reply With Quote
Old 07-02-2007, 12:13 AM   #3
Senior Member
Posts like a Turbo

Join Date: Apr 2007
Location: Santa Rosa, CA
Posts: 360
Thanks: 0
Thanked 0 Times in 0 Posts
hawkjet is on a distinguished road
Default

Quote:
Originally Posted by harofreak00
its quite simple once you know what you are doing.
GREAT POST

This goes a loooong way to help us know what we're doing!
hawkjet is offline   Reply With Quote
Old 07-02-2007, 12:16 AM   #4
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

i meant to say, after the first spring, they are a breeze
harofreak00 is offline   Reply With Quote
Old 07-02-2007, 09:25 AM   #5
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

You also forgot to mention that some hissing is normal. If you feel a lot of air coming out either the intake or exhaust..(depending which valve you are on) you can tap the top of the spring with a rubber mallet to help seat the valve better. (If carbon etc exists).
BillBoost37 is offline   Reply With Quote
Old 07-08-2007, 12:02 PM   #6
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Jul 2006
Location: Meridian, ID
Posts: 508
Thanks: 0
Thanked 0 Times in 0 Posts
jshelton54 is on a distinguished road
Default

Yes, thank you for the photos. I got it done yesterday. I used a little different tool that used the rocker bolt and a longer fork looking tool to compress the spring but that is about it. Went to 105# springs.
jshelton54 is offline   Reply With Quote
Old 07-08-2007, 11:07 PM   #7
Member
Posts like a V-Tak

Join Date: Aug 2005
Location: Michigan
Posts: 78
Thanks: 0
Thanked 0 Times in 0 Posts
JAmon is on a distinguished road
Default

This needs to be in Tech Info along with Pauls post on changing rocker arms. I had to search very hard to find info to change rockers and springs. Very good write-up Haro!
JAmon is offline   Reply With Quote
Old 07-09-2007, 11:10 AM   #8
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Sounds good Jamon..

Please take the time and do the write up and send it via pm to me. From there pictures would go to the gearhead account for hosting and we'd review for accuracy etc.

Thanks
Bill
