Default shifter lighting

The console shifter on my Bonneville has never lit up since I've owned it, but several times I've hit it and it comes on for a few seconds. I've read on here that this is a fairly common problem and many owners don't even know their center console lights up. Anyone have a fix for this, or know what causes it? Its definitely not that the bulbs are burnt out...but I don't want to go tearing into it not knowing what I'm doing.
RJGill84 is offline   Reply With Quote
Old 11-11-2007, 09:26 PM   #2
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

I personally have never heard of that problem. However, I have had my center console apart more times than I would like to think. I would think the problem would be some pinched wire caused by the moving of the shifter, or a broken bulb filament that only shines for a second when the contacts happen to touch. The only way to find your problem is to investigate. The shift plate comes up rather easy after removing the shift ****. After you have that removed, you will be able to see any pinched wires. If you want to buy a new shifter from me, PM me.
harofreak00 is offline   Reply With Quote
Old 11-11-2007, 09:33 PM   #3
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

there is one bulb that lights up the PRND321 lights

when you remove the console you can then pop off the shifter plate...this will let you see the bulb that is in there
1993 SLE is offline   Reply With Quote
Old 11-11-2007, 09:36 PM   #4
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

A very simple job. Before you begin make sure you have a new light bulb in hand. It is either loose or broken.
2000SilverBullet is offline   Reply With Quote
Old 11-11-2007, 09:57 PM   #5
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jun 2007
Location: Akron, Ohio
Posts: 296
Thanks: 0
Thanked 0 Times in 0 Posts
RJGill84 is on a distinguished road
Default

Awesome - I'll probably take a look at it tomorrow.

I'll do some searching, but there was a thread on here a few months back where several people were like "I didn't even know the center console had lights!"
RJGill84 is offline   Reply With Quote
Old 11-12-2007, 10:33 PM   #6
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jun 2007
Location: Akron, Ohio
Posts: 296
Thanks: 0
Thanked 0 Times in 0 Posts
RJGill84 is on a distinguished road
Default

Good news - replacing the bulb was VERY easy, and the P R N D 3 2 1 lights up perfectly for the first time since I've owned the car.

Bad news - I broke off the little plastic tit that moves the gear selector indicator, effectively rendering my efforts pointless, lol. Damn.
RJGill84 is offline   Reply With Quote
Old 11-12-2007, 11:21 PM   #7
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

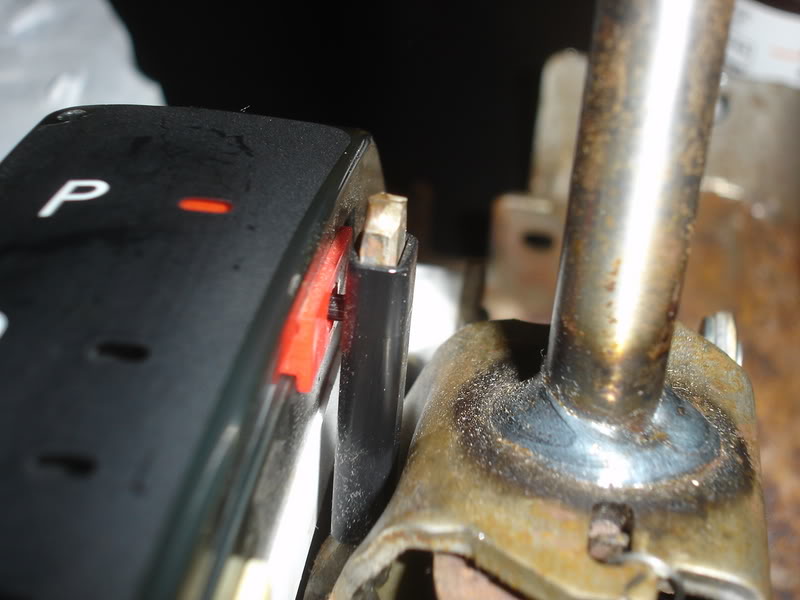

this piece? how much is it worth to ya?

Name:  DSC09349.jpg
Views: 1
Size:  55.6 KB
harofreak00 is offline   Reply With Quote
Old 11-13-2007, 12:51 AM   #8
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jun 2007
Location: Akron, Ohio
Posts: 296
Thanks: 0
Thanked 0 Times in 0 Posts
RJGill84 is on a distinguished road
Default

Ohhh...I dunno, couple bucks? lol. Ed Morad is a 20 minute drive from me. Does that piece just slip over the metal post?

I have interior lights out all over the place, and its really EXTREMELY annoying to me. Most of the buttons for the steering wheel audio controls flick on and off (some are always off - like mute), most of my radio lights are out or very dim as well as half of the display, and the "Delay" and "Off" no longer light up on the Twilight Sentinel.

Considering the fact that the whole red fighter cockpit thing makes Bonnies soooo cool @ night, it really is a buzzkill to have all these damn lights out...lol.

Pontiacs lighting methods are terrible - TONS of people on this forum have burnt out lights, and tons of people I know in person (my sisters Grand Am). Ridiculous QC on a $30,000+ vehicle.
RJGill84 is offline   Reply With Quote
Old 11-13-2007, 12:53 AM   #9
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

if you can get it from Ed for a few bucks, go for it.. but I'm not gonna dismantle this shifter assembly for a couple bucks. good luck!

and yes, it just slips over the metal piece
harofreak00 is offline   Reply With Quote
Old 11-13-2007, 02:48 PM   #10
Senior Member
True Car Nut

Join Date: Oct 2002
Location: Genoa, Illinois
Posts: 4,013
Thanks: 0
Thanked 0 Times in 0 Posts
Allmachtige is on a distinguished road
Default

Interesting. I noticed mine sometimes goes out, but comes back on at other times.
