Thumbs up Rear Mount

Can anyone provide me a picture or two of a good rear motor/trans mount that is near the firewall on a 2001 bonneville? I would like to see a picture so that I can reference the picture to my mount when I look at it. I am suspecting that my rear mount is bad because I have already torn two front trans mounts and I had to recently revert back to my hockey puck mount. Not a fan of the puck mount because of the excessive vibration in the cabin.

Thanks for help if you have pictures......

TTERZ
tterz is offline   Reply With Quote
Old 10-27-2009, 06:27 PM   #2
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

I know this doesn't answer your question, but when I did my solid mount I added another puck above the engine bracket. The stack from top to bottom (not including washers) is double nut, cross member, 3 pucks, engine bracket, 1 puck and double nut. By adding the 4th puck above the engine bracket you isolate some of the vibration. Not all. Some.
2kg4u is offline   Reply With Quote
Old 10-27-2009, 06:53 PM   #3
Member
Posts like a V-Tak
Thread Starter

Join Date: Sep 2005
Location: NW Indiana
Posts: 40
Thanks: 0
Thanked 0 Times in 0 Posts
tterz is on a distinguished road
Default

2KG4U
Thanks for the information. I do have the additional puck on top with a small notch in it so that it sits flat on the metal cross brace. Still getting a little more vibration than I want though......I am kind of pickie!! Maybe there is more vibration because back mount is not doing its job??? Not sure...have not looked at it yet.

If noone has pictures, can someone offer me a discount part store part number for the part so that I get the right one? Autozone part # maybe?

Last edited by tterz; 10-27-2009 at 06:55 PM.
tterz is offline   Reply With Quote
Old 10-27-2009, 06:54 PM   #4
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Check out Auto Parts Fast at RockAuto They have some of the best prices around
Danthurs is offline   Reply With Quote
Old 10-27-2009, 07:06 PM   #5
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

I have a GM part number list for your year at home. I'll take a look tonight. Any automotive store can cross referecne OEM part numbers.
2kg4u is offline   Reply With Quote
Old 10-27-2009, 09:30 PM   #6
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

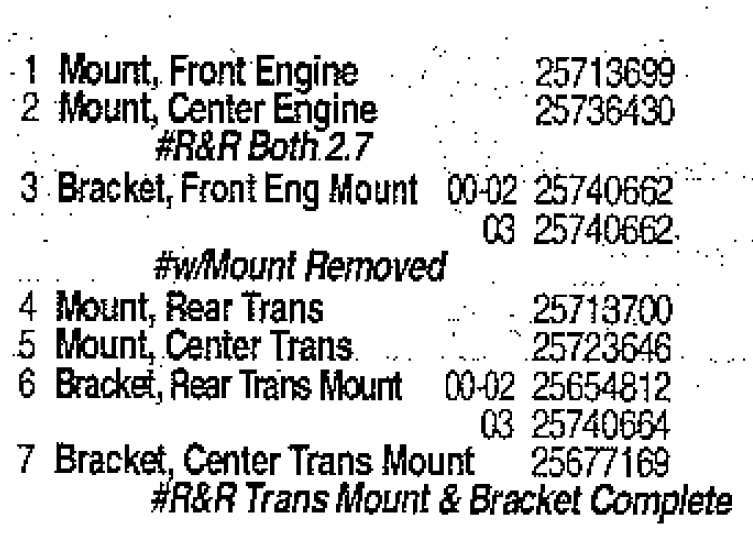

Try this:


Attached Thumbnails
Rear Mount-mounts.jpg
2kg4u is offline   Reply With Quote
