Default Notes from changing engine mount (really trans mount)

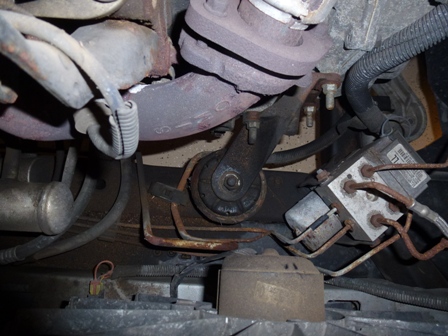

Changed the transmission mount today, almost everyone calls this a motor mount.

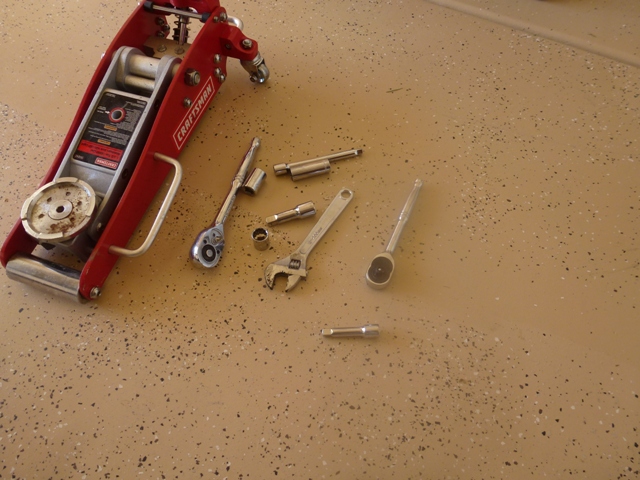

It was very easy to do. All that is needed is a floor jack, 11/16 and 15 mm sockets and ratchets.

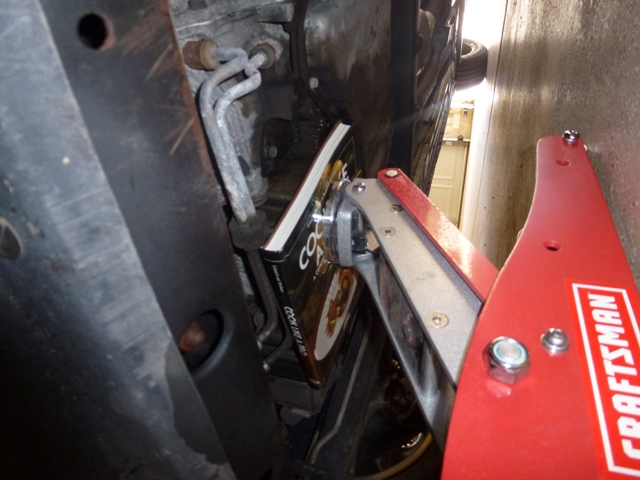

Spray PB Blaster a few days before. I didn't have a block of wood to put between the floor jack and engine, so I used one of my Wife'* cook books.

Took under an hour, with a hot engine in Phoenix. Without gloves I would not of been able to do the job.

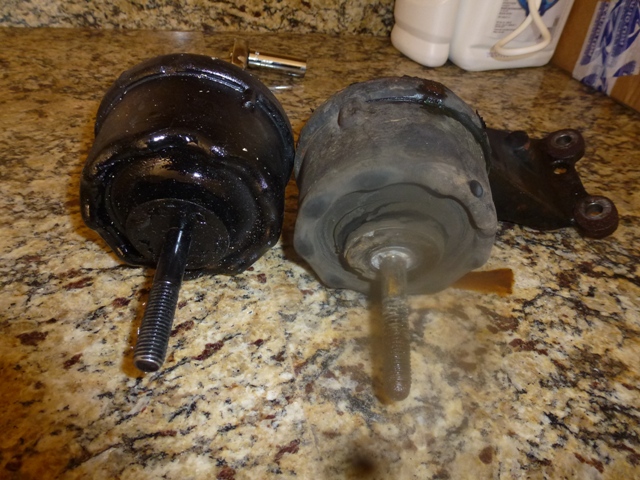

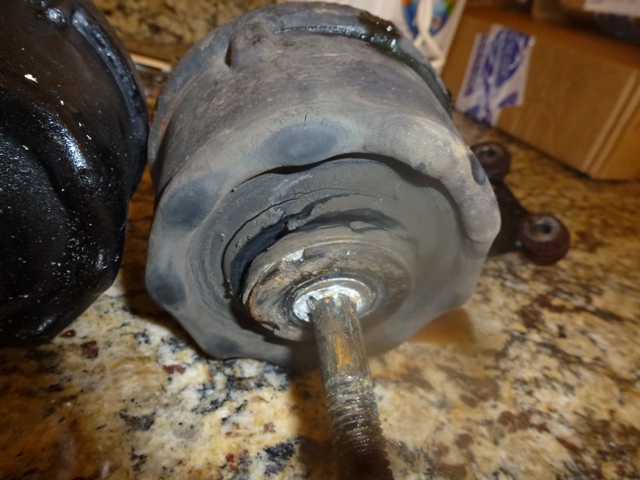

The picture of the old mount shows the damage at the bottom of the base. You can't see the damage when the mount is installed.
Attached Thumbnails
Notes from changing engine mount (really trans mount)-p1000877.jpg   Notes from changing engine mount (really trans mount)-p1000881.jpg   Notes from changing engine mount (really trans mount)-p1000882.jpg   Notes from changing engine mount (really trans mount)-p1000883.jpg   Notes from changing engine mount (really trans mount)-p1000884.jpg

GunsOfNavarone is offline   Reply With Quote
Old 05-23-2013, 06:31 AM   #2
Senior Administrator


Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,636
Thanked 990 Times in 769 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Well done Mike. Be thankful it wasn't a 92-99 series forward mount LOL. That bracket is a bear to get out.
Mike is offline   Reply With Quote
Old 05-26-2013, 02:44 PM   #3
Junior Member

Arrowhead's Avatar

Join Date: May 2013
Location: Frederick, Maryland. USA
Posts: 1
Thanks: 0
Thanked 0 Times in 0 Posts
Arrowhead is on a distinguished road
Default

Just a friendly "heads up" from a newb in his first post, your brake lines look just like some of mine do. Ready to rust through and spray fluid everywhere ! I just pulled out my bubble flaring kit the other day. They sure don't galvanize items like they used to !
Arrowhead is offline   Reply With Quote
Old 05-26-2013, 08:05 PM   #4
Senior Member
Posts like a Supercharger

Join Date: Sep 2005
Posts: 195
Thanks: 0
Thanked 6 Times in 5 Posts
imidazol97 is on a distinguished road
Default

Quote:
Originally Posted by GunsOfNavarone View Post
It was very easy to do. All that is needed is a floor jack, 11/16 and 15 mm sockets and ratchets.
Thanks for the pictures and the encouragement. I think I'm due for that trans mount at 153,000 on my 03.
imidazol97 is offline   Reply With Quote
Old 05-26-2013, 08:27 PM   #5
certified crazy person
Certified GM nut

eltatertoto's Avatar

Join Date: Sep 2010
Location: hobart indiana (1 hr from chicago)
Posts: 1,871
Thanked 64 Times in 52 Posts
eltatertoto is a jewel in the rougheltatertoto is a jewel in the rougheltatertoto is a jewel in the rougheltatertoto is a jewel in the rough
Default

Quote:
Originally Posted by imidazol97 View Post
Thanks for the pictures and the encouragement. I think I'm due for that trans mount at 153,000 on my 03.
me too at about 171,000. lol
eltatertoto is offline   Reply With Quote
Old 05-31-2013, 10:43 AM   #6
Retired Administrator

True Car Nut
Thread Starter

GunsOfNavarone's Avatar

Join Date: Apr 2009
Location: Williamsport, PA
Posts: 2,854
Thanked 167 Times in 129 Posts
GunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud of
Default

Gents,

I would definitely change the mount ASAP. I regret not replacing mine years ago. It really makes a huge difference. Most of the big box auto stores don't stock, RockAuto has them for $30, but a week+ for shipping. Amazon has then for $40, and two day free delivery for prime customers.

Amazon lists two brands for sale, one at $40 and one at $55. I believe they are the same exact manufacturer, just different boxes.
GunsOfNavarone is offline   Reply With Quote
Old 05-31-2013, 10:45 AM   #7
Retired Administrator

True Car Nut
Thread Starter

GunsOfNavarone's Avatar

Join Date: Apr 2009
Location: Williamsport, PA
Posts: 2,854
Thanked 167 Times in 129 Posts
GunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud of
Default

Quote:
Originally Posted by Arrowhead View Post
Just a friendly "heads up" from a newb in his first post, your brake lines look just like some of mine do. Ready to rust through and spray fluid everywhere ! I just pulled out my bubble flaring kit the other day. They sure don't galvanize items like they used to !
Jeff,

Thanks for the heads up. Please look at the post from last month:

https://www.gmforum.com/2000-2005-90...e-yard-304946/

BTW- the Chandler, AZ pic a part has a corrosion free 2004 Bonneville SLE. The brake lines, everything look like new. If someone needs brake/ fuel lines drop me a pM, I may be able to pull them for you. Shipping is another matter....
GunsOfNavarone is offline   Reply With Quote
